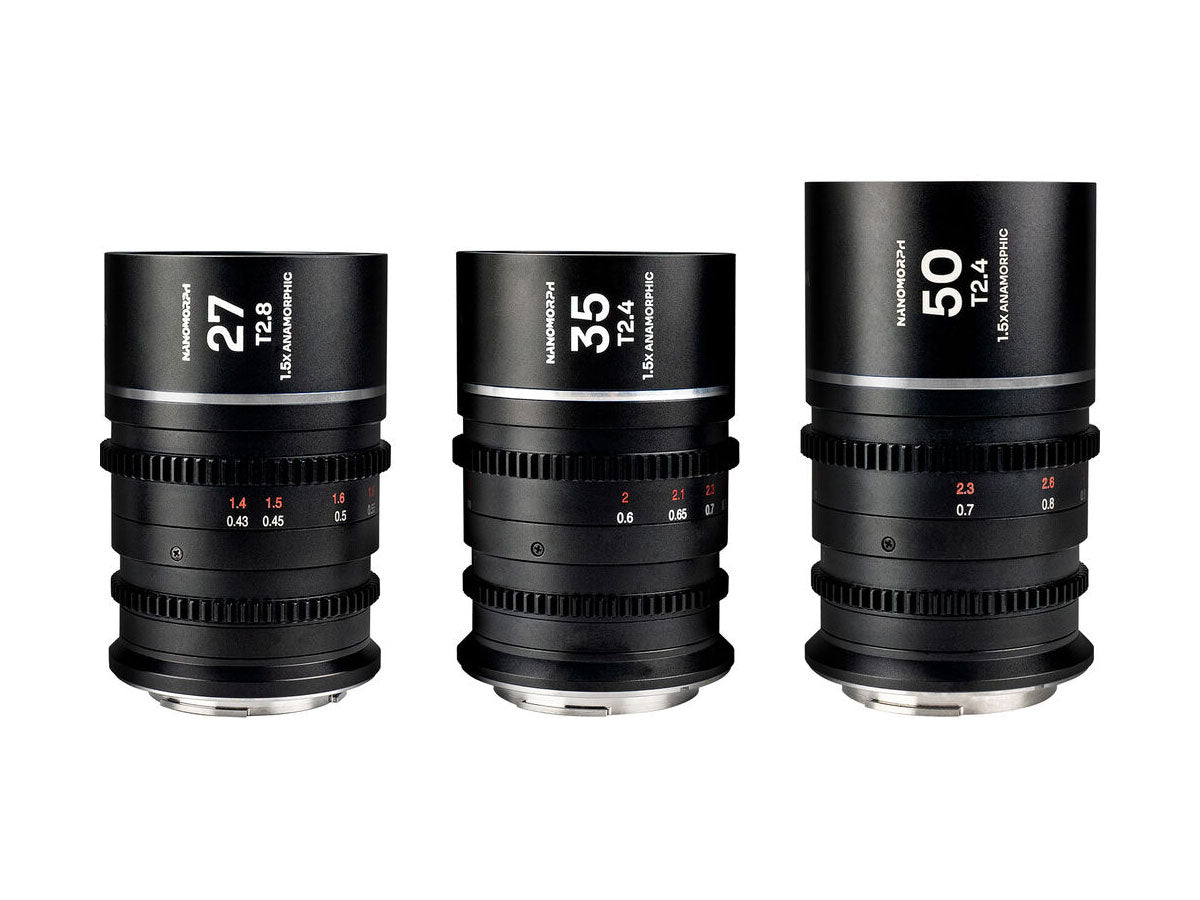

Laowa Nanomorph 3 Lens Kit - 27/35/50mm (Silver) - Micro Four Thirds

Laowa Nanomorph 3 Lens Kit - 27/35/50mm (Silver) - Micro Four Thirds

SKU: LA-VE273550MFTS
£2,465.83 GBP ex VAT
£2,959.00 GBP inc VAT
ex VAT £2,465.83 GBP ex VAT
£2,959.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
The Laowa Nanomorph series is dedicatedly designed for Super35 and Micro Four Thirds cameras. The anamorphic lens is “Nano” as it is extremely super tiny and light. “Morph” indicates to Anamorphic. The range includes 3 different focal lengths - 27mm T2.8, 35mm T2.4, and 50mm T2.4. It is a front anamorphic design with a 1.5x constant squeeze ratio at ALL focusing points. Three flares options are available - amber, blue & silver, for the use of different film genres and different preferences of videographers and filmmakers. The short closest focusing distance also helps render stronger bokeh and create stronger sense of compression.
Patented Anamorphic Design
  • For more professional anamorphic lenses, it requires higher optics design capability and it always costs enormously. The size of these lenses tends to be cumbersome and super heavy as well.
  • In light of these, Laowa introduces its unique patented anamorphic design to guarantee uniform squeeze ratio and promising optical quality which solves the struggles of every anamorphic user.
  • Laowa relocates the groups of lens elements that are arranged in [spherical glasses + focusing system + cylindrical glasses + spherical glasses]. Group 1 and the focusing system compresses the images and hence the smaller cylindrical blocks can be used, which makes the lens tinier and compact. Moreover, the image is formed and focused before the cylindrical blocks. The images projected onto the cylinders remain the same so it can maintain a constant squeeze ratio even if the subject moves closer for closer focus.
Revolutionarily Light and Compact
  • It only weighs <400g/14oz each & is 10cm long.
  • Very handy for every set-up e.g. handheld, on a gimbal, on a tripod, on a slider, on a camera jib, even on a drone. Not many anamorphic lenses can be lifted on drones as there is a strict limitation on weight.
Constant 1.5x Squeeze Ratio
  • A 1.5x squeeze ratio is the perfect balance between the size and anamorphic intensity. With a 1.5x squeeze ratio, you will have a 2.66:1 on a 16:9 sensor after de-squeeze. There is a bit room for you to crop into 2.4:1 widescreen ratio. However, a 1.8x or 2x would become 3.2:1 and 3.5:1 which need more crop to 2.4:1. Some image will be wasted.
Artistic Oval Bokeh
  • A 1.5x squeeze ratio also renders oval bokeh which gives an artistic touch to the image. It also creates a blurry and creamy background that pops out the subject.
Short Focusing Distance
  • The closest focusing distance is shortened so users could create closer shots. It renders shallower depth of field so the sense of compression will be stronger. The bokeh will be more oval.
  • Nanomorph 27mm T2.8 1.5x S35 - 43cm/ 16.9"
  • Nanomorph 35mm T2.4 1.5x S35 - 60cm/ 23.6"
  • Nanomorph 50mm T2.4 1.5x S35 - 70cm/ 27.5"
Professional Cine Housing
  • Unified gear position The unified gear position allows users to switch lenses quickly and without readjustment on the focus gear.
  • 55mm filter thread for screw-in filters 55mm filters can be attached directly on the lens which filmmakers can combo a handy setups. It is favorable when doing a Run-And-Gun shot or flying it with a drone.
  • Dual Scale Both imperial and metric scale are printed on the lens body.
  • 0.8 mod gear Industry standard 0.8 mod gear is installed on both aperture and focus rings.
  • Flange Back Adjustment It allows users to adjust the back focus easily.
  • Designed for Super35 and Micro Four Thirds cameras
  • Extremely Tiny (3.5" long) and Light (<0.7 lbs)
  • 1.5x CONSTANT squeeze ratio at ALL focusing points (No Anamorphic Mumps)
  • Front Anamorphic Design
  • Super Close focusing distance (17" from subject to sensor)
Focal Length: 27mm 35mm 50mm
Mount: Micro Four Thirds
T-Stop Range: T2.8 - T16 T2.4 - T16 T2.4 - T16
Format: Super 35
Angle of View: 70.8° (Horizontal) x 33° (Vertical) 57.5° (Horizontal) x 25.8° (Vertical) 42° (Horizontal) x 18.2° (Vertical)
Image Circle Diameter: 25.6 x 18mm
Squeeze Ratio: 1.5x
Min. Focusing Distance: 43cm / 1' 5" 60cm / 1' 11" 70cm / 2' 3"
Lens Structure: 15 elements in 13 groups
Aperture Blades: 13
Focus Throw: 271.5° 267° 269.5°
Aperture Throw: 70.7° 56.9° 59.4°
Focus Indicator: Imperial & Metric (Dual Scale)
Flare Colour: Silver
Front Diameter: ⌀58mm
Filter Thread Diameter: ⌀55mm
Dimensions: ⌀60mm x 86mm / ⌀2.36" x 3.38" ⌀60mm x 86mm / ⌀2.36" x 3.38" ⌀60mm x 96mm / ⌀2.36" x 3.78"
Weight: 313g / 0.69lbs 360g / 0.79lbs 390g / 0.86lbs
  • 1 x Nanomorph 27mm - MFT Mount - Silver
  • 1 x Nanomorph 35mm - MFT Mount - Silver
  • 1 x Nanomorph 50mm - MFT Mount - Silver
