Kupo Jumbo Stand 2 Sections
Kupo Jumbo Stand 2 Sections
£1,833.85 GBP inc VAT
£1,833.85 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications

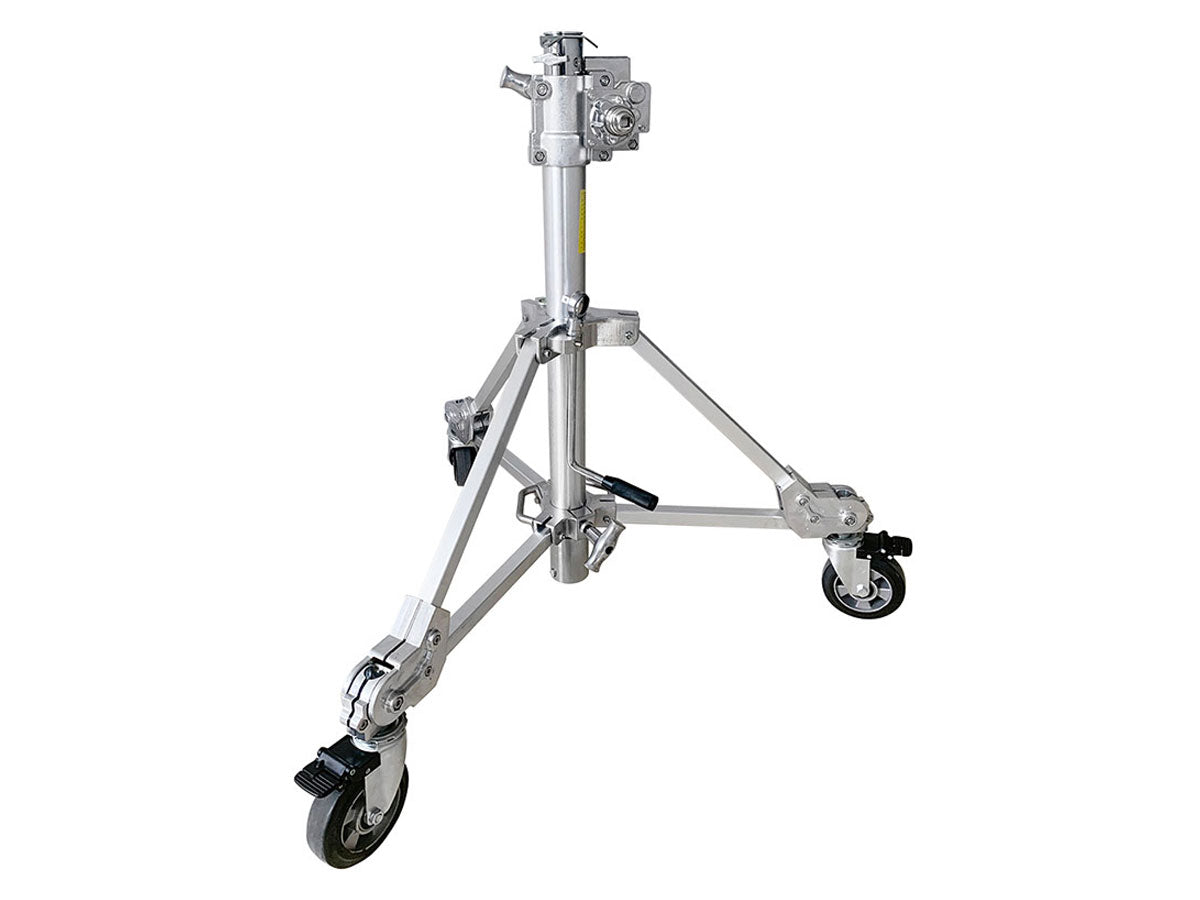

The KUPO two-section heavy-duty hand-cranked stand has a load capacity of up to 100kg and a minimum working height of only 108cm, making it easy to store equipment.

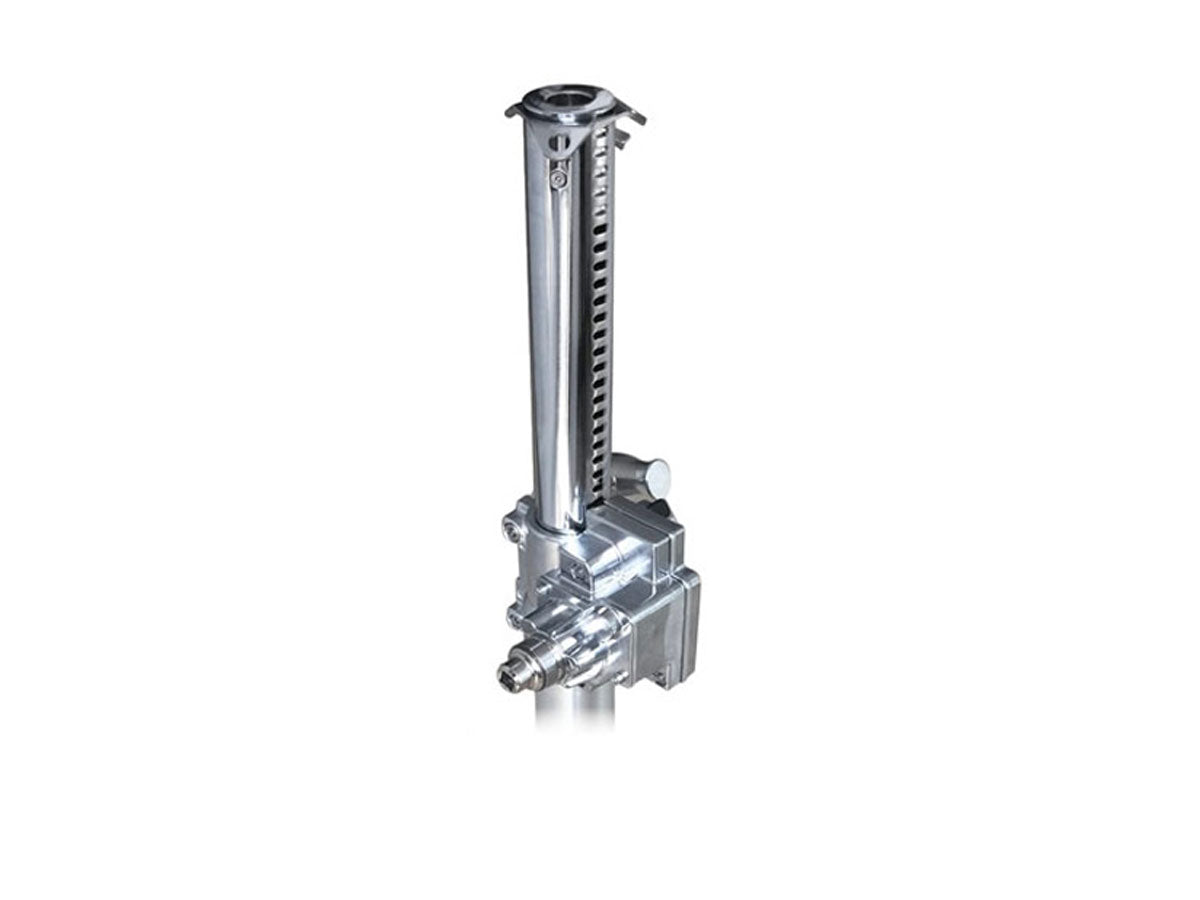

With a spread diameter of only 106cm, it is especially suitable for Layer truss paltform. The overall structure is composed of iron telescopic tubes, aluminum alloy columns and foot tubes. The head has a 28mm female socket with a fixed ring around it. The hand-cranked mechanism has a gear plate, and the ratchet handle can be inserted and rotated according to the arrow instructions to adjust the height.
The ergonomic large handle provides comfort and makes it easier to apply force, and it also has an anti-backlash device to prevent equipment from falling suddenly and causing danger. Each telescopic tube has a maximum extension marking line to avoid exceeding the safe extension height. The handle is detachable and can be stored in the storage slot on the upper seat when not in use, to prevent damage to the handle and hand-cranked mechanism during transportation.
The upper seat storage slot has a safety latch design to prevent the handle from accidentally falling out. The upper seat is equipped with a level gauge to facilitate confirmation of the levelness of the stand. The lower seat has dual handles for easy folding of the stand, with 30x30mm square foot tubes to ensure the strength and stability of the stand. It comes with six-inch brake casters KC-160S for easy movement of the stand.
The stand is assembled with stainless steel screws and nuts to ensure strength and prevent rust.
- Large size T-handle on each riser is ergonomically design for maximum torque.
- 28mm (1-1/8”) junior receiver with 3 eyelets for wind bracing kit.
- Dual handle equipped on bottom spider casting for easily folding the base.
- Leg brace is made of rectangular steel tubing for maximum stability and safety.
- Auto self-locking device prevents unintentional and uncontrolled lowering of the load.
- Industry 6” (152mm) braked caster included makes stand moveable in the studio or on location.
- Assembled by nuts and bolts for easier maintenance and adjustable tightness instead of fixed rivets.
| Closed Length: | 127.5cm / 50.2" |
| Maximum Height: | 175cm / 42.52" |
| Minimum Operating Height: | 108cm / 42.52" |
| Weight: | 31.55kg / 63.1lbs |
| Footprint Diameter: | 106cm / 41.74" |
| Maximum Payload: | 100kg / 220lbs |
| Stand Top: | UV |
| Suggested Caster (Optional): | KC-160 |
