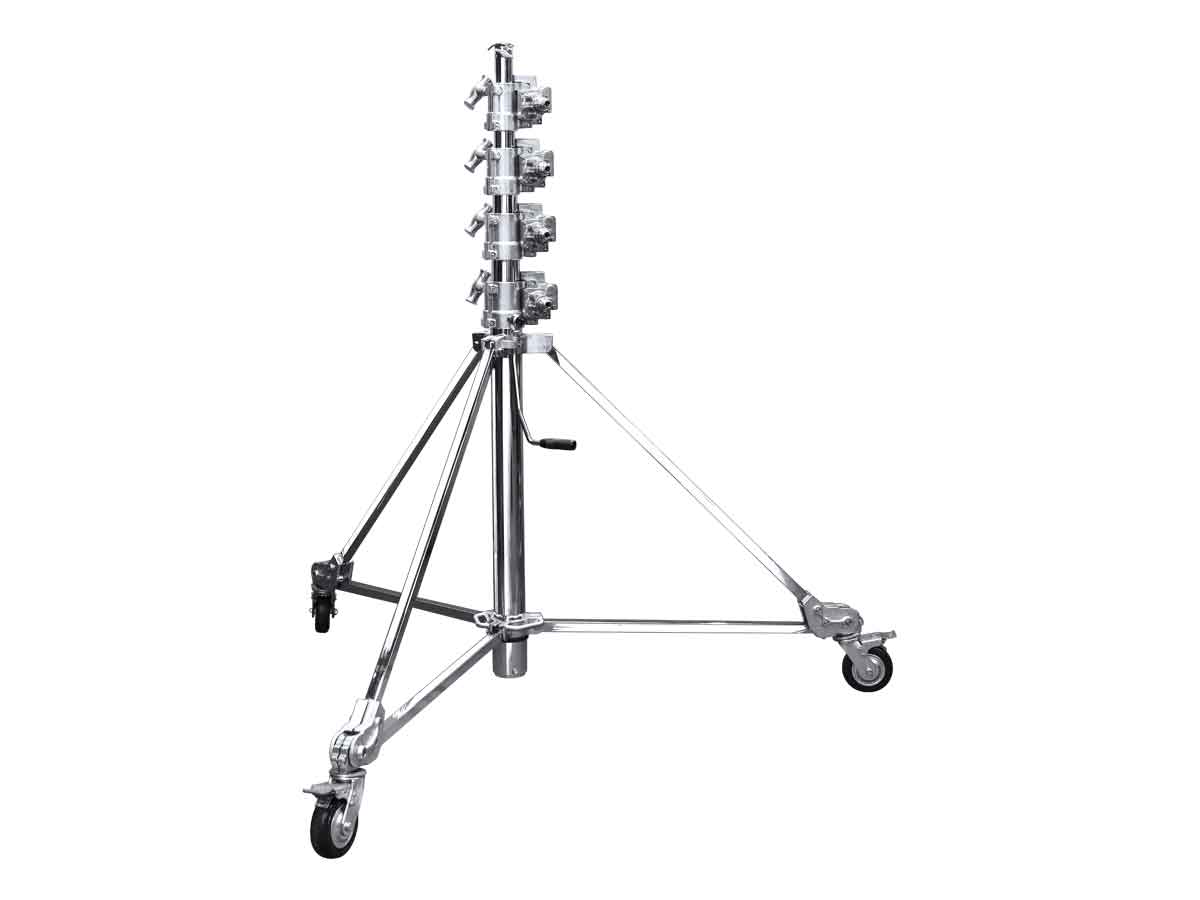

The Kupo Jumbo Stand is a robust and reliable solution for safely supporting extra heavy loads.
Made of chrome plated steel, it is built with safety in mind to meet the industry's requirements. With a load capacity of up to 154lbs (70kg) and a maximum working height of 20' (6.1m), this stand is designed to handle even the heaviest loads.

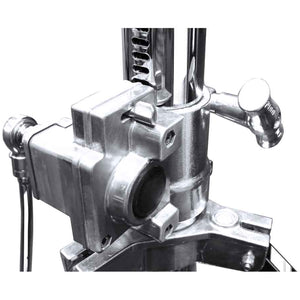

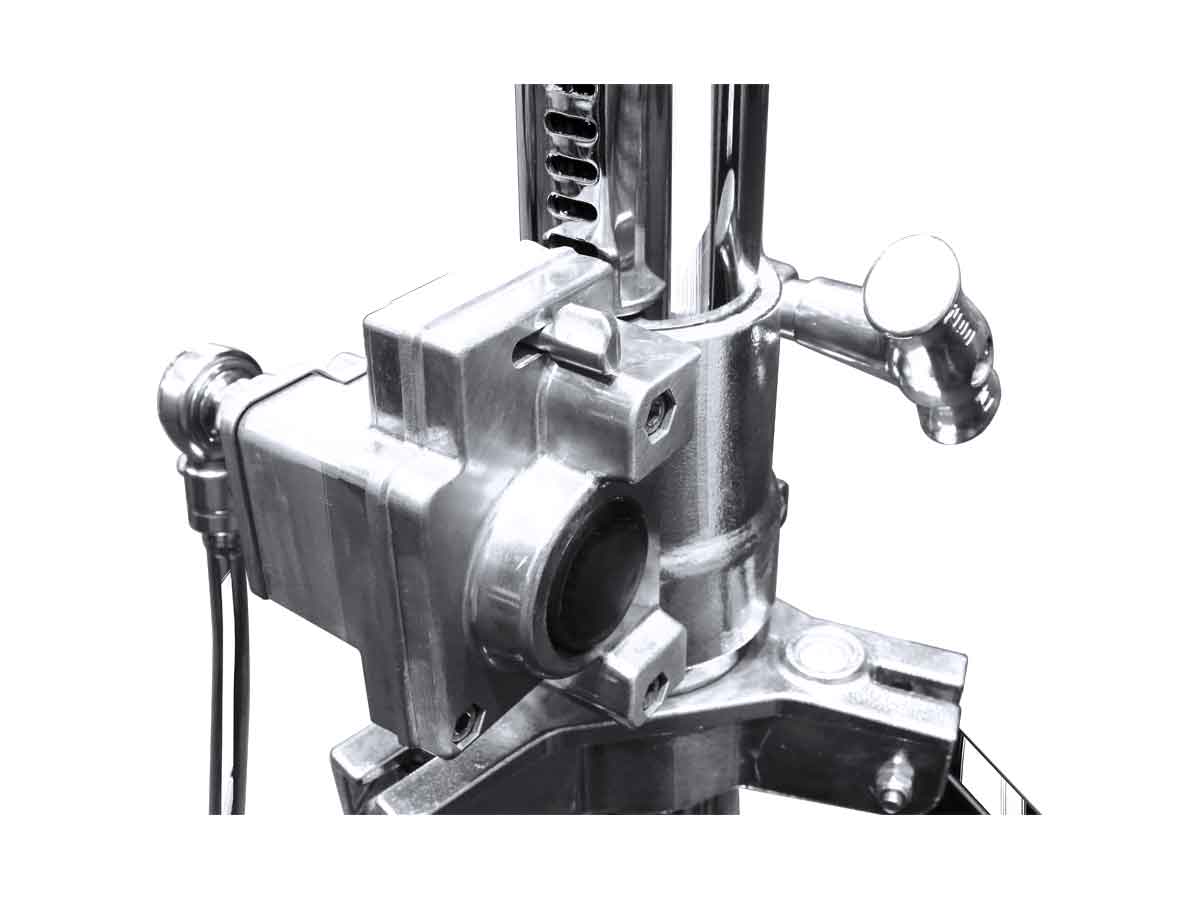

The Kupo Jumbo Stand features a direct drive gear mechanism and auto-locking system, which provides superior performance compared to traditional pulleys and cables.
Each riser has an oversized T-handle for maximum torque when locking down, while dual handles on the bottom facilitate folding down the weighty support. The 1-1/8" (28mm) junior receiver on stand top comes with eyelets for guy wires, ensuring stability even in challenging conditions.
The integrated braking wheels allow for safe and effortless repositioning, offering peace of mind during your shoots.

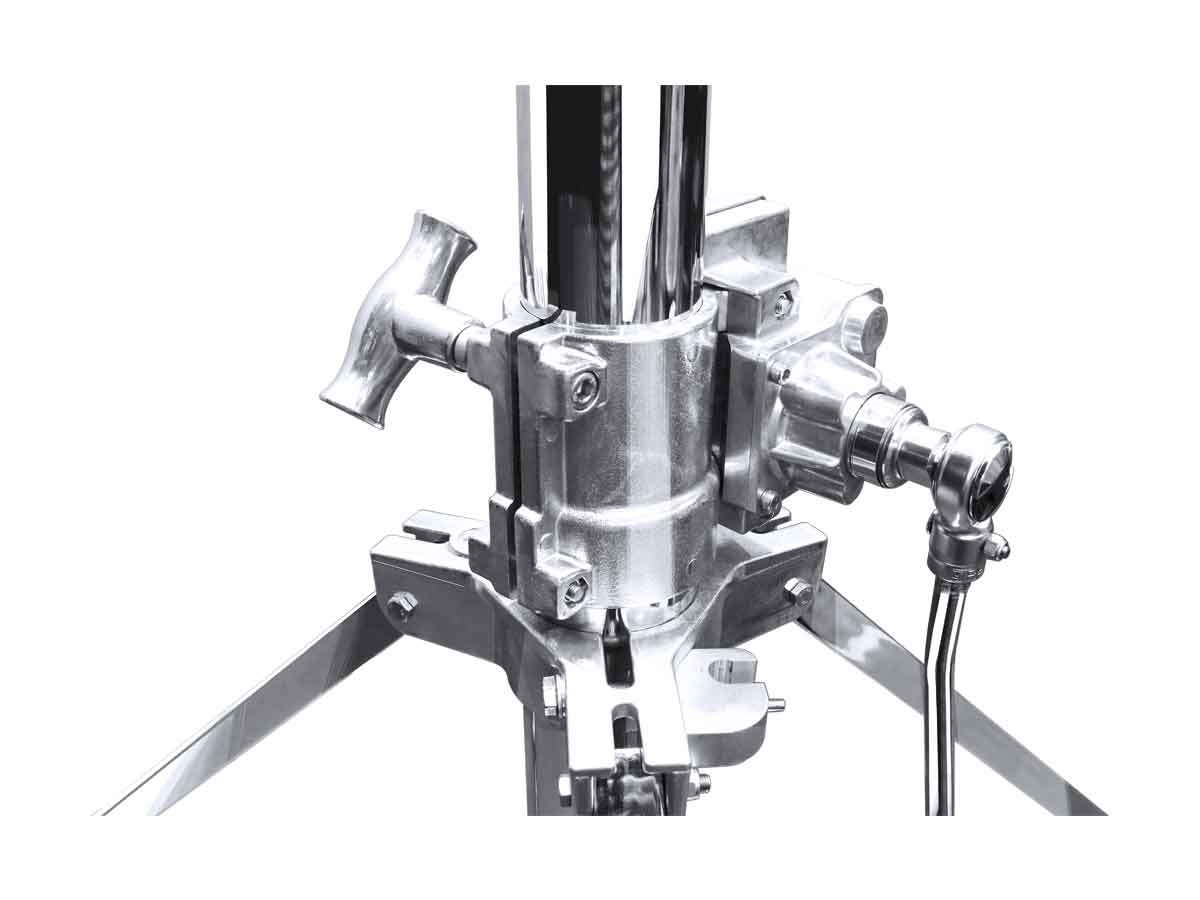

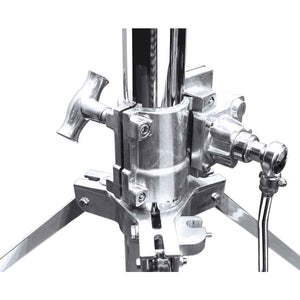

- Large size T-handle on each riser is ergonomically designed for maximum torque.

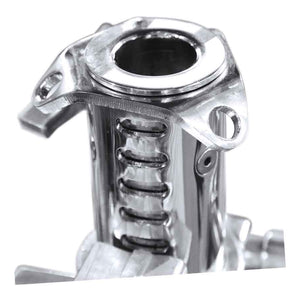

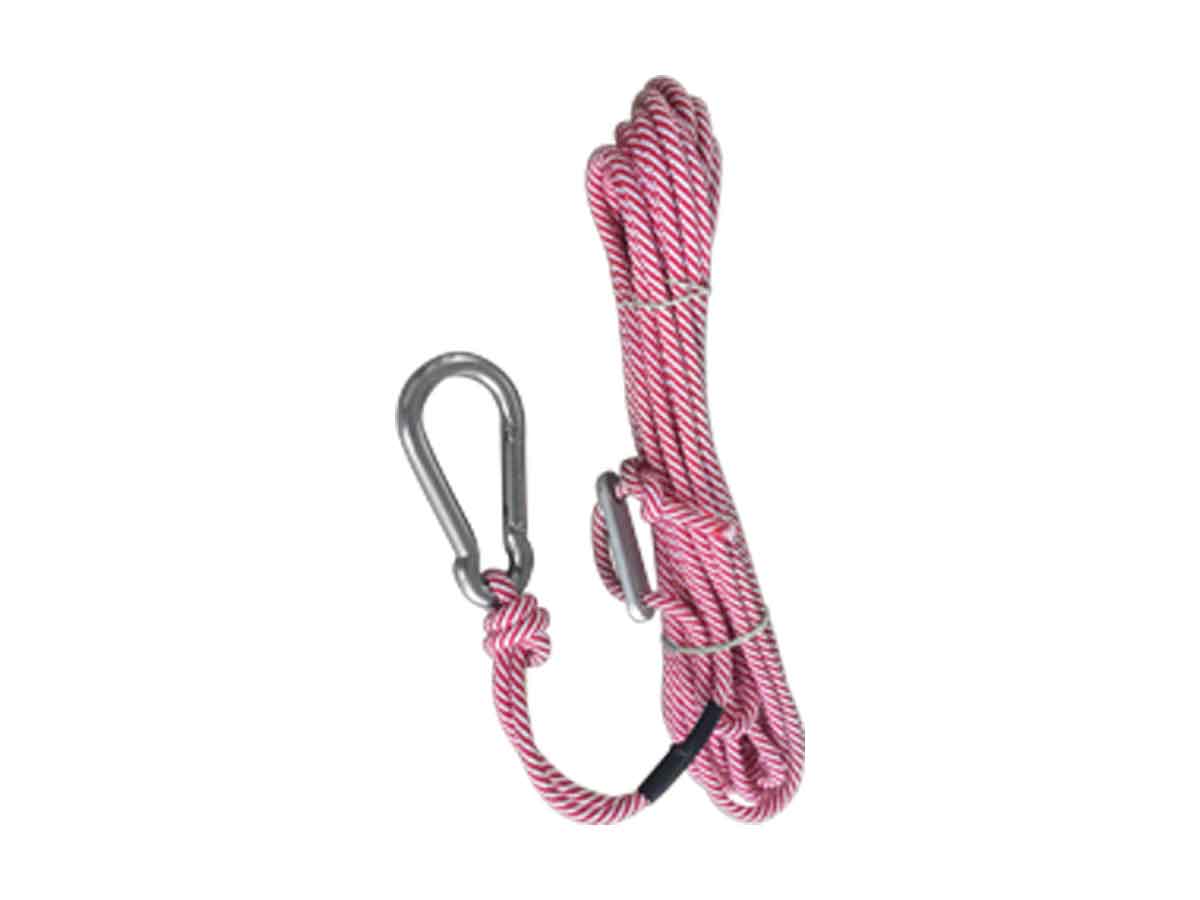

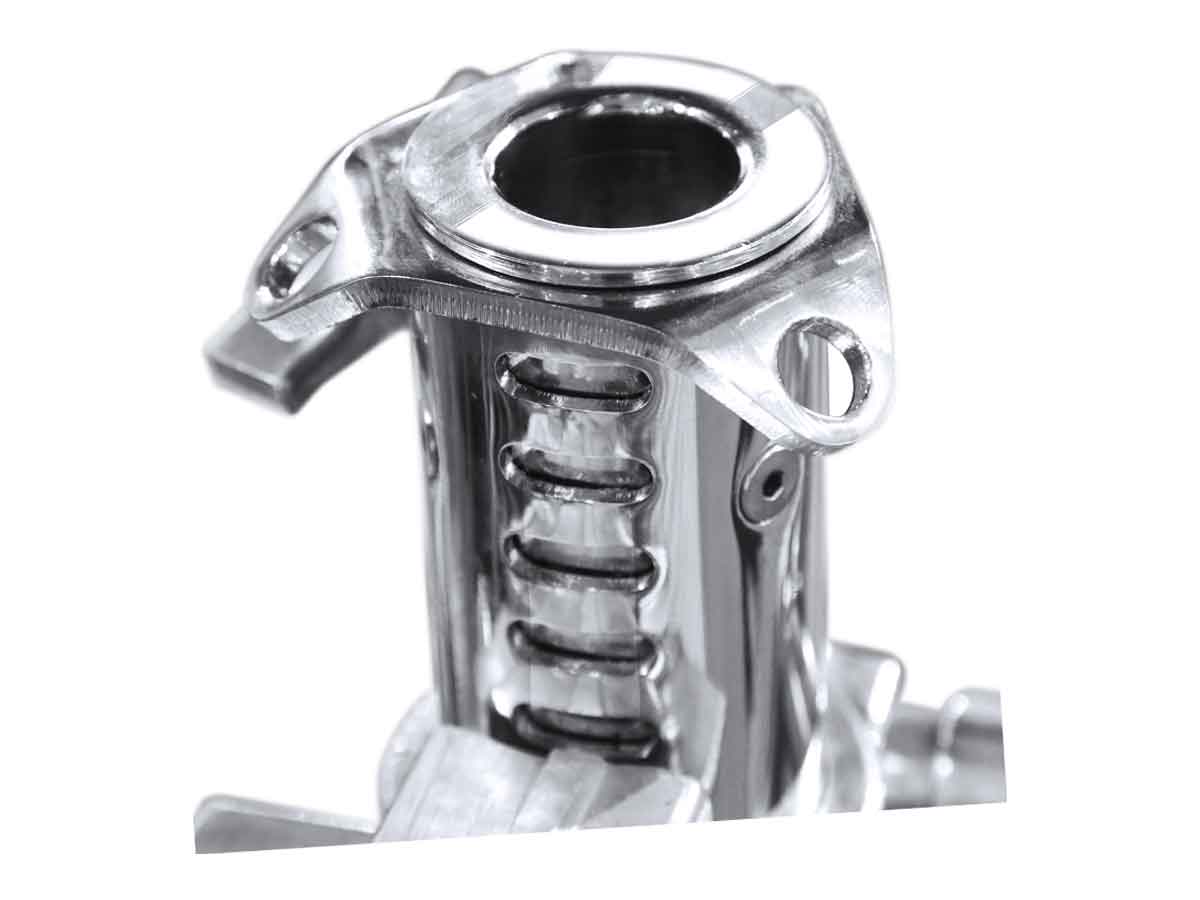

- 28mm (1-1/8") junior receiver with 3 eyelets for wind bracing kit.

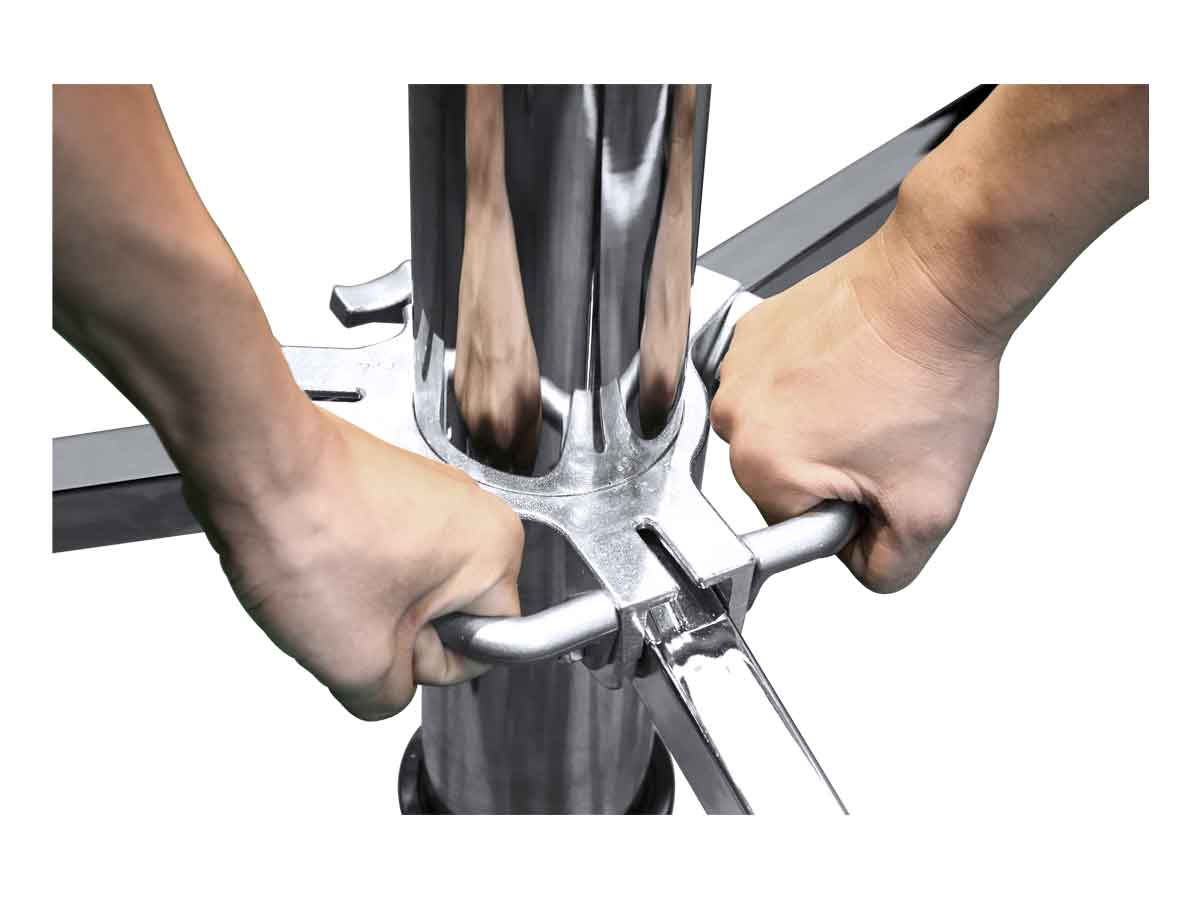

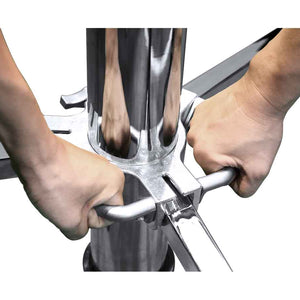

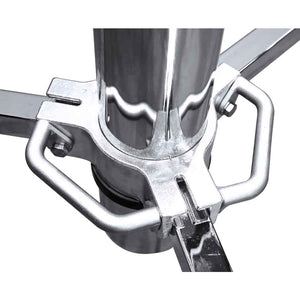

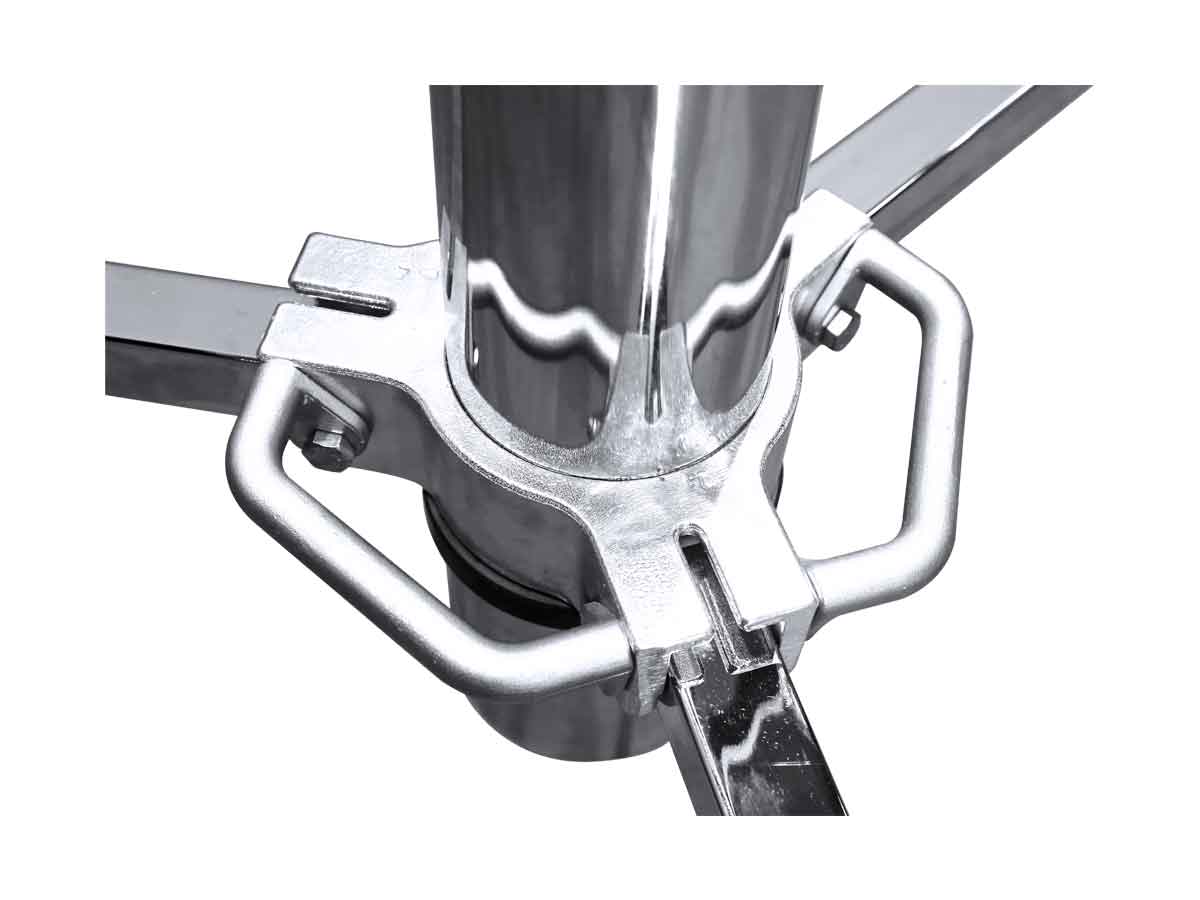

- Dual handle equipped on bottom spider casting for easily folding the base.
- Leg brace is made of rectangular steel tubing for maximum stability and safety.

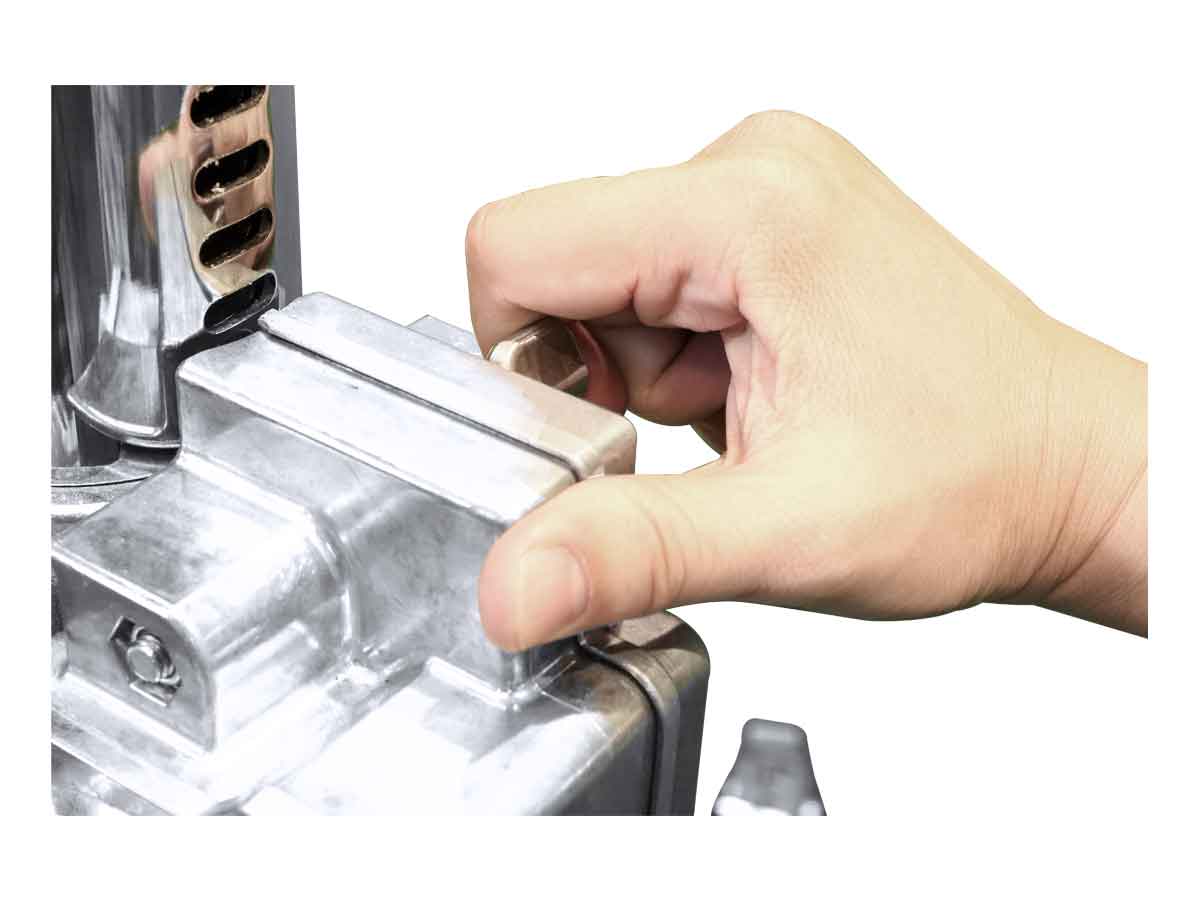

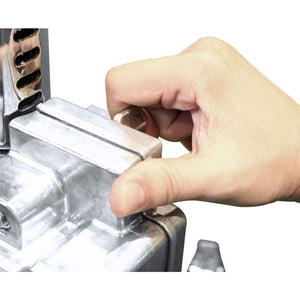

- Auto self-locking device prevents unintentional and uncontrolled lowering of the load.

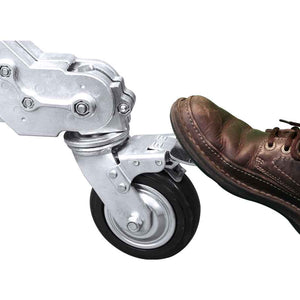

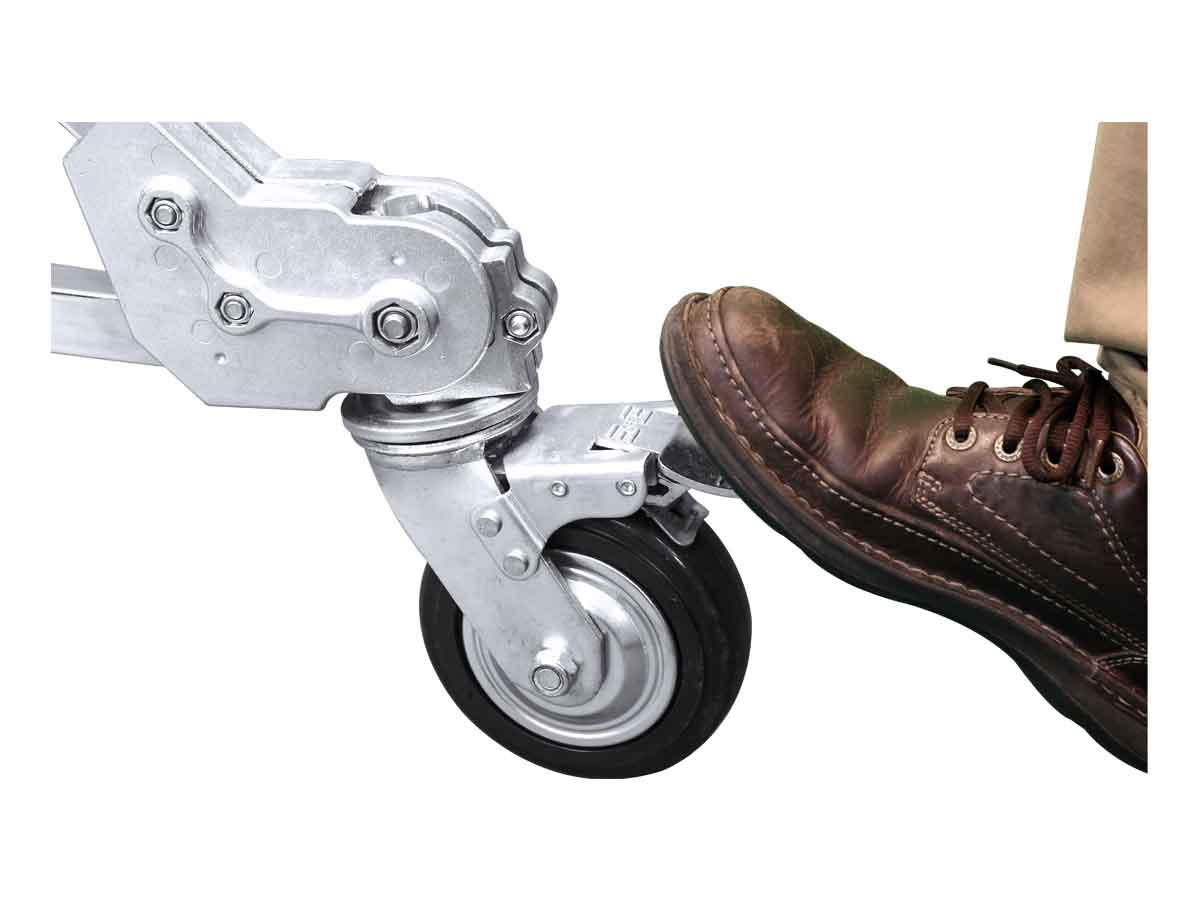

- Industry 6" (152mm) braked caster included makes stand moveable in the studio or on location.
- Assembled by nuts and bolts for easier maintenance and adjustable tightness instead of fixed rivets.
| Closed Length: | 2.3m / 7.54' |
| Max Height: | 6.1m / 20' |
| Minimum Operating Height: | 1.93m / 6.33' |
| Weight: | 71kg / 156lbs |
| Footprint Diameter: | 2.1m / 7' |
| Maximum Load: | 70 kg / 154lbs |
| Stand Top: | UW |
| Suggested Caster (Optional): | KC-160S |
