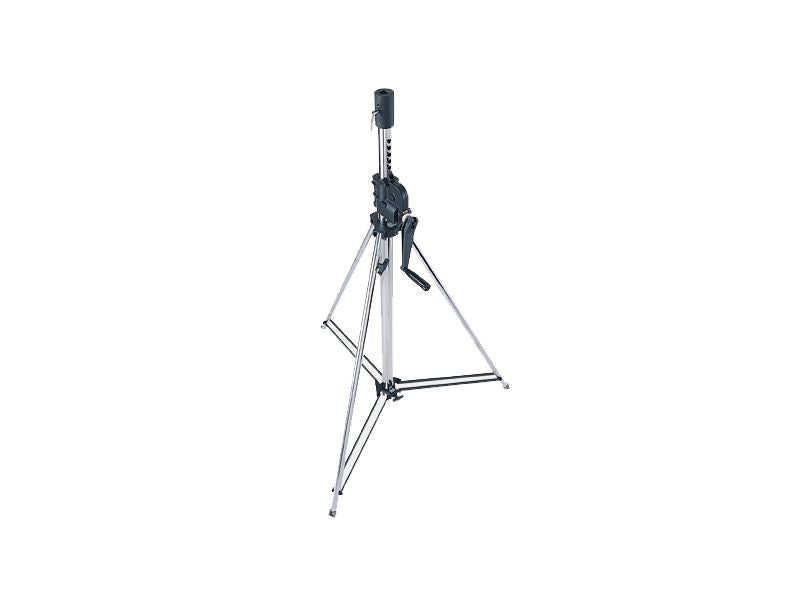

Kupo 2 SCT Wind-Up Stand

Kupo 2 SCT Wind-Up Stand

SKU: KUP-482T
£297.29 GBP ex VAT
£356.75 GBP inc VAT
ex VAT £297.29 GBP ex VAT
£356.75 GBP inc VAT
Sale Sold out
Only 1 left in stock.
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

Kupo wind-up stands are constructed by chrome plated steel with geared column that enable a single operator to raise and lower heavy loads safely with just turn of a handle. Both risers extend simulataneously at one elevation of 4.4cm by per handle turn. The unique automatic self-locking mechanism is equipped to prevent the light stand from dropping unexpectedly making the operation safer.

  • 1 riser, 2 sections.
  • Elevation: 2.2cm per handle turn
  • Dia.: 55mm, 45mm
  • Leg dia.: 30mm
  • With 1 leveling leg
  • Auto Self-Locking device
  • Chrome plated steel with geared column
  • Lock Position - The safety pin will insert automatically into the hole in the tube when the wind-up engages.
  • The stand top is mounted by a steel bolt through the top tube that insures sturdy and solid assembly.
  • Unlock Position - The inside spring will bring the safety pin back.
  • The crank handle folds back for travel. It also can be placed in between tripod legs to prevent the risers from falling accidentally if the lock is unexpectedly disengaged.
  • The tension of the brake shoe can be adjusted with an Allen wrench.
  • Velcro is supplied for better cable management.
  • Top section tube can be adjusted by stepping on the foot step.
  • By using the leveling leg the stand can be quickly leveled on uneven terrain.
  • Bright color warning sticker for safety operation.
  • Casters are optional for easily moving the stand. The stand foot is rugged zinc-casting. Dia.: 100mm with brakeand M10 attachment. There are three in a set. (KC-100).
  • 483-BP Base Plate Optional accessory to be used when the stand has to be secured to the floor for safety reasons. Compatible with stand models: 481, 482, 483T and 470. (set of three)
Closed Length: 160cm / 63"
Maximum Height: 245cm / 96.5"
Minimum Operating Height: 145cm / 57"
Weight: 18.1kg / 40lbs
Footprint Diameter: 128cm / 50.4"
Maximum Payload: 45kg / 99.2lbs
Stand Top: UE
Suggested Caster (Optional): KC-100
