Kiloview N50 12G-SDI to NDI Bi-Directional Converter
Kiloview N50 12G-SDI to NDI Bi-Directional Converter
SKU:
KIL-N50
Regular price
£962.67 GBP ex VAT
£1,155.20 GBP inc VAT
£1,155.20 GBP inc VAT
Regular price
ex VAT
Sale price
£962.67 GBP ex VAT
£1,155.20 GBP inc VAT
Unit price
per
£1,155.20 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
Full-Functional NDI&NDI|HX Converter
Kiloview N50 is a full-functional NDI converter that uses the leading FPGA technologies, advanced-level AVC/HEVC algorithm, and NDI algorithm. It supports encoding/decoding within one unit which meets all your demands regarding IP-based video transmission.
N50 supports 12G-SDI format encoding/decoding of both NDI High-bandwidth and NDI|HX2/3 by H.264/H.265.
Encoding & Decoding with Ultra-low Latency
In the encoding mode, the N50 easily converts a 4K 12G-SDI video signal into an NDI and NDI|HX stream.
While in decoding mode, it will automatically adapt the NDI and NDI|HX format as your end needs.
N50 handles your NDI transmission easily with low latency of less than 80ms.
Pro-level Color Performance
N50 supports a professional YCbCr 4:2:2 color space and a 10-bit color depth (the common 8-bit color depth is also available).
N50 provides higher color and image quality to match the high standard in the broadcast and medical industries.

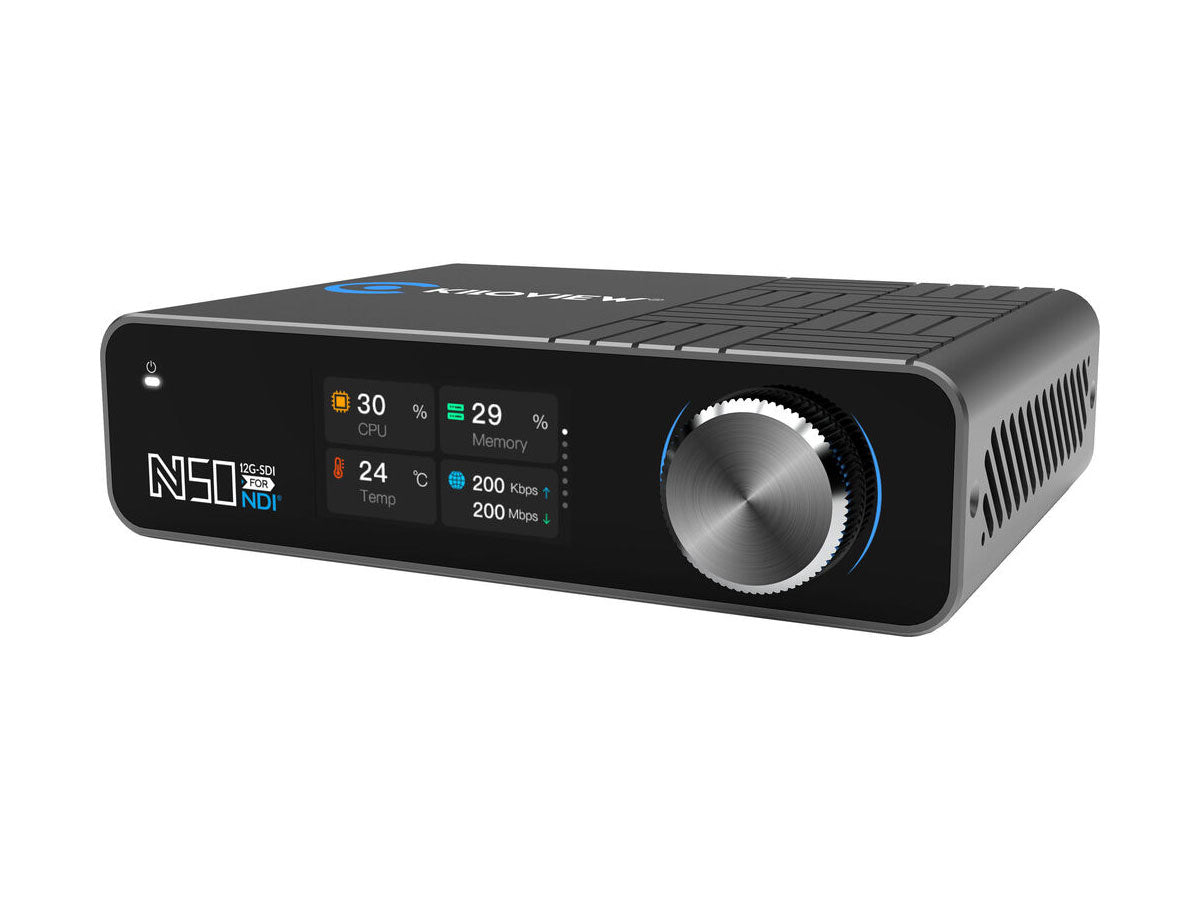

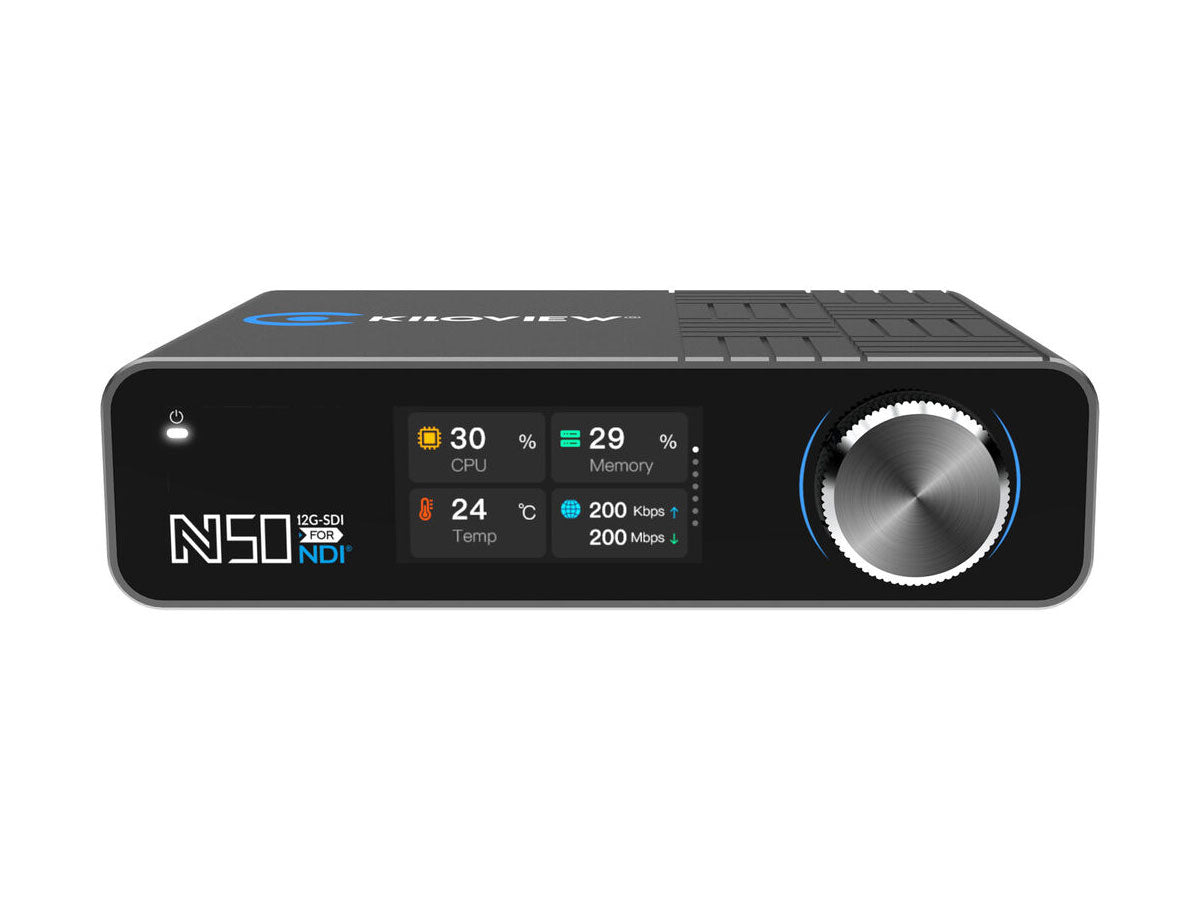

Built-in LCD Screen and Scroll Wheel
As a 12G-SDI version of Kiloview N60, the N50 cares about user experiences the same way.
The N50 is equipped with a big color LCD screen for users to check the unit parameters anytime, anywhere. It can also be used as a big tally and works in conjunction with the small tally on the back panel, making it easy for all personnel in the field to check the PVW or PGM status in real-time.
The scroll wheel enables users to customize settings, switch on/off, set quick shortcuts, and control all video sources with preeminent ease.
Audio and Intercom
N50 supports 12G-SDI embedded audio and 3.5mm analog audio encoding/decoding.
It supports an extended USB audio interface (e.g., USB headset), to realize an end-to-end real-time intercom among the Kiloview devices operators and the associated Kiloview Intercom System (KIS) group.
PTZ Control
N50 supports PTZ control through USB to serial RS-232/RS-485/RS-422.
It also adopts network control protocols (such as Sony Visca/PELCO-D/PELCO-P) for external PTZ control.
Power Supply: PoE and DC
N50 has 2 interfaces of Ethernet, one of which supports the PoE（IEEE 802.3AT）power supply.
Just plug in a network cable, and you can easily access both the power supply and network transmission.
It also supports DC 12V power supply and can easily power the device with a portable charger or camera battery.
TF Storage
N50 offers a TF storage extension that eases your recording of encoding NDI video directly into a TF card (local recording supports MOV. format).
TF storage prevents your recording process from losing video frames caused by network delay, network interruption, or fluctuation.
| NDI BANDWIDTH REQUIREMENT | ||||
| Resolution: | 4KP60 | 4KP30 | 1080P60 | 720P60 |
|---|---|---|---|---|
| Default Bitrate: | 250Mbps | 200Mbps | 125Mbps | 90Mbps |
| TECHNICAL SPECIFICATIONS | ||||
| Model: | N50 | |||
| Video Input: | 1x 4Kp60 12G-SDI 2.0N50 | |||
| Video Output: | 1x 4Kp60 12G-SDI 2.0（Loop or decoding output） | |||
| Audio Port: | 1x 3.5mm Line in 1x 3.5mm Line out | |||
| Network: | 2x RJ45 1000Mbps Ethernet port Ethernet 1 with PoE (IEEE 802.3AT, 24W Max) | |||
| Video Resolution: | Input: up to 3840x2160 60fps (4Kp60), lowest 720p50 Output (decoding or loop out): up to 3840x2160 60fps (4Kp60), lowest 720p50 | |||
| NDI® Codec Capacity: | 1x NDI® FB/HX encoding or 1x NDI® FB/HX decoding | |||
| NDI® Codec Feature: | SpeedHQ (NDI CODEC): SHQ0, SHQ2 ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264 ISO MPEG-H Part 2: High-Efficiency Video Coding (HEVC)/ITU H.265 AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 level HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier | |||
| Audio Encoding & Decoding: | NDI Audio; AAC-LC, Opus, G.711 a-Law/u-Law; other software expansion | |||
| USB: | 1x USB3.0 (type A) 1x USB3.0 (type C) | |||
| Human-Computer Interaction: | 1.96" LCD screen, KILOVIEW Magic Rotor | |||
| TF Storage: | Support TF card for recording, capacity up to 2TB | |||
| Tally: | Built-in OLED panel available as front/rear Tally | |||
| Power: | DC 12V （5.5/2.5）or PoE | |||
| NDI: | Support both NDI and NDI|HX 2.0 (Note: It will support NDI|HX 3.0 in the near future) | |||
| Typical Bitrates: | SpeedHQ (NDI CODEC): 4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60: 112Mbps, 720p60: 105Mbps 480i60: 62.5Mbps AVC (H.264): Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60); >10Mbps(1080p60). HEVC (H.265): Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60); >6Mbps(1080p60). | |||
| Recording: | TF card available for local storage to .mov filles. Support remote recording with KILOVIEW Recorder System, ensuring reliable recording together with Kiloview Smart Recording technology (TF card required). | |||
| Voice Intercom: | Support voice intercom by USB headset between devices directly, or with KILOVIEW Intercom server. | |||
| PTZ: | Support PTZ control through USB to serial RS232/485/422; or PTZ control over IP with different protocols, no extra cable required | |||
| Management: | Web UI and remote management with KILOVIEW KiloLink Server | |||
| Firmware Update: | Firmware upload by Web UI and remote upgrade with KILOVIEW Kilolink Server | |||
| Mounting: | Support cold-shoe mounting and V-mounting | |||
| Power Consumption: | 16W Max | |||
| Certificates: | CE/ FCC/ROHS | |||
| Dimension: | 135.00*123.60*35.00mm | |||
| Support Download: | ||||
