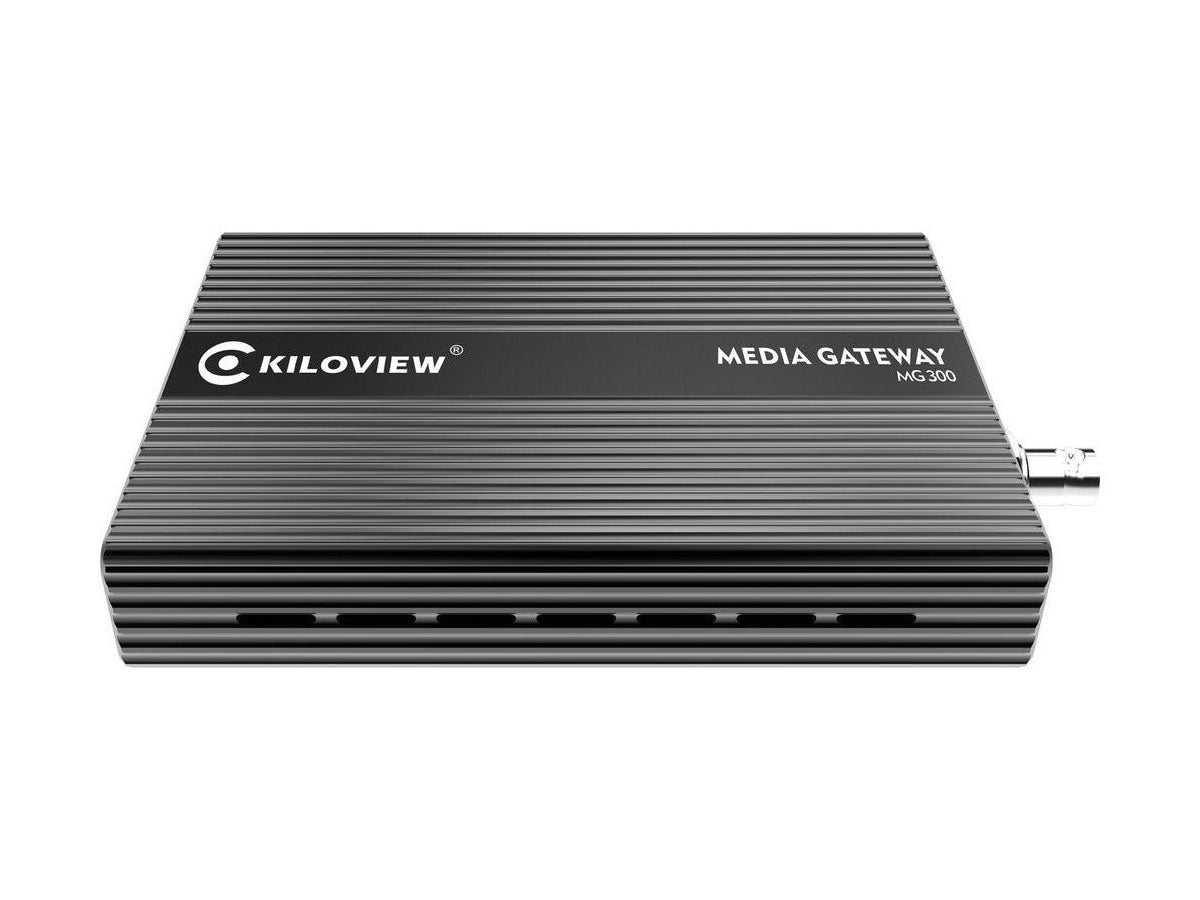

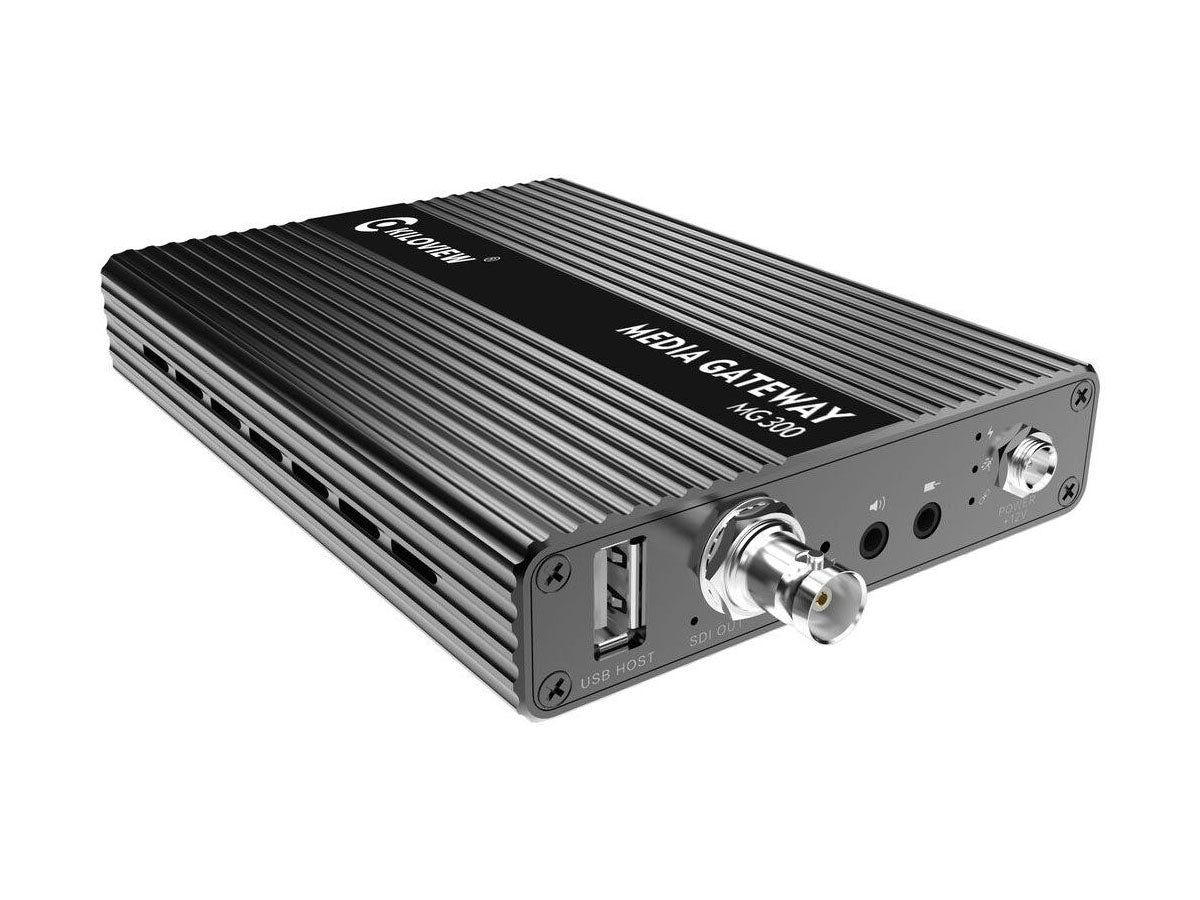

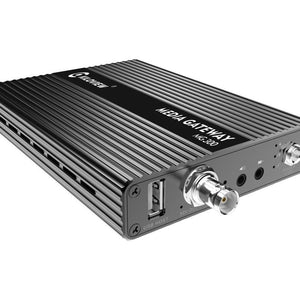

Kiloview MG300 Media Gateway
Kiloview MG300 Media Gateway
SKU:
KIL-MG300
Regular price
£769.95 GBP ex VAT
£923.94 GBP inc VAT
£923.94 GBP inc VAT
Regular price
ex VAT
Sale price
£769.95 GBP ex VAT
£923.94 GBP inc VAT
Unit price
per
£923.94 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
Kiloview MG300 V2 media gateway is a high-performance embedded multi-functional device. It integrates functions such as multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS to SDI and HDMI. It can do so with the same or different content, multi-view output and streaming, video image segmentation, protocol cross conversion, stream media and distribution services.
It's a protocol converter
MG300 V2 is compatible with NDI®|HX (2.0) , SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.It supports the decoding with all those different protocols, at the same time supports up to 9 protocols cross conversion.
Each input stream is converted into 4 same or different protocols output.
Each input stream is converted into 4 same or different protocols output.
Powerful IP Stream Function
Multi-channel video streams can be re-published as a Multiview video source with free layout;
Up to 9 channels of IP streaming distribution (including the Multiview video source) and each stream can be pushed to up to 4 same or different targets simultaneously.
It’s a Media Server
It supports up to 50 concurrent access for streams distribution/live streaming;
(Note: The actual concurrent access capability depends on the specific network bandwidth, video format and other factors. The device transmission limit is 600Mbps).
(Note: The actual concurrent access capability depends on the specific network bandwidth, video format and other factors. The device transmission limit is 600Mbps).
It’s a Transcoder
Kiloview MG300 V2 highlights video transcoding between H.264 and H.265.
It can also combine multiple video streams into a merged video and push it to the live broadcast platforms.
It can also combine multiple video streams into a merged video and push it to the live broadcast platforms.
It’s Also a Decoder
It supports decoding up to 4K H.264/ H.265 IP streams and decode the streams to output 3G-SDI and 4k HDMI. It supports decoding up to 9 channels of videos simultaneous. Note: 9 channels with 1080P30, or 8 channels of 1080P60, or 4 channels of 4KP30.
Low Latency and High Quality
Intelligent delay control technology to achieve a less than 200ms decoding delay in network environment
Image enhancement and fault-tolerant technology for low code-encoded video, 10% of network packet loss video, etc., clear and distortion-free decoding output
RTMP Server Supported
With RMTP server, the encoder can directly transmit the video to Kiloview decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.
Dual Output, Same or Different
3G-SDI and 4K HDMI dual interface for outputting, output content can be either the same or different.
(Note：HDMI output up to 3840×2160@60Hz, SDI up to 1920×1080@60Hz.)
Video Previewing Function
With updated feature, you can preview 16 streams of real-time video streams or images on its web page, from which you can choose 9 of the streams for output on displaying screen.
- Protocol conversion
- Stream distribution
- 9 channels video split to the display wall
- Multi-stream switching
| Model: | MG300 |
| Network: | 2x 100M/1000M RJ45 adaptive Ethernets |
| Decoding Input: | 1x SD/HD/3G-SDI, up to 1080P 60Hz 1x HDMI, up to 3840x2160@60Hz |
| Analog Audio Output: | 1x 3.5mm Line out |
| Analog Audio Input: | 1x 3.5mm Line in |
| USB: | 1x USB 3.0 Type-A |
| Access Protocol: | NDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP, (NDI|HX means NDI|HX Version 2.0, SIP/ONVIF (customize) |
| Output Protocol: | NDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP |
| Protocol Conversion: | 9 channels1080P video conversion |
| Streaming Distribution: | 50 channels of RTSP, 36 channels of RTMP/SRT (Not more than 600Mbps) |
| Live Streaming: | 9 channels x 4 channel 1080P |
| Number of Decoding: | 4K 30Hz H.264/H.265: up to 4 simultaneous channels 1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels 1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265：up to 9 channels simultaneously |
| Video Decoding Standard: | H.264, H.265 |
| SDI Output Format: | 1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080i60/59.94/50.720P60/ 59.94/50, 576i50, 480i60 |
| HDMI Output Format: | 4K 3840x2160@60/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50 Compatible with VESA standard format |
| Video Rate Range: | 128Kbps ~ 40Mbps |
| Audio Decoding: | AAC G.711 (aLaw/uLaw) |
| Audio Rate Range: | AAC: 8Kbps ~ 320Kbps G.711: 64Kbps |
| Decoding Delay: | ≤200ms |
| Split Display Style: | Support 1/2/3/4/5/6/7/8/9 splitting; Support re-encoding the splitted and recombined video for live streaming/ transmission. The image supports up to 1080P60 H.264 encoding. |
| Management Interface: | Web |
| Remote Management: | Support |
| Remote Firmware Upgrade: | Support |
| Operating Temperature: | -25 ~ 60°C |
| Dimensions: | 140 x 105 x 28mm / 5.5” x 4.1 x 1.1” |
| Weight: | 380g / 13.4oz |
| Power Consumption: | ≤6W |
| Power Supply: | 12V/1A |
| Downloads: | Docs & Firmware |
