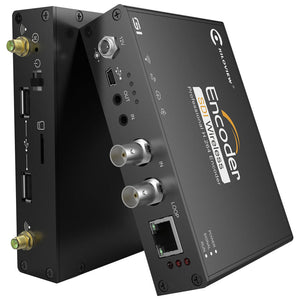

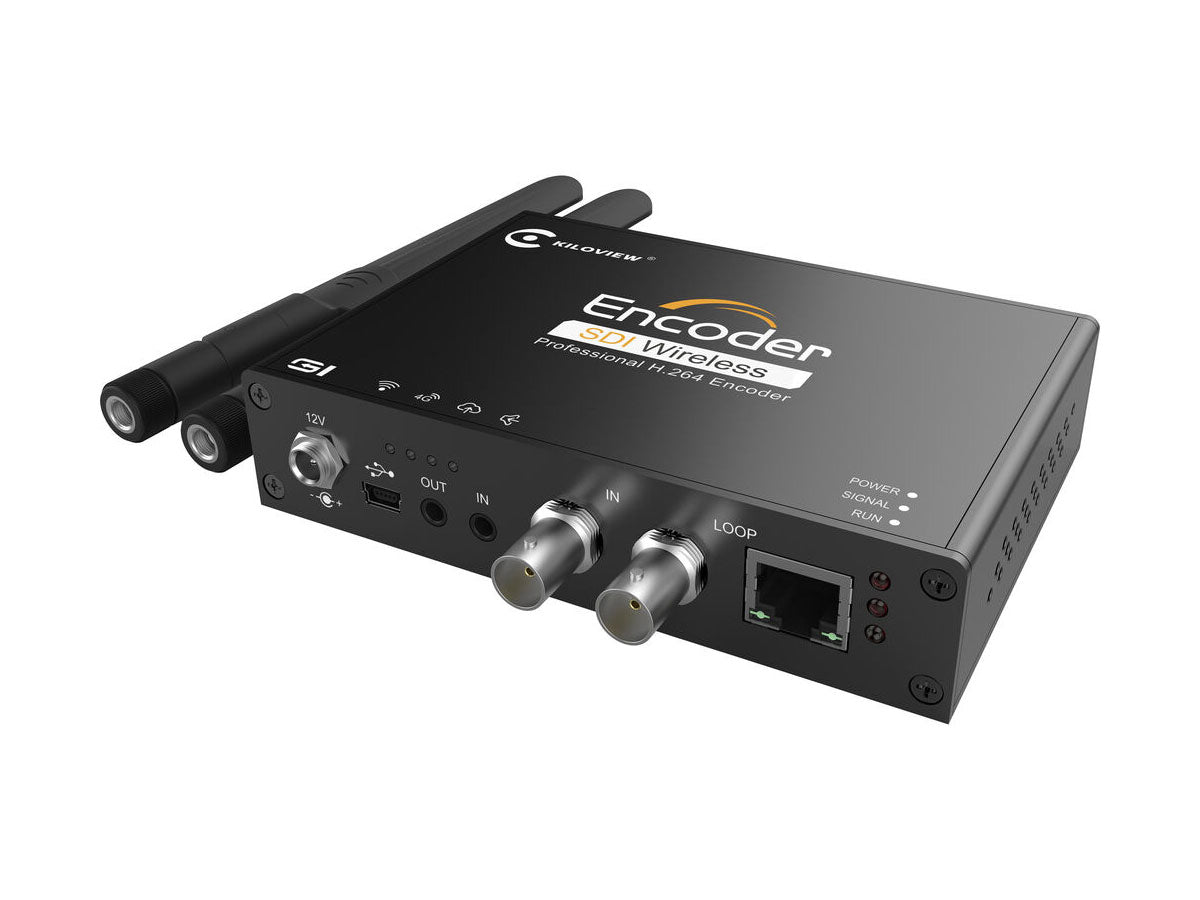

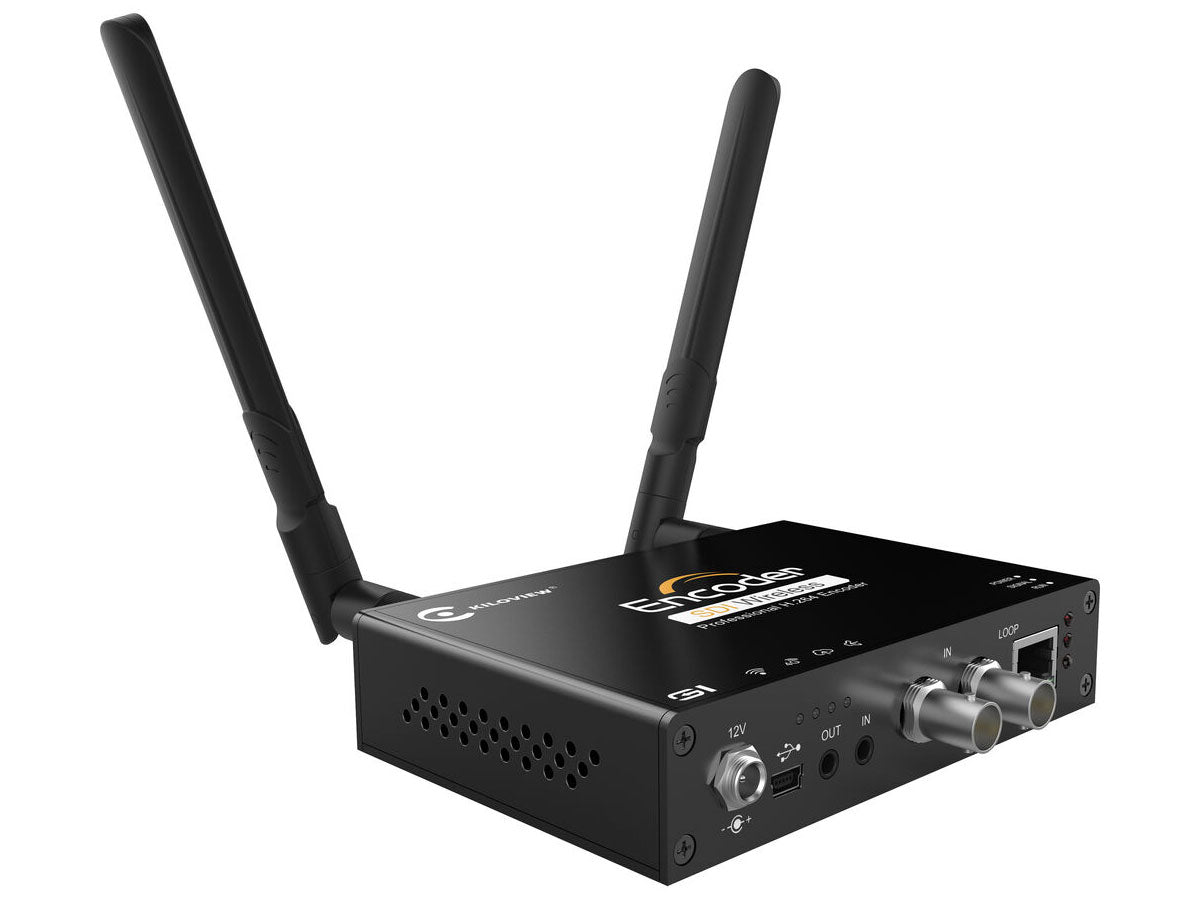

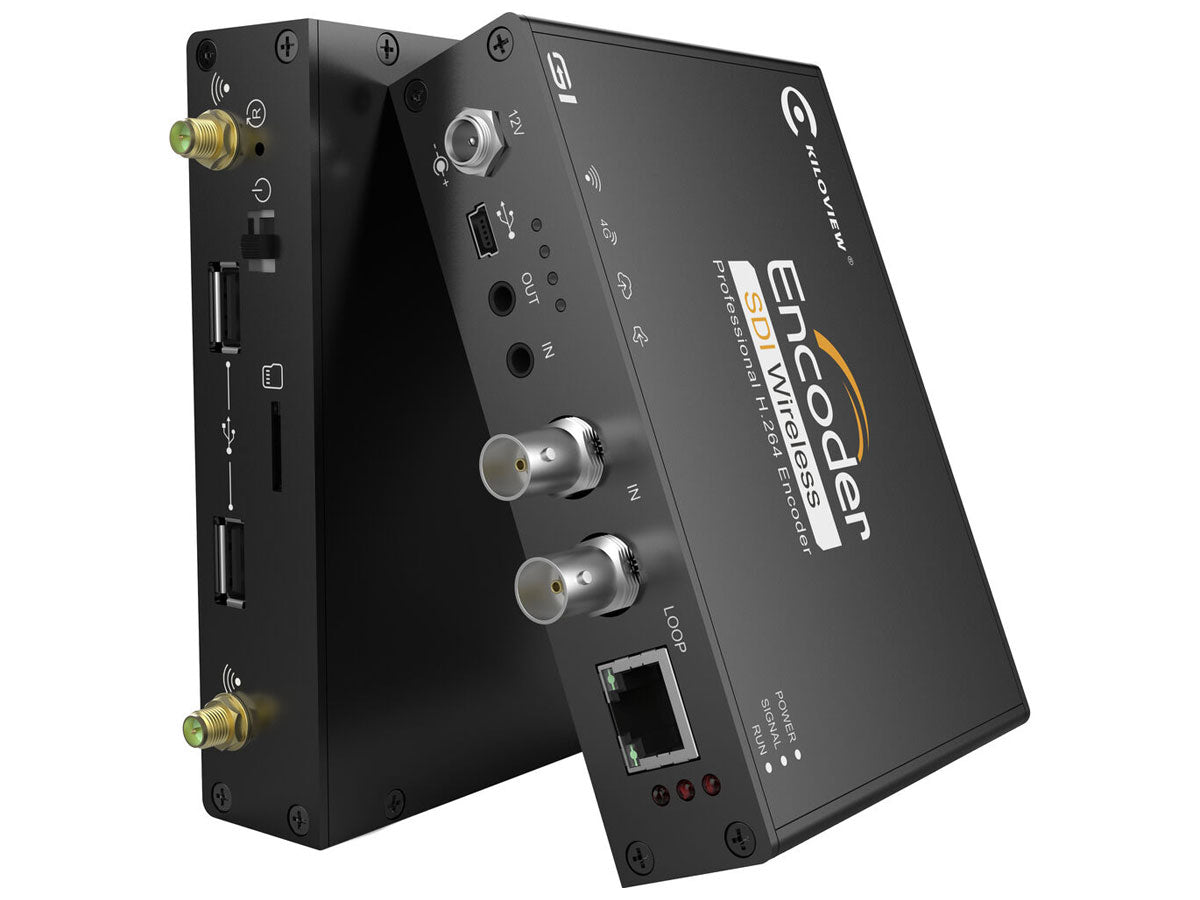

Kiloview HD/3G-SDI Wireless Video Encoder

Kiloview HD/3G-SDI Wireless Video Encoder

SKU: KIL-G1-S
£413.40 GBP ex VAT
£496.08 GBP inc VAT
ex VAT £413.40 GBP ex VAT
£496.08 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
Professional Wireless H.264 Video Encoder
Kiloview G series wireless video encoders can encode SDI/HDMI video sources into network streams through WIFI/Ethernet, and realize long-distance high-definition transmission/live video transmission on Internet WAN or local area network LAN. G series fully support SRT, RTMP, RTMPS, HLS, UDP, RTP, RTSP, Onvif and other protocols.

Stable Wireless Connection
The G series has a built-in dual-band (2.4G/5GHz) WiFi module, which achieves more stable wireless transmission.

Real HD 1080P60 Video supported
It supports real HD video input with resolution up to 1920*1080P@60FPS to ensure that the image quality is perfect.

Faster While Better
G series adopt standard H.264 coding algorithm, so they ensure high-quality image and smooth live streaming. They provide you superior video with low-latency, low bitrate and low bandwidth.

Live Broadcast on Multiple Platforms
Dual stream output (main stream and sub stream), each stream can be used to up to 8 platforms with same or different protocols, altogether it can simultaneously live stream to up to 16 platforms (with main stream resolution up to 1080p60Hz, sub stream resolution up to 720p 60Hz).

More Protocols Compatible
G series supports full range of protocols including RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time. It also supports ONVIF 1.1/2.0 for easy Access To Security Protection System / NVR System

It's a Recorder
Recording prepares for future. Kiloview G series provides simultaneous recording while you are doing live streaming to many media destinations. And redundant recording is realized with Micro SD/TF/USB/NAS with recording files in the format of .ts, .mp4, .mov,.mkv, avi.
  • Embedded Audio
  • SDK/API Development
  • 3.5mm Analog Audio Input
  • High-end Chip
  • Real-time Loop
  • Web-based Interface
  • USB-extended PTZ
  • 7 x 24h Operation
Model: G1-S
Video Input: 1x BNC SDI
Analog Video Input: 2x 3.5mm
USB: 2x USB 2.0 Type-A
Micro SD: 1x Micro SD/TF Card storage interface
Network Support: WIFI (2.4G/5G Hz)/Ethernet/Satellite
Video Loop: 1x BNC SDI or 1*HDMI
Video Resolution: Up to 1080P60Hz:
SDI model：1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz;
1080i50/59.94/60Hz; 720P23.98/24/25/29.97/30Hz; 720P50/59.94/60Hz
HDMI model: 1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz;
1080i50/59.94/60Hz; 720P/30/50/59.94/60Hz; below 1920x1200
Video Encoding: H264/AVC, Motion-JPEG
Audio Encoding: AAC/G.711
Encoding Latency: <67ms
Media Transmission Protocols: SRT/RTMP/RTP/RTMPS/HLS/TS over UDP/RTSP /Onvif, customize for SIP
Image & Text Overlay: Support custom text and picture overlay function, which can be superimposed to any position on the screen
Record Storage: Micro SD/TF card local recording, and NAS network storage
Management: APP/ Web
Power Supply / Consumption: DC 12V 1A / 4W
Operating Temperature: -20℃~60℃
Size: 125 x 89 x 28mm (4.92” x 3.50” x 1.10”)
Weight: 380g (13.4oz)
Support Downloads: Docs & Firmware
