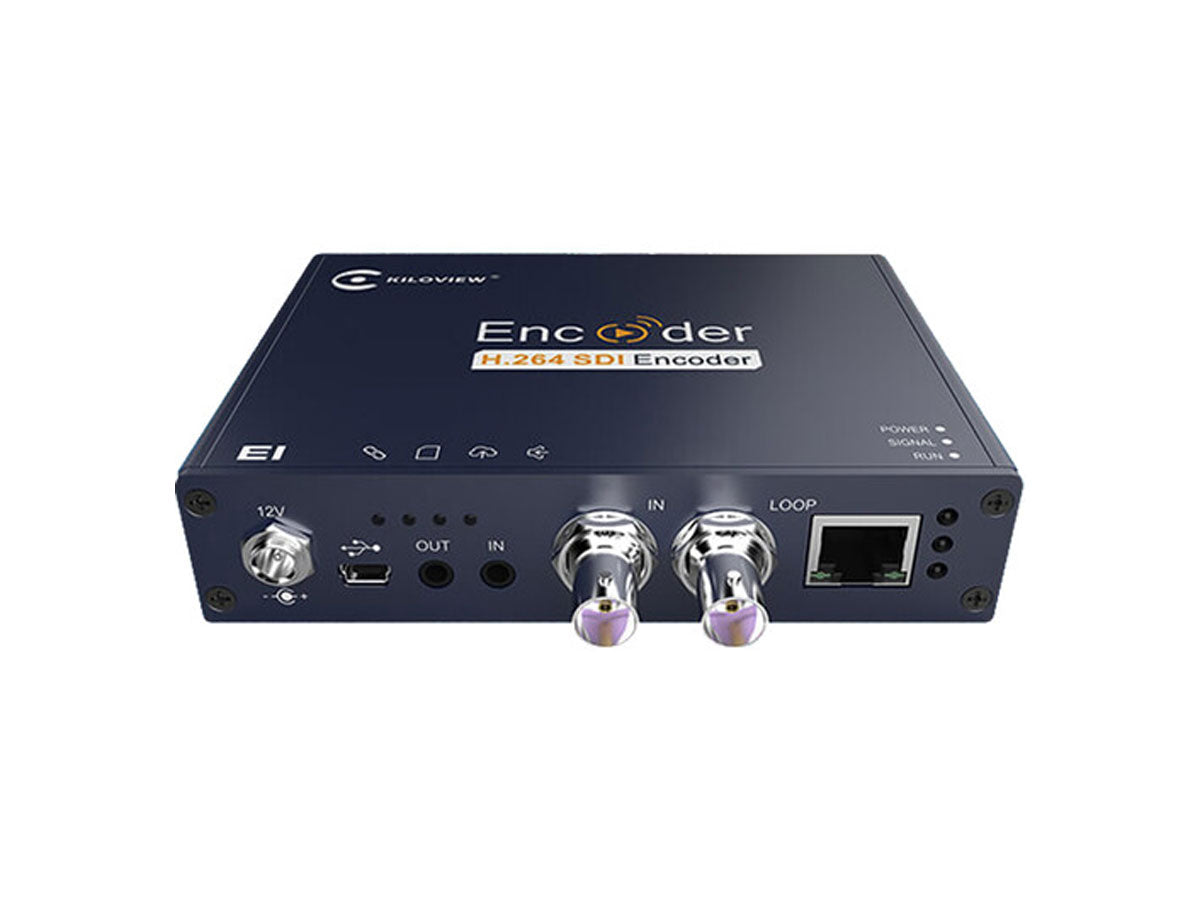

Kiloview HD/3G-SDI Wired Video Encoder

Kiloview HD/3G-SDI Wired Video Encoder

SKU: KIL-E1-S
£336.31 GBP ex VAT
£403.57 GBP inc VAT
ex VAT £336.31 GBP ex VAT
£403.57 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
Stable Video Encoder for Live Streaming
Kiloview E series wired hardware video encoder converts SDI/HDMI base-band video to H.264 IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN. They support the most common protocols including SRT, RTMP, RTMPS, RTP, HLS, UDP, RTSP, Onvif, and are widely applied to professional live production, streaming, broadcasting, etc.

Low Latency, High-Quality Streaming
E series adopt standard H.264 coding algorithm, so they ensure high-quality image and smooth live streaming. They provide you superior video with low-latency, low bitrate and low bandwidth.

It’s a recorder and an interphone!
Recording prepares for future. Kiloview E series provides simultaneous recording while you are doing live streaming to many media destinations. And redundant recording is realized with Micro SD/TF/USB/NAS with recording files in the format of .ts, .mp4, .mov,.mkv, avi.

All IP Video Protocols Supported
E series supports full range of protocols including RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time. It also supports ONVIF 1.1/2.0 for easy Access To Security Protection System / NVR System

Encoding & Streaming to Multiple Platforms
You can set dual stream output (main stream and sub stream) in the built-in web console. Each stream can be used to up to 8 platforms with the same or different protocols, altogether it can simultaneously live stream to up to 16 platforms. Main stream resolution up to 1080p60Hz, sub stream resolution up to 720p 60Hz.

Let’s go Social
With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.

7x24h Operation
Portable and low power consumption makes it 24 hours continuous working available.

Application
TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports
  • H.264 video encoding
  • Branded chip
  • Low bandwidth transmission
  • Full live platforms supported
  • SDI loop monitoring
  • Voice intercom
  • SDK Provided
  • Low cost
  • SRT supported
Model: E1-S
Video Input: 1x BNC 3G-SDI
Analog Audio Interface: 2x 3.5mm
USB Interface: 2x USB 2.0 Type-A
Micro SD: 1x Micro SD/TF card storage interface
Network Support: Wired/Satellite
Video Loop: 1x BNC 3G-SDI
Video Resolution: Up to 1080P60Hz:
SDI: 1080P23.98/24/25/29.97/30Hz;1080P50/59.94/60Hz;
1080i50/59.94/60Hz;720P23.98/24/25/29.97/30Hz;720P50/59.94/60Hz
HDMI: 1080P23.98/24/25/29.97/30Hz;1080P50/59.94/60Hz;
1080i50/59.94/60Hz;720P30/50/59.94/60Hz; below 1920*1200.
Video Encoding: H.264/AVC, Motion-JPEG
Audio Encoding: AAC/G.711
Encoding Latency: <67ms
Media Transmission Protocols: SRT/RTMP/RTP/RTMPS/HLS/TS over UDP/RTSP
Image & Text Overlay: Support
Record Storage: Micro SD/TF card local recording, and NAS network storage
Management: APP/ Web
Power Supply / Consumption: DC 12V 1A/4W
Operation Temperature: -20℃~60℃
Dimensions: 125 x 89 x 28mm (4.92” x 3.50” x 1.10”)
Weight: 380g (13.4oz)
Support Downloads: Docs & Firmware
  • 1x Kiloview E1 H.264 HD SDI to IP Wired Video Encoder
