Kiloview 4-Channel HD H.265 HDMI & SDI Decoder

Kiloview 4-Channel HD H.265 HDMI & SDI Decoder

SKU: KIL-D260
£384.49 GBP ex VAT
£461.39 GBP inc VAT
ex VAT £384.49 GBP ex VAT
£461.39 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
D260 is Kiloview’s newest H.265 1X3G-SDI+2XHD HDMI decoder which builds on the capabilities of our original decoder DC230 with expanded new features including upgraded decoding performance, extended ports, more protocols supported and a new LCD screen. Everything your need about decoding is packaged in this single unit with low cost.

Upgrading Decoding Performance with H.265/H.264
D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom to single display or PIP with adjustable figures.

More Protocols Supported
For all IP-based video transmission process, D260 supports the latest NDI technology – NDI|HX3*, NDI|HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP
* Support of NDI|HX3 is still in beta version.

Extended Output Interfaces
As an upgraded version of DC230, D260 adds a couple more interfaces for advanced application. Now D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port and 2 USB ports(one USB Type-A and one USB Type-C)to ensure the scalability, It’s capable for outputting in three ways: Independently, Combine multi-channel video flows or replicate of one single flow to stream simultaneously.

16 Preview + 4 Output
D260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).

Powerful Audio Decoding
D260 is also super powerful in audio decoding. With a long list of audio formats supported including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, It’s also capable of switching audio On/Off, audio mix and audio gain in real-time to output alternatively through its HDMI ports, SDI port and 3.5mm line out port.

Custom Layouts
Custom multi-output display is also allowed for D260(including custom grids/PIP/simply drag and drop). All things about display(bit-rate and resolution) can be customized.

Display and Touch Button

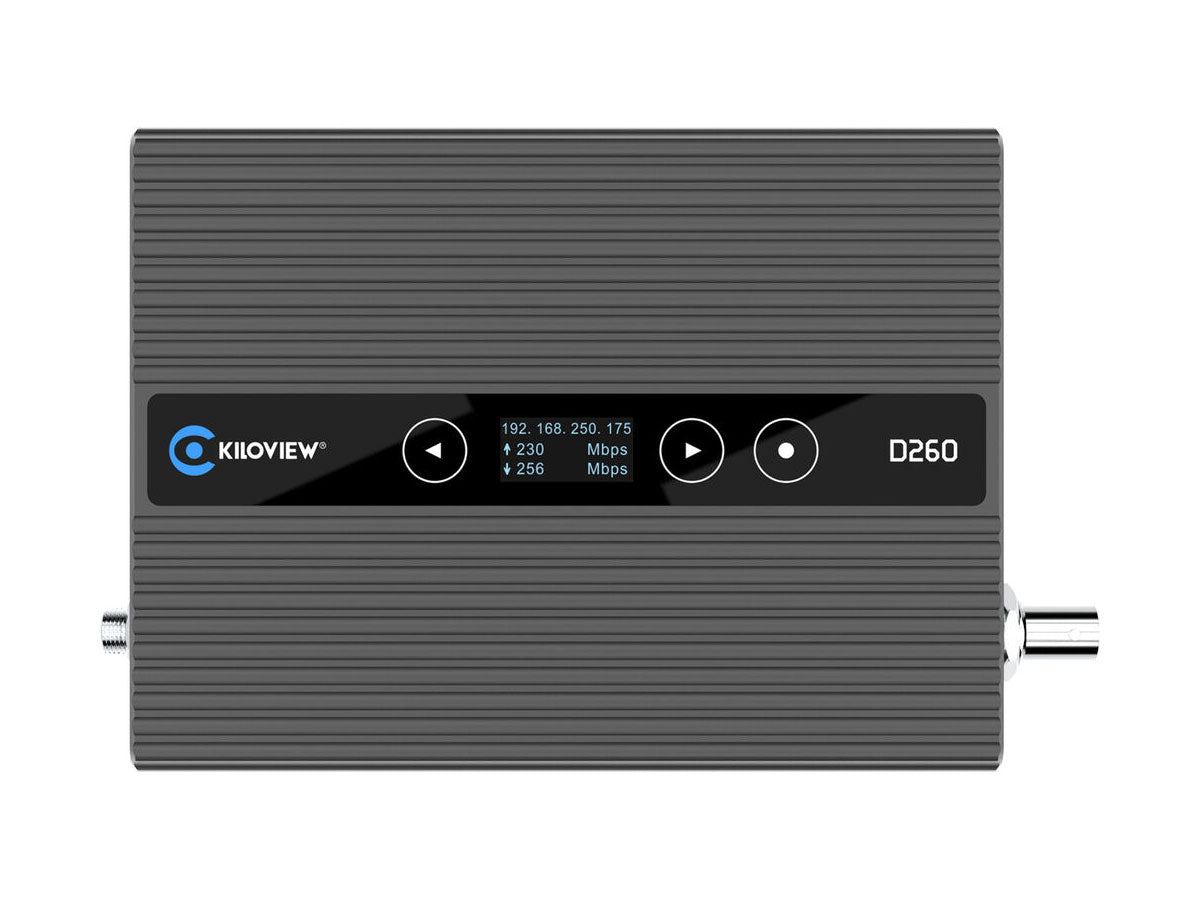

D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.
  • Multi Outputs
  • Dual Ethernet Ports
  • RTMP Server
  • Intercom
  • OSD
  • Latency<100ms
  • Dual USB Ports
  • Centralized management
Model: D260
Video Output: 2x HDMI
1x 3G-SDI
Audio Output: HDMI, SDI and 1x 3.5mm Line out
Video Formats: H.264(AVC), Compatible with Baseline/Main/High Profile, up to Level 5.2;
H.265(HEVC)Compatible with Main Profile, up to Level 5.1
Video Decoding: 4 channels of H.264(AVC)/H.265(HEVC) video streams in resolution of 1080p60
Audio Formats: AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM
Streaming Protocols: NDI|HX2.0/NDI|HX3.0*/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/ RTSP
Display: 0.96" LCD Display and Touch Button
Layouts: Custom 1/2/3/4 layouts
Intercom: Yes
OSD: Yes
Tally: Yes
Network Connections: Ethernet Ports: 2x 10/100M/1000M
USB Ports: 1x USB 2.0 Type-C
1x USB 2.0 Type-A
Power Supply: DC 12V/1A
Management: WebUI/KiloLink Server
Power Consumption: 7W(MAX)
Size: 162.85mm x 104.00mm x 25.00mm
Weight: 328.18g
Operating Temperature: -20℃~60℃
Support Download: Documents & Firmware
