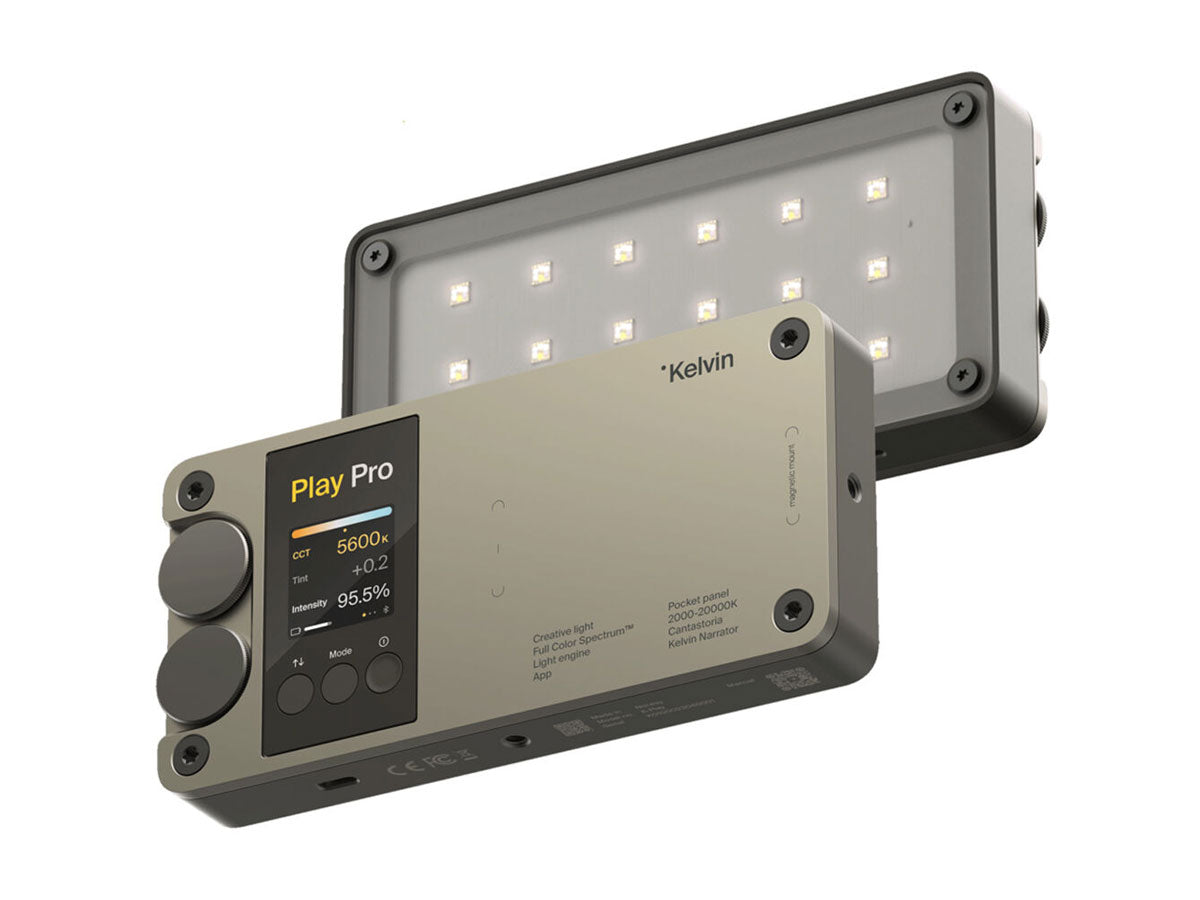

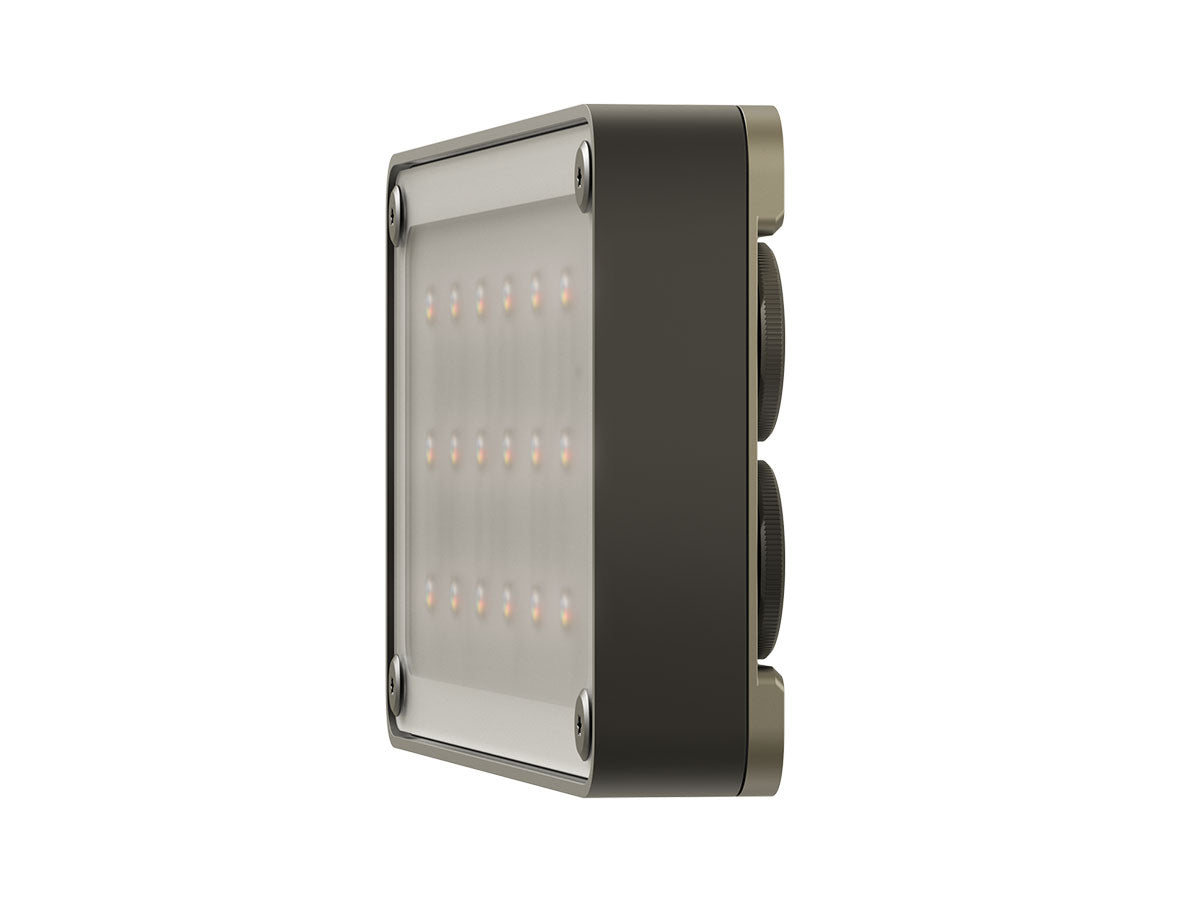

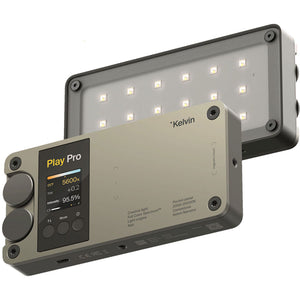

| LIGHT FIXTURE | ||
| Light Engine: | Cantastoria (RGBACL) Six-Color | |
| Colour Temperature: | 2,000 to 20,000 K ±100 K | |
| Modes: | CCT, HSI, RGB, GELS, EFFECTS, XY | |
| Dimming: | 0-100% (continuous) | |

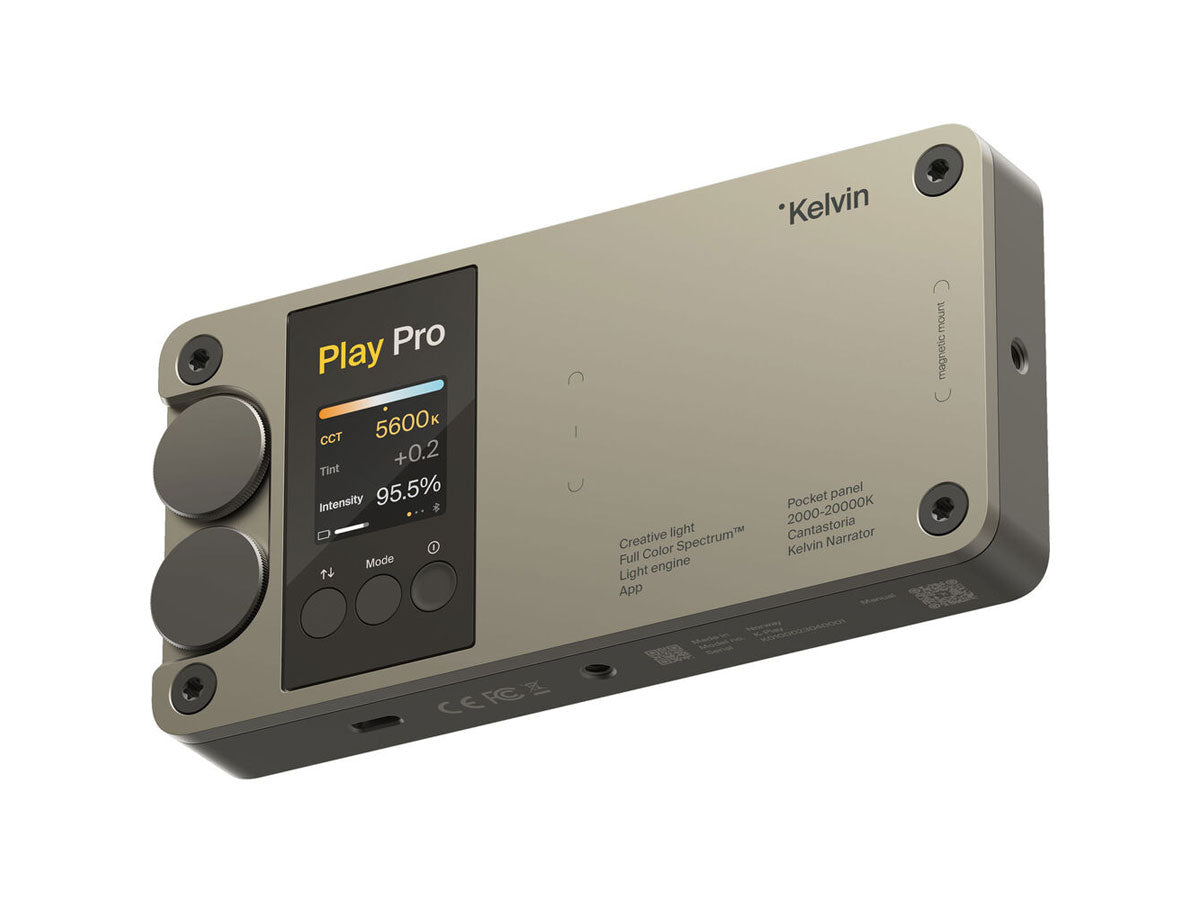

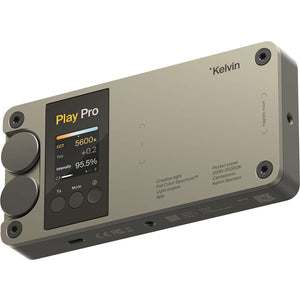

| Display: | 1.3” TFT LCD | |
| Housing Material: | Aluminum | |

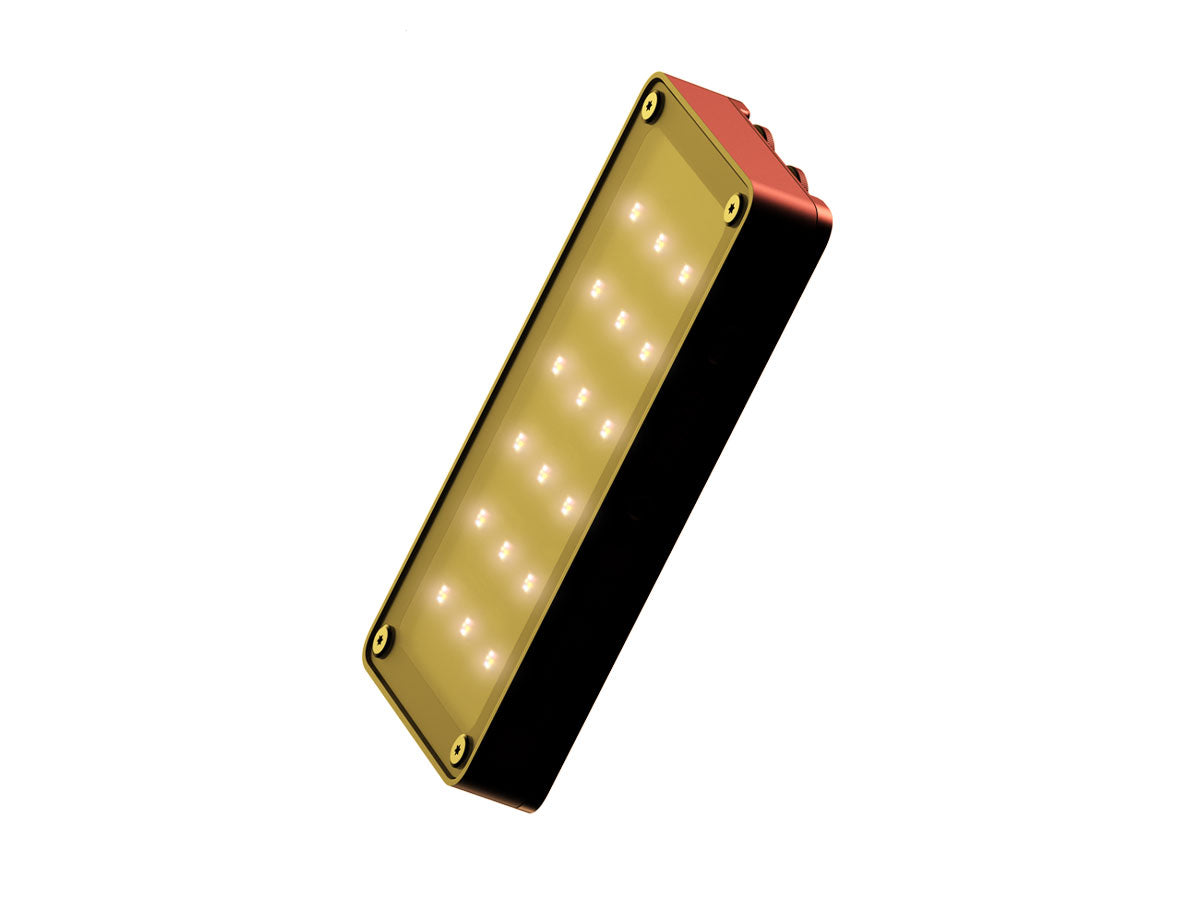

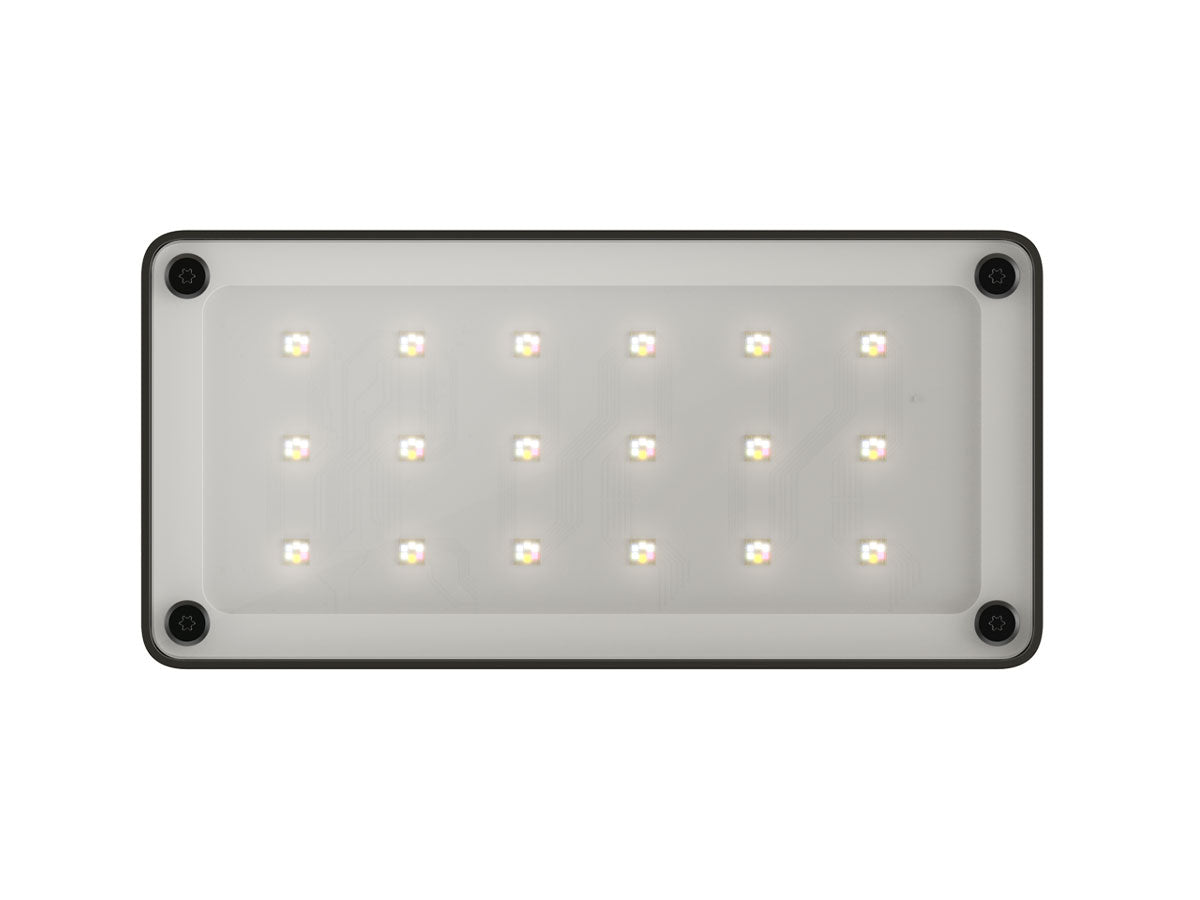

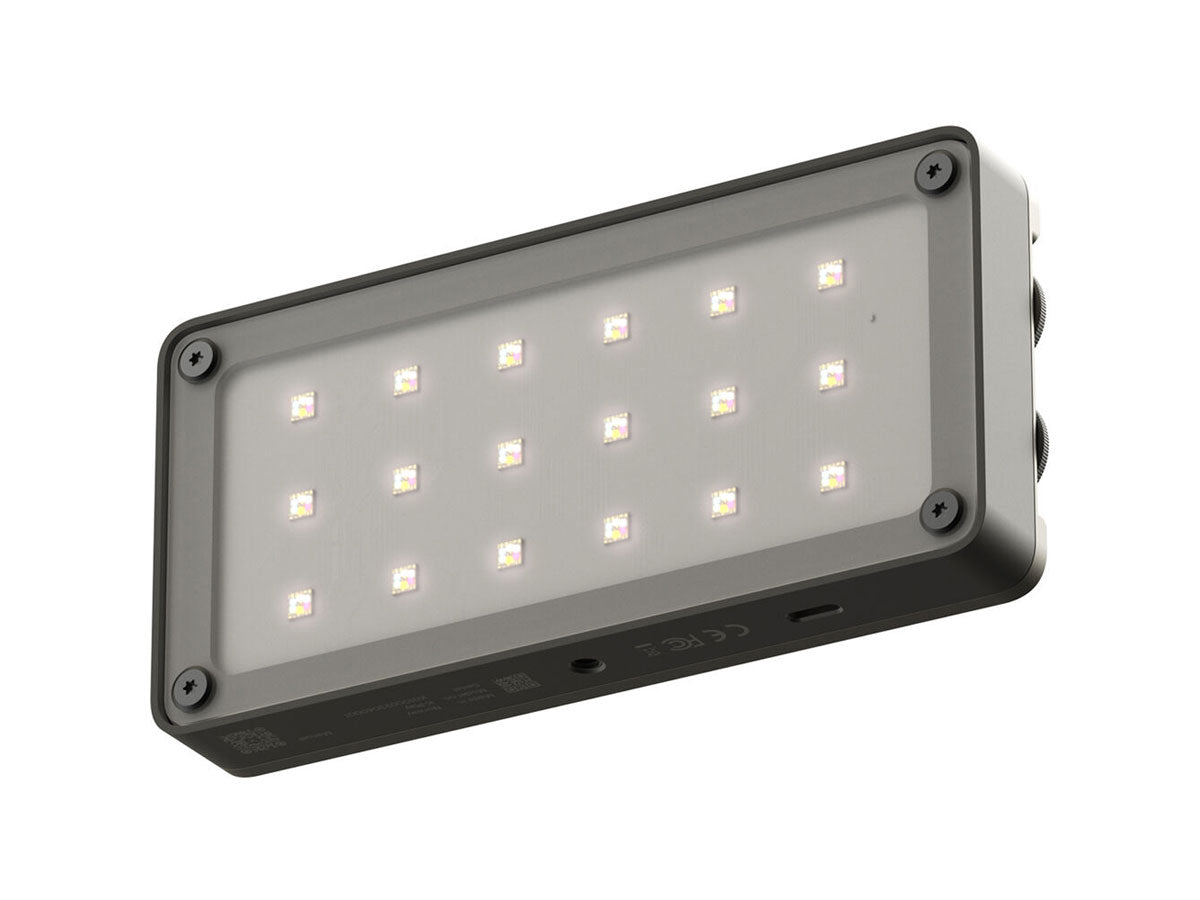

| Number of LEDs: | 18 clusters of 6 LEDs, 108 LEDs in total | |
| Expected Lamp Life: | 50,000 hours | |
| Beam Angle: | 106° | |
| COLOUR ACCURACY STANDARD | ||
| CRI: | 98 | |
| TLCI: | 99 | |
| CQS: | 97 | |
| SSI @3200K: | 86 | |
| SSI @5600K: | 74 | |
| CONNECTIVITY | ||
| DMX Connection: | Wireless DMX (CRMX from LumenRadio with RDM) | |
| USB: | USB-C | |
| Bluetooth: | Bluetooth 5.2 with extended range | |
| MOUNTING | ||

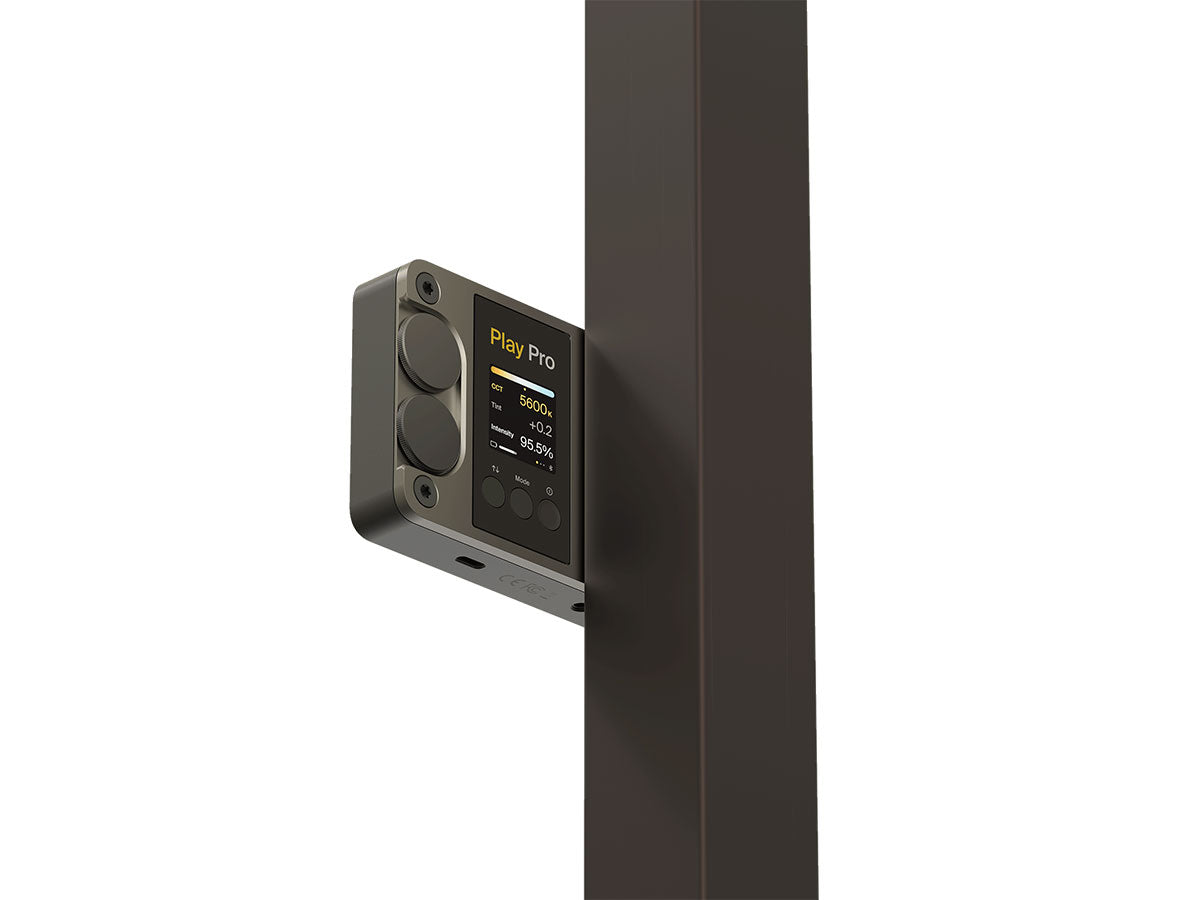

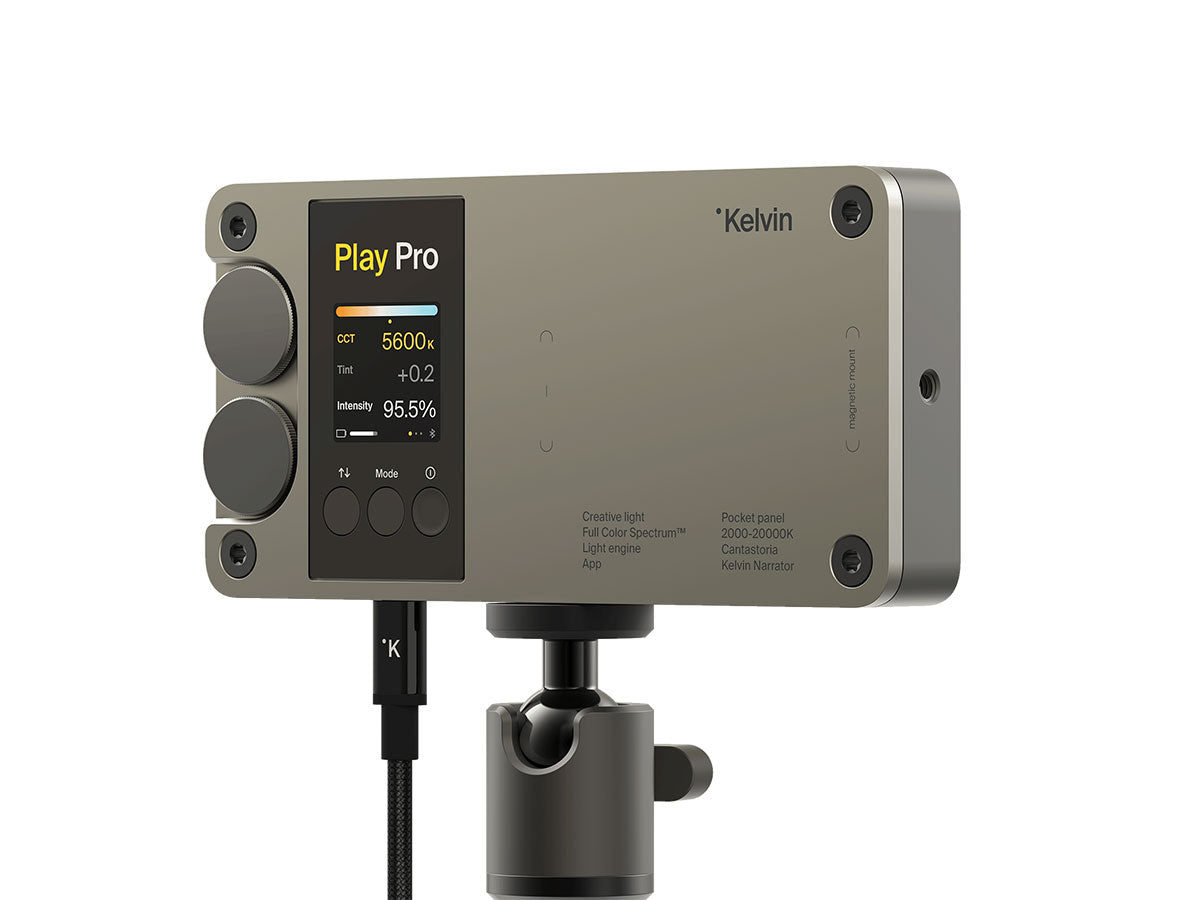

| Fixture Mount: | 2 x 1/4"-20 Female Thread and 2 x Magnetic Mount | |

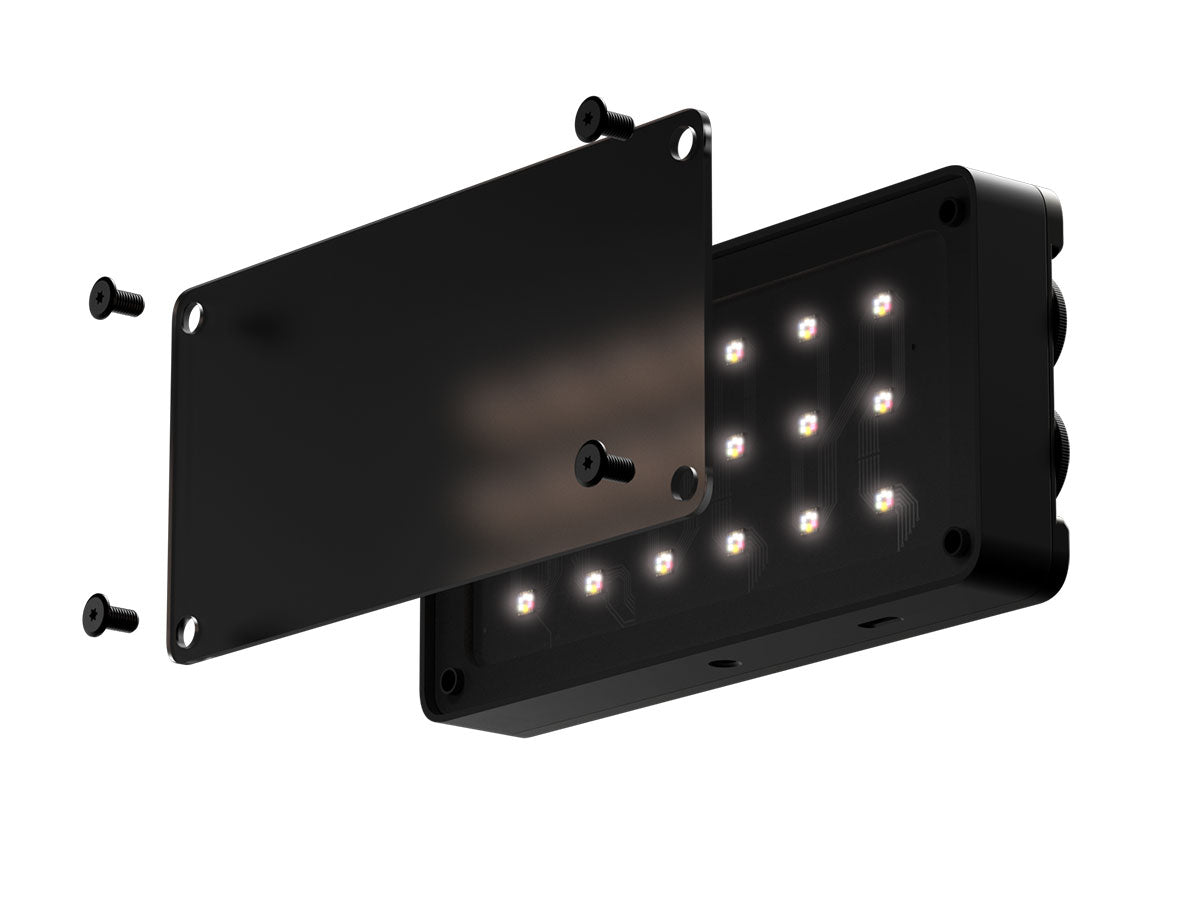

| Accessory Mount: | Kelvin MagTech™ (proprietary) | |
| REMOTE OPERATION | ||
| Control: | Kelvin Narrator App, Wireless DMX (built-in CRMX from LumenRadio with RDM), Bluetooth | |
| Wireless DMX Operating Range: | ≤100m | |
| Wireless Operating Range Bluetooth: | ≤100m | |
| POWER | ||
| Battery: | 1 x Rechargeable Lithium-Ion Polymer, 7.2 VDC, 2500 mAh, 18.5 Wh (Built-In), 2-Hour Runtime at Maximum Brightness | |

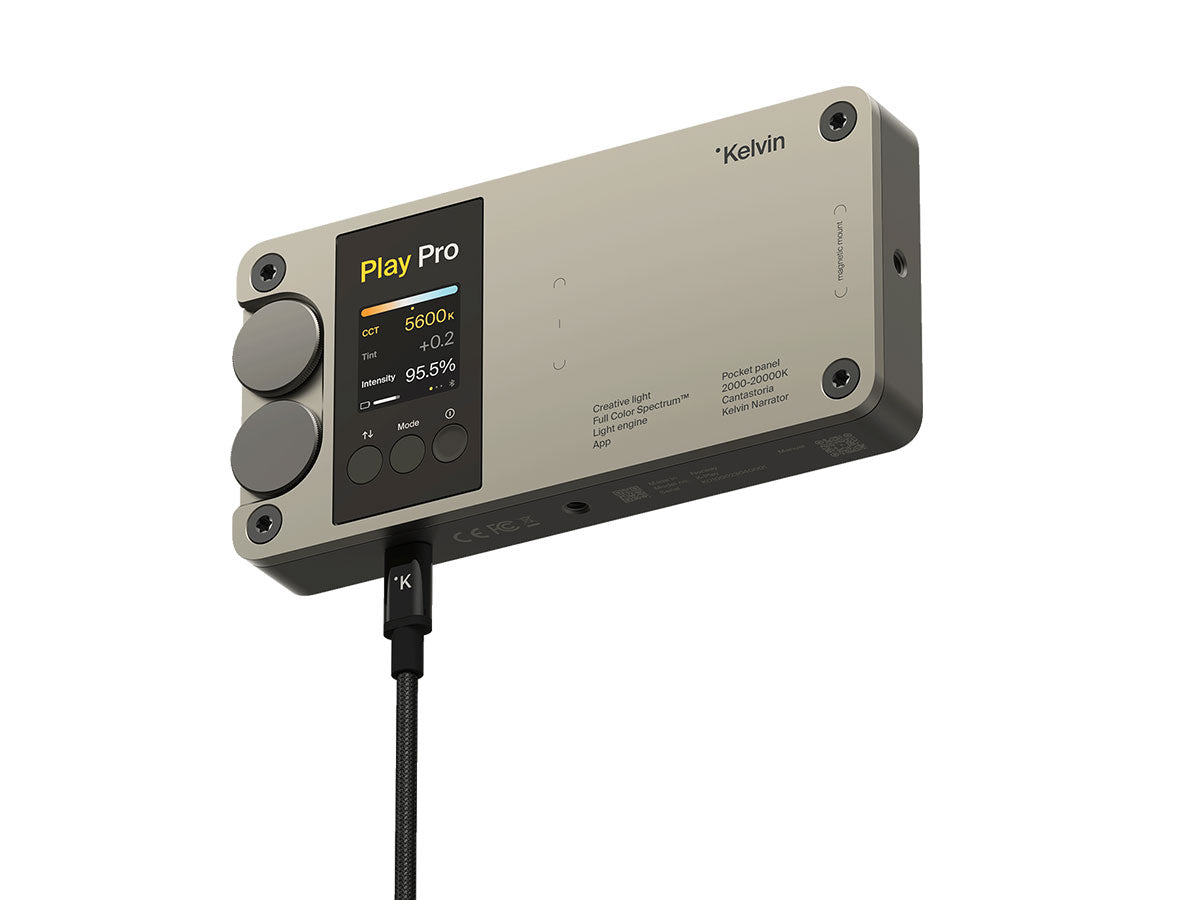

| Power Source: | Built-in battery charged via USB, or USB power input | |

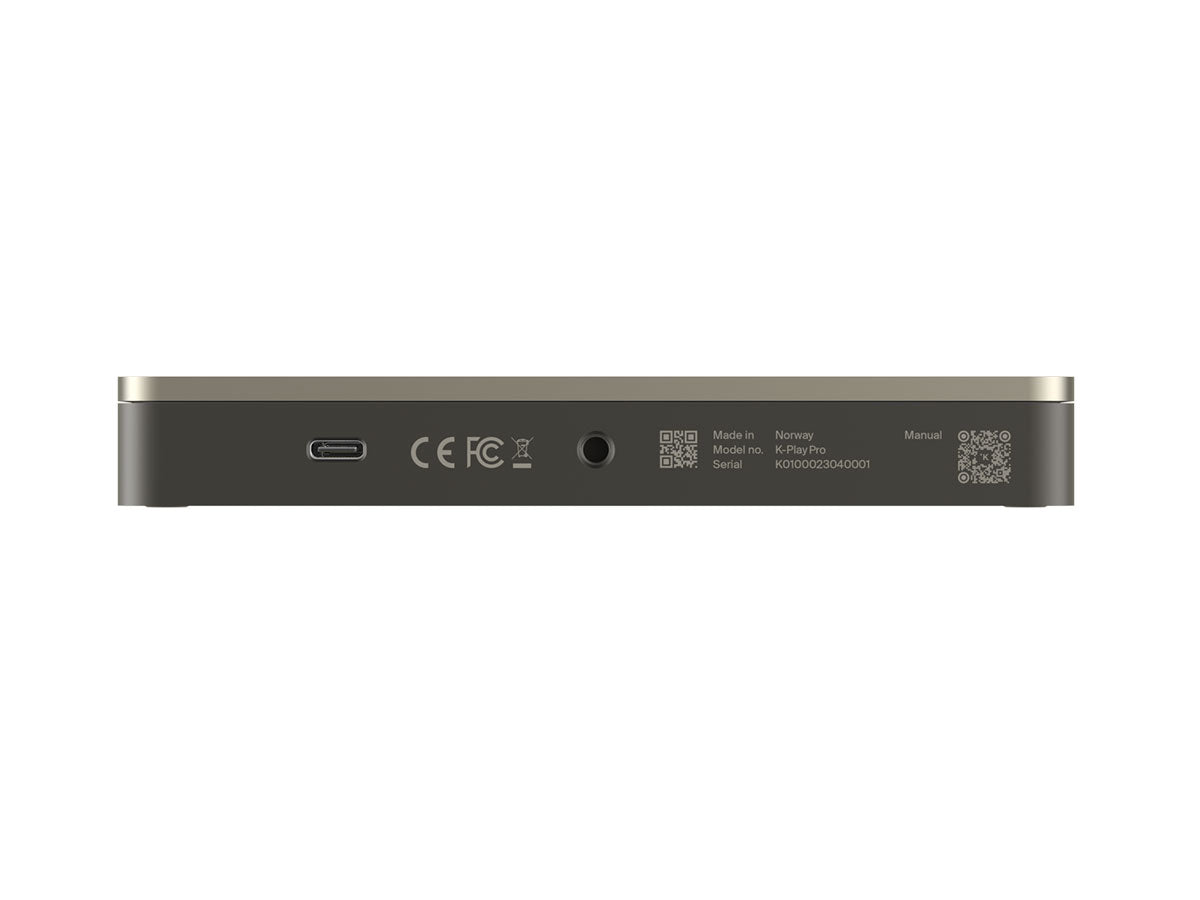

| Inputs / Outputs: | 1 x USB-C Power Input | |
| Battery Charging: | USB-C | |
| DC Input Power: | 9 VDC, 12 VDC, 15 VDC | |
| Included Cable: | 1 x USB-C to USB-C Cable for charging | |
| Max Power Consumption: | 10W (Maximum) | |
| Operating Temperature: | -4 to 113°F / -20 to 45°C | |
| PHYSICAL | ||
| Dimensions: | Light Fixture: | 15.6 x 7.6 x 2.1cm / 6.14 x 2.99 x 0.82in |

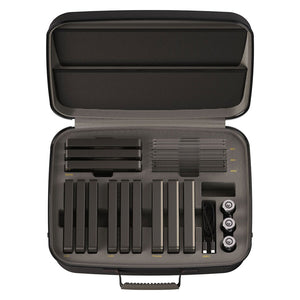

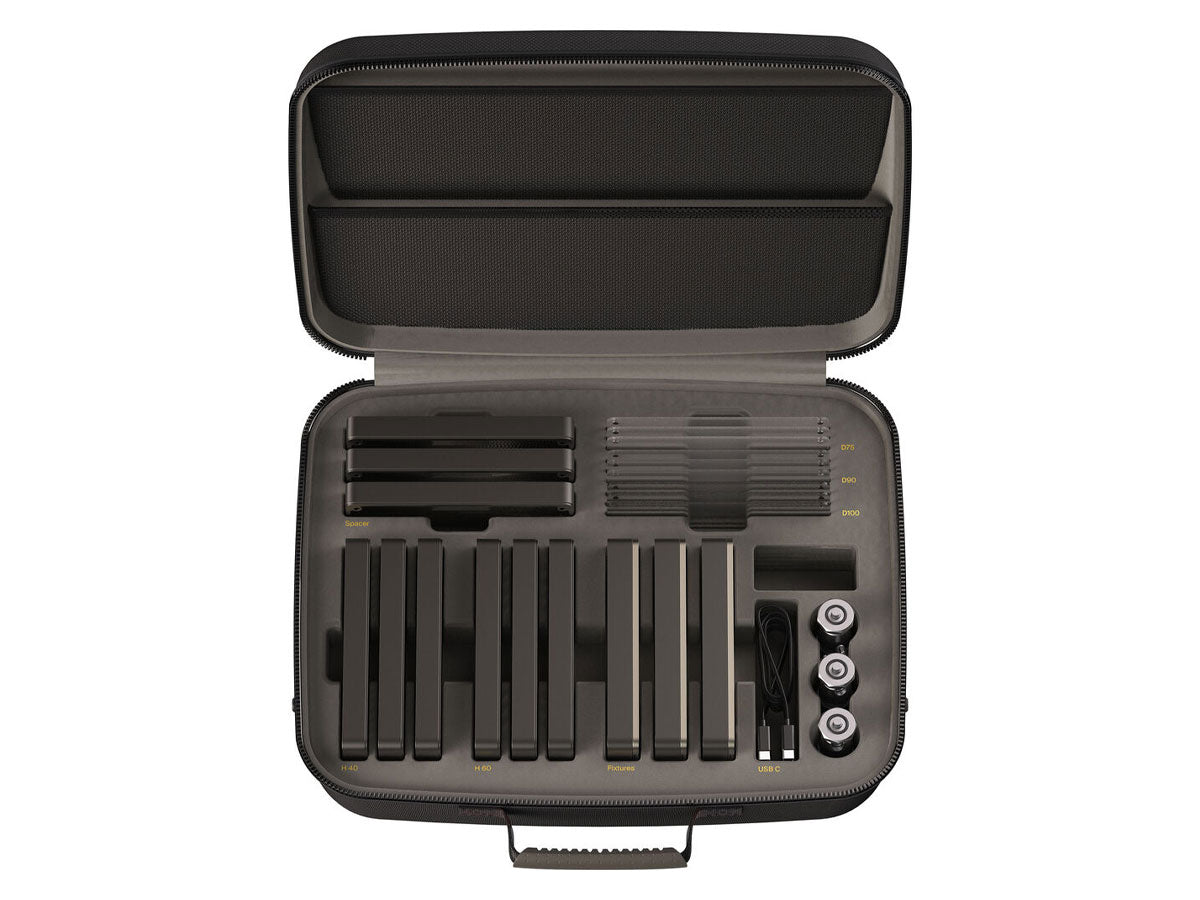

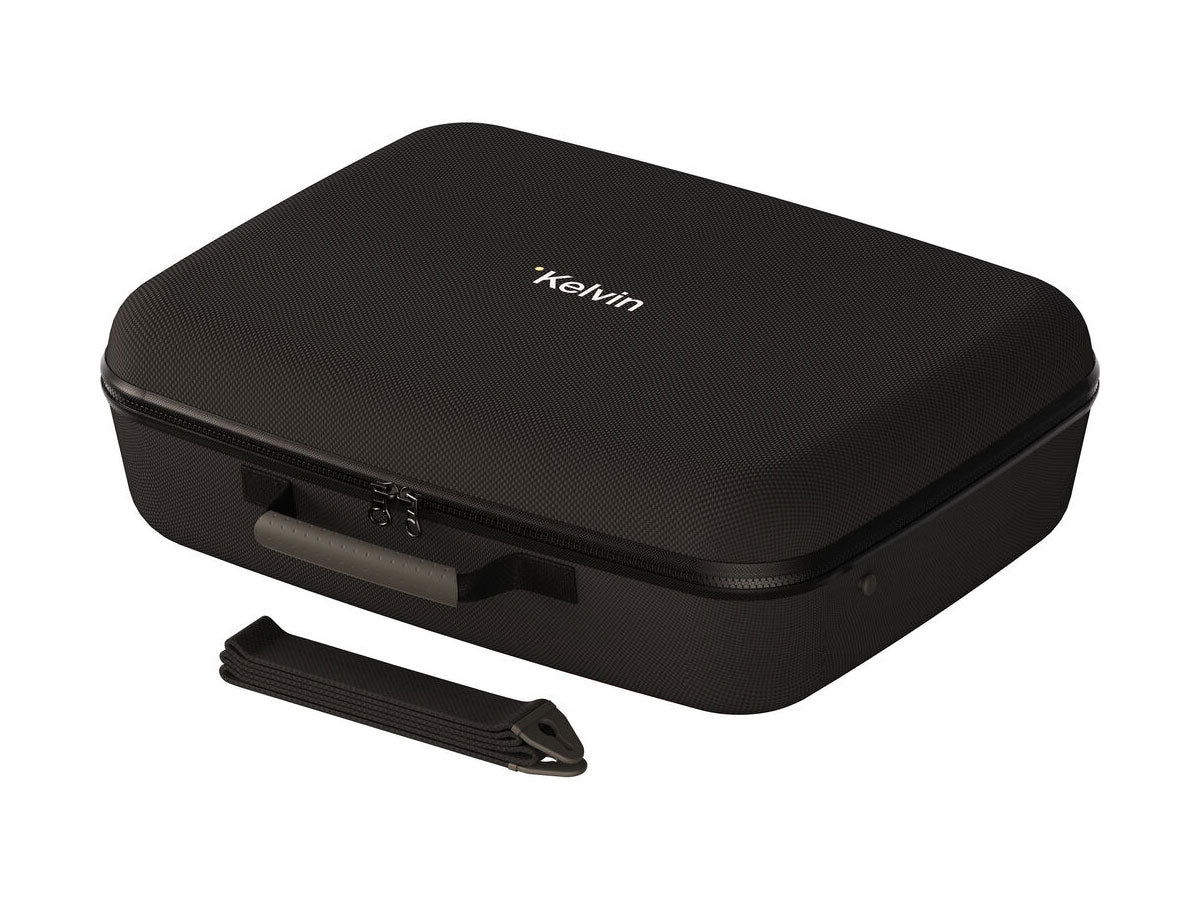

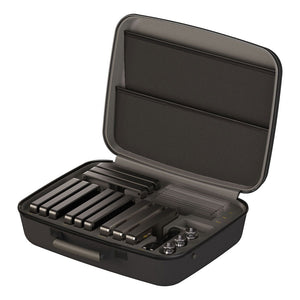

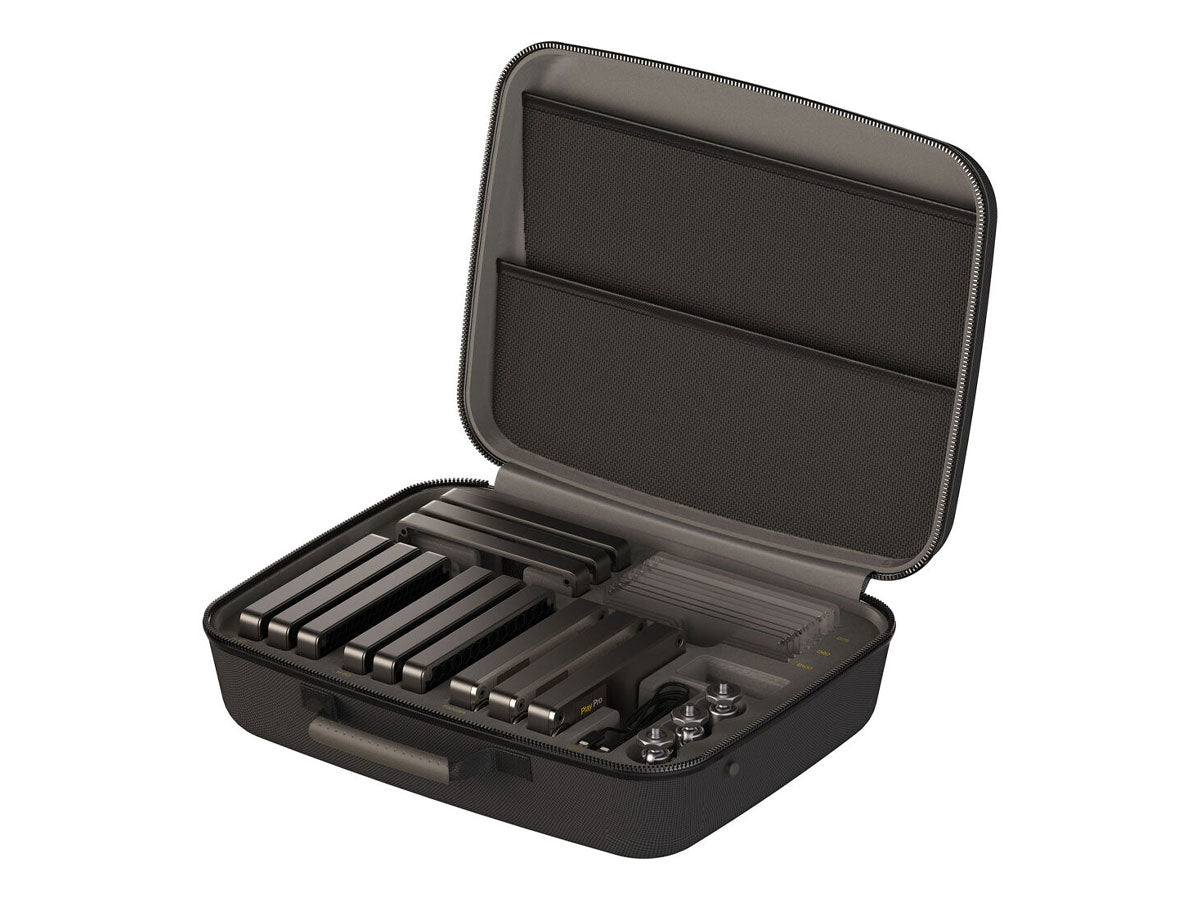

| Kit: | 26 x 16 x 12cm / 10.23 x 6.29 x 4.72in | |
| Weight: | Light Fixture: | 0.375 kg / 0.827 lbs |
| Kit: | 4.35kg / 9.6lbs | |
| CERTIFICATIONS | ||
| Certifications: | FCC, CE, IC, ROHS, KC, NCC, PSE, BIS | |
| IP Rating: | IP65 | |
