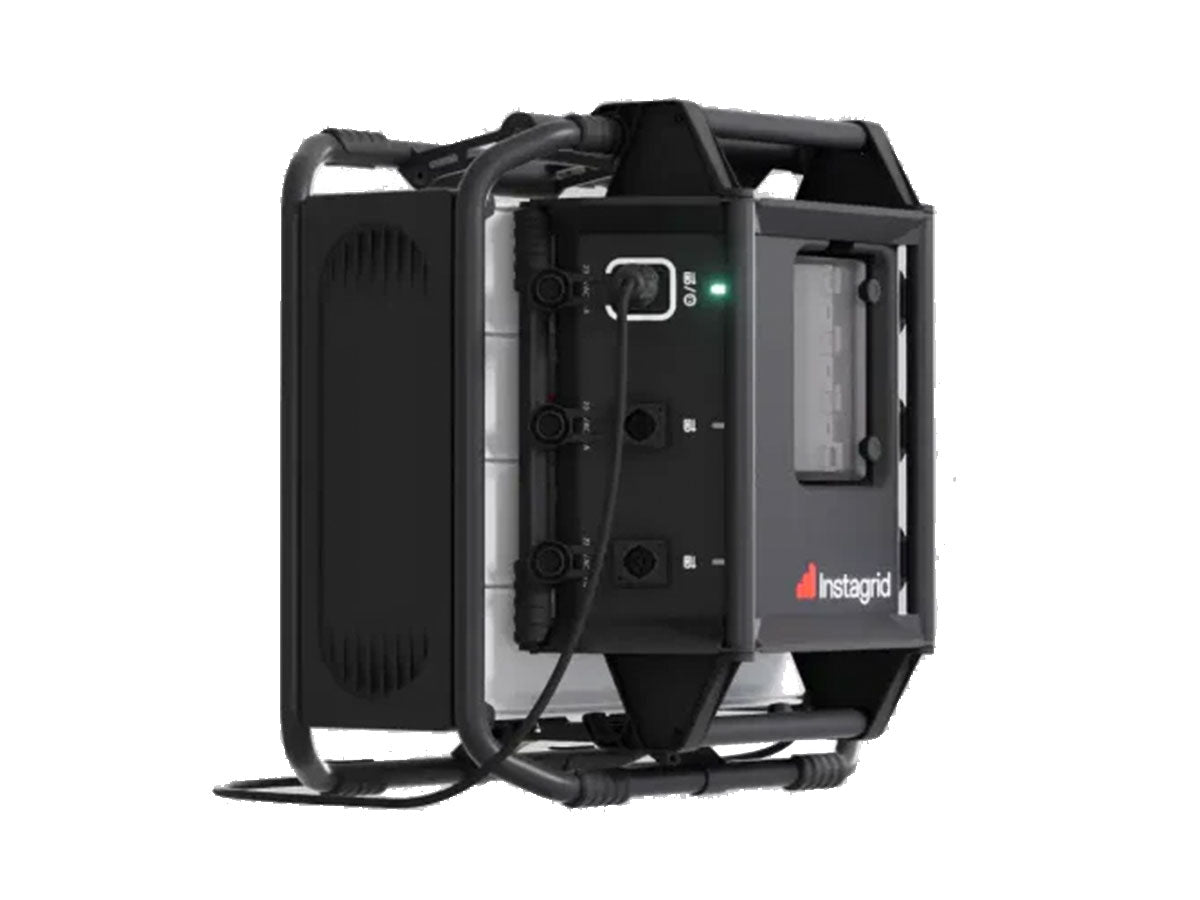

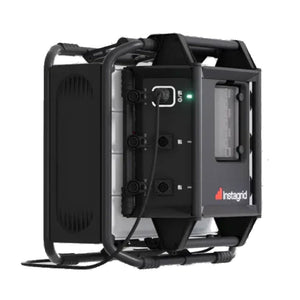

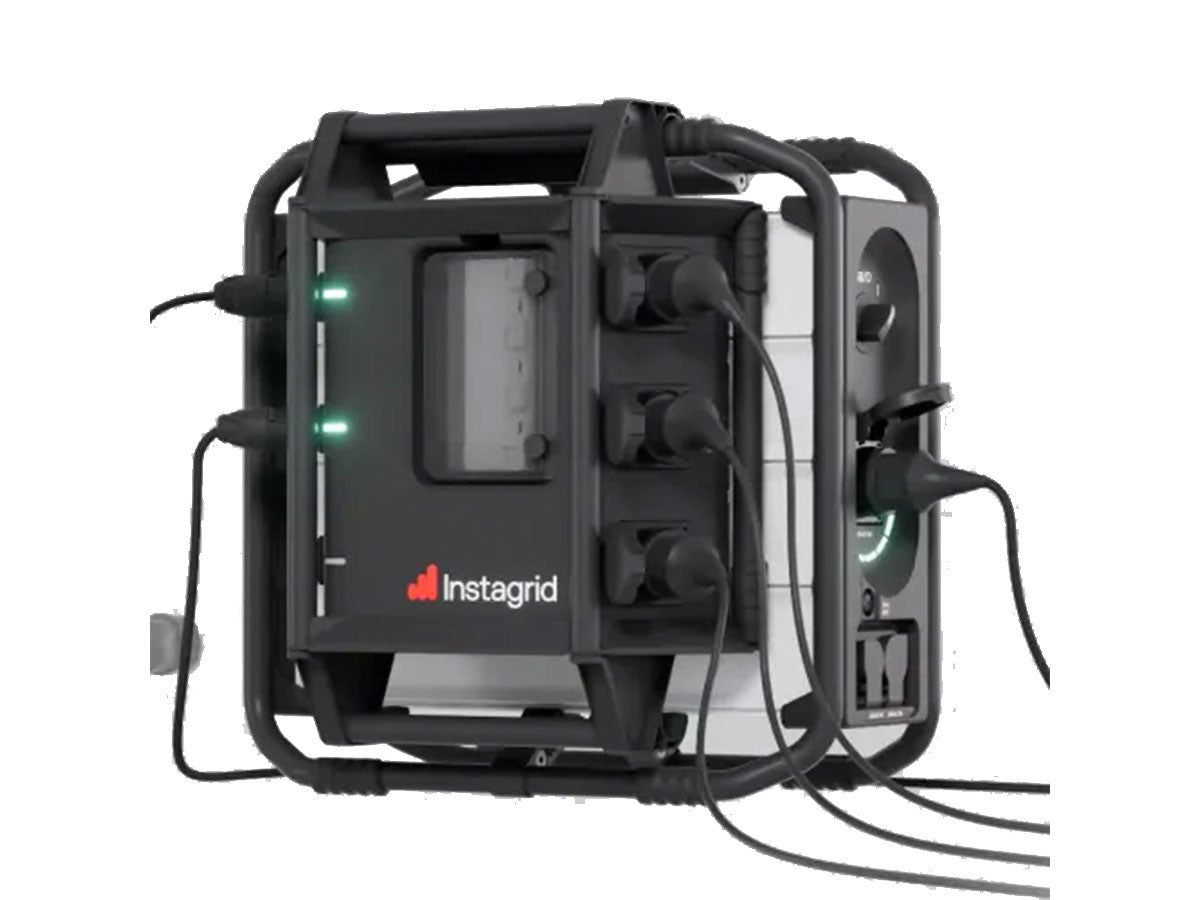

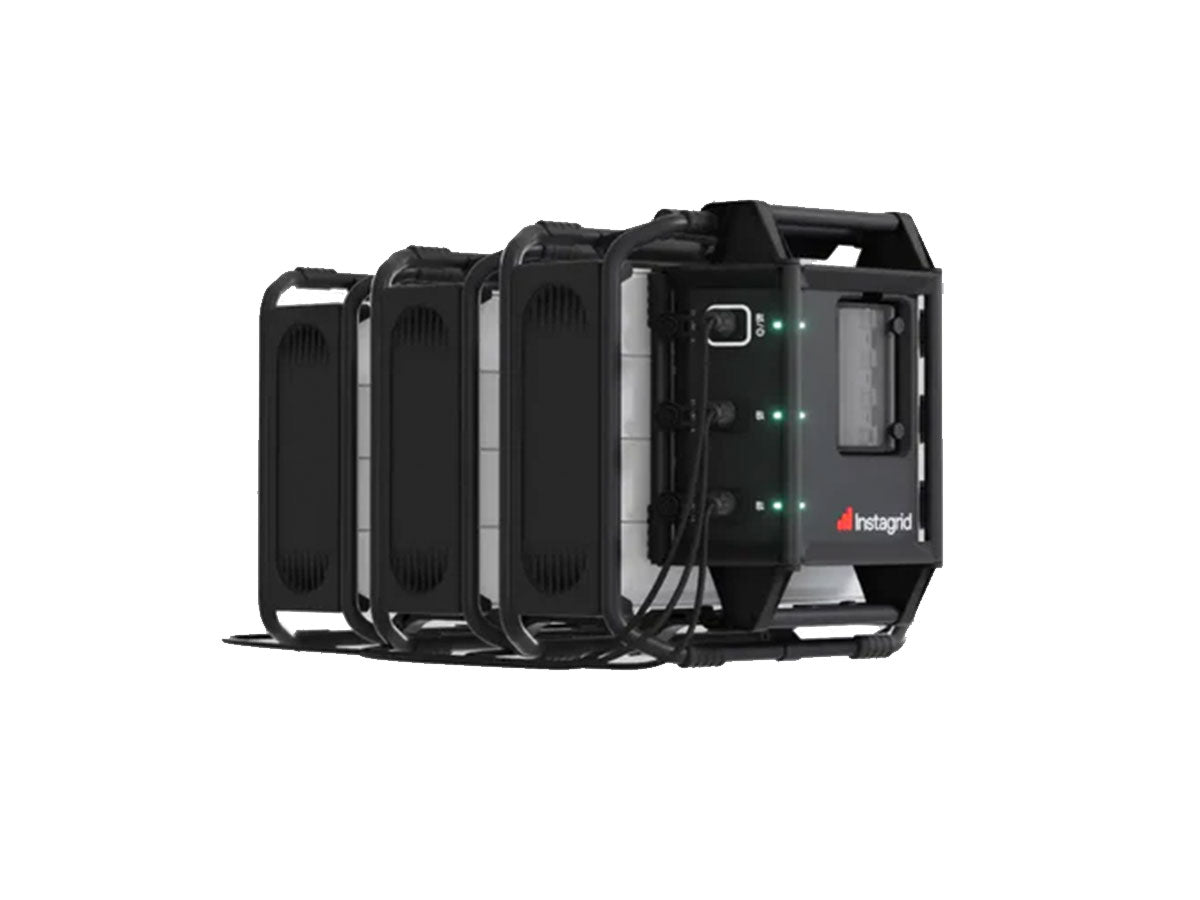

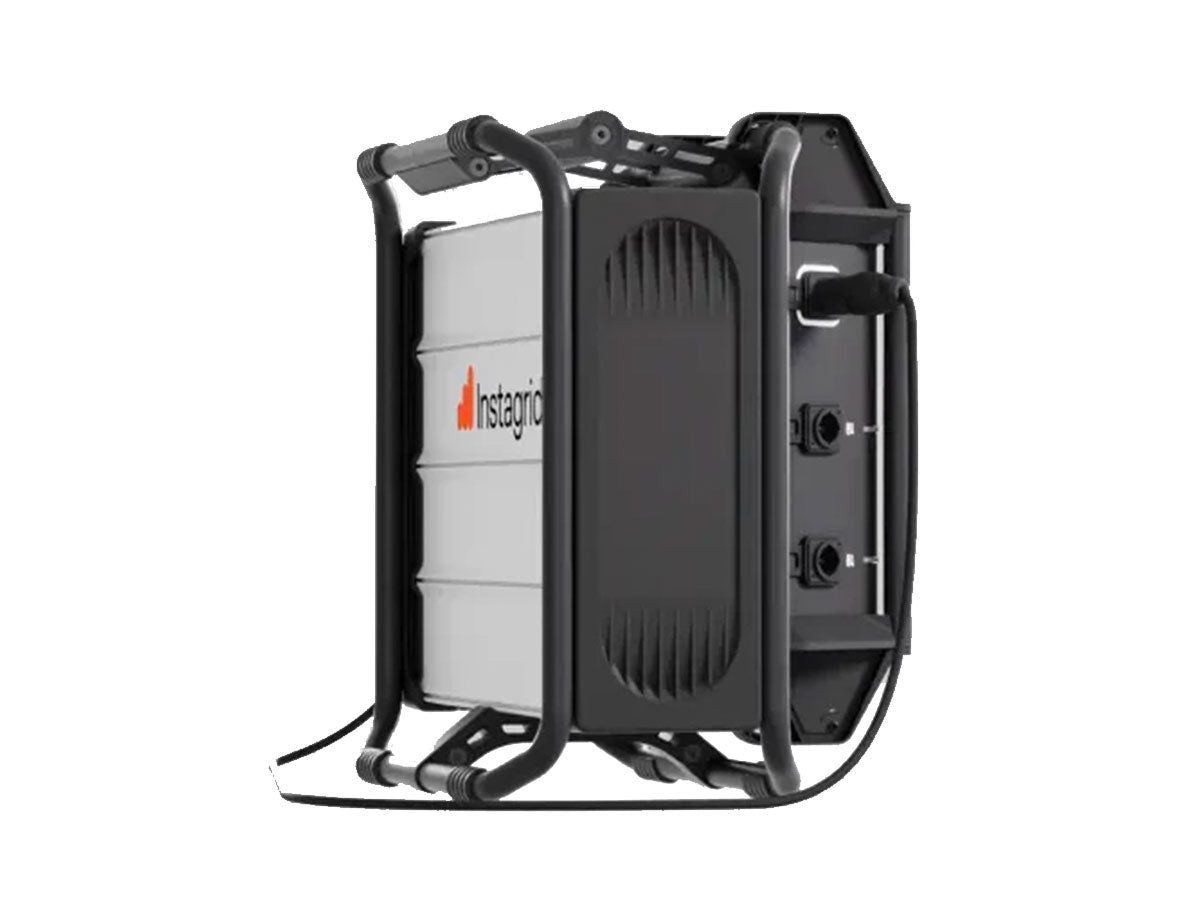

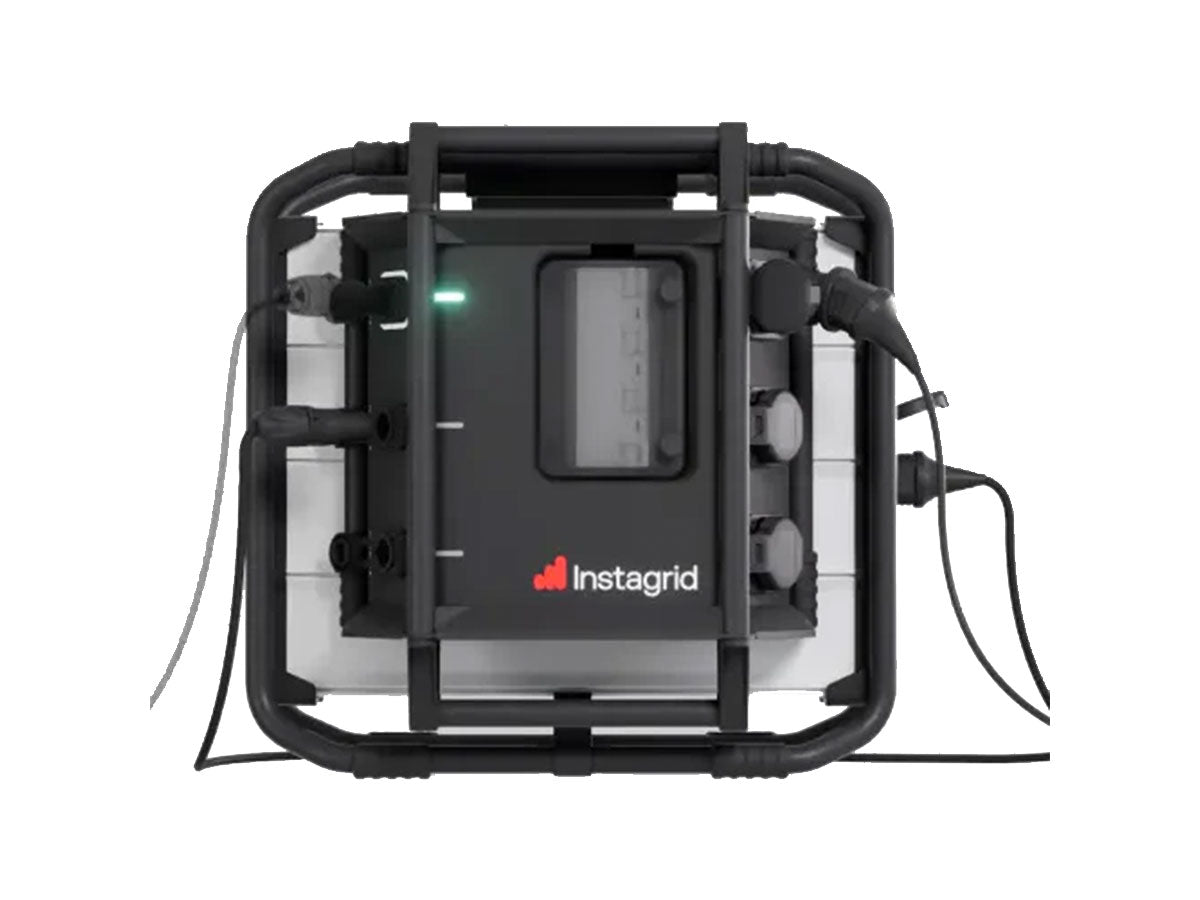

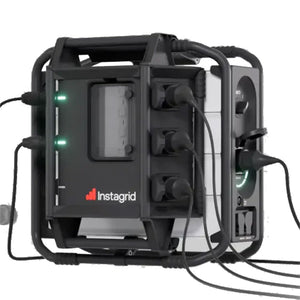

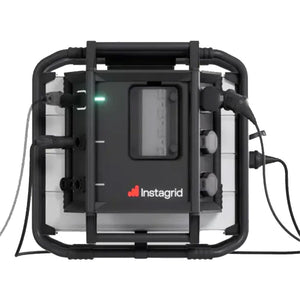

Connect the Instagrid LINK to the Instagrid ONE to expand its features and enable new and powerful applications.
| GENERAL INFORMATION | |
| Weight: | 4.5kg |
| IP Class: | IP54 |
| Protection Class: | Class II / double-insulated |
| Permitted Operating Temperature: | - 15 °C to 40 °C |
| OPERATION | |
| Output Voltage: | 230V and 110V AC / 50 Hz |
| Output Current: | 16A |
| Switching Time: | < 20ms |
| CONNECTIONS | |
| Input Socket: | 3 x Neutrik powerCON TRUE1 TOP® |
| Output Socket: | 3 x CEE-Form (IEC 60309) 16 A 3P 230 or 110 V |
| LINE PROTECTION | |
| Personal Safety Device: | 3 x 1P+N RCD type A, 30 mA |
| Line Protection: | 1P B16 |
