Inovativ Dual Bracket VESA System
Inovativ Dual Bracket VESA System
£574.80 GBP inc VAT
£574.80 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- What's Included

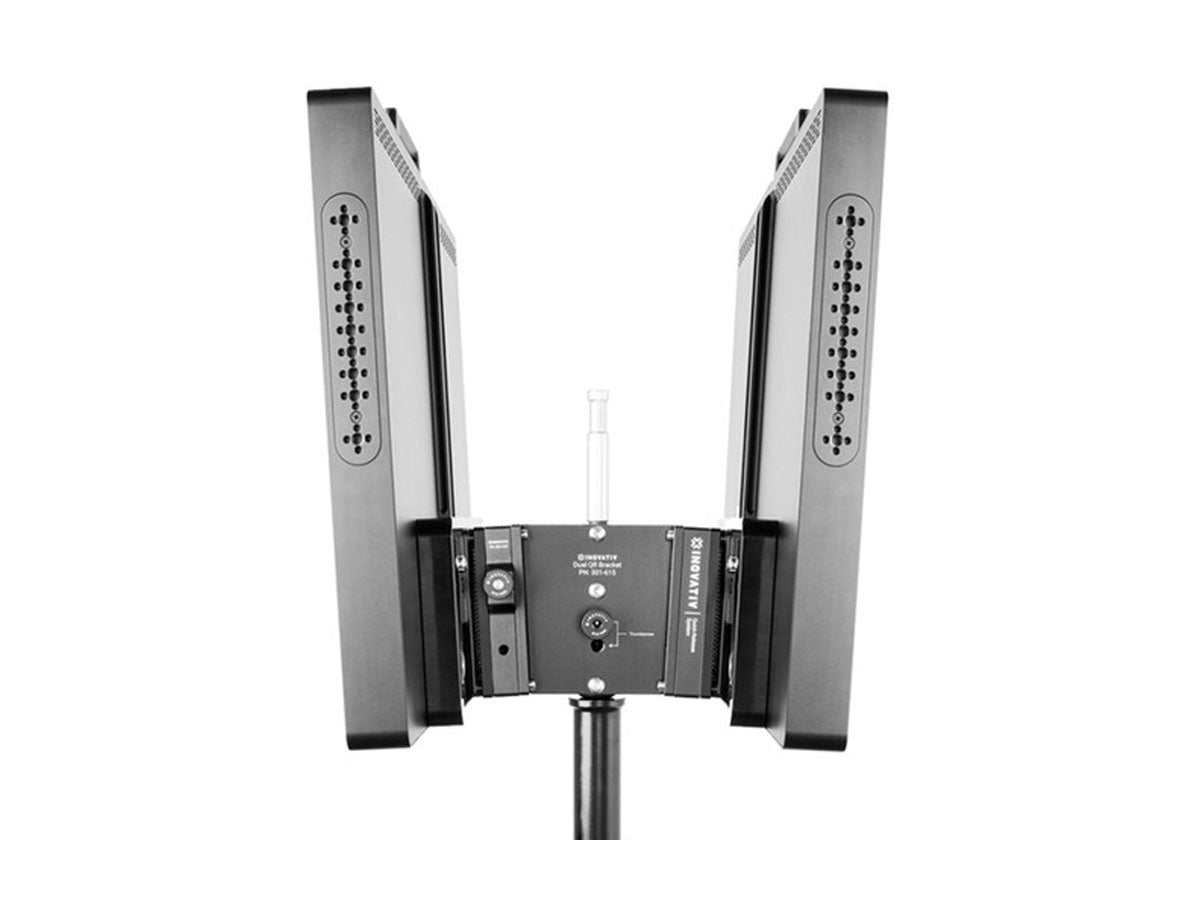

The Inovativ Dual QR VESA System allows you to mount two monitors back-to-back on a single stand. It provides an easy way for crew and clients to view shots, without having to stand right next each other. The system mounts on a stand via a baby pin receiver on the bottom. Your monitors then attach to it by quick release via included monitor plates.

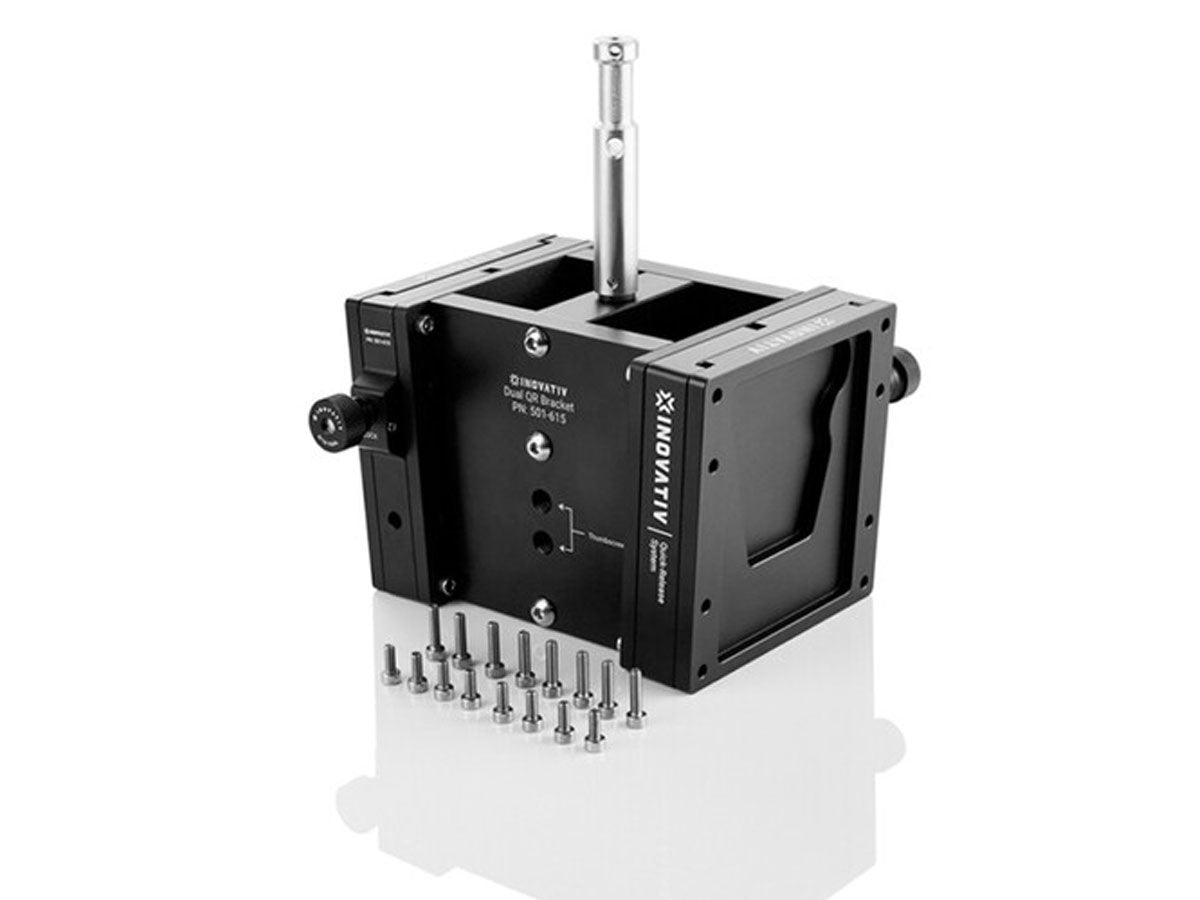

The central piece of this system is the Dual QR Bracket, which has the baby pin receiver on the bottom. Two receiver plates each attach to one side of the Dual QR Bracket, and the monitor plates secure to the receiver plates, connecting by quick release via an interlocking vDrop dovetail mount designed by Inovativ. They natively offer a VESA 100 x 100 mounting pattern, but adapters are included that let you convert that to 75 x 75. The bracket's face plates are tapered by 3°, providing just enough tilt to put your monitors at eye level. Locking thumb screws secure your monitors to the system. A 5/8" baby pin is also included that screws into to a 3/8"-16 thread on top of the Dual QR Bracket to additionally support wireless receivers.
- QR Mount Two Monitors on a Single Stand
- Back-to-Back Monitor Placement
- Baby Pin Receiver Stand Mount
- VESA 100 x 100 and 75 x 75 Patterns
- Inovativ Dual QR VESA System
- 2 x Receiver Plate
- 2 x Monitor Plate
- 2 x Adapter Plate
- Dual QR Bracket
- 5/8" Threaded Baby Pin
- 8 x M4 x 0.7 Screws (10mm)
- 16 x M4 x 0.7 Screws (12mm)
- 16 x M4 x 0.7 Screws (16mm)
- Allen Key
