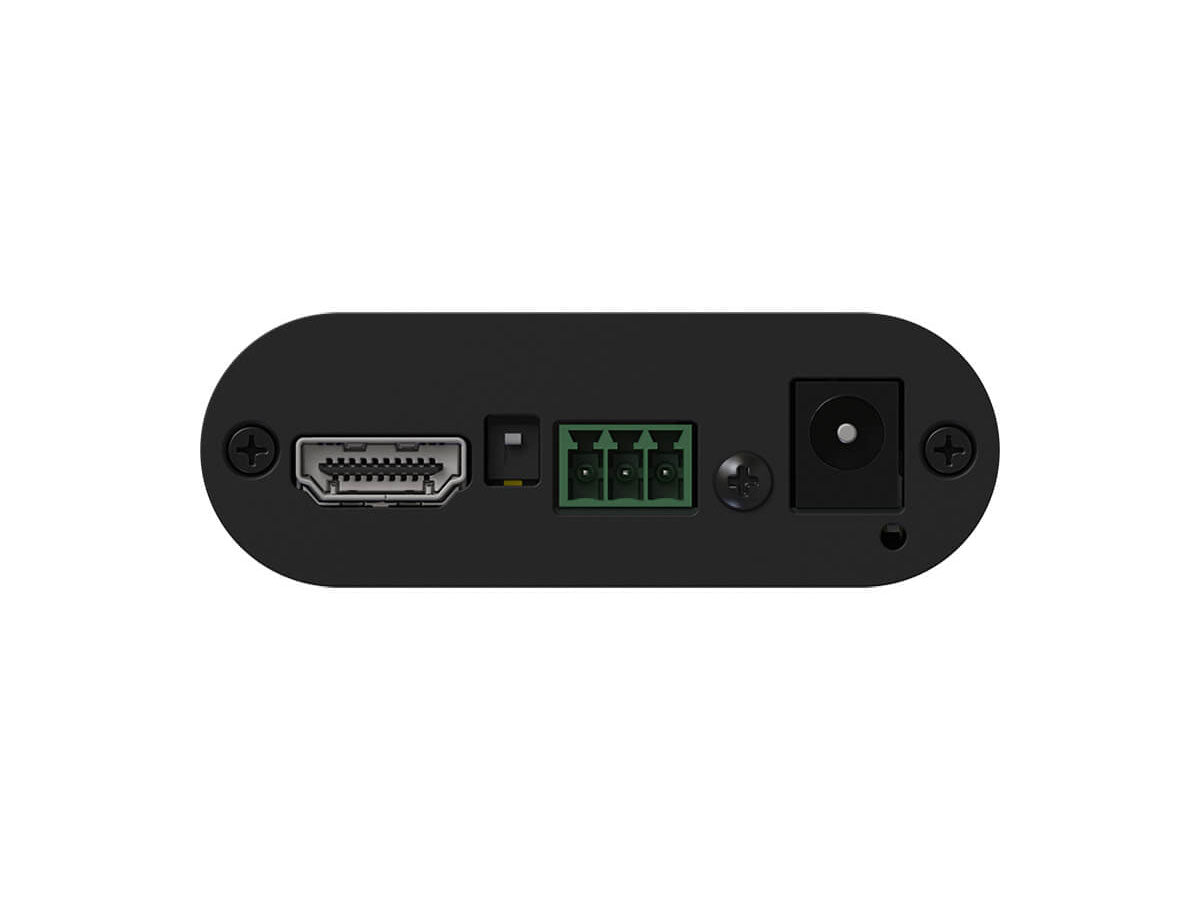

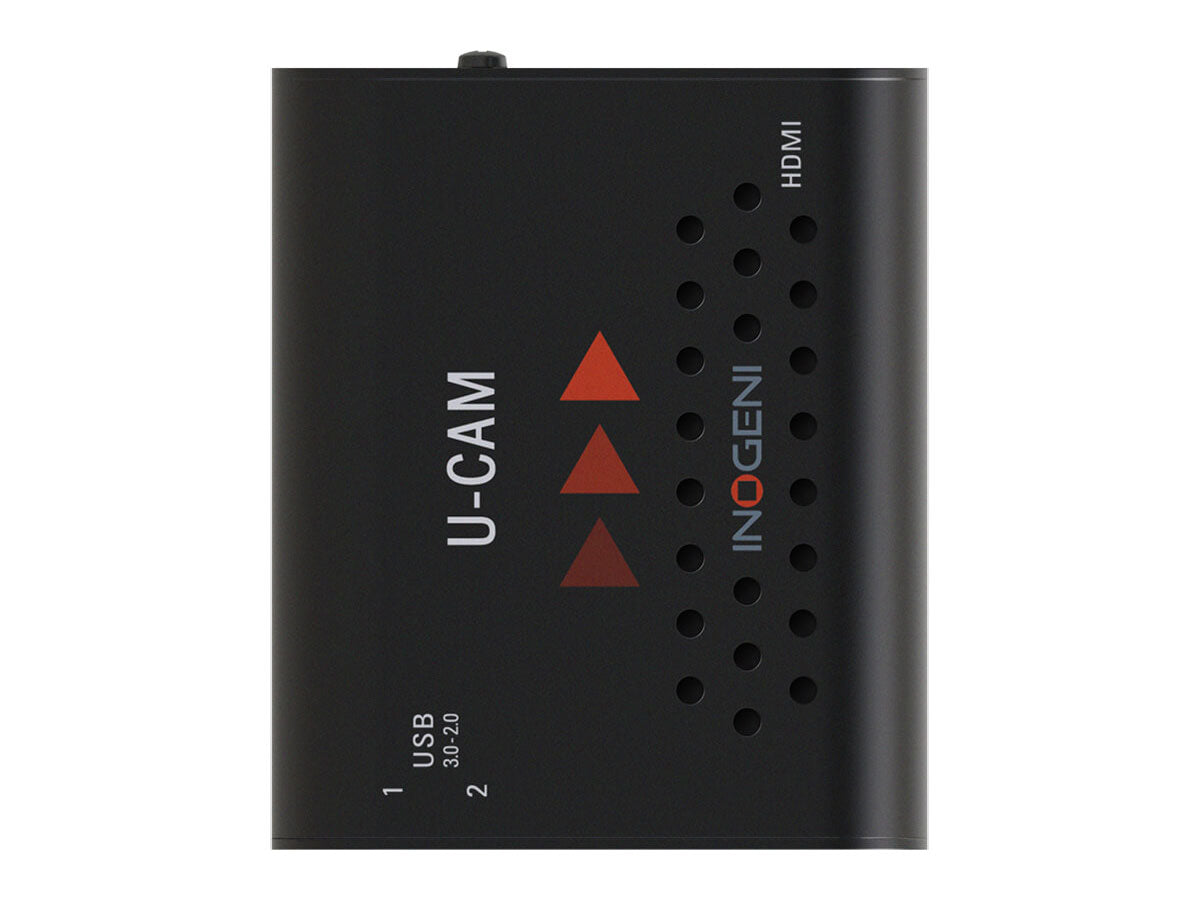

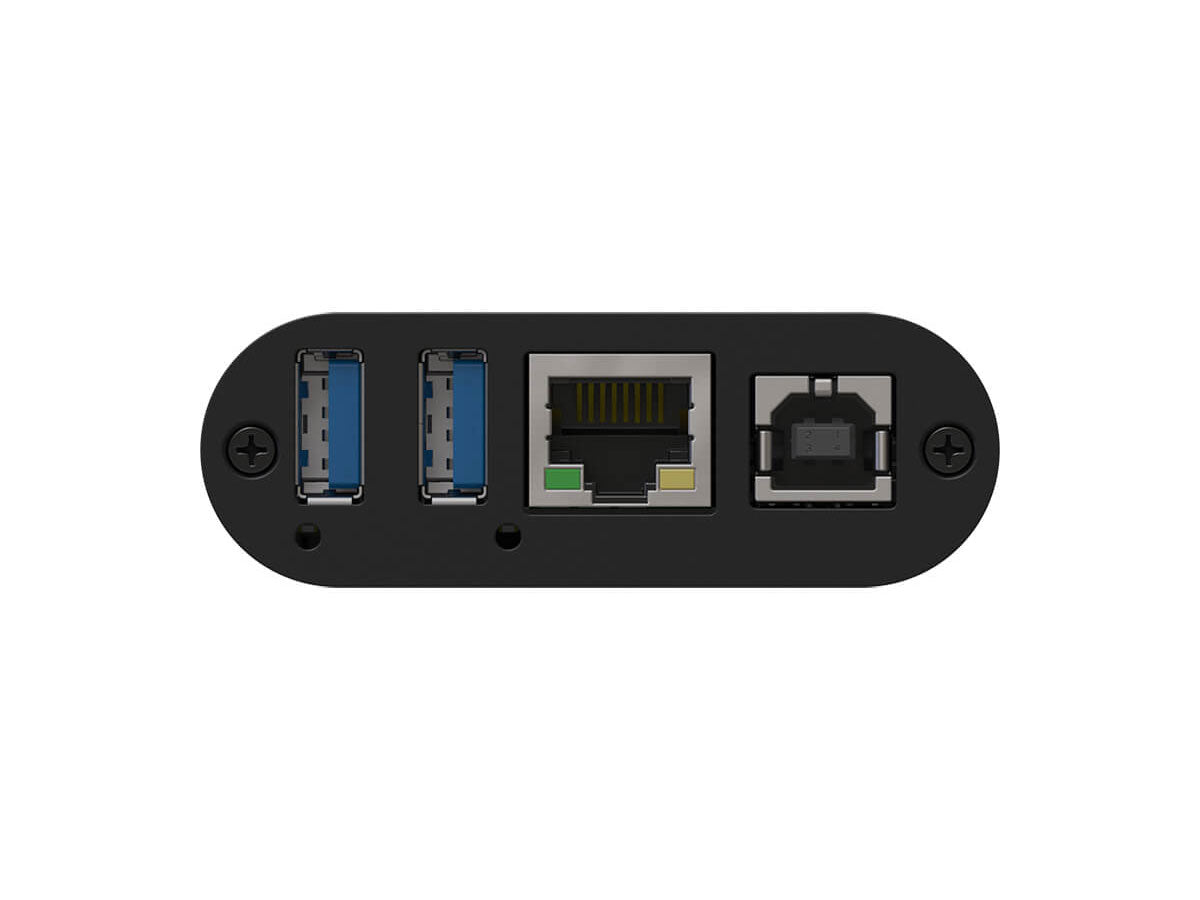

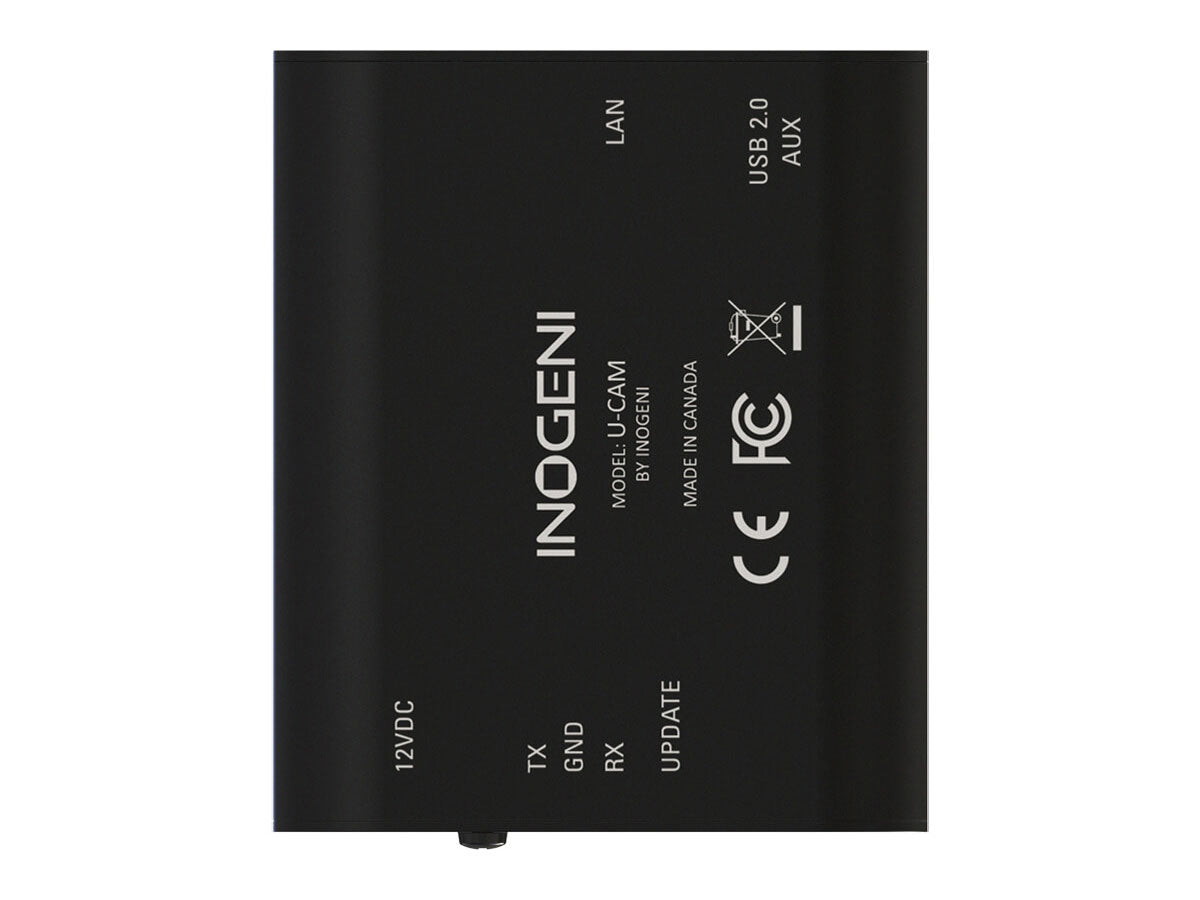

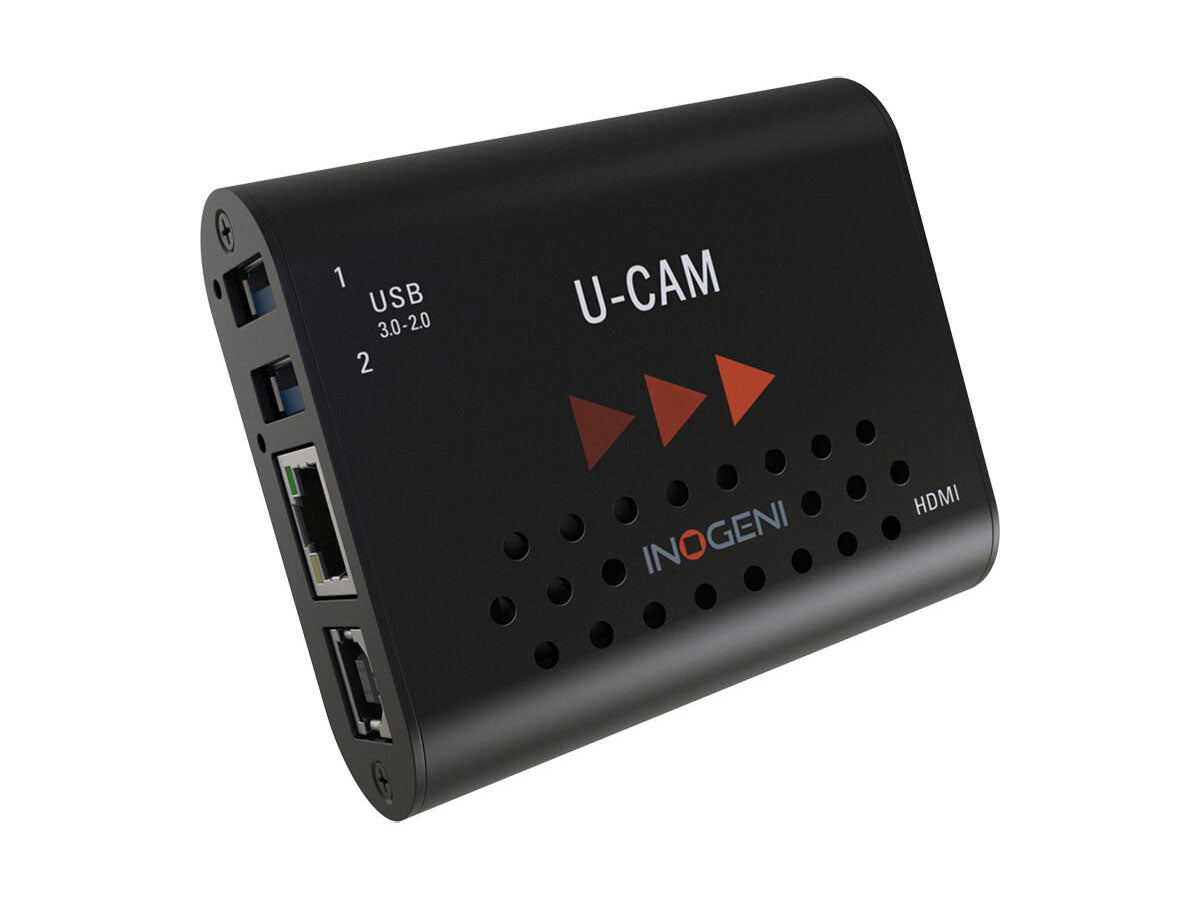

Inogeni U-CAM USB 3.0 Camera to HDMI Converter

Inogeni U-CAM USB 3.0 Camera to HDMI Converter

SKU: INO-U-CAM
£528.89 GBP ex VAT
£634.67 GBP inc VAT
ex VAT £528.89 GBP ex VAT
£634.67 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
INOGENI’s U-CAM is an industry first! This camera converter converts USB cameras and audio to HDMI for CODECs, matrixes and displays.
The U-CAM connect USB cameras with or without advanced AI to CODEC's HDMI inputs, thereby optimizing the installed assets. It also helps to achieve better meeting experiences and meeting equity because everyone has access to high-quality images and sound.
What’s more, new smart applications, such as Huddly Canvas for whiteboards, as well as other AI technologies, including face tracking, body movement recognition, automatic zooming, and automatic color and exposition balancing need to leverage the tremendous potential USB and AI USB cameras offer.
  • Capture video and audio from USB 3.0 and 2.0 cameras
  • Connect Huddly Canvas (SB) to Cisco Webex Room Series (HDMI input)
  • Ideal to connect Ai USB camera to HDMI CODECs or matrix.
  • Award winning video converter device - Best of Show – InfoComm 2022
  • IP and RS-232 control
  • Field upgradable
  • Compatible with Windows, macOS and Linux laptops
  • Compact and robust camera converter technology
  • Designed and manufactured in Canada
  • TAA-compliant
VIDEO INPUT
Connector & Video Resolutions:
2x USB 3.0
MJPEG: Up to 1080p30 using USB 2.0/3.0
YUYV: Up to 1080p60 using USB 3.0, 1080p10 using USB 2.0
Capture video and audio from USB 3.0 and 2.0 cameras.
Camera capture is done from USB input #1 and audio on USB input #2
Embedded Audio:
Device will capture embedded audio from USB camera or external USB device and will output through HDMI.
VIDEO OUTPUT
Connector & Video Resolutions:
1x HDMI
3840x2160p23.98/24/25/29.97/30 fps
1080p50/60 fps
720p50/60 fps
Colour Space:
YUV422 and YUV420 to RGB conversion
Embedded Audio:
Device will capture embedded audio from USB camera or external USB device and will output through HDMI.
USB - Connector & Video Resolutions:
1x USB 2.0 Type-B
Device will expose a UVC interface over USB 2.0 up to 720p30 MJPEG
USB - Video Scaler:
Automatic hardware based
USB - Colour Space Conversion:
Automatic hardware based
USB - Sampling Conversion:
Automatic hardware based
USB - Frame Rate Conversion:
Automatic hardware based
AUDIO
Capabilities Input:
Device will capture embedded audio from USB camera or external USB device and will output through HDMI.
Audio Input Connector:
Audio coming from USB camera is converted to HDMI
CONTROL
IP Interface:
100 mbps
Camera Control:
Terminal block RS-232
COMPATIBILITY
Operating System:
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2638)
Supported Cameras:
Cameras (or video Source) with an USB output
Software Compatibility:
UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.
PHYSICAL DETAILS
Dimensions:
7.0cm x 8.3cm x 2.3cm
2.75” x 3.25” x 0.9”
Power Supply:
12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
Weight:
138 g (0.30 lb)
Package Content:
1x 3ft USB 2.0 cable (Type-A to Type-B)
1x RS-232 terminal block adapter
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)
Operating Temperature:
0° to 45° C
32° to 113° F
Storage Temperature:
-40° to 105° C
-40° to 221° F
Relative Humidity:
0% to 90% non-condensing
INFORMATION
UPC Code:
40232609015
Origin:
Canada
Warranty:
2 years
CERTIFICATIONS
Certifications:
FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP
TAA-Compliant:
Yes
  • 1x 3ft USB 2.0 cable (Type-A to Type-B)
  • 1x RS-232 terminal block adapter
  • 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
    • International adapters included in the box (AUS, EUR, UK and US)
