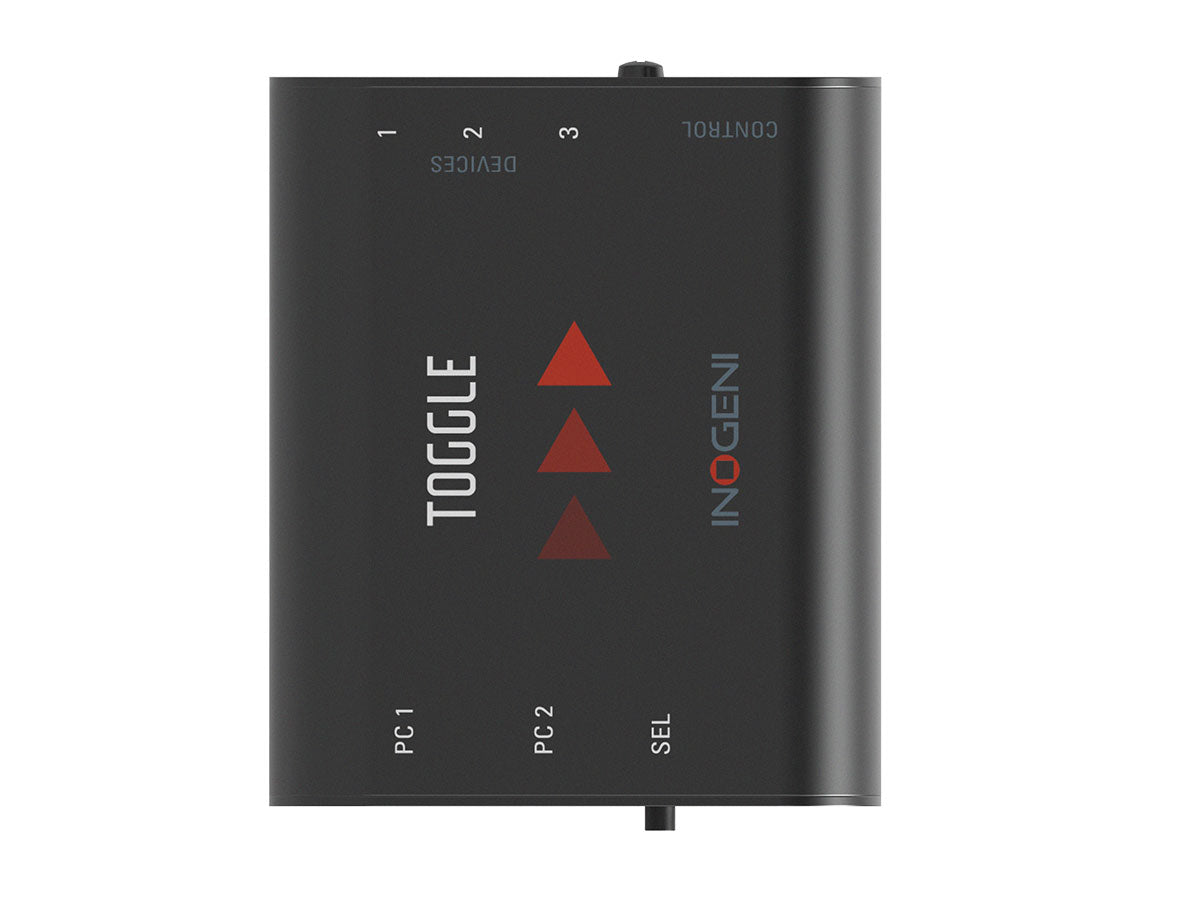

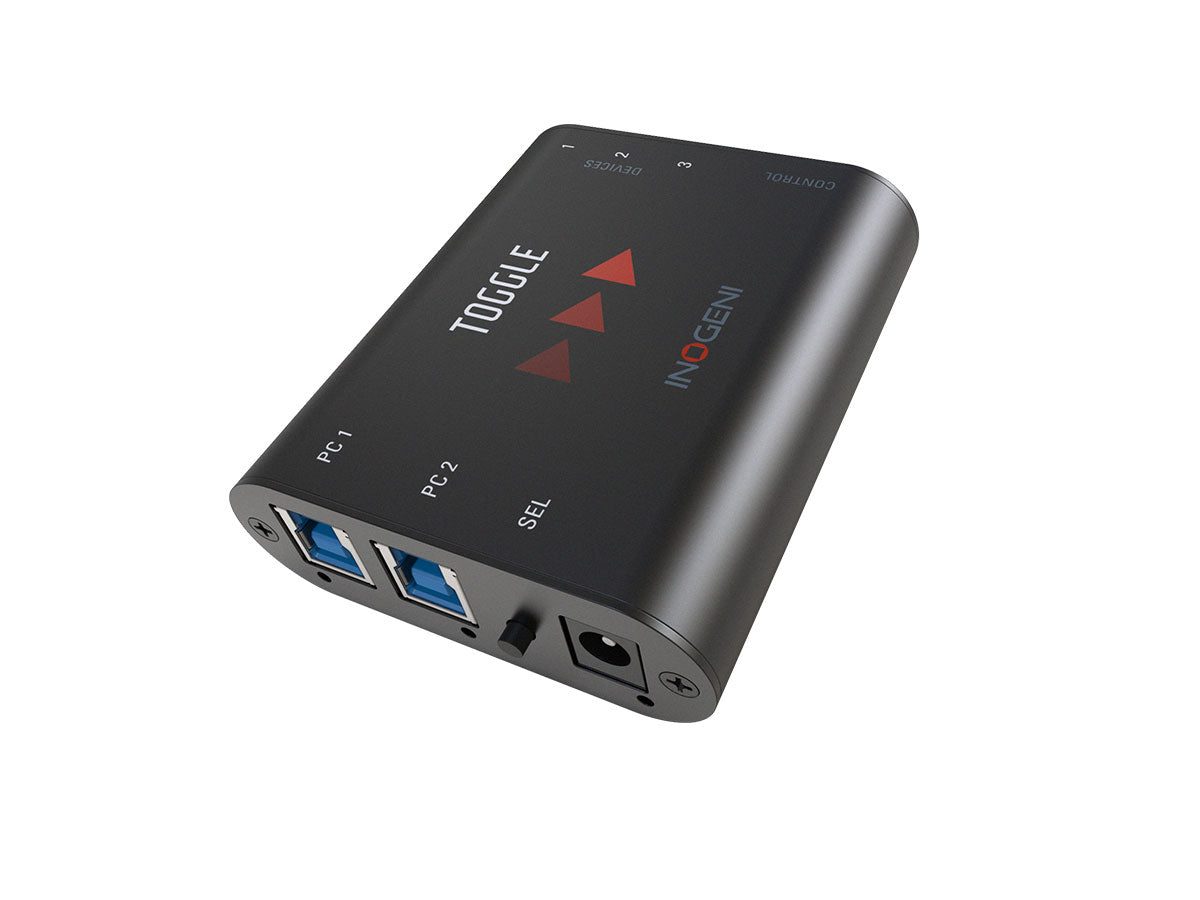

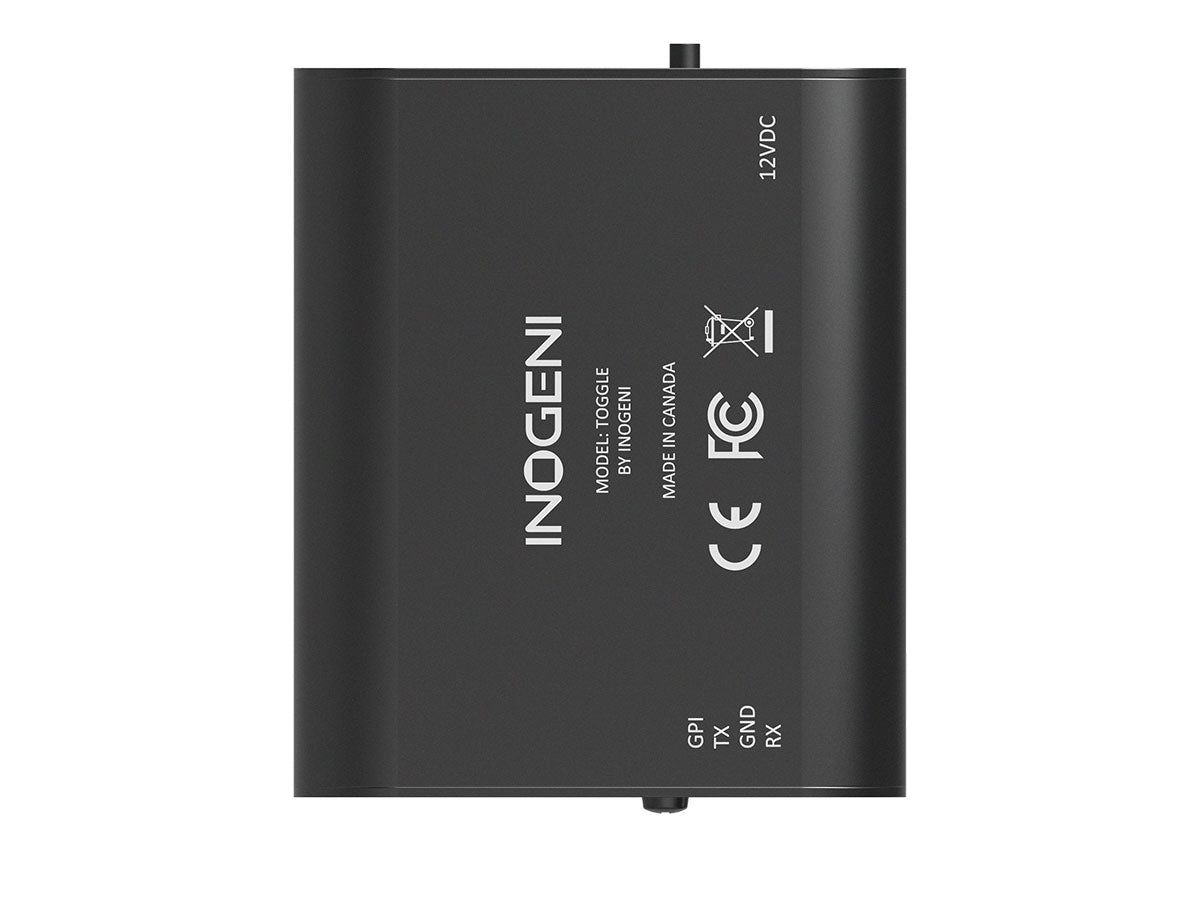

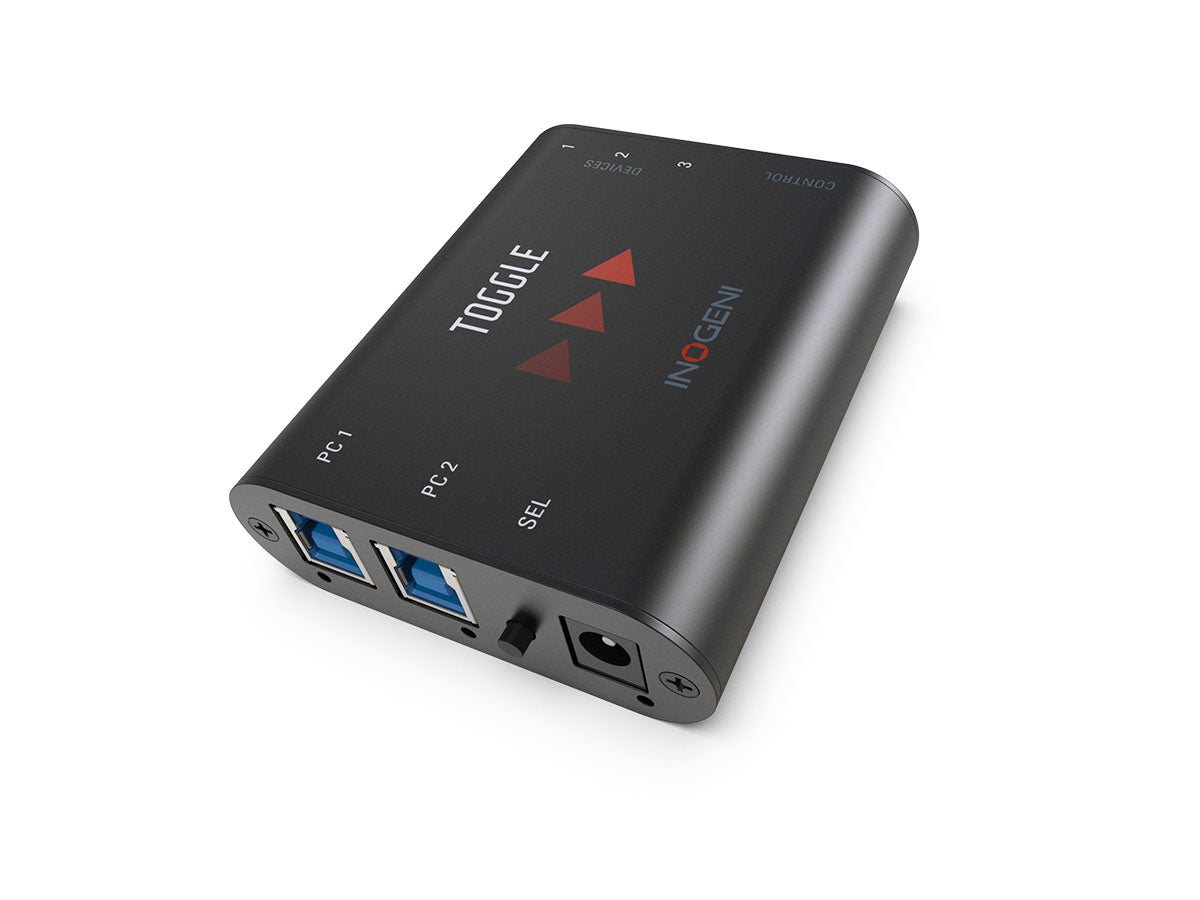

Inogeni Toggle - USB 3.0 Switcher
Inogeni Toggle - USB 3.0 Switcher
SKU:
INO-TOGGLE
Regular price
£395.56 GBP ex VAT
£474.67 GBP inc VAT
£474.67 GBP inc VAT
Regular price
ex VAT
Sale price
£395.56 GBP ex VAT
£474.67 GBP inc VAT
Unit price
per
£474.67 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
TOGGLE USB Switcher connect to three USB 3.0 devices and can switch them between two hosts. It will switch automatically to a laptop when it is connected, and revert back to the room pc when disconnected. It can also be controlled remotely by RS-232 or GPI.
- Your perfect partner for your BYOD or BYOM setup
- Three USB 3.0 device ports
- Switch between two USB 3.0 hosts
- Can automatically switch to the new host
- Compatible to USB 2.0
- Automatic, manual or remote control
- RS-232 control
- GPI control
- Rugged full-metal enclosure
- External power supply can provide power to the USB 3.0 devices
- Two USB 3.0 cables are included
- TAA compliant
- Designed and Made in CANADA
| Dimensions (W x L x H) | 70 x 83 x 23 mm |
| Power supply | 12V |
| Power consumption | Up to 1.2A |
| Weight | 113 g |
| Operating temperature | 0° to 45° C (32° to 113° F) |
| Storage temperature | -40° to 105° C (-40° to 221° F) |
| Origin | Canada |

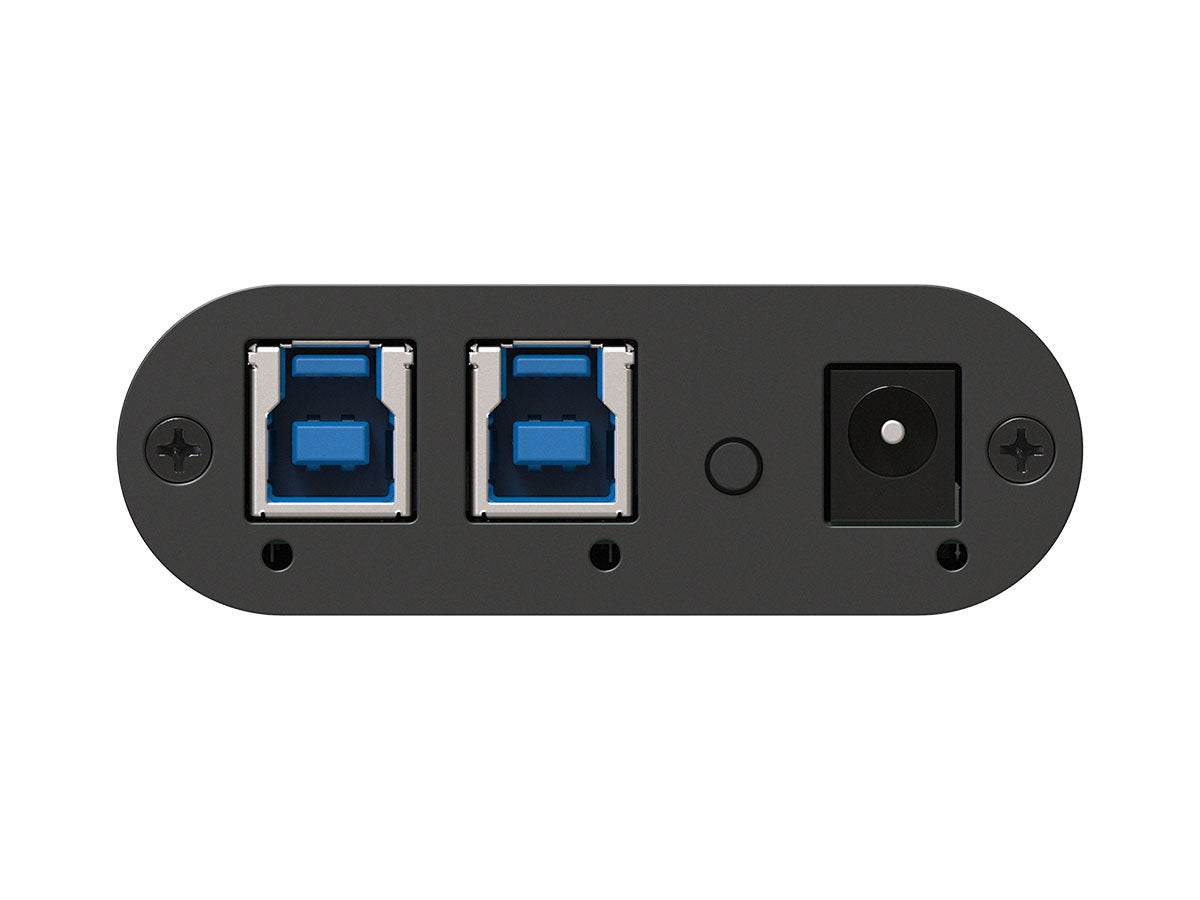

| USB host ports | 2 x Type-B USB 3.0/2.0 compatible. |

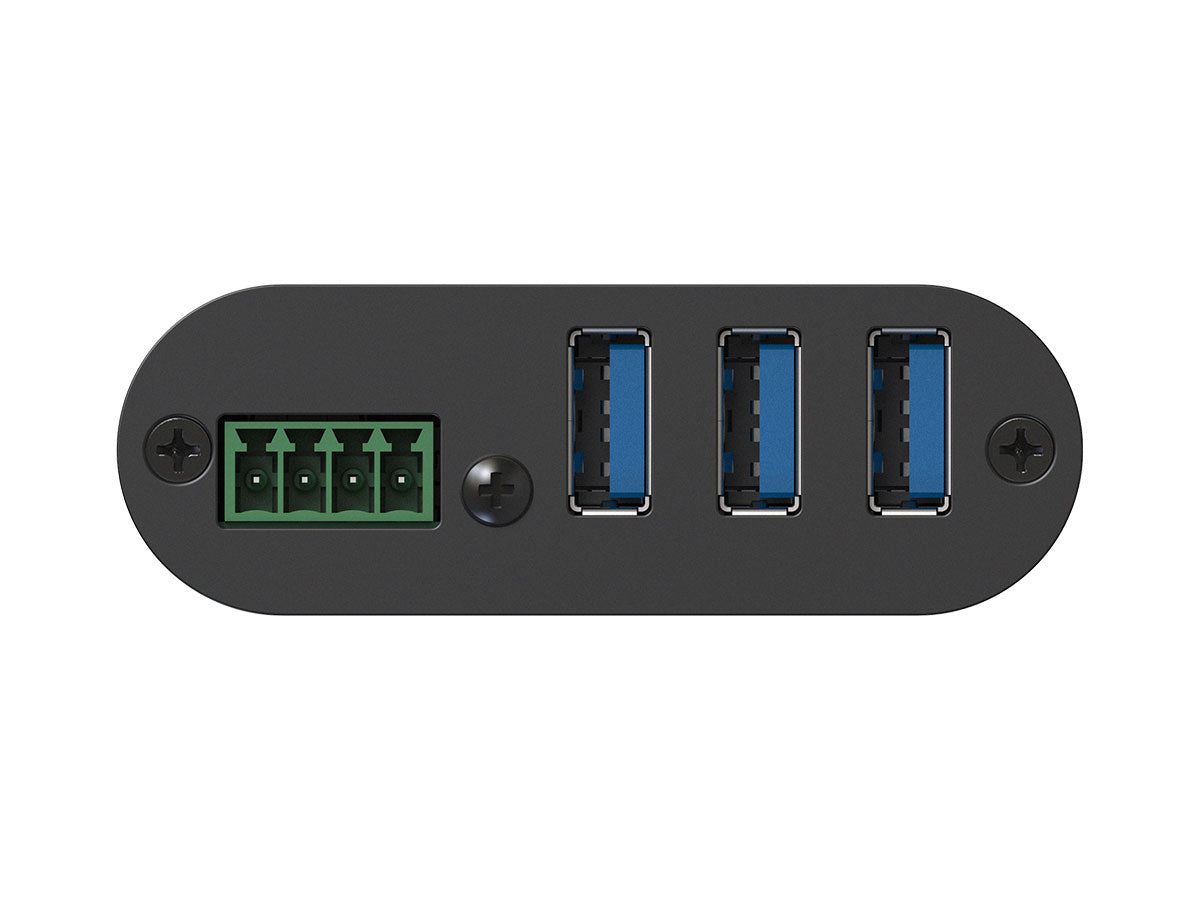

| USB device ports | 3 x Type-A USB 3.0/2.0 compatible. |
| Serial interface | Baud rate: 9600 |
| Push-button | Physical switch to select host. |
| GPIN | Contact-closure control. |
| Controlled by open-drain IO (short to ground) or driven IO. | |
| Supported voltage range: 0V to +12V max. | |
| Device current limit | 1.8A shared current limit for all 3 x USB device ports. |
| You can monitor current consumption through RS232 and our Control App. |
- 2 x USB 3.0 Type-B to Type-A cables.
- 1 x terminal block connection.
- 1 x 12V power supply
