Inogeni Share 2U USB Camera Mixer
Inogeni Share 2U USB Camera Mixer
£2,128.00 GBP inc VAT
£2,128.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Optimize your video collaboration and webcast with two cameras. Works with Skype®, Zoom®, Webex®, GoToMeeting®, Hangouts®, etc. Reduces hardware complexity and connections to your computer.

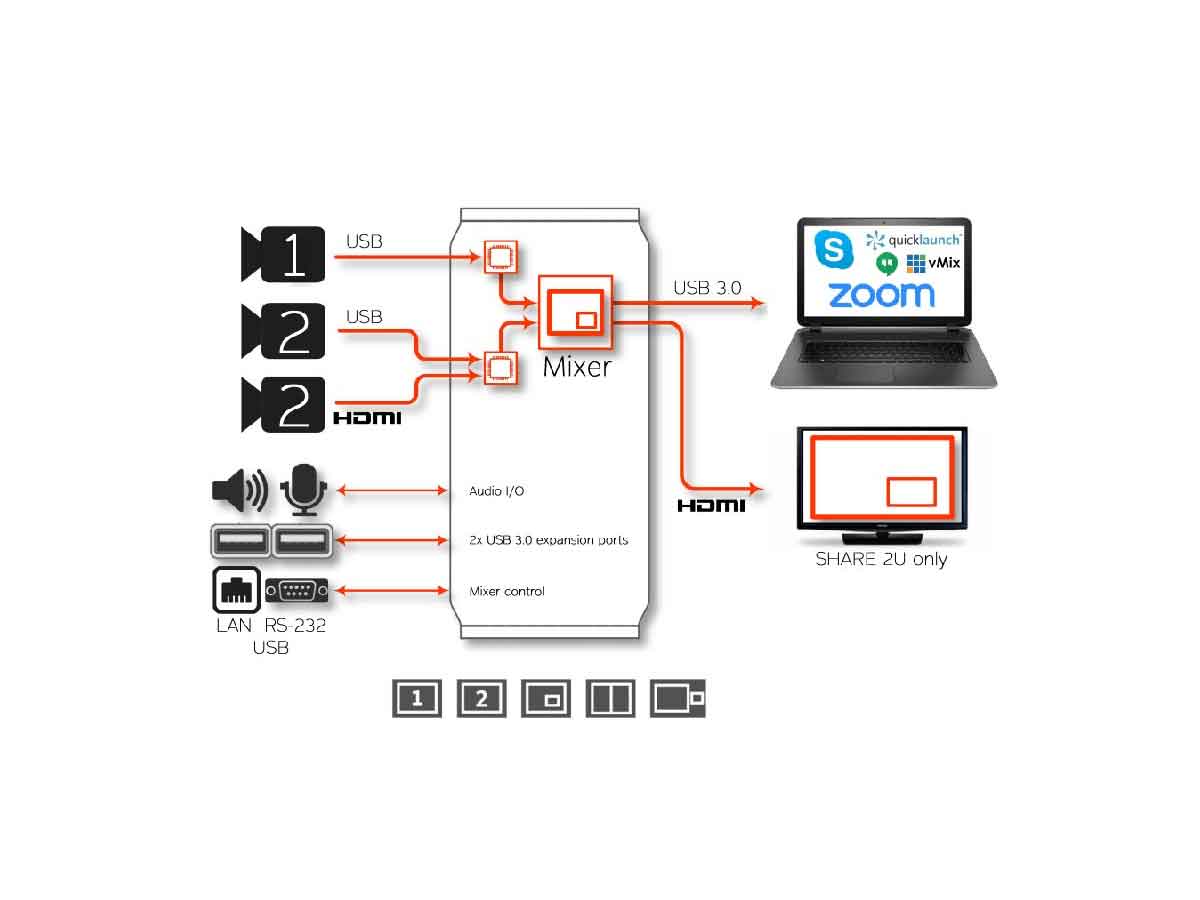

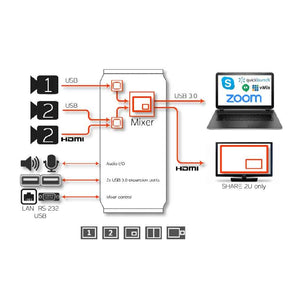

The device can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on top of the device to control it manually.You can use the Mixer feature of the SHARE2U to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Skype®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.
OEM and system developers friendly
The device may be controlled by INOGENI's APP or via an included API so you can design your own. You can read the sources status, presence, format, modify the EDID, update the firmware, etc. and ask for custom functionalities.
You can also get Crestron modules in order to control the device using the LAN or serial interface.
Control App
The device has its own application in order to control the Mixer configuration using the USB HID or the LAN interfaces. You can also monitor the firmware versions installed on the device and the status of the Camera and Content inputs. You can update your device to the latest firmware using the Update menu. The C++ source code of this application is available on demand.
- Dual USB Video to USB 3.0 Multi I/O Capture
- Line level stereo audio support
- Digital Fluid technology: Internal frame buffers maximize frame rate with any host
- Hardware-based colour space and sampling conversion
- Mixer feature: Hardware mixer into a single USB 3.0 interface
- Control interface : LAN, RS-232, USB

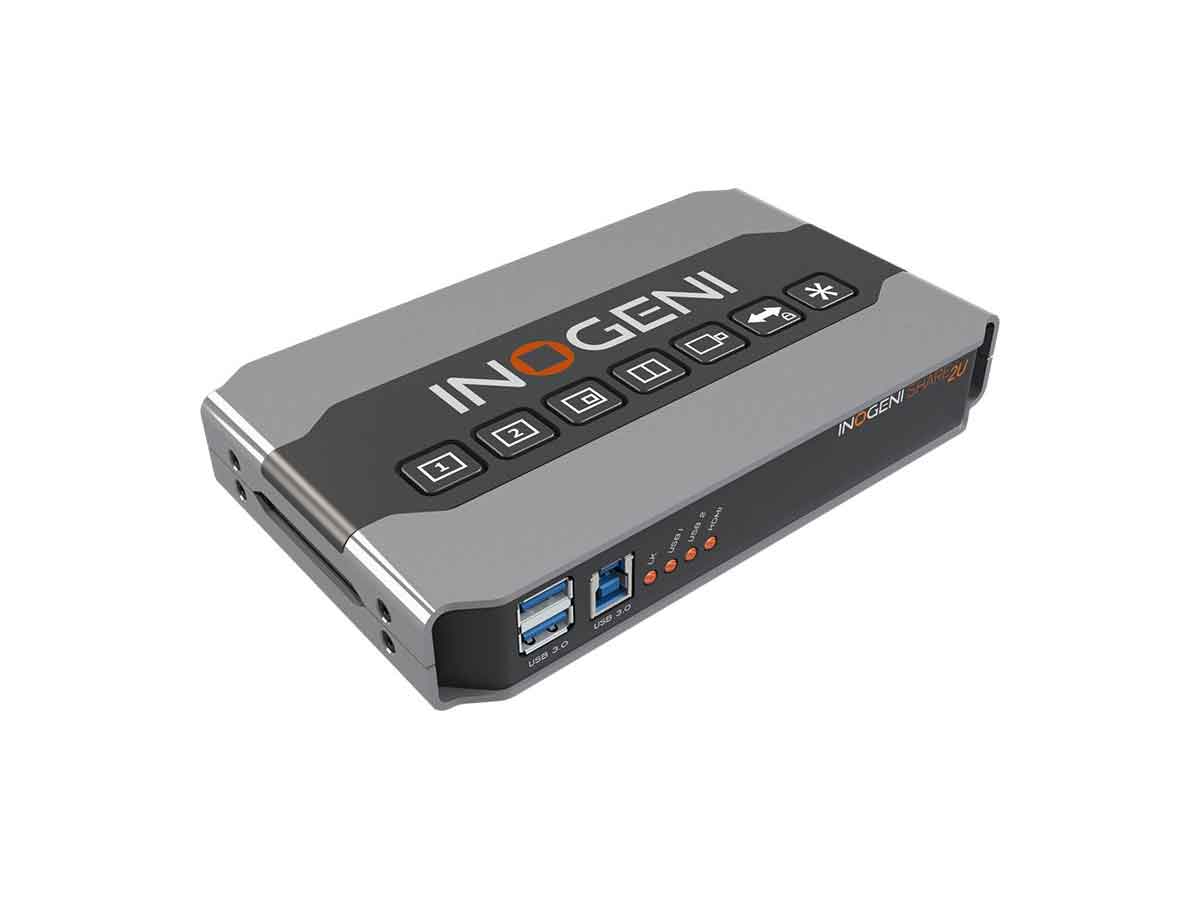

- Local and remote keypad
- USB 2.0 cameras and HDMI capture
- HDMI output for preview
- Screen Layouts: Single 1, Single 2, Side by Side, Big and Small, Picture in Picture (PIP)
- Compatible with Windows, OSX and Linux
| VIDEO INPUT | |
| #1 Connector & Video Resolutions: | 1x USB camera 2.0 MJPEG or H264 (*) Depends on the camera specifications |
| #2 Connector & Video Resolutions: | 1x USB camera 2.0 MJPEG or H264 (*) Depends on the camera specifications – OR – 1x HDMI 1080p60, 1080p30, 720p60 and 480p60 (1080p60 supported for S/N greater than SU2111xxx and SUM111xxx) |
| Notes for MJPEG and H264: | * USB 2.0 or USB 3.0 cameras that only support uncompressed video will not work properly. For better performance, use USB 3.0 or 2.0 cameras that support MJPEG or H264 CODECs. |
| Colour Space: | HDMI : RGB, YCbCr 4:4:4 and 4:2:2 |
| VIDEO OUTPUT | |
| HDMI: | 1x HDMI up to 1080p60 (One mixed video stream) |
| USB: | 1x USB 3.0 uncompressed up to 1080p60 (One mixed video stream) |
| USB - Colour Space / CODEC: | USB 3.0: YCbCr (YUY2) 4:2:2 8-bit. USB 2.0: MJPEG |
| USB - Video Scaler: | Automatic hardware-based |
| USB - Colour Space Conversion: | Automatic hardware-based |
| USB - Sampling Conversion: | Automatic hardware-based |
| USB - Frame Rate Conversion: | Automatic hardware-based |
| AUDIO | |
| Analog Audio Connections: | Unbalanced analog stereo, line level, 3.5 mm jack |
| Analog Audio I/O: | 2-channel LPCM 48kHz audio from line input |
| Digital Audio I/O: | Embedded in HDMI or USB |
| Audio Routing: | See following link for SHARE2 and SHARE2U audio routing |
| CONTROL | |
| Control Options: | RS-232 on terminal block |
| Mixer Control: | Integrated keypad, LAN, USB-HID, INOGENI REMOTE, RS-232 |
| IP Interface: | 10 Mbps Static address configuration through our Control App DHCP not supported |
| USB PORT | |
| USB Expansion Port: | Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host. |
| COMPATIBILITY | |
| Operating Systems: | No driver installation necessary. Windows 7 and above (32/64-bit) macOS 10.10 and above Linux (kernel v2.6.38) |
| Minimum Host Requirements: | USB 2.0 port – We recommend USB 3.0 for uncompressed video 4GB RAM Intel Core i5 or equivalent Graphic card with dedicated memory |
| Supported Cameras: | Depends on the camera specifications |
| Software Compatibility: | UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2. Compatible to: Teams, Zoom, Webex, Google Meet, etc. |
| PHYSICAL DETAILS | |
| Dimensions (W x L x H): | 18.5 cm x 11.0 cm x 3.0 cm 7.25” x 4.25” x 1.25” |
| Power Supply: | 12V (100-240 VAC 50/60Hz to 12V/1.2A DC) |
| Weight: | 540 g (1.19 lb) |
| Package Contents: | 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B) 1x RS-232 terminal block adapter 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC International adapters included in the box (AUS, EUR, UK and US) |
| Operating Temperature: | 0° to 45° C 32° to 113° F |
| Storage Temperature: | -40° to 105° C -40° to 221° F |
| Relative Humidity: | 0% to 90% non-condensing |
| INFORMATION | |
| UPC Code: | 40232633843 |
| Origin: | Canada |
| Warranty: | 2 years |
| CERTIFICATION | |
| HDCP-Compliant: | The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources. |
| Certifications: | FCC, CE, RoHS, SoV, RCM |
| TAA-Compliant: | Yes |
- 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
- 1x RS-232 terminal block adapter
- 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
- International adapters included in the box (AUS, EUR, UK and US)
