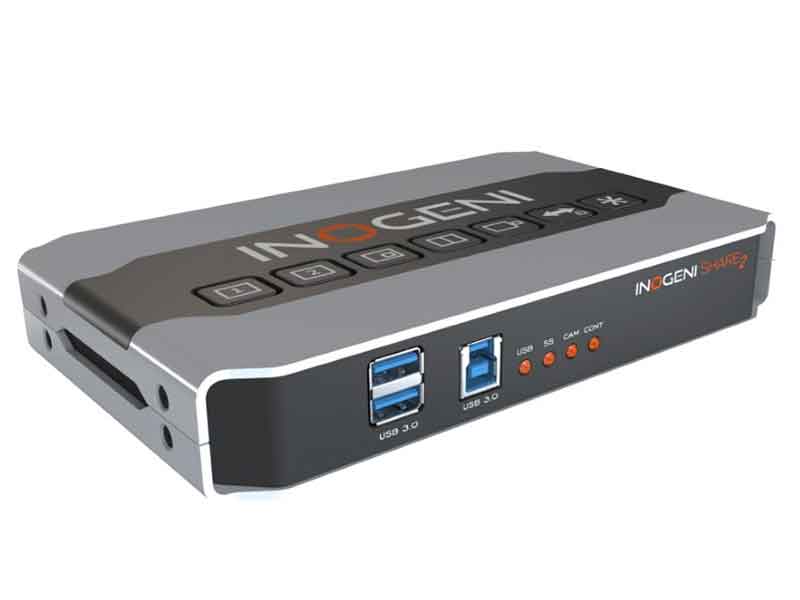

Inogeni SHARE 2 Dual Video to USB 3.0
Inogeni SHARE 2 Dual Video to USB 3.0
£1,594.67 GBP inc VAT
£1,594.67 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

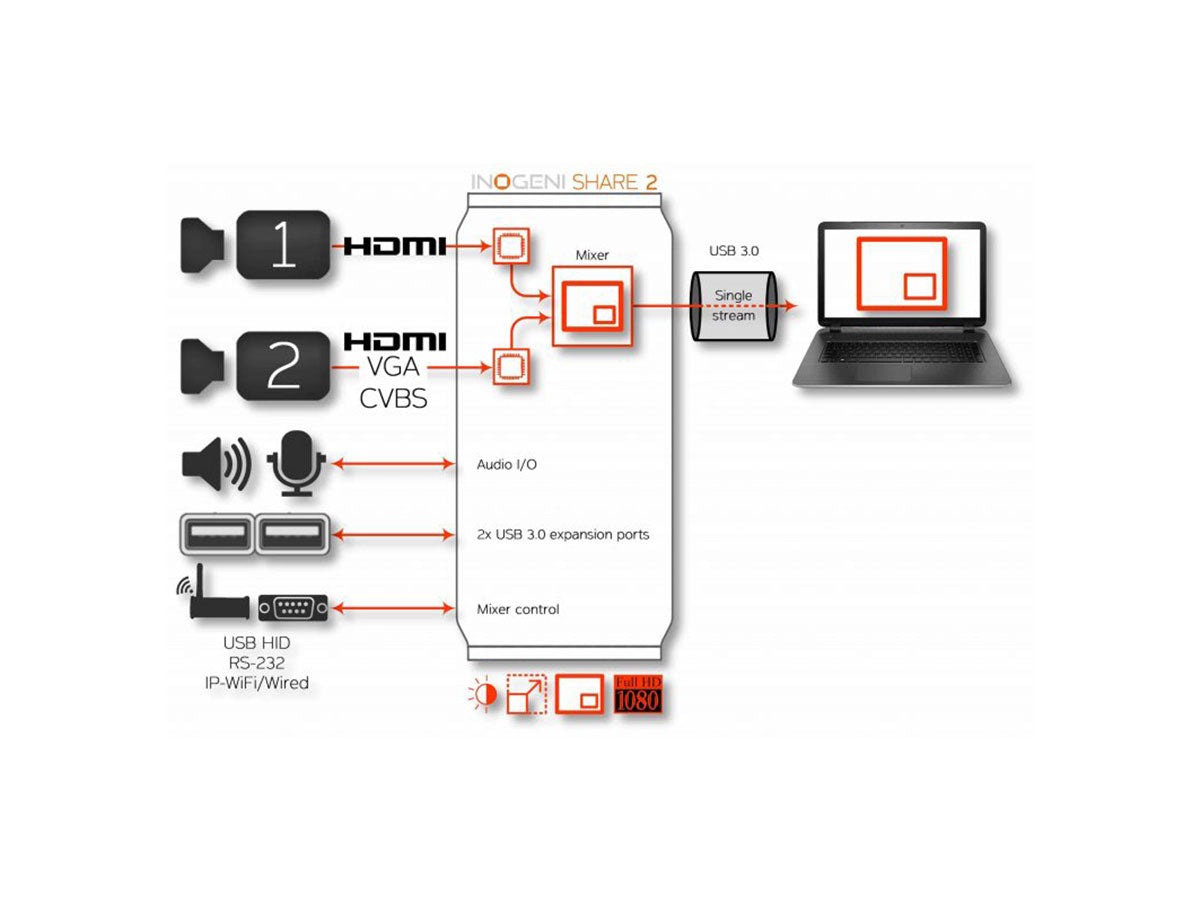

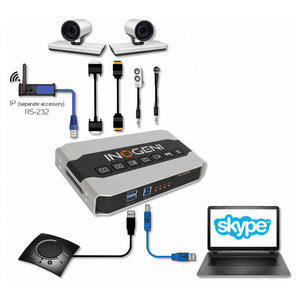

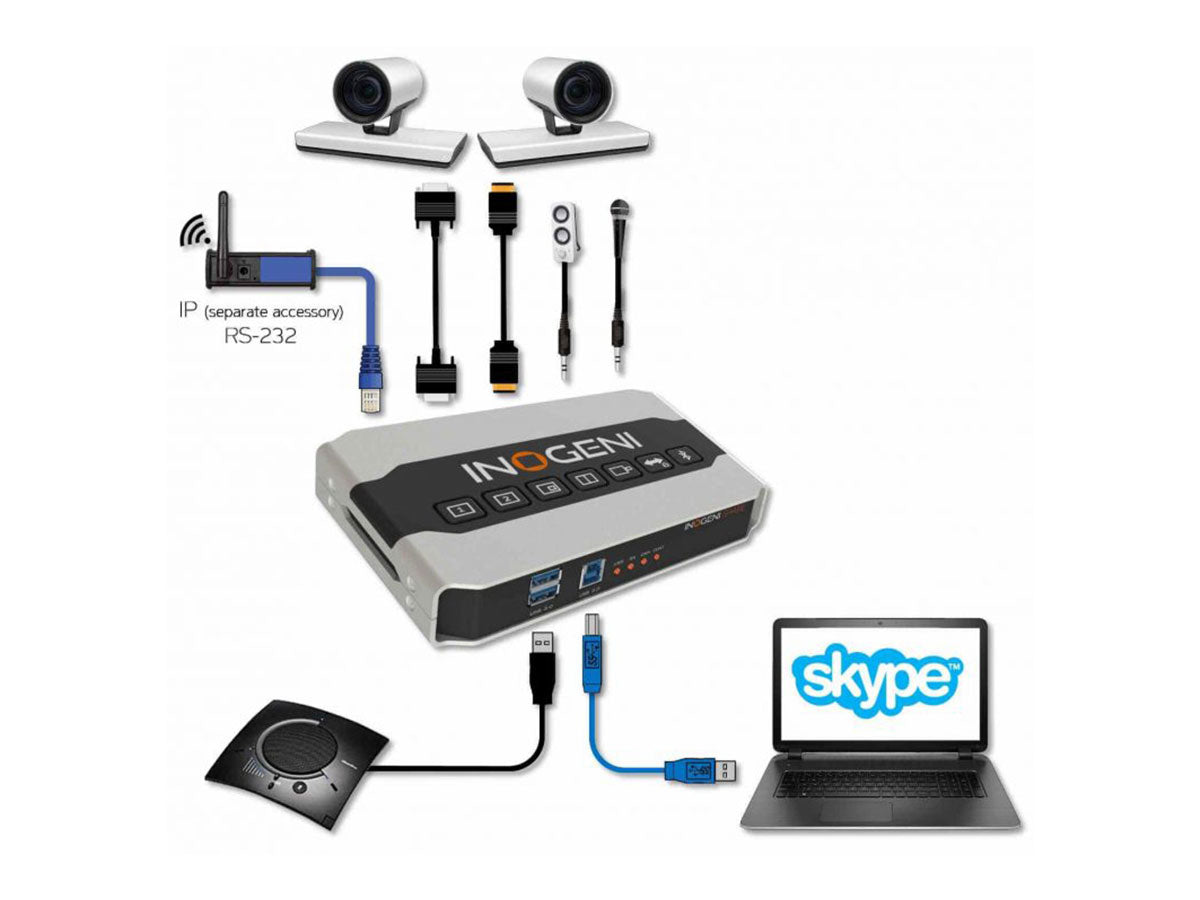

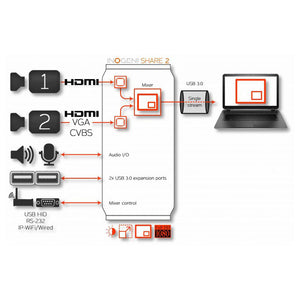

The INOGENI SHARE 2 Converter is the most easy and reliable tool for simultaneous capture of two streams of uncompressed video into one single USB stream with audio from your HDMI/DVI/VGA or CVBS sources for your PC for recording, video conferencing, lecture capture and streaming applications. No driver installation is necessary and will work on all motherboards and USB 3.0 chipsets.

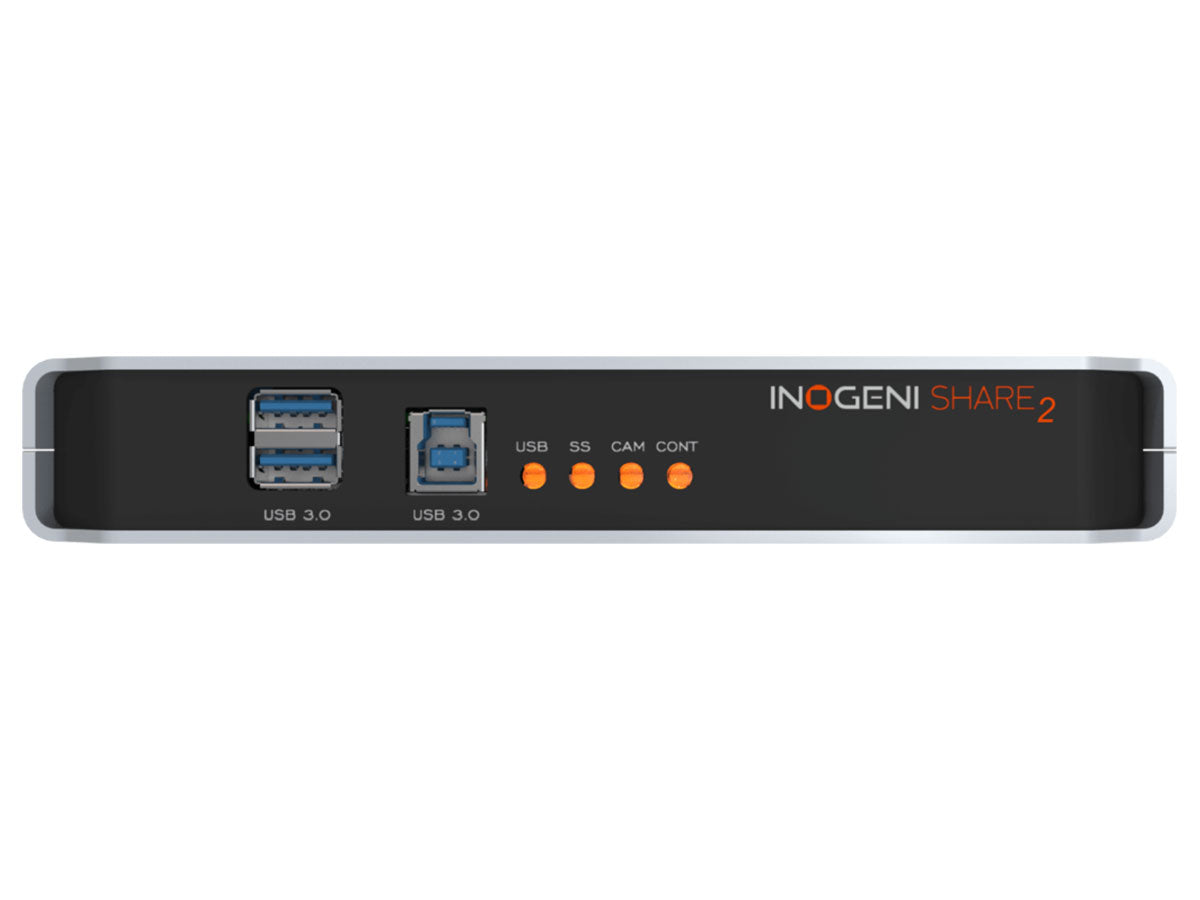

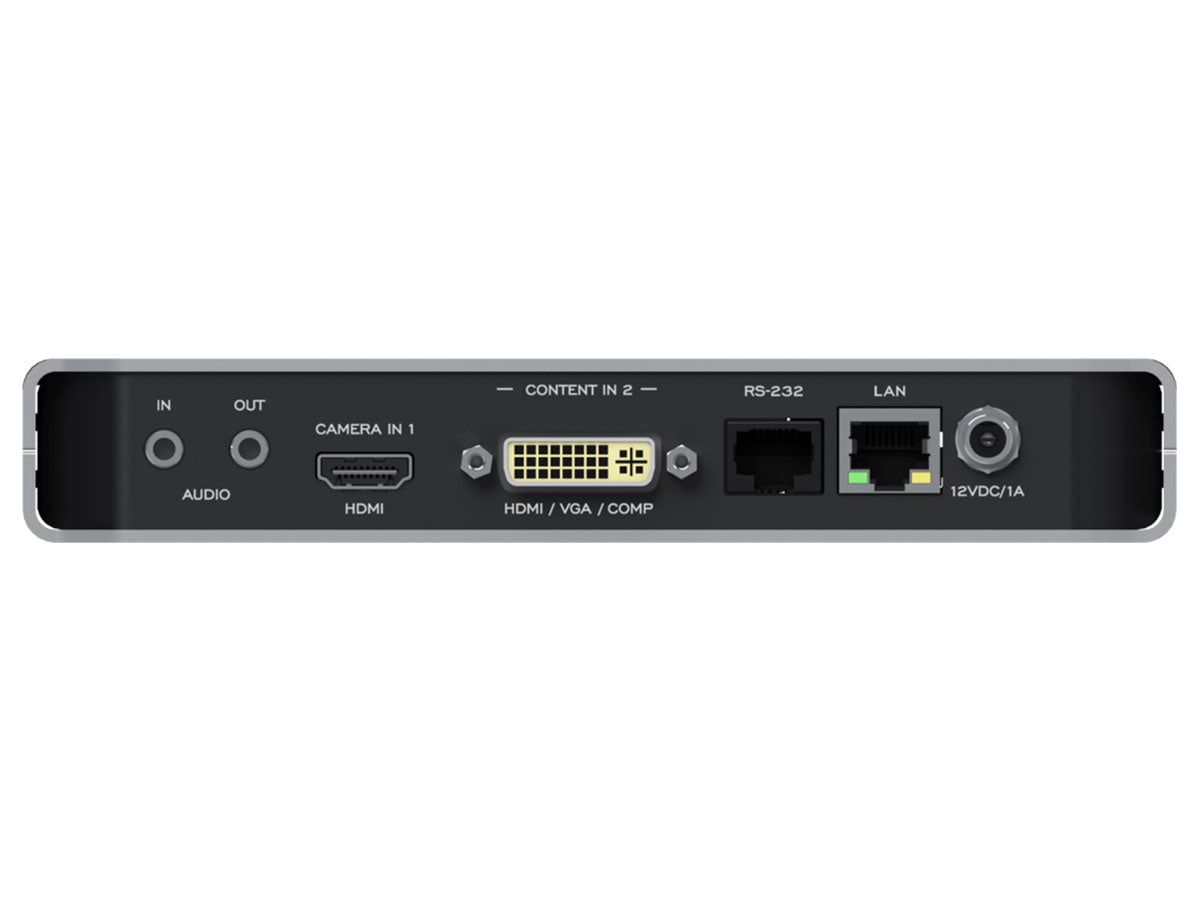

It features an HDMI, DVI, NTSC/PAL input, line level stereo analogue input, line level stereo analogue output, internal USB 3.0 hub with 2x USB 3.0 ports for expansion purposes and USB 3.0 connector for the host.
It supports SD / HDTV video formats up to 1080p60 and most computer graphic formats.
Compact in size and rugged, the converter is a practical easy-to-use USB 3.0 capture solution. Compatible with Windows, OSX, Linux operating systems, UVC-compliant so it will work with all DirectShow/V4L2 and AVFoundation compatible software.
The converter supports 1080p resolutions up to 60 fps. All SD / HD resolution signals are converted to 4:2:2 8-bit colour space over USB 3.0. The line level stereo analogue audio input and output are two-channel LPCM.
SHARE 2 comes with a USB 3.0 cable, DVI to VGA and DVI to HDMI adapters.
- Dual Video Capture to USB 3.0
- Line level stereo audio support
- Predefined Picture in Picture (PIP) views
- Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
- Hardware-based colour space and sampling conversion
- Automatic scaling and frame rate conversion
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings
- Supports multiple devices on the same PC
- Compatible with Windows, Mac OSX and Linux
| VIDEO INPUT | |
| #1 Connector & Video Resolutions: | 1x HDMI 1080p, 720p, 1080i, 480p, 576p, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 Frame rate: up to 60 Hz, all formats. |
| #2 Connector & Video Resolutions: | 1x DVI-I (Digital + Analog) – OR- With HDMI Adapter Note: You may use the included HDMI to DVI adapter to have two HDMI inputs. DVI: 1080p, 1080i, 720p, 480p, 576p, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 VGA: 1080p, 720p, 480p, 576p, 1920×1200, 1680×1050, 1400×1050, 1600×1200, 1280×1024, 1360×768, 1280×768, 1280×800, 1024×768, 800×600, 640×480 Component: 1080p, 1080i, 720p, 480p, 480i, 576p and 576i CVBS – 480i, 576i Frame rate: up to 60 Hz, all formats. |
| Colour Space: | RGB, YCbCr, 4:4:4, and 4:2:2. |
| VIDEO OUTPUT | |
| USB: | 1 x USB 3.0 uncompressed up to 1080p60 (One mixed video stream) |
| USB - Colour Space / CODEC: | USB 3.0: YCbCr (YUY2) 4:2:2 8-bit USB 2.0: MJPEG |
| USB - Video Scaler: | Automatic hardware-based |
| USB - Colour Space Conversion: | Automatic hardware-based |
| USB - Sampling Conversion: | Automatic hardware-based |
| USB - Frame Rate Conversion: | Automatic hardware-based |
| AUDIO | |
| Analog Audio Connections: | Analog stereo, line level, 3.5mm jack |
| Analog Audio I/O: | 2-channel LPCM 48kHz audio from line input |
| Digital Audio I/O: | Embedded in HDMI |
| Audio Routing: | |
| CONTROL | |
| Control Options: | Not available |
| Mixer Control: | Integrated keypad, LAN, USB-HID, INOGENI REMOTE, RS-232 (SHARE2 requires installation of COM port driver) |
| IP Interface: | 10mbps Static address configuration through INOGENI Control App DHCP not supported |
| USB PORT | |
| USB Expansion Port: | Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host. |
| COMPATIBILITY | |
| Operating Systems: | No driver installation necessary. Windows 7 and above (32/64-bit) macOS 10.10 and above Linux (kernel v2.6.38) |
| Minimum Host Requirements: | USB 2.0 port - We recommend USB 3.0 for uncompressed video 4GB RAM Intel Core i5 or equivalent Graphic card with dedicated memory |
| Supported Cameras: | Cameras and camcorders with an HDMI, DVI, VGA or CVBS output |
| Software Compatibility: | UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2. Compatible to Teams, Zoom, Webex, Google Meet, etc. |
| PHYSICAL DETAILS | |
| Dimensions (W x L x H): | 18.5cm x 11cm x 3cm 7.25" x 4.25" x 1.25" |
| Power Supply: | 12V (100-240 VAC 50/60Hz to 12V/1.2A DC) |
| Weight: | 530g (1.17lbs) |
| Package Contents: | 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B) 1x HDMI to DVI adapter 1x VGA to DVI adapter 1x Serial RS-232 cable (DB9 female to RJ45 plug) 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC International adapters included in the box (AUS, EUR, UK and US) |
| Operating Temperature: | 0° to 45° C 32° to 113° F |
| Storage Temperature: | -40° to 105° C -40° to 221° F |
| Relative Humidity: | 0% to 90% non-condensing |
| INFORMATION | |
| UPC Code: | 40232461736 |
| Origin: | Canada |
| Warranty: | 2 years |
| CERTIFICATION | |
| HDCP-Compliant: | The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources. |
| Certifications: | FCC, CE, RoHS, SoV, RCM |
| TAA-Compliant: | Yes |
- 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
- 1x HDMI to DVI adapter
- 1x VGA to DVI adapter
- 1x Serial RS-232 cable (DB9 female to RJ45 plug)
- 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
- International adapters included in the box (AUS, EUR, UK and US)
