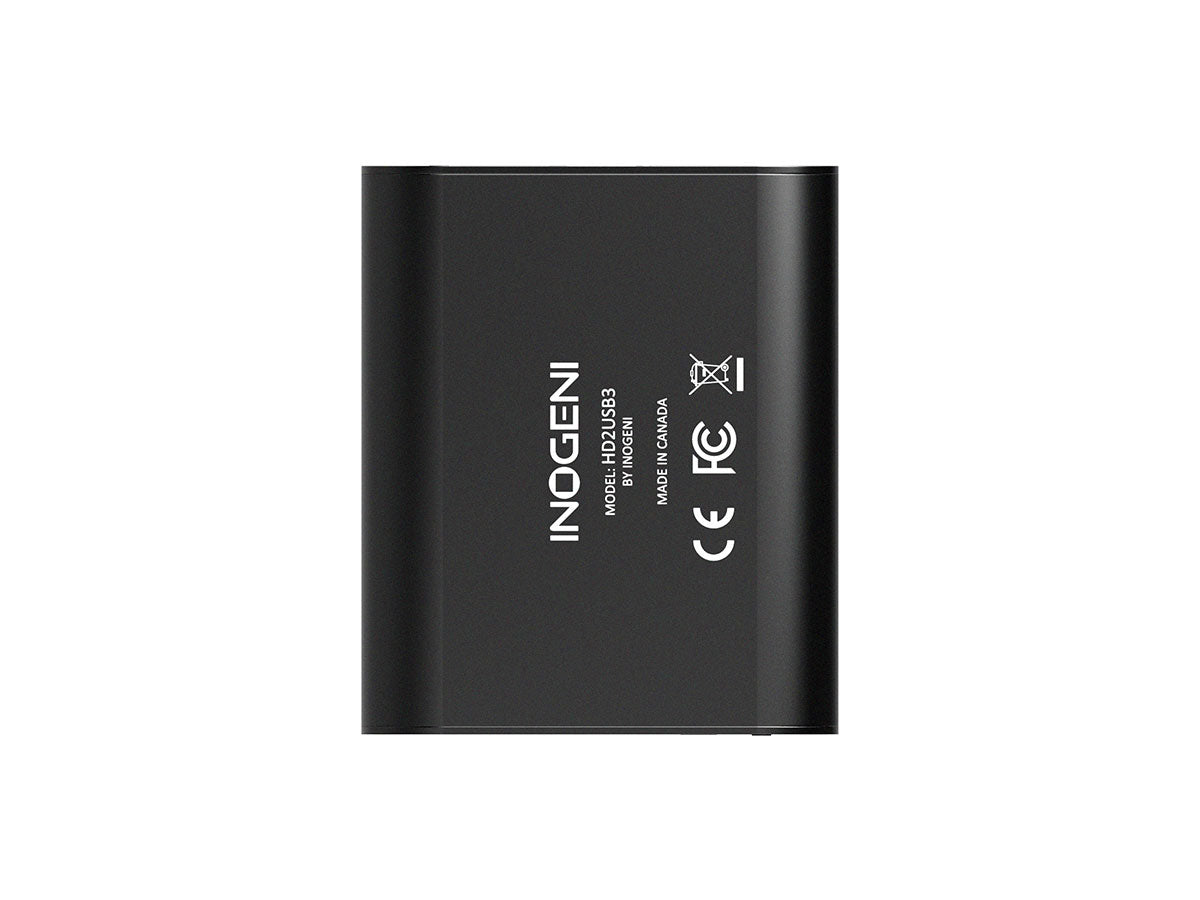

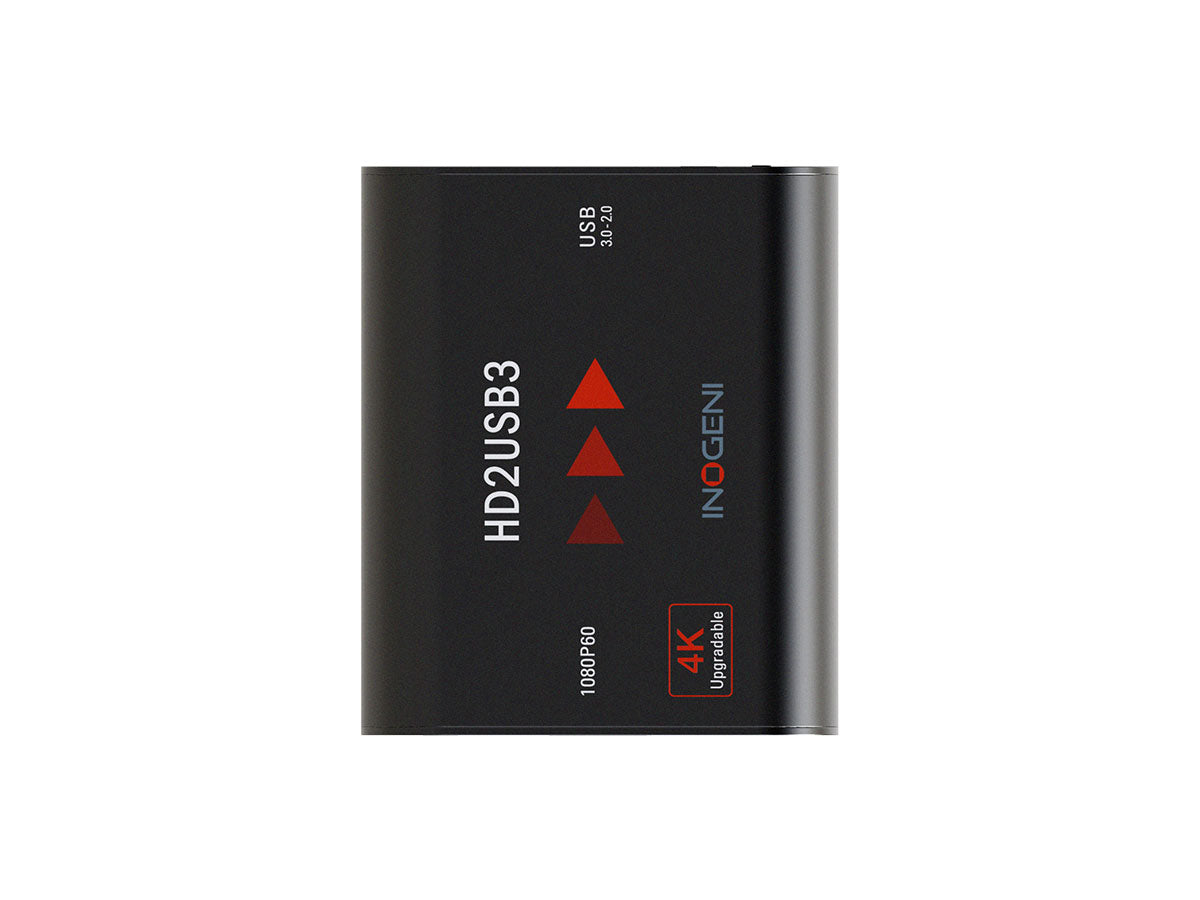

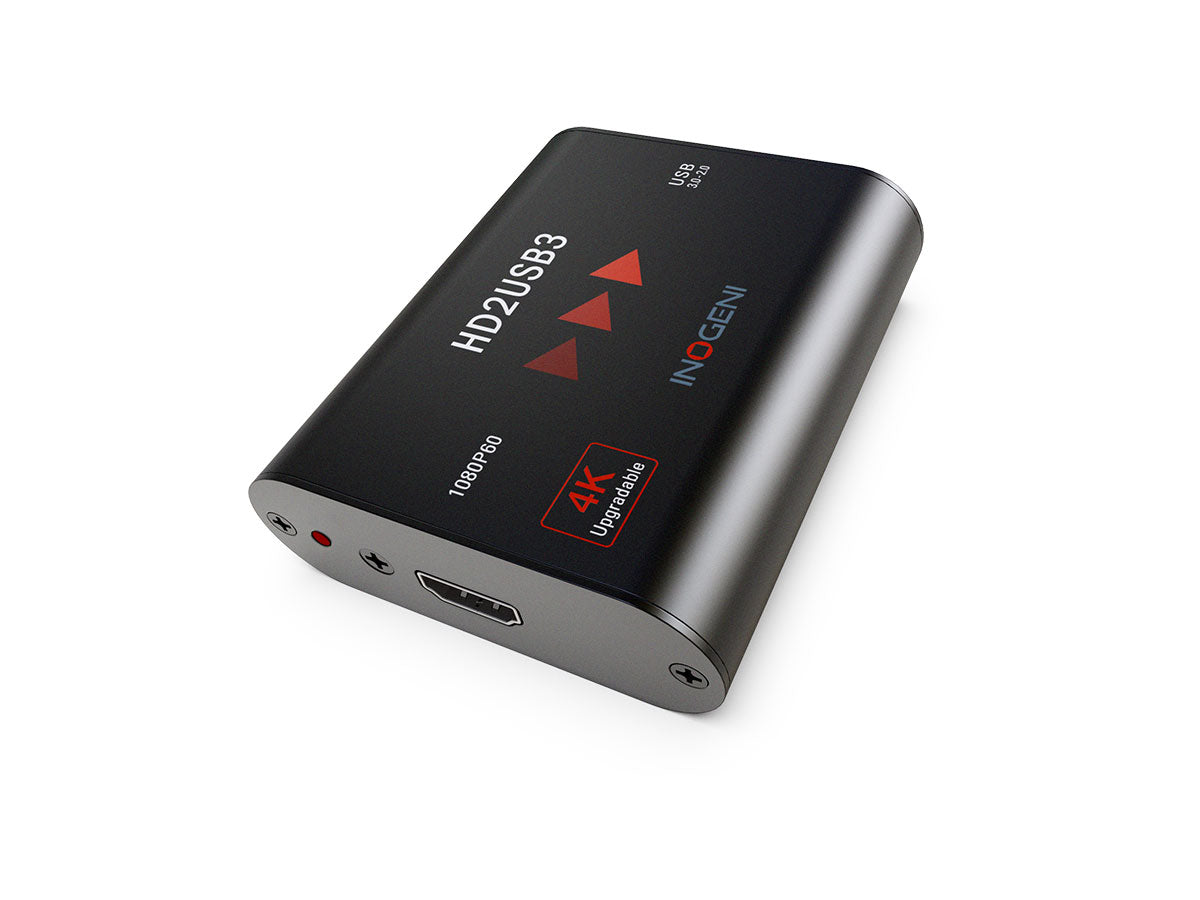

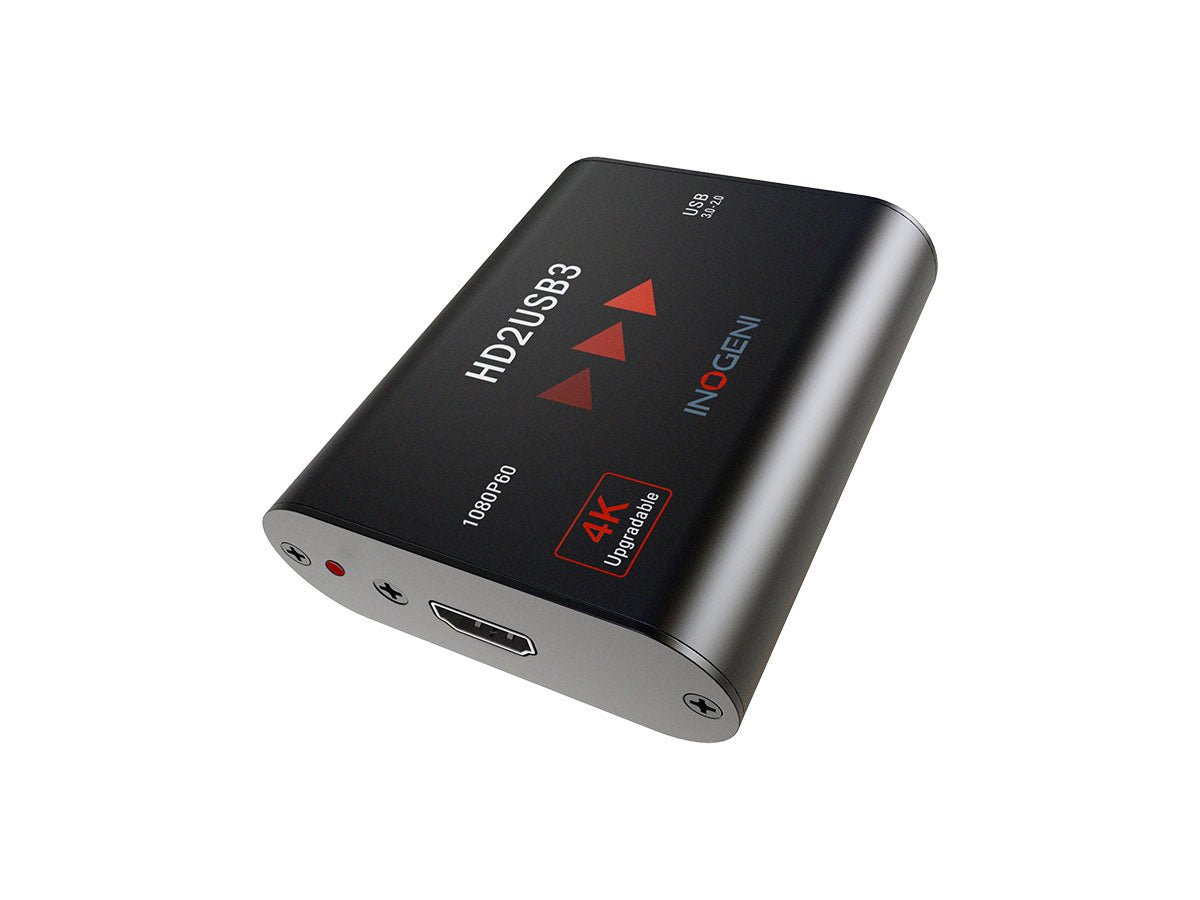

Inogeni HD to USB 3.0 Converter
Inogeni HD to USB 3.0 Converter
£400.00 GBP inc VAT
£400.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The INOGENI HD to USB 3.0 Converter is the most easy and reliable tool to capture uncompressed video with audio from your camera's HDMI output for your PC for recording, editing, videoconferencing and streaming applications. No drive installation is necessary and it will work on all motherboards and USB 3.0 chipsets. It features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to 1080p60, and most computer graphic formats. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software.
The converter supports all resolutions up to 1080p resolutions at 60 fps. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0. The embedded audio in your HDMI signals are extracted and output as two-channel LPCM. A USB 3.0 cable comes included.
Compatible Software
Video Conferencing
- Skype
- Lync
- Hangouts
- Zoom
- FaceTime
- Vidyo
- LiveCast
- Jabber
- BlueJeans
- TeamViewer
- Easymeeting
- Connect
- Polycom
- Spontania
- Webex
- GoToMeeting
Recording
- VLC
- VirtualDub
- VideoGlide
- QuickTime
- qV4L2
- MEncoder
- LUVCView
- GUVCView
- MATLAB
- VIDBlaster
- OBS
- Elements
- Debut
- Camtasia
- Wirecast
- FFmpeg
- ALE
- gstreamer
- Edius
- ScreenFlow
- LabVIEW
- vMix
- Dragonframe
Streaming
- Youtube
- vMix
- xSplit
- OBS
- Wirecast
- Livestream
- USTREAM
- Presentations 2Go
- LiveCast
- Facebook LIVE
- stroom
- HDMI capture to USB 3.0
- Field upgradable to 4K at minimal fee ($95)
- Supports 1080p, 1080i, 720p, 480p, and 576p video formats
- Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
- Up to 1080p at 60 fps
- HDMI audio support
- Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings.
- Supports multiple devices on the same PC
- Powered from USB 3.0 port
- Compatible with Windows, OSX, Linux and Android
- Dimensions: 3.2” x 2.9” x 0.75”
- Weight: 120g.
| VIDEO INPUT | |

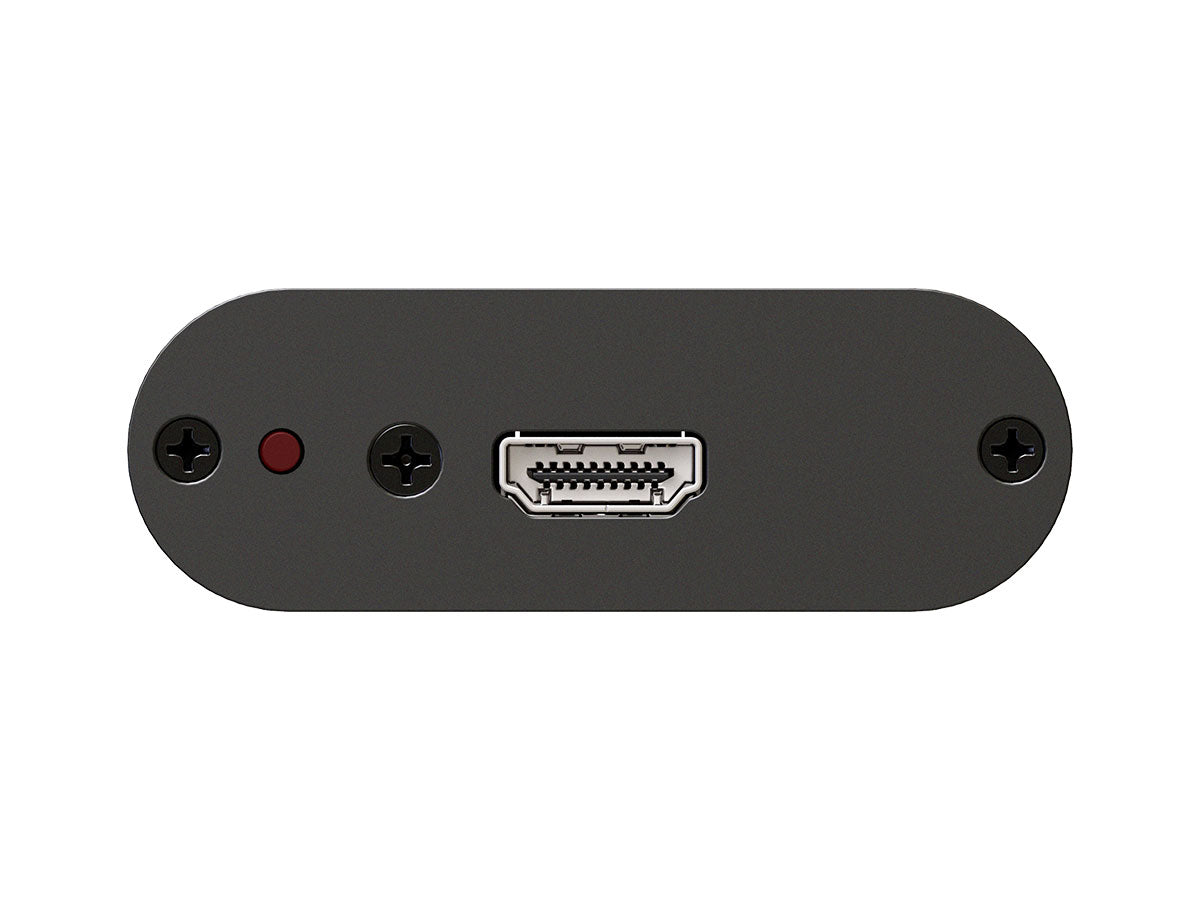

| Connector & Video Resolutions: | 1 x HDMI 1.4a 1080p, 720p, 1080i, 480p, 578p, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 |
| Frame Rates: | 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions. |
| Colour Space: | RGB, YCbCr, 4:4:4, and 4:2:2 |
| Sampling Rate: | 297 MHz |
| Embedded Audio: | Ch 1&2 48kHz LPCM |
| VIDEO OUTPUT | |
| Colour Space: | RGB, YCbCr, 4:4:4, and 4:2:2 |

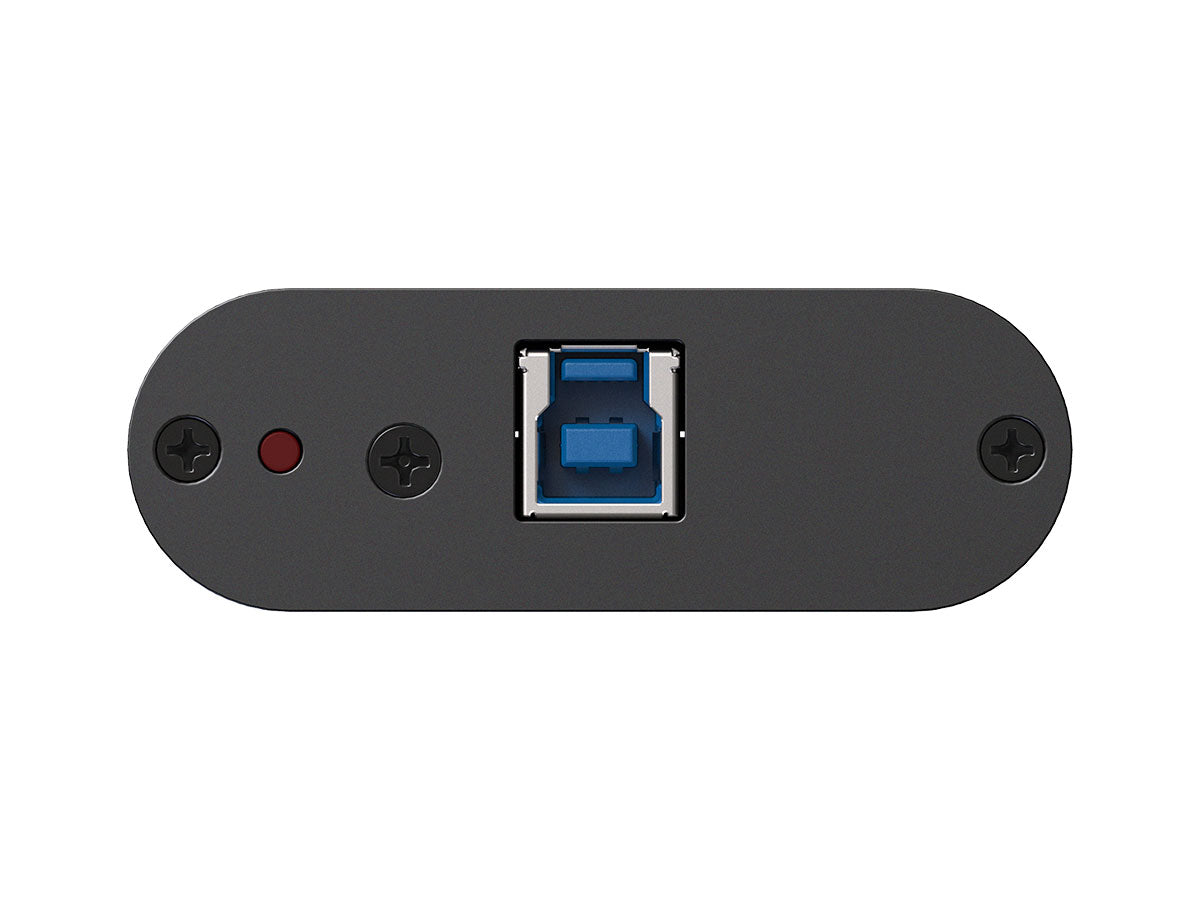

| USB - Connector & Video Resolutions: | 1 x USB 3.0 Type-B |
| USB - CODECs: | YUY2 4:2:2 8-bit for USB 3.0 MJPEG for USB 2.0* |
| Notes for MJPEG for USB 2.0: | *Devices having serial numbers >=HD2035XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video. |
| USB - Video Scaler: | Automatic hardware based |
| USB - Colour Space Conversion: | Automatic hardware based |
| USB - Sampling Conversion: | Automatic hardware based |
| USB - Frame Rate Conversion: | Automatic hardware based |
| AUDIO | |
| Analog Audio I/O: | 2-channel LPCM audio from HDMI |
| Audio Input Connector: | CH 1&2 48kHz LPCM feed from HDMI |
| COMPATIBILITY | |
| Operating System: | No driver installation necessary. Windows 7 and above (32/64-bit) macOS 10.10 and above Linux (kernel v2638) |
| Minimum Host Requirements: | USB 2.0 port - We recommend USB 3.0 for uncompressed video. 4GB RAM Intel Core i5 or equivalent Graphic card with dedicated memory |
| Motherboard: | Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic. |
| Supported Cameras: | Cameras and camcorders with an HDMI output |
| Software Compatibility: | UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc. |
| PHYSICAL DETAILS | |
| Dimensions (W x L x H): | 8.1cm x 7.4cm x 1.9cm 3.2" x 2.9" x 0.75" |
| Power Supply: | Powered by USB (5V, 580mA) |
| Weight: | 120g (0.26lb) |
| Package Contents: | 1 x 3ft USB 3.0 cable (Type-A to Type-B) |
| Operating Temperature: | 0° to 45°C 32° to 113°F |
| Storage Temperature: | -40° to 105°C -40° to 221°F |
| Relative Humidity: | 0% to 90% non-condensing |
| INFORMATION | |
| UPC Code: | 40232521003 |
| Origin: | Canada |
| Warranty: | 2 years |
| CERTIFICATION | |
| HDCP-Compliant: | The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources. |
| Certifications: | FCC, CE, RoHS, SoV, RCM, BSMI RoHS, BSMI |
| TAA-Compliant: | Yes |
- 1x Inogeni HD to USB 3.0 Converter
