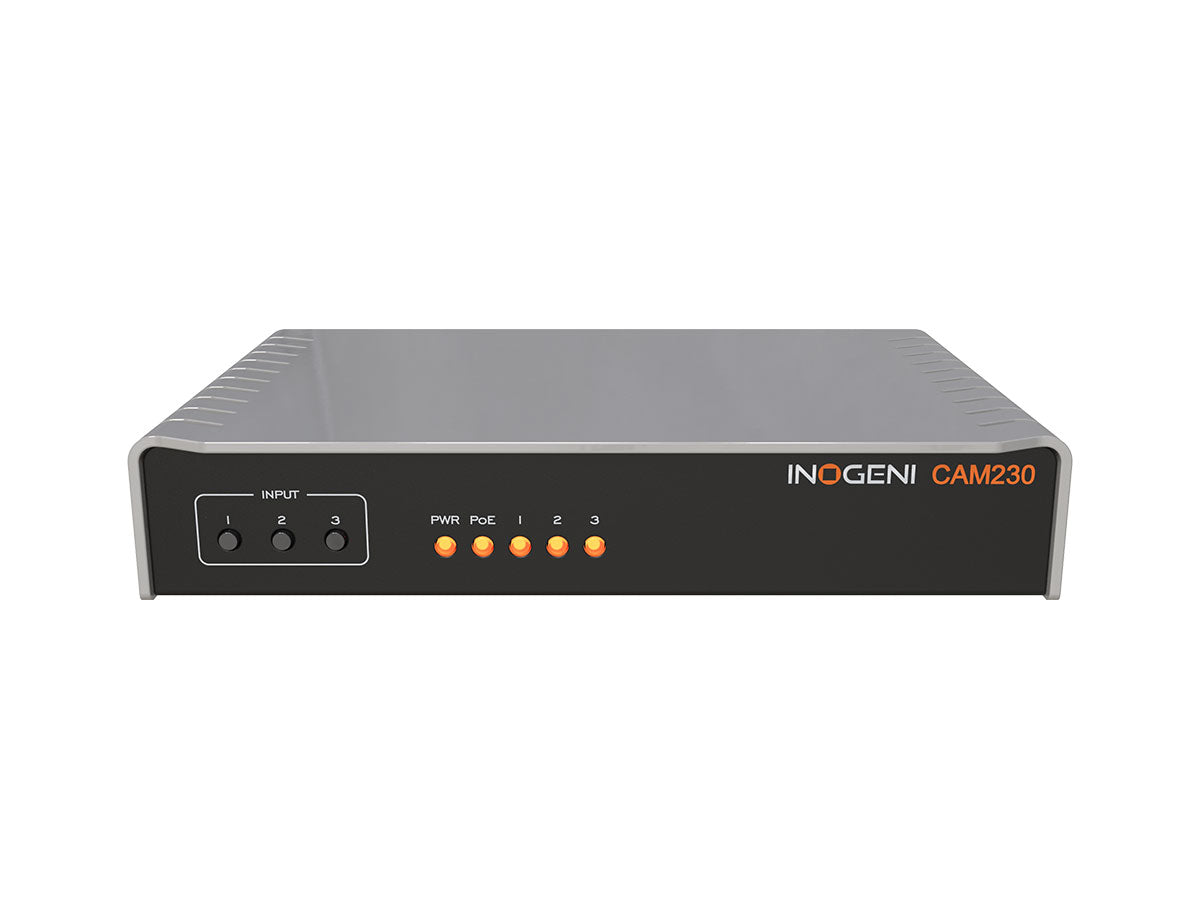

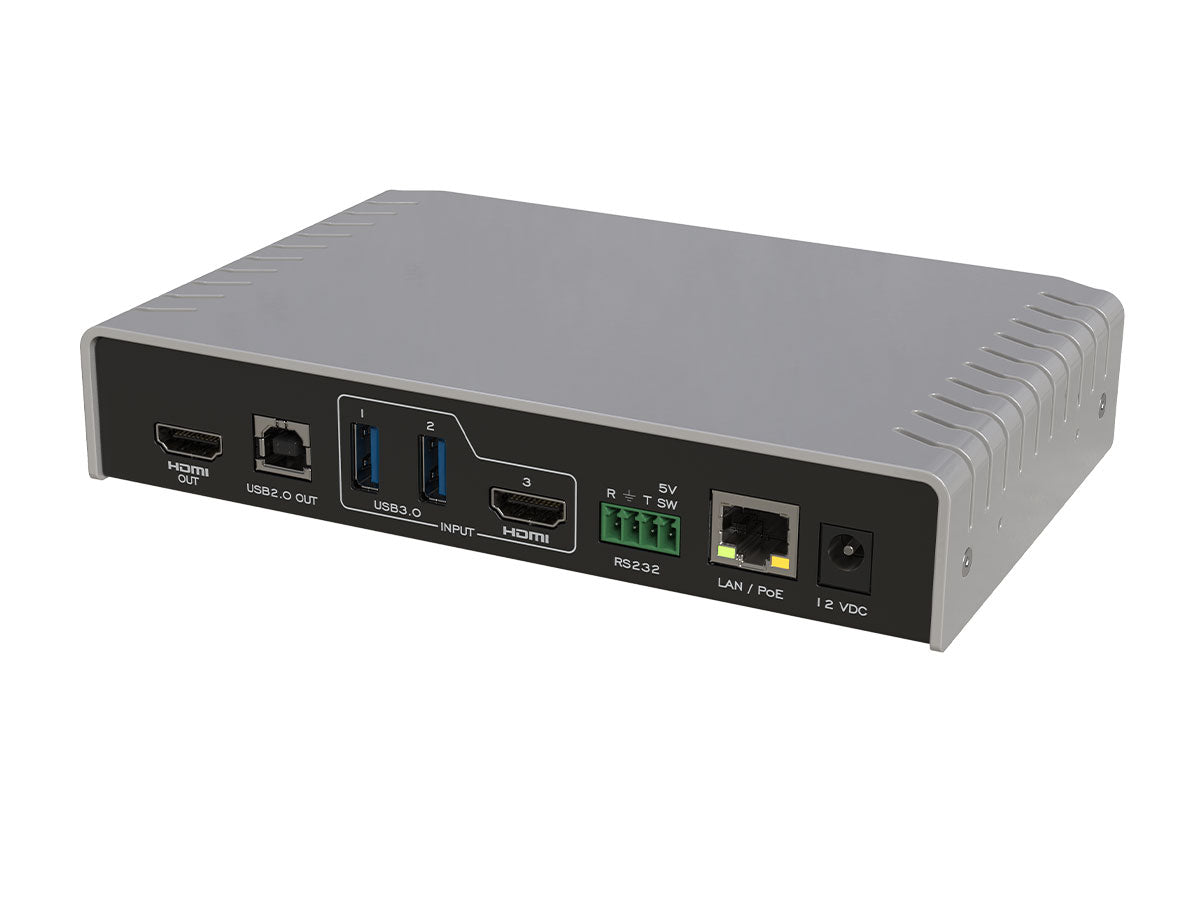

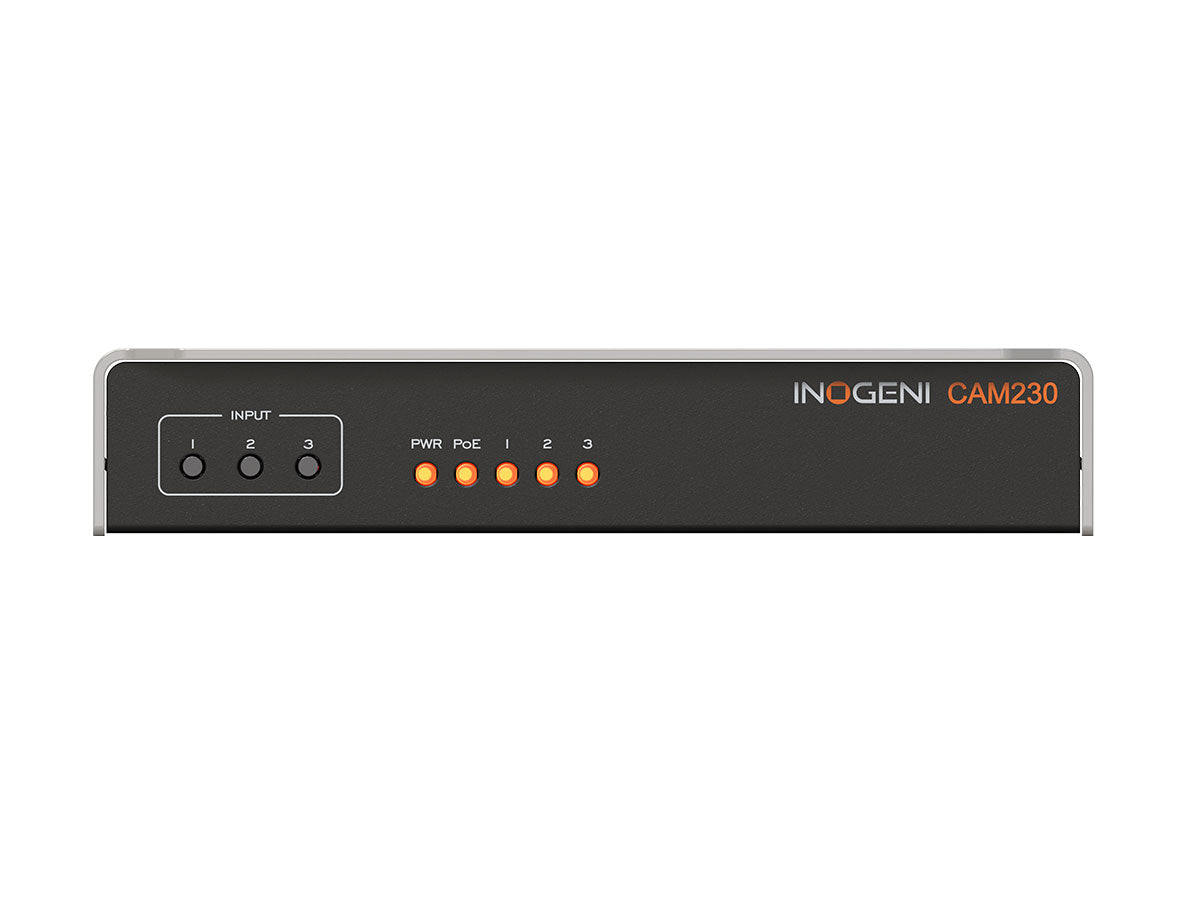

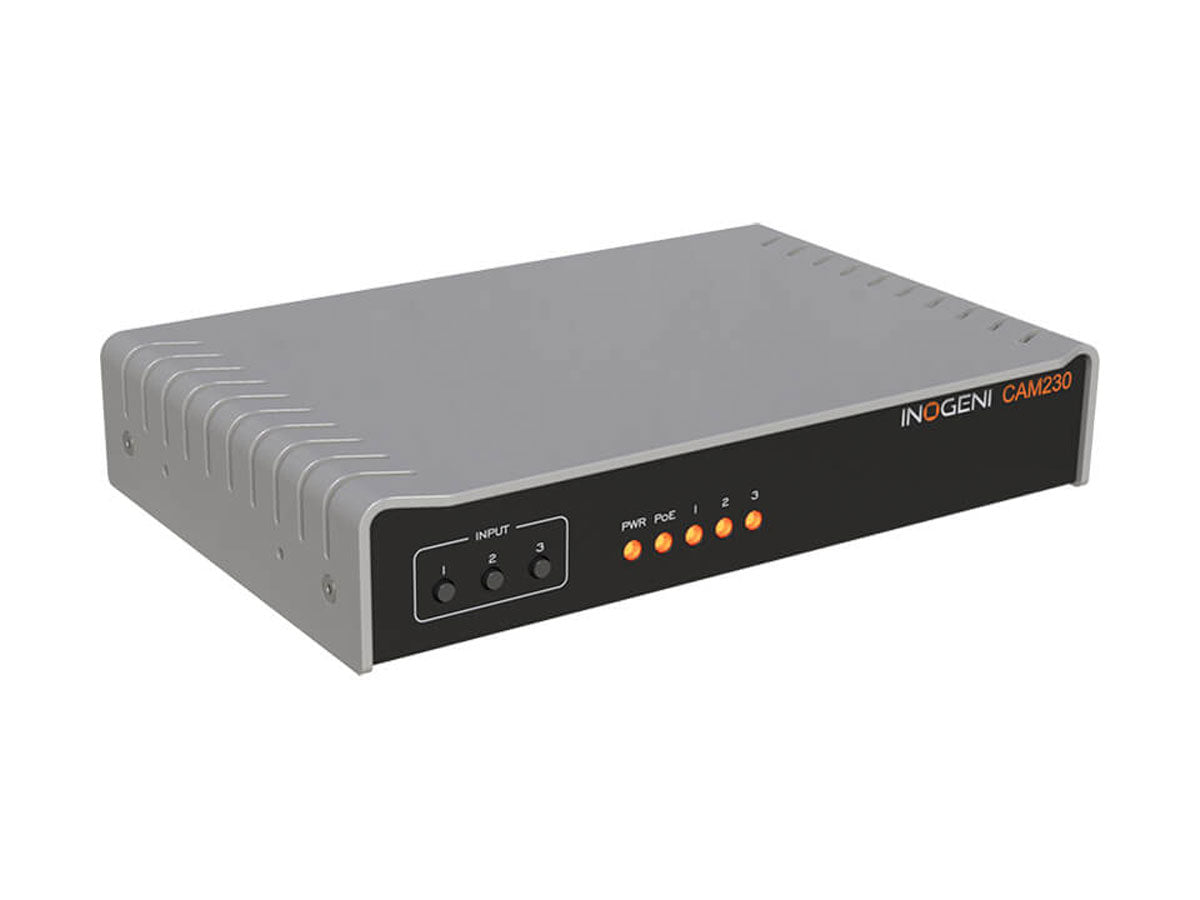

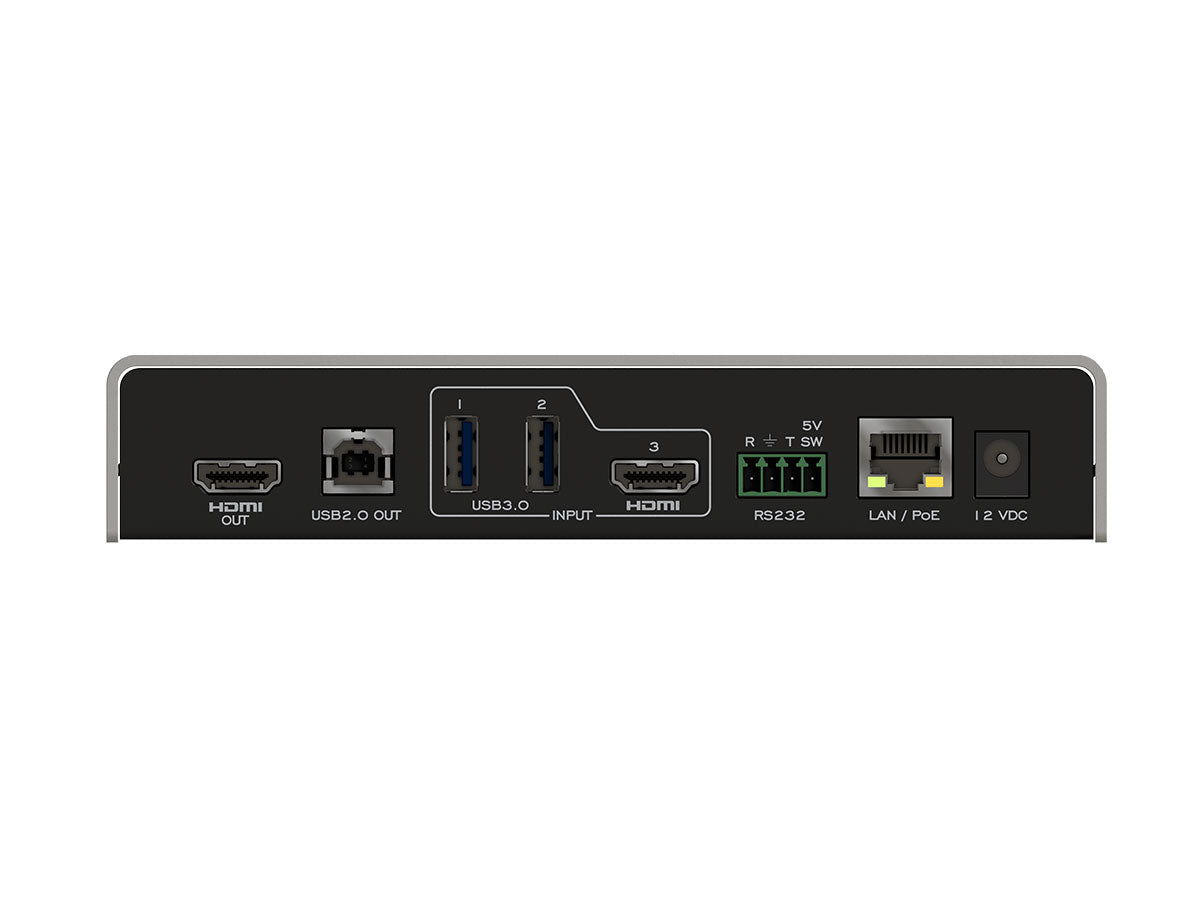

Inogeni CAM230 Multi-Camera Switcher

Inogeni CAM230 Multi-Camera Switcher

SKU: INO-CAM230
£795.56 GBP ex VAT
£954.67 GBP inc VAT
ex VAT £795.56 GBP ex VAT
£954.67 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
The INOGENI CAM230 is a USB and HDMI multi-camera switcher that helps improve meeting equity in virtual meetings. With its easy-to-use camera switching capabilities and support for bidirectional audio with videobars, facilitators can ensure that all participants have equal opportunities to speak and contribute.
The CAM230 also supports whiteboard and document cameras for added collaboration and productivity.
How It Works
The INOGENI CAM230 is a multi-camera switcher that allows users to easily switch between up to three video cameras during a virtual meeting or presentation. The CAM230 connects to 2x USB 3.0/2.0 cameras and 1x HDMI camera and outputs a single video stream on USB 2.0 MJPEG and HDMI 2.0. With its easy-to-use push-button or via control pad switching, facilitators can ensure all participants are given equal opportunities to speak and contribute to the conversation while supporting whiteboard and document cameras for added collaboration and productivity.
  • Connects to 2x USB3.0/2.0 and 1x HDMI cameras
  • Video output on USB 2.0 and HDMI 2.0
  • Easy push-button switching or via control pad for seamless camera transitions
  • Supports whiteboard and document cameras for more efficient collaboration
  • Cost-effective, versatile, and easy to use for improved meeting equity in virtual settings
Plug & Go with the INOGENI CAM230
This easy-to-use multi-camera switcher requires no drivers for seamless and effortless switching between 2 USB and 1 HDMI cameras. Capture, mix, and switch with INOGENI’s professional camera selectors for a dynamic and engaging presentation experience.

Compatible with all USB & HDMI cameras
This pro AV camera switcher is fully compatible with all USB and HDMI cameras, including professional-caliber equipment, such as Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.
  • Multi-camera switcher for USB/HDMI cameras
  • Change camera and video configurations without interrupting the presentation
  • Ideal for remote education, collaborative meetings, webinars and live-streaming
  • Cost-effective, reliable and easy to install and connect (no drivers required)
  • 3 video sources clean switcher into a single video flow
    • 2 x USBs (3.0/2.0 or MJPEG)
    • 1 x HDMI (1080p60)
  • OUTPUT switch into a single interface
    • HDMI 2.0 output with audio for CODECs, matrixes or monitors
    • USB 2.0 MJPEG - 1080p30 for laptops or PC rooms or CODECs
  • SWITCHING CONTROL
    • RS-232 and IP control
    • Easy push button
  • SUPPORT
    • Bidirectional audio for videobars, such as Cisco, Poly, Logitech and Bose
    • PoE LAN
    • Multiple mounting options
    • Visual LED status
  • Controllable by RS-232 and IP
    • Switch cameras via your videoconferencing pad or with the push button
  • Audio I/O via the INOGENI Control App
    • Embedded audio in USB and HDMI
  • Advanced video quality
    • Hardware-based colour space and sampling conversion
    • Automatic scaling and framerate conversion
    • Customizable video processing functions
    • Supports multiple devices on the same host
    • Device configuration via the INOGENI Control App
  • Firmware upgrade available via the INOGENI Control App
  • Compact and robuts design with an aluminium enclosure
  • TAA-compliant
VIDEO INPUT
#1 Connector & Video Resolutions:
1 x USB 3.0/2.0 Camera
Uncompressed, YUYV/NV12/I420 - 1080p50/60, 4K30
MJPEG - 1080p30
#2 Connector & Video Resolutions
1 x USB 3.0/2.0 Camera
Unvompressed, YUYV/NV12/I420 - 1080p50/60, 4K30
MJPEG - 1080p30
#3 Connector & Video Resolutions:
1 x HDMI
Up to 1080p50/60
Colour Space:
HDMI: RGB, YCbCr 4:4:4 and 4:2:2
VIDEO OUTPUT
HDMI:
1 x HDMI 2.0
Up to 4K60
USB:
1 x USB 2.0 Type-B
MJPEG - 1080p30
Audio I/O
AUDIO
Digital Audio I/O:
Embedded in HDMI or USB
CONTROL
Control Options:
Front buttons
RS-232
LAN
USB
IP Interface:
100Mbps
RS-232 Interface:
Baud rate: 9600
Data bits: 8
Stop bits: 1
Parity: None
Flow control: None
COMPATIBILITY
Operating Systems:
No driver installation necessary

Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2.6.38)
Minimum Host Requirements:
USB 2.0 port
4GB Ram
Intel Core i5 or equivalent
Graphic card with dedicated memory
Supported Cameras:
Cameras with an HDMI, DVI or USB 3.0/2.0 output
Software Compatibility:
UVC-compliant, Runs with all software compatible with DirectShow, AVFoundation and V4L2.

Compatible with: Teams, Zoom, Webex, Google Meet, etc.
PHYSICAL DETAILS
Dimensions (W x L x H):
17.33cm x 11.57cm x 3.26cm
6.82" x 4.55" x 1.28"
Power Supply:
12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
or
PoE source compliant with IEEE 802.3af (802.3at Type 1)
Package Contents:
1 x 1m/3.3ft USB 2.0 cable (Type-A to Type-B)
1 x RS-232 terminal block adapter
1 x Power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)
Operating Temperature:
0° to 45°C
32° to 113°F
Storage Temperature:
-40° to 105°C
-40° to 221°F
Relative Humidity:
0% to 90% non-condensing
INFORMATION
UPC Code:
51497302825
Origin:
Canada
Warranty:
2 years
CERTIFICATION
HDCP-Compliant:
The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.



  • 1 x 1m/3.3ft USB 2.0 cable (Type-A to Type-B)
  • 1 x RS-232 terminal block adapter
  • 1 x Power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
    • International adapters included in the box (AUS, EUR, UK, US)
