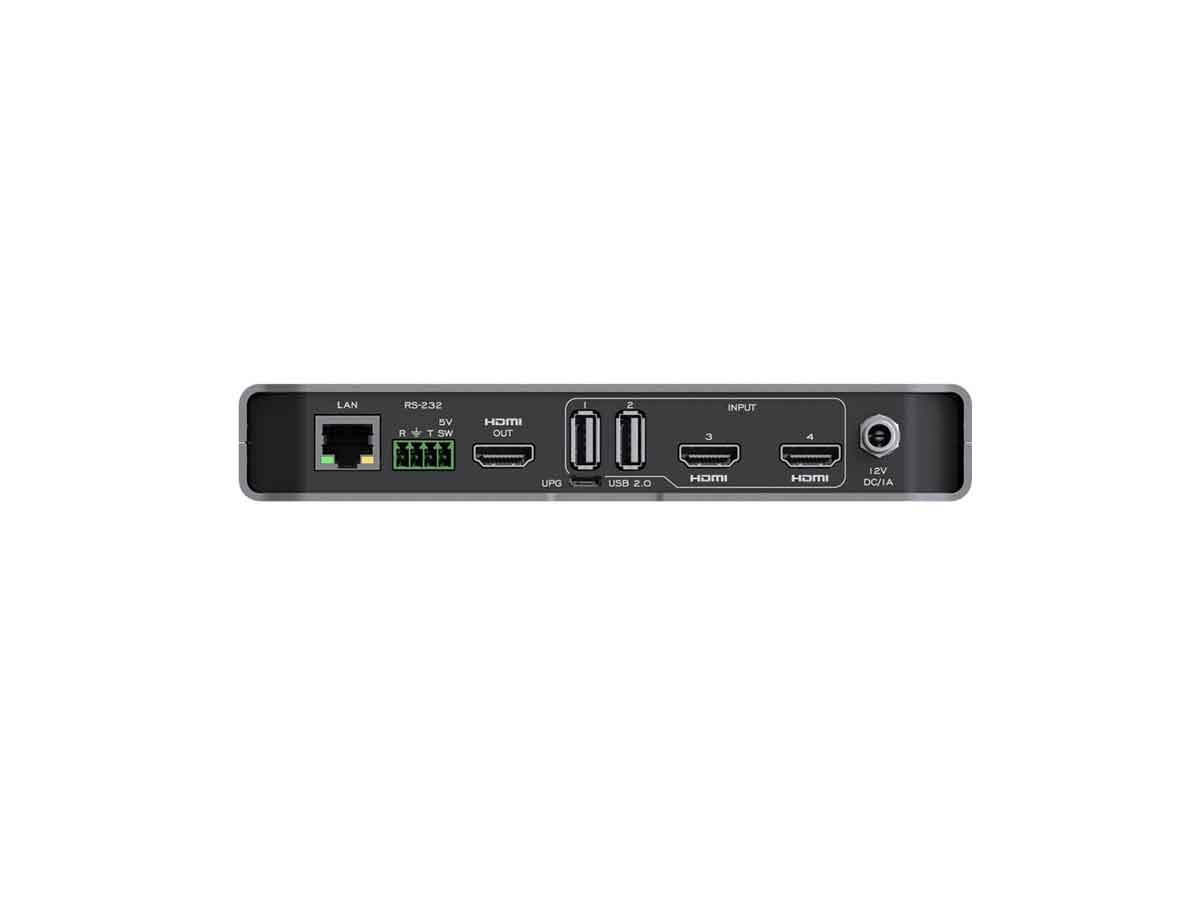

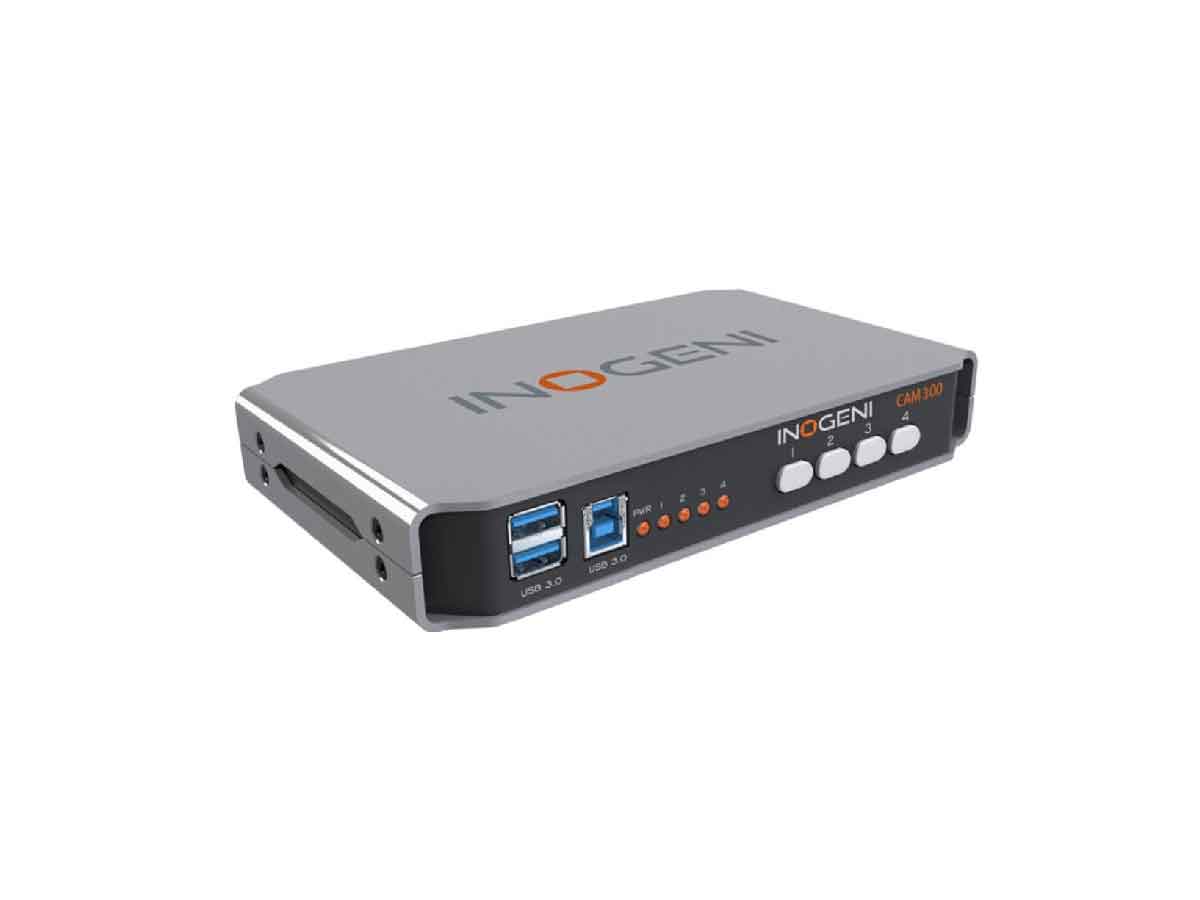

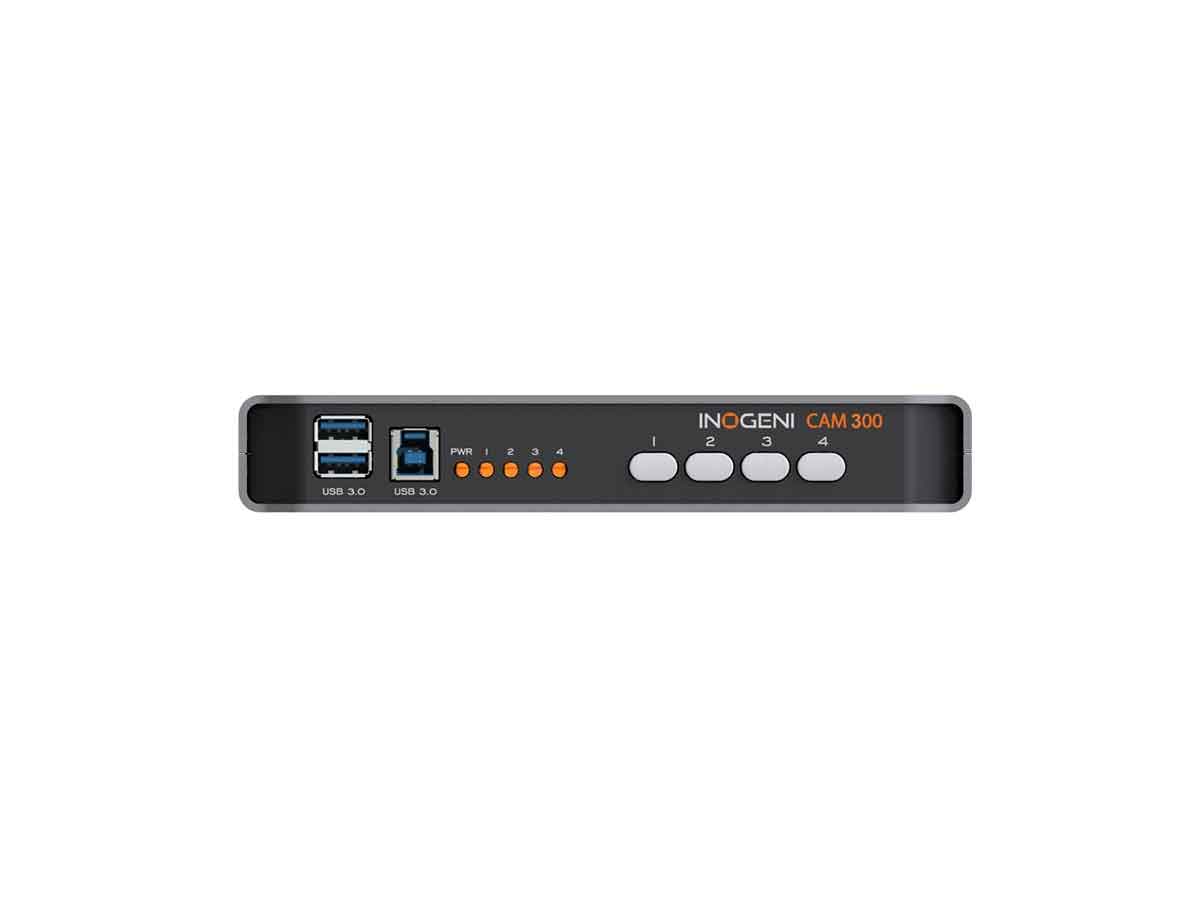

Inogeni CAM 300 4:1 HDMI/USB 2.0 Camera Selector
Inogeni CAM 300 4:1 HDMI/USB 2.0 Camera Selector
SKU:
INO-CAM300
Regular price
£1,506.67 GBP ex VAT
£1,808.00 GBP inc VAT
£1,808.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,506.67 GBP ex VAT
£1,808.00 GBP inc VAT
Unit price
per
£1,808.00 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Multiple Cameras in Your Online Meetings and Webcast
Online collaboration is already a communication norm – like email & cell phones. The novelty and many of the bugs are gone. It’s a valid tool. Audiences already expect a higher production value than a one camera talking head. You can achieve this with software, a multiple input computer and an operator or you can look at Inogeni.
With the Inogeni CAM series of multiple cameras selector, your meeting can be as spontaneous as you want it to be. The CAM products let you select one of four sources from the buttons or remotely. With SHARE2 you can present and narrate a PowerPoint program, cut between images of one speaker and a group, have one camera focused on an interviewer and the interviewee, present and explain a spreadsheet or a digitized radiograph, etc. With practice you can make one camera full screen and change what the other camera or source is looking at while it is off screen.
The SHARE series extend the flexibility of the CAM selectors by adding sources mixing and combining effects for a more efficient on line collaboration.
Flexible Installation with Local and Remote Control
In addition to the front buttons, you can control them via serial and Ethernet as well. In other words you can use them in a Crestron controlled room or at a remote site.
Extreme Compatibility with all Applications
Technically, the CAM series integrates a scaler and frame buffer to insure a smooth glitch-free switch so your collaboration program sees a single continuous data stream. Tested apps include Skype®, Quicklaunch®, Hangouts®, ZOOM®, Vidyo®, Livecast®, vMix®, etc. The best way to test your application is that if it works with a single camera, you can have more cameras with Inogeni CAM products.

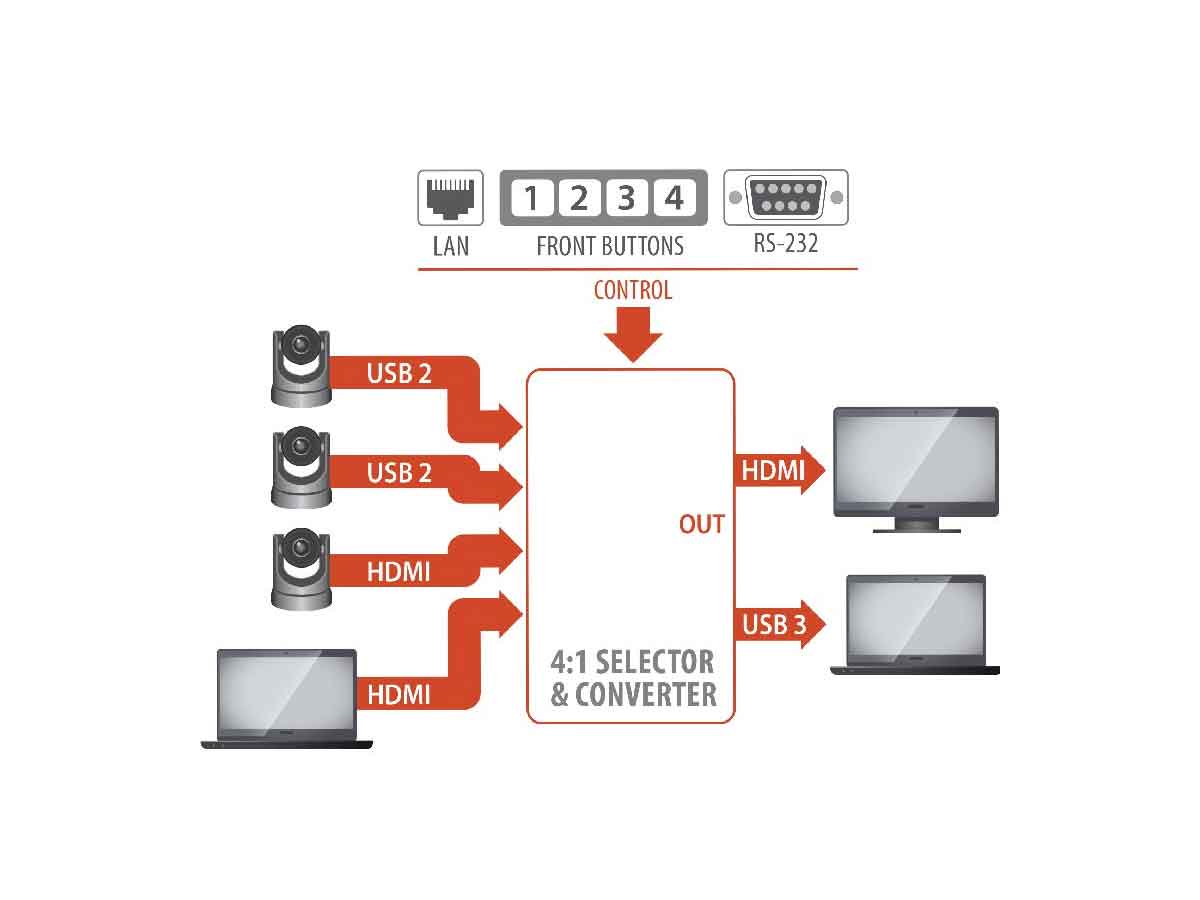

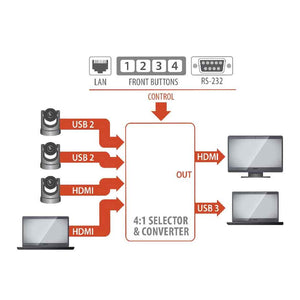

- Selects between USB and HDMI sources
- Outputs to a USB 3.0 and HDMI connections
- Control over push-buttons, LAN and RS-232
| VIDEO INPUT | |
| #1 Connector & Video Resolutions: | 1 x USB 2.0 Camera MJPEG or H264 (*) Depends on the camera specifications |
| #2 Connector & Video Resolutions: | |
| #3 Connector & Video Resolutions: | 1 x HDMI 1080p60, 1080p30, 720p60 and 480p60 (1080p60 supported for S/N greater than KC2111xxx and KCM111xxx) |
| #4 Connector & Video Resolutions: | 1 x HDMI 1080p60, 1080p30, 720p60 and 480p60 (1080p60 supported for S/N greater than KC2111xxx and KCM111xxx) |
| Notes for MJPEG and H264: | *USB 2.0 or USB 3.0 cameras that only support uncompressed video will not work properly. For better performance, use USB 3.0 or 2.0 cameras that support MJPEG or H264 CODECs. |
| Colour Space: | HDMI: RGB, YCbCr 4:4:4 and 4:2:2 |
| VIDEO OUTPUT | |
| HDMI: | 1 x HDMI up to 1080p60 (One mixed video stream) |
| USB: | 1 x USB 3.0 uncompressed up to 1080p60 (One mixed video stream) |
| USB - Colour Space / CODEC | USB 3.0: YCbCr (YUY2) 4:2:2 8-bit. USB 2.0: MJPEG |
| USB - Video Scaler | Automatic hardware-based |
| USB - Colour Space Conversion: | Automatic hardware-based |
| USB - Sampling Conversion: | Automatic hardware-based |
| USB - Frame Rate Conversion: | Automatic hardware-based |
| AUDIO | |
| Digital Audio I/O: | HDMI embedded PCM USB camera audio USB 3.0 PCM stereo, audio follow input |
| CONTROL | |
| Control Options: | Front buttons RS-232 LAN USB |
| IP Interface: | DHCP not supported Static IP address configuration through out Control App |
| USB PORT | |
| USB Expansion Port: | Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host. |
| COMPATIBILITY | |
| Operating Systems: | No driver installation necessary. Windows 7 and above (32/64-bit) macOS 10.10 and above Linux (kernel v2.6.38) |
| Minimum Host Requirements: | USB 2.0 port - We recommend USB 3.0 for uncompressed video 4GB RAM Intel Core i5 or equivalent Graphic card with dedicated memory |
| Motherboard: | Compatible with all processors and chipsets. Intel, Renesas, ASMedia and Fresco Logic. |
| Supported Cameras: | Cameras with an HDMI, DVI or USB 2.0 output. |
| Software Compatibility: | UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2. Compatible to: Teams, Zoom, Webex, Google Meet, etc. |
| VIDEO SWITCH SPEED | |
| Video Switch Speed: | Less than 0.2 seconds for switching between USB inputs Less than 0.2 seconds for switching between HDMI inputs with same video resolution. Less than 0.2 seconds for switching between USB input and "active" HDMI input and vice-versa. Up to 2 seconds switching between HDMI inputs if video resolutions are different. *Active HDMI input is the last selected HDMI input. |
| PHYSICAL DETAILS | |
| Dimensions (W x L x H): | 18.5cm x 11cm x 3cm 7.25" x 4.25" x 1.25" |
| Power Supply: | 12V (100-240 VAC 50/60Hz to 12V/1.2A DC) |
| Weight: | 469g (1.03lbs) |
| Package Contents: | 1 x 1m/3.3ft USB 3.0 cable (Type-A to Type-B) 1 x RS-232 terminal block adapter 1 x Power supply (100-240 VAC 50/60Hz to 12V/1.2A DC) International adapters included in the box (AUS, EUR, UK and US) |
| Operating Temperature: | 0° to 45°C 32° to 113°F |
| Storage Temperature: | -40° to 105°C -40° to 221°F |
| Relative Humidity: | 0% to 90% non-condensing |
| INFORMATION | |
| UPC Code: | 40232633836 |
| Origin: | Canada |
| Warranty: | 2 years |
| CERTIFICATION | |
| HDCP-Compliant: | The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encryped sources. |
| Certifications: | FCC, CE, RoHS, SoV, RCM |
| TAA-Compliant: | Yes |
- 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
- 1x RS-232 terminal block adapter
- 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
- International adapters included in the box (AUS, EUR, UK and US)
