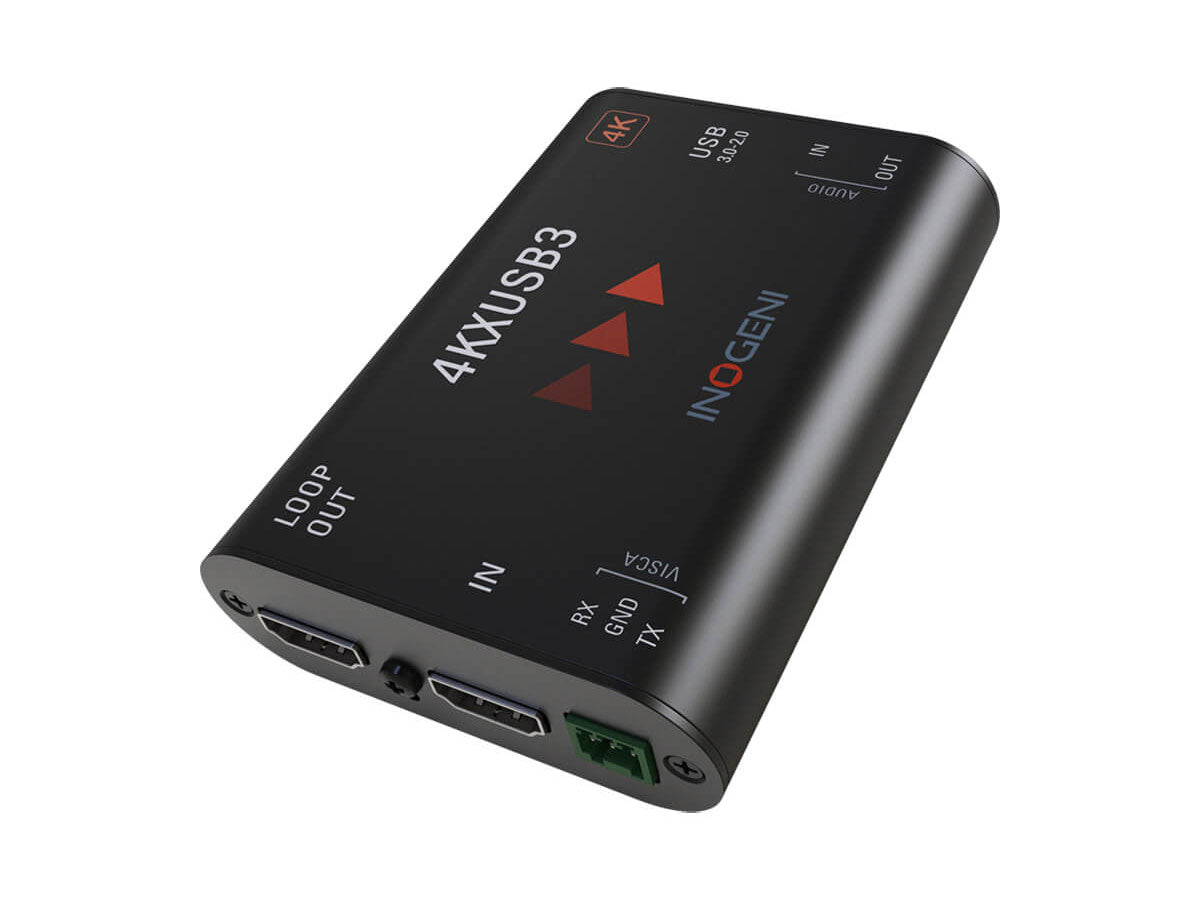

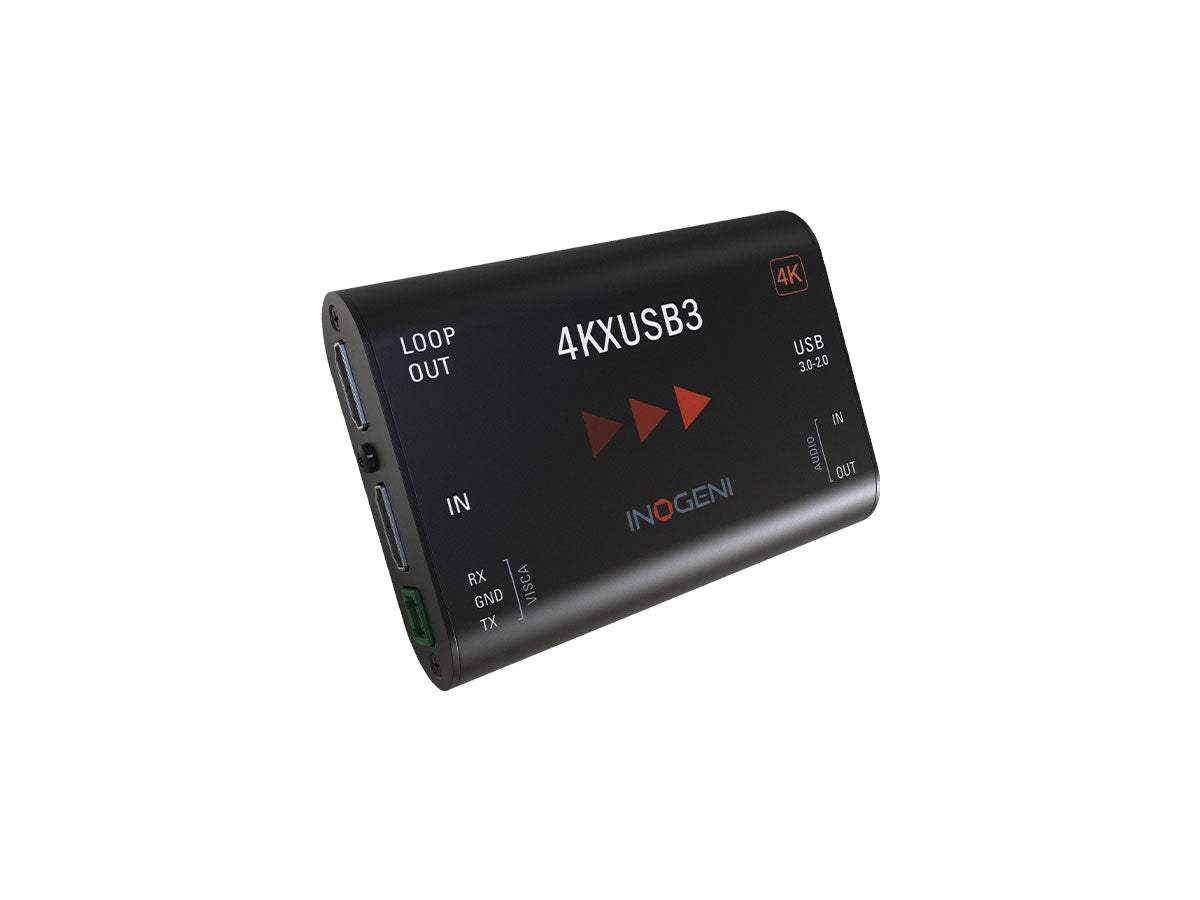

Inogeni 4KXUSB3 4K Ultra HD to USB 3.0 with HDMI Loop
Inogeni 4KXUSB3 4K Ultra HD to USB 3.0 with HDMI Loop
SKU:
INO-4KXUSB3
Regular price
£564.44 GBP ex VAT
£677.33 GBP inc VAT
£677.33 GBP inc VAT
Regular price
ex VAT
Sale price
£564.44 GBP ex VAT
£677.33 GBP inc VAT
Unit price
per
£677.33 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
INOGENI’s 4KXUSB3 is an affordable and easy-to-use Ultra HD to USB 3.0 camera converter with an HDMI loop and VISCA port. It can even support multiple devices on the same laptop.
-
Easy and versatile camera converter for countless applications
-
Cost-effective professional camera converter solution that is reliable, simple to install, and quick to connect
-
Compact and robust technology
-
Designed and manufactured in Canada
-
Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
-
Compatible with Zoom Rooms
-
Zoom Certified
-
HDMI camera
-
Crestron’s AutoTracker™and AutoFramer™ are now certified for Zoom Rooms® software with INOGENI’s 4KXUSB3 converter for camera control.
-
-
TAA-compliant

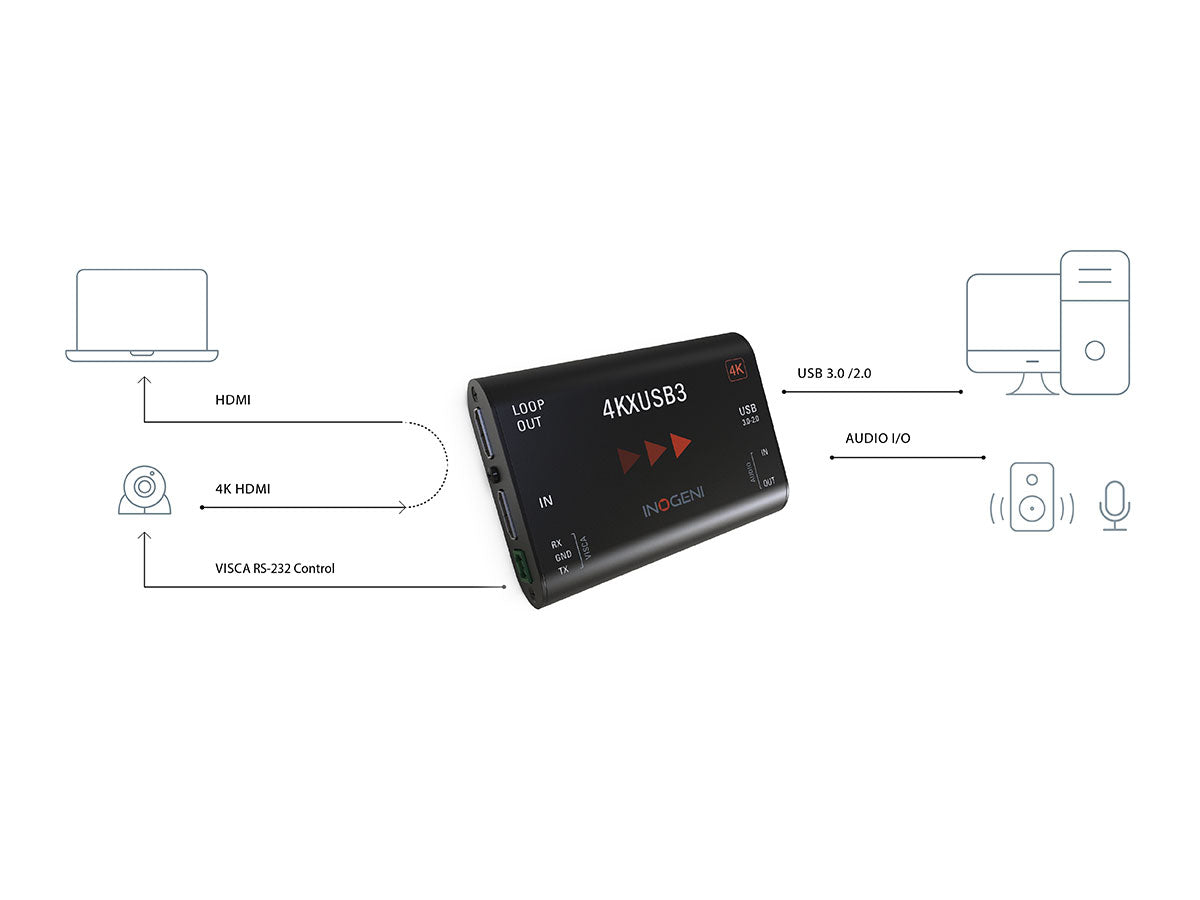

How it works
The 4KXUSB3 Ultra HD to USB 3.0 professional camera converter with an HDMI loop and VISCA port works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.
Requiring no drivers and compatible with Windows, macOS and Linux laptops, the converter resolves all interoperability issues.
Plug & Go
INOGENI has developed numerous custom applications with our global partners. Capture, mix and switch without drivers. INOGENI makes everything work together thanks to our professional camera converters.
Compatible with all HDMI cameras
The 4KXUSB3 professional camera converter is fully compatible with all HDMI cameras, including professional-grade equipment such as Vaddio, Aver or Marshall cameras, including control of the PTZ cameras via the VISCA port. Crestron’s AutoTracker™and AutoFramer™ are now certified for Zoom Rooms® software with INOGENI’s 4KXUSB3 converter for camera control.
- Compatible with Direct Show
- Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats
- Supports 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 graphic formats
- Up to Ultra HD 4K (3840/4096×2160) at 30 fps and 1080p at 60 fps
- HDMI audio support: Embedded audio in the HDMI signals is extracted and output as two-channel LPCM
- Digital Fluid technology: Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion (UHD up-scaling not supported)
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings; these controls work on all formats below 4K, but not 4K
- Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
- Compatible with Zoom Rooms
- Zoom Certified
- HDMI camera including professional-grade equipment such as Vaddio, Aver or Marshall cameras, including control of the PTZ cameras via the VISCA port.
- Crestron’s AutoTracker™and AutoFramer™ are now certified for Zoom Rooms® software with INOGENI’s 4KXUSB3 converter for camera control.
| VIDEO INPUT | |
| Connector & Video Resolutions: | 1 x HDMI 1.4a 4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280x1024, 1280x960, 1280x800, 1024x768, 800x600, 640x480 |
| Frame Rates: | 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K=30Hz max. |
| Colour Space: | RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB) |
| Sampling Rate: | 297 MHz |
| Embedded Audio: | CH 1&2 48kHz LPCM |
| VIDEO OUTPUT | |
| Connector & Video Resolutions: | 1 x HDMI 1.4a 4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280x1024, 1280x960, 1280x800, 1024x768, 800x600, 640x480 |
| Colour Space: | RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB) |
| USB - Connector & Video Resolutions: | 1 x USB 3.0 Type-B |
| USB - CODECs: | UYU2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0 MJPEG for USB 2.0 |
| USB - Video Scaler: | Automatic hardware based |
| USB - Colour Space Conversion: | Automatic hardware based |
| USB - Sampling Conversion: | Automatic hardware based |
| USB - Frame Rate Conversion: | Automatic hardware based |
| AUDIO | |
| Analog Audio I/O: | 2-channel LPCM audio from HDMI and/or from Audio Jack |
| Audio Input Connector: | 1 x 3.5mm, MIC or line-level, unbalanced |
| Audio Output Connector: | 1 x 3.5mm, line-level, unbalanced CH1&2 48kHz LPCM feed from HDMI |
| Mixing Functionality: | HDMI audio and analog audio inputs are mixed over the USB input interface. USB audio output and HDMI audio input are mixed over the analog audio output. Use Control App in order to manage audio layout. |
| CONTROL | |
| PTZ Control Connector: | 1 x Terminal block for VISCA control from UVC interface RS-232 interface Baud rate @ 9600 bps |
| COMPATIBILITY | |
| Operating System: | No driver installation necessary. Windows 7 and above (32/64-bit) macOS 10.10 and above Linux (kernel v2638) |
| Minimum Host Requirements: | USB 2.0 port - We recommend USB 3.0 for uncompressed video 4GB RAM Intel Core i5 or equivalent Graphic card with dedicated memory |
| Motherboard: | Compatible with all motherboards, Intel, Renesas, ASMedia, and Fresco Logic |
| Supported Cameras: | Cameras and camcorders with an HDMI output |
| Software Compatibility: | UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and v4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc. |
| PHYSICAL DETAILS | |
| Dimensions (W x L x H): | 9.9cm x 7.4cm x 1.9cm 3.9" x 2.9" x 0.75" |
| Power Supply: | Powered by USB (5V, 900mA) |
| Weight: | 140g (0.3lbs) |
| Package Contents: | 1 x 3ft USB 3.0 cable (Type-A to Type-B) 1 x RS-232 terminal block adapter |
| Operating Temperature: | 0° to 45°C 32° to 113°F |
| Storage Temperature: | -40° to 105°C -40° to 221°F |
| Relative Humidity: | 0% to 90% non-condensing |
| INFORMATION | |
| UPC Code: | 40232378935 |
| Origin: | Canada |
| Warranty: | 2 years |
| CERTIFICATION | |
| HDCP-Compliant: | The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources. |
| Certifications: | FCC, CE, RoHS, SoV, RCM, BSMI RoHS, BSMI, CB |
| TAA-Compliant: | Yes |
- 1x Inogeni 4KXUSB3 4K Ultra HD to USB 3.0 with HDMI Loop
