Inogeni 4KX-PLUS 4K HDMI to USB 3.0 Converter

Inogeni 4KX-PLUS 4K HDMI to USB 3.0 Converter

SKU: INO-4KX-PLUS
£591.11 GBP ex VAT
£709.33 GBP inc VAT
ex VAT £591.11 GBP ex VAT
£709.33 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
COMPATIBLE WITH CISCO WEBEX ROOM SERIES
Configure your Cisco conferencing software to use USB cameras and microphones. Activate ‘Enable USB mode’ on the Touch 10.
  • It works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.
  • Compatible with USB 2.0 (high quality MJPEG)
  • The 4KX-PLUS with Cisco Devices enable multiple displays. The 4K2USB3 works only for one display.
  • The external power supply maintains the connection between the Cisco Webex CODEC and the 2nd display, even if the laptop is not connected to the 4KX-PLUS.
THE MOST COST-EFFECTIVE AND USER-FRIENDLY INTEROPERABILITY SOLUTION

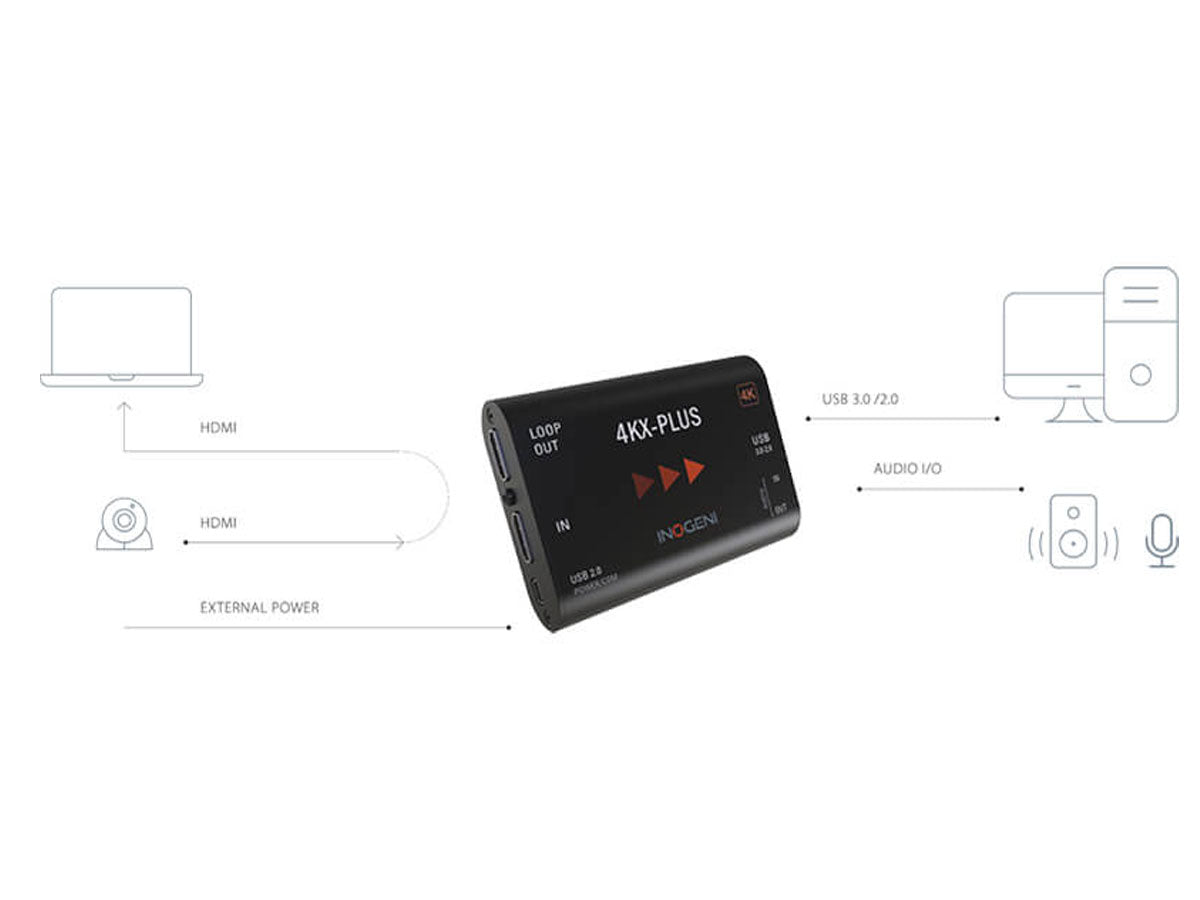

Rely on a proven technology that captures uncompressed HDMI video and audio from Webex devices, which then converts it to USB 3.0 for a third-party laptop.
  • Direct integration of Cisco room equipment (camera, audio and screen)
  • Solves the interoperability issue
  • Optimizes your assets and avoids additional license fees for Cloud Video Interop (CVI) service and user management
  • No driver required
  • Compatible with Windows, macOS and Linux laptops
  • Easily programed macros in your Webex Room Device. Native Webex implementation available in Q2 CY2022
  • Intuitive interface on Webex Touch 10 or Webex Navigator
VIDEO INPUT
Connector & Video Resolutions:
1 x HDMI 1.4a
4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280x1024, 1280x960, 1280x800, 1024x768, 800x600, 640x480
Frame Rates:
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions except 4K=30Hz max.
Colour Space:
RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling Rate:
297 MHz
Embedded Audio:
Ch 1&2 48kHz LPCM
VIDEO OUTPUT
Connector & Video Resolutions:
1 x HDMI 1.4a
4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280x1024, 1280x960, 1280x800, 1024x768, 800x600, 640x480
Frame Rates:
60, 59.94, 50, 30, 29,97, 25, 24, 23.98 Hz for all resolutions except 4K=30Hz max.
Colour Space:
RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling Rate:
297 MHz
Embedded Audio:
Ch 1&2 48kHz LPCM
USB - Connector & Video Resolutions:
1 x USB type B (USB 3.0/2.0)
4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1280x800, 1024.768, 800x600, 640x480
USB - CODECs:
YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0
MJPEG for USB 2.0
USB - Video Scaler:
Automatic hardware based
USB - Colour Space Conversion:
Automatic hardware based
USB - Sampling Conversion:
Automatic hardware based
USB - Frame Rate Conversion:
Automatic hardware based
AUDIO
Analog Audio I/O:
2-channel LPCM audio from HDMI and/or from Audio Jack
Audio Input Connector:
1 x 3.5mm, MIC or line-level, unbalanced
Audio Output Connector:
1 x 3.5mm, line-level, unbalanced
CH1&2 48kHz LPCM feed from HDMI
Mixing Functionality:
HDMI audio and analog audio inputs are mixed over the USB input interface.
USB audio output and HDMI audio input are mixed over teh analog audio output.
Use Control App in order to manage audio layout.
COMPATIBILITY
Cisco Webex Compatible:
Easily programmed macros in your Webex room device.


Native Webex implementation available in Q2 CY2022.
Intuitive interface on Webex Touch 10 or Webex Navigator.
The 4KX-PLUS is compatible with Webex Devices for multiple displays.
The 4KUSB3 is compatible with Webex Devices for one display.

Macro & Native
  • Webex Room Kit
  • Webex Room Kit Plus
  • Webex Room Kit Pro
  • Webex Room 55
  • Webex Room 70
  • Webex Room Panorama
Macro Only
  • Cisco MX700
  • Cisco MX800
  • Cisco SX80
Operating System:
No driver installation necessary.

Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2638)
Minimum Host Requirements:
USB 2.0 port - We recommend USB 3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Supported Cameras:
Cameras (or video source) with an HDMI output
Software Compatibility:
UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2

Compatible to: Teams, Zoom, Webex, Google Meet, etc.

PHYSICAL DETAILS
Dimensions (W x L x H):
9.9cm x 7.4cm x 1.9cm
3.9" x 2.9" x 0.75"
Power Supply:
Powered by USB 4.5W (5V, 900mA) or by external power supply 5W (5V, 1A)
Weight:
140g (0.3lbs)
Package Content:
1 x 3ft USB 3.0 cable (Type-A to Type-B)
1 x 6ft USB 2.0 cable (Type-A to mini Type-B) (for power)
1 x Power supply 100-240 VAC 50/60Hz to 5V/1A DC USB-A
International adapters included in the box (AUS, EUR, UK and US)
Operating Temperature:
0° to 45°C
32° to 113°F
Storage Temperature:
-40° to 105°C
-40° to 221°F
Relative Humidity:
0% to 90% non-condensing
INFORMATION
UPC Code:
51497285142
Origin:
Canada
Warranty:
2 years
CERTIFICATION
HDCP-Compliant:
The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Certifications:
FCC, CE, RoHS, SoV, RCM, 508 Statement
TAA-Compliant:
Yes
  • 1x 3ft USB 3.0 cable (Type-A to Type-B)
  • 1x 6ft USB 2.0 cable (Type-A to mini Type-B) (for power)
  • 1x power supply 100-240 VAC 50/60Hz to 5V/1A DC USB-A
    • International adapters included in the box (AUS, EUR, UK and US)
