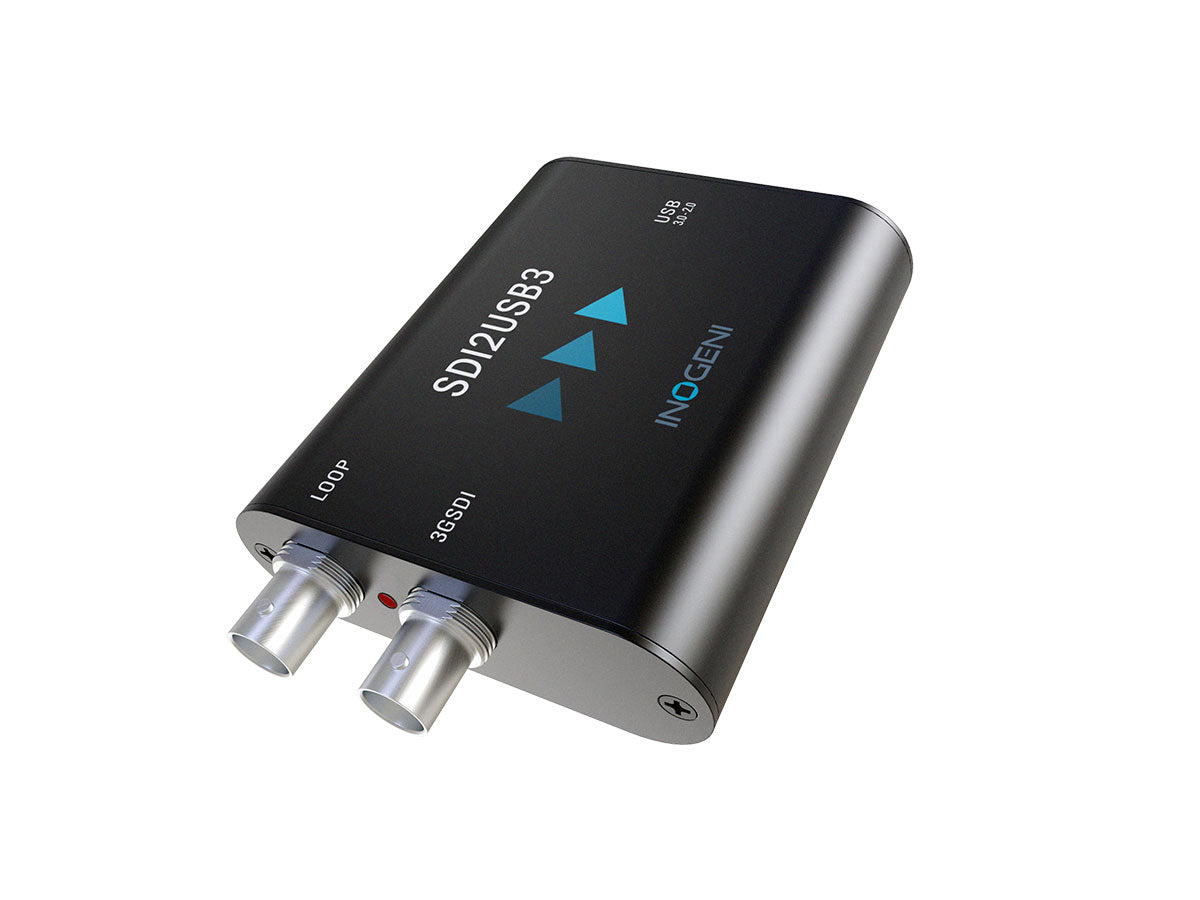

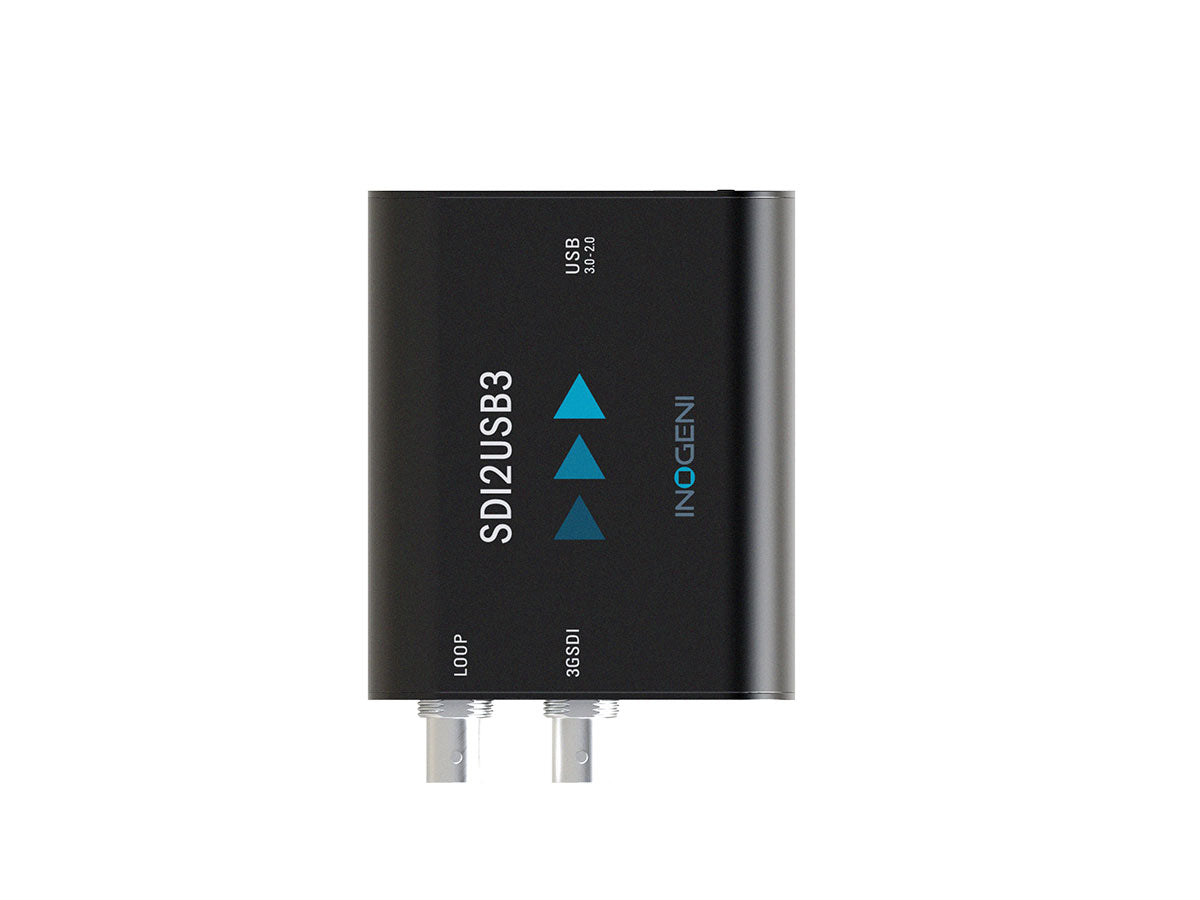

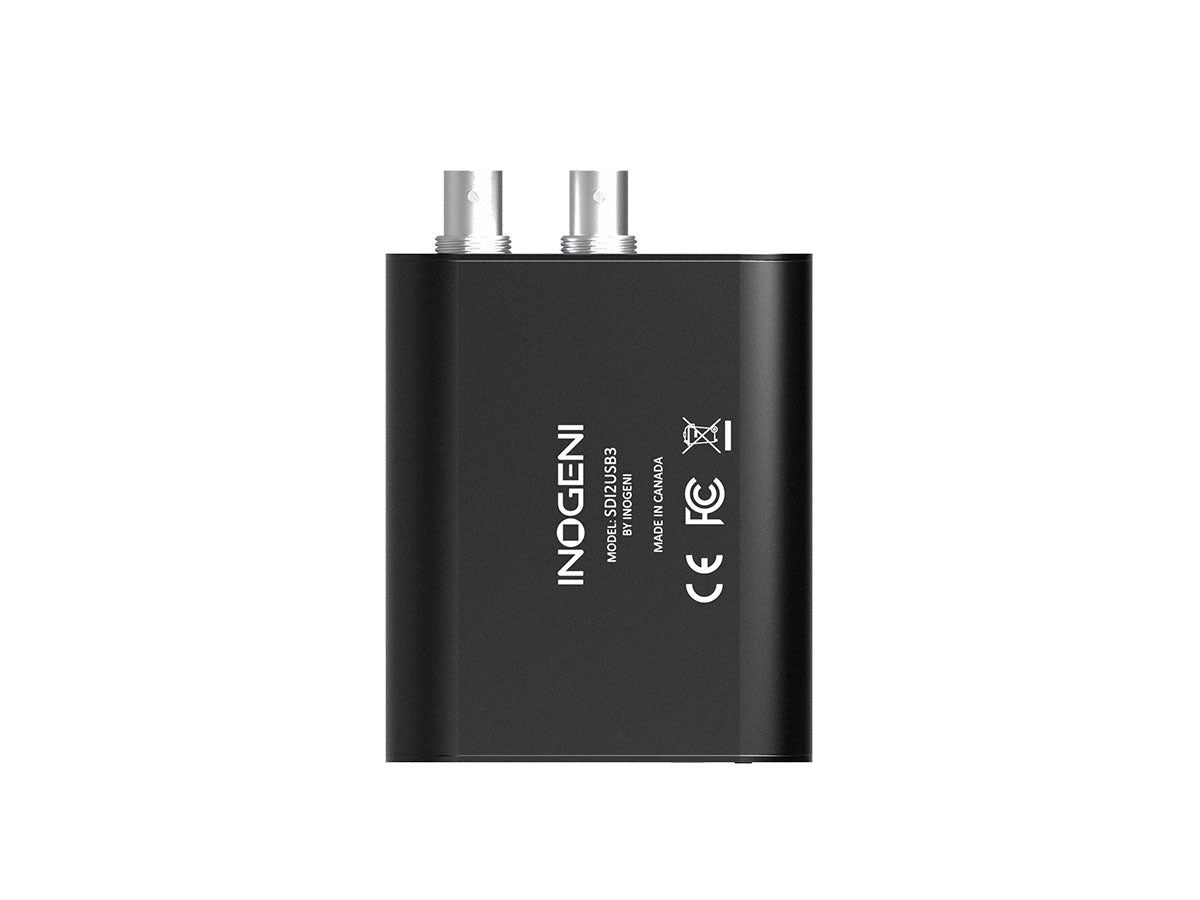

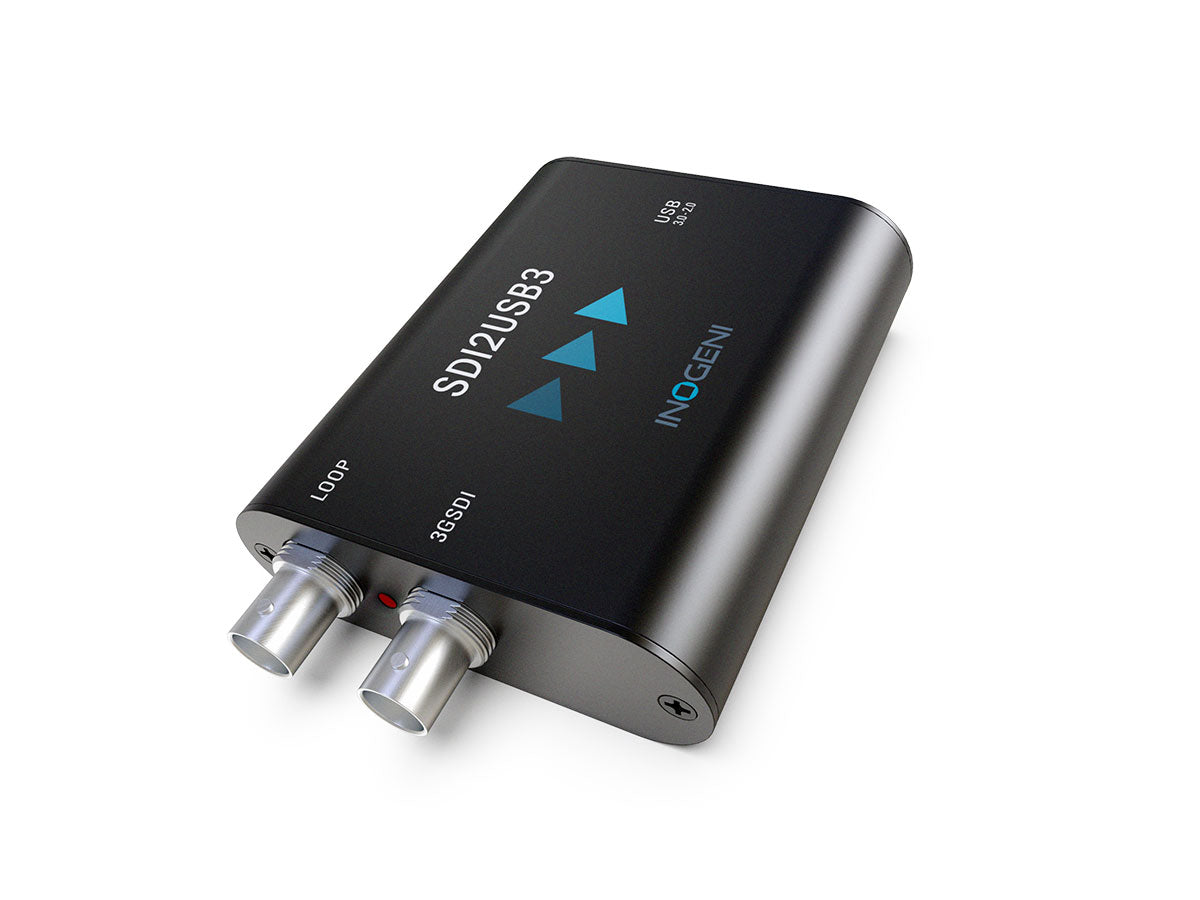

Inogeni 3GSDI to USB 3.0 Converter
Inogeni 3GSDI to USB 3.0 Converter
£560.00 GBP inc VAT
£560.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The INOGENI 3G-SDI to USB 3.0 Converter is the most easy and reliable tool to capture uncompressed SDI video with embedded audio for your PC for recording, editing, video conferencing and streaming applications. No driver installation is necessary and will work on all motherboards and USB 3.0 chipsets. It features a 3G-SDI input with active loop output, supports SD / HDTV video formats up to 1080p60.
Compact in size and powered directly from a USB 3.0 port, the converter is a practical easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, UVC-compliant, so it will work with all DirectShow compatible software.
The converter supports 1080p resolutions up to 60 fps. All SD / HD resolution signals are converted to 4:2:2 8-bit colour space over USB 3.0. The embedded audio in your SDI signal is extracted and output as two-channel LPCM.
A USB 3.0 cable comes included.
Compatible Software
Video Conferencing
- Skype
- Lync
- Hangouts
- Zoom
- FaceTime
- Vidyo
- LiveCast
- Jabber
- BlueJeans
- TeamViewer
- Easymeeting
- Connect
- Polycom
- Spontania
- Webex
- GoToMeeting
Recording
- VLC
- VirtualDub
- VideoGlide
- QuickTime
- qV4L2
- MEncoder
- LUVCView
- GUVCView
- MATLAB
- VIDBlaster
- OBS
- Elements
- Debut
- Camtasia
- Wirecast
- FFmpeg
- ALE
- gstreamer
- Edius
- ScreenFlow
- LabVIEW
- vMix
- Dragonframe
Streaming
- Youtube
- vMix
- xSplit
- OBS
- Wirecast
- Livestream
- USTREAM
- Presentations 2Go
- LiveCast
- Facebook LIVE
- stroom
- 3G-SDI Capture to USB 3.0
- Supports 1080p, 1080i, 720p, 480p, 576p, NTSC and PAL at up to 60 fps
- Embedded audio extraction
- Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Customizable video processing functions
- Supports multiple devices on the same PC
- Powered from USB 3.0 port
- Compatible with Windows, OSX, Linux and Android
| VIDEO INPUT | |

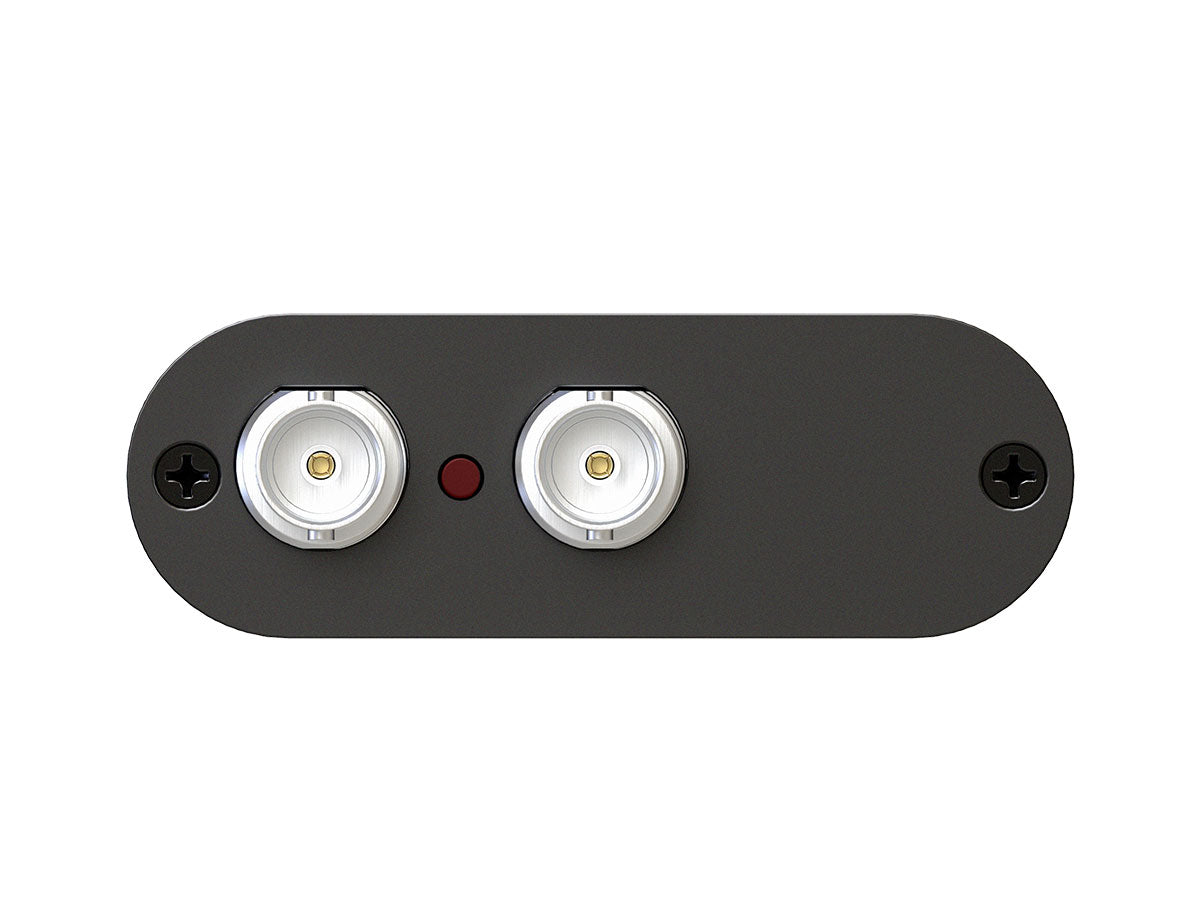

| Connector & Video Resolutions: | 1 x BNC (3GSDI input) 1 x BNC (3GSDI active loop out) 3G: 1080p60/59.94/50 (Level A, B-Dual Link) HD: 1080i60/59.94/50, 1080p30/29.97/25/24/23.98 and 720p60/59.94/50/40/29.97/25/24/23.98 SD: NTSC/PAL |
| Jitter (alignment): | HD/SD: <0.2 UI 3Gb/s: <0.4 UI |
| Cable Length: | 150m (492 ft) at 1.485 Gb/s 120m (393 ft) at 2.970 Gb/s |
| Frame Rates: | 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz |
| Colour Space: | YCbCr, 4:2:2 |
| Sampling Rate: | 148.5/148.35 MHz |
| Embedded Audio: | Ch 1&2 48kHz LPCM |
| VIDEO OUTPUT | |
| Connector & Video Resolutions: | 1 x BNC (3GSDI active loop out) |
| Colour Space: | YCbCr 4:2:2 |

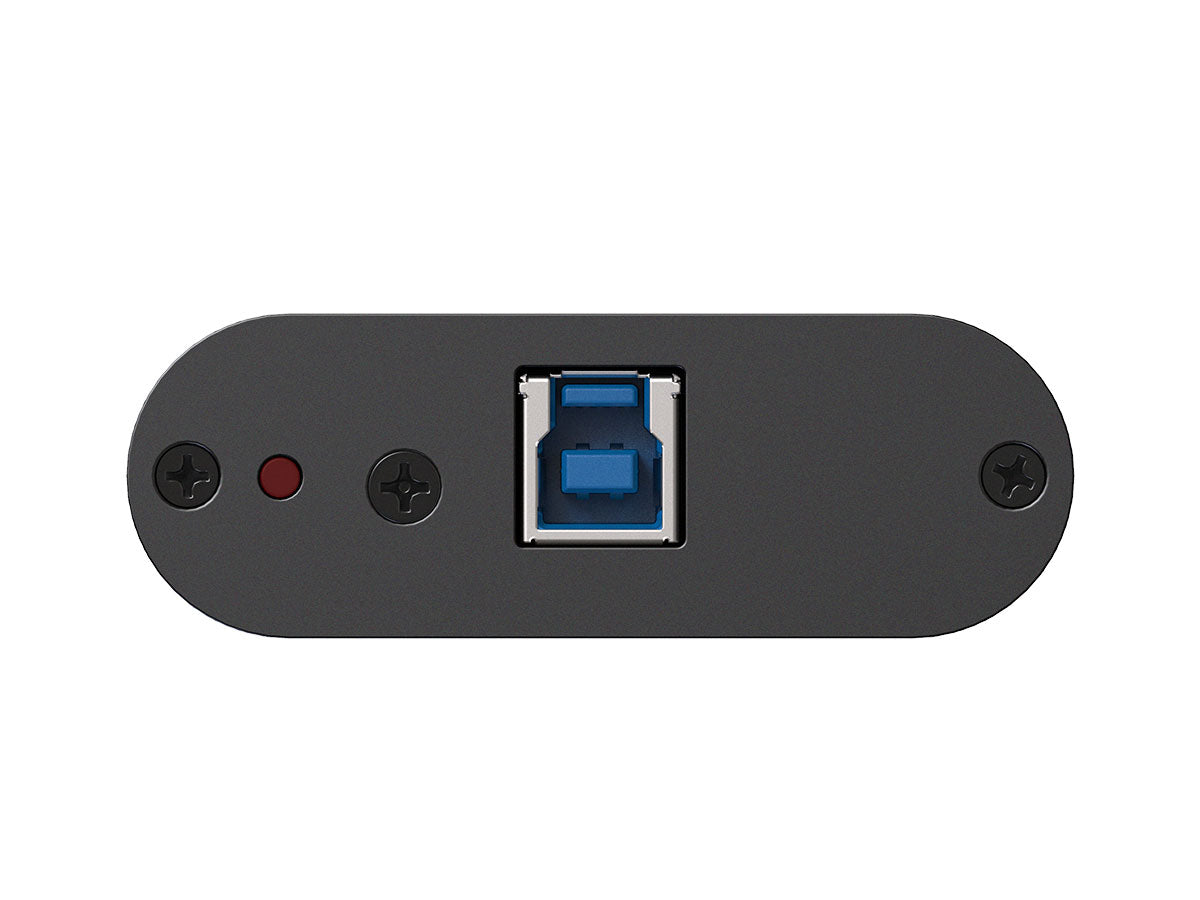

| USB - Connector & Video Resolutions: | 1 x USB 3.0 Type-B |
| USB - CODECs: | YUY2 4:2:2 8-bit for USB 3.0 MJPEG for USB 2.0* |
| Notes for MJPEG for USB 2.0: | *Devices having serial numbers >=SD2036xxx will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video. |
| USB - Video Scaler: | Automatic hardware based |
| USB - Colour Space Conversion: | Automatic hardware based |
| USB - Sampling Conversion: | Automatic hardware based |
| USB - Frame Rate Conversion: | Automatic hardware based |
| AUDIO | |
| Analog Audio I/O: | 2-channel LPCM audio from SDI |
| Audio Input Connector: | Ch 1&2 48kHz LPCM from SDI |
| COMPATIBILITY | |
| Operating System: | No driver installation necessary. Windows 7 and above (32/64-bit) macOS 10.10 and above Linux (kernel v2638) |
| Minimum Host Requirements: | USB 2.0 port - We recommend USB 3.0 for uncompressed video 4GB RAM Intel Core i5 or equivalent Graphic card with dedicated memory |
| Motherboard: | Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic. |
| Supported Cameras: | Cameras and camcorders with a SDI output |
| Software Compatibility: | UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc. |
| PHYSICAL DETAILS | |
| Dimensions (W x L x H): | 8.1cm x 7.4cm x 1.9cm 3.2" x 2.9" x 0.75" |
| Power Supply: | Powered by USB (5V / 580mA) |
| Weight: | 139g (0.3lbs) |
| Package Content: | 1 x 3ft USB 3.0 cable (Type-A to Type-B) |
| Operating Temperature: | 0° to 45°C 32° to 113°F |
| Storage Temperature: | -40° to 105°C -40° to 221°F |
| Relative Humidity: | 0% to 90% non-condensing |
| INFORMATION | |
| UPC Code: | 40232250538 |
| Origin: | Canada |
| Warranty: | 2 years |
| CERTIFICATION | |
| Certifications: | FCC, CE, RoHS, SoV, RCM, BSMI RoHS, BSMI, CB |
| TAA-Compliant: | Yes |
- 3G-SDI Capture to USB 3.0
- USB 3.0 Cable
- User Guide
