IDX V-Mount Camera Converter + Digi-View for AJ-HPX3100
IDX V-Mount Camera Converter + Digi-View for AJ-HPX3100
£160.87 GBP inc VAT
£160.87 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

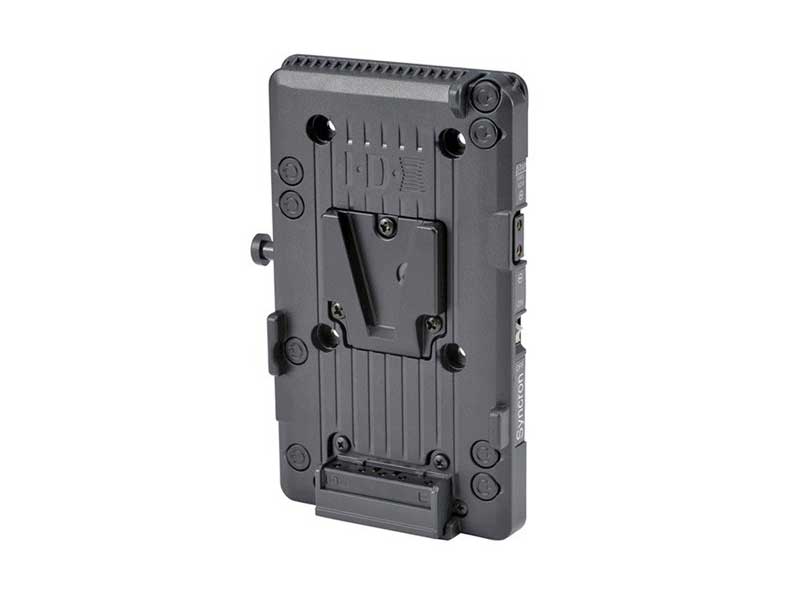

The P-VS2PW plate has been designed specifically for the Panasonic AJ-HPX3100. The P-VS2PW features an additional power connector, to be attached to the camera before mounting in position, which allows the power tap on the AJ-HPX3100 camera to draw DC power from an attached V-Mount battery.
The P-VS2 includes a 2 pin D-Tap on the side to connect an on-board camera light and also features Syncron, which turns the on-board light on and off in sync with camera record button. As part of IDX's Digi-View feature, digital battery data from the ENDURA ELITE, E-10 and E-HL9 can be transferred through the P-VS2PW to compatible view finder cameras.
- Two DC outputs for the camera and a D-TAP output connector for powering on-board camera lights.
- Digi-View battery monitoring function. The remaining battery capacity and other data is displayed in the
- viewfinder of the camera. ※Refer to Digi-View for further details (Lower right).
- Syncron function allows an on-board camera light to turn on and off in sync with the camera recording mode.
- The P-VS2PW can be used for most of professional video cameras. Adjustments can be made to suit
- different manufacturer camera models via its ability to provide universal positioning.
Maximum output for the D-Tap： 50W
Dimensions： 82.5(W) × 142(H) ×12(D) mm / 3.25(W) × 5.59(H) × 0.47(D) inches
Weight： Approx. 180g / 0.40 lbs.
- 1x V-Mount Plate
- 4x M3 (8mm) screw
