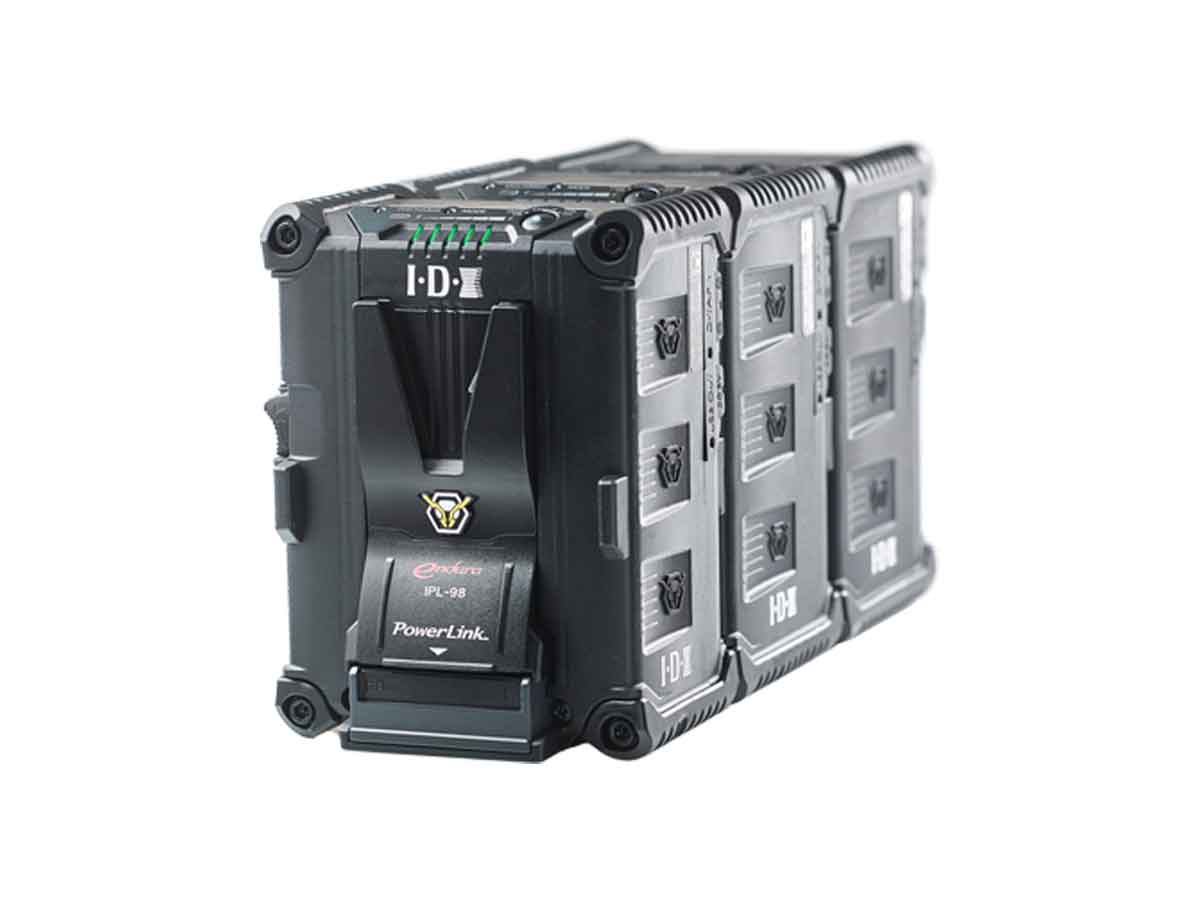

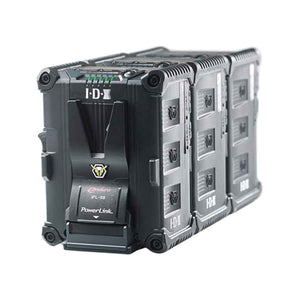

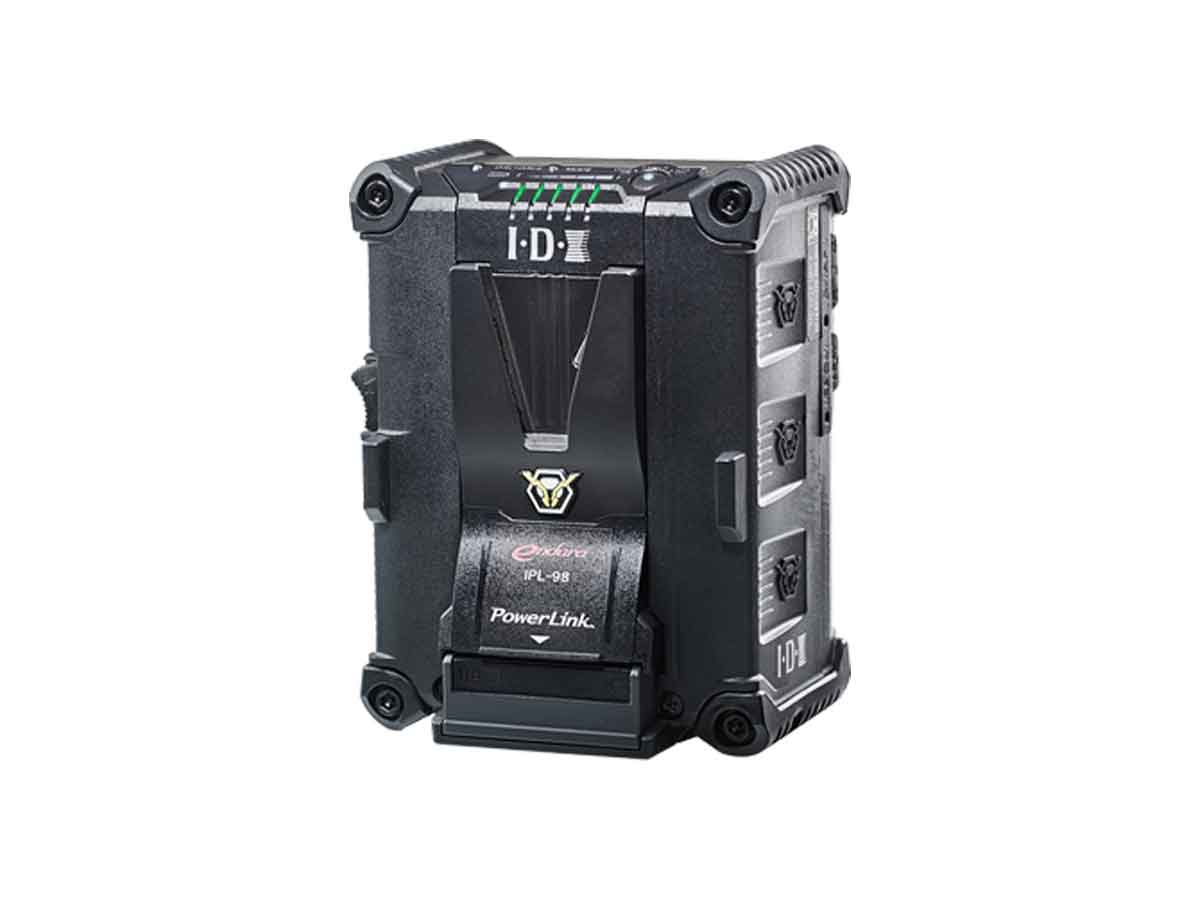

IDX IPL-98 High Load V-Mount with Power Link

IDX IPL-98 High Load V-Mount with Power Link

SKU: IDX-IPL-98
£353.44 GBP ex VAT
£424.13 GBP inc VAT
ex VAT £353.44 GBP ex VAT
£424.13 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

IPL-98 is the newest stackable battery solution for digital cinema cameras where infinite runtimes are required. With 96Wh capacity, the IPL-98 meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Monstro all day long if needed. The IPL-98 also includes two on-battery D-Taps and USB outputs to power accessories such as monitors, lights, wireless receivers, tablets, phones, etc.

  • 96Wh capacity
  • PowerLink capability (stackable up to four IPL-98/IPL-150 or IDX brand V-mount battery)
  • Meets passenger aircraft travel regulations
  • Capable of handling up to 10.5A loads (14A when linked)‡
  • (1) 80W D-Tap Advanced Output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
  • (1) 80W D-Tap Output (unregulated)
  • (1) DC 5.0V /2.3A USB output (auto shut off after 30 minutes of inactivity)
  • 5 Power Indicator LEDs (displaying 10% increments)
  • Battery circuit protection ensures the IPL-98 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
  • The highest grade Lithium Ion cells are used to ensure the IPL-98 is one of the most reliable batteries on the market
  • 11V auto cut-off prevents over-discharging (while load is applied)
  • Fully compatible with all ENDURA V-Mount Battery chargers and accessories. VL-2000S charger is needed for stack charging.
  • Environmentally friendly and recyclable
Battery Capacity 96Wh (14.4V/ 6.6Ah)
Max.Output Voltage 16.8V DC
Nominal Voltage 14.4V DC
Maximum Discharge Current 10.5A (14A when linked)‡
D-Tap 80W each
USB DC 5.0V / 2.3A
End Voltage 11V
Battery Protection Over charge, Over discharge, Over current, Thermal protection
Ambient Temperature To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (less than 1 month)
Dimensions 89(W) x 119(H) x 70(D)mm
Weight 745 grams approx.
  • 1x IDX IPL-98 High Load V-Mount with Power Link
