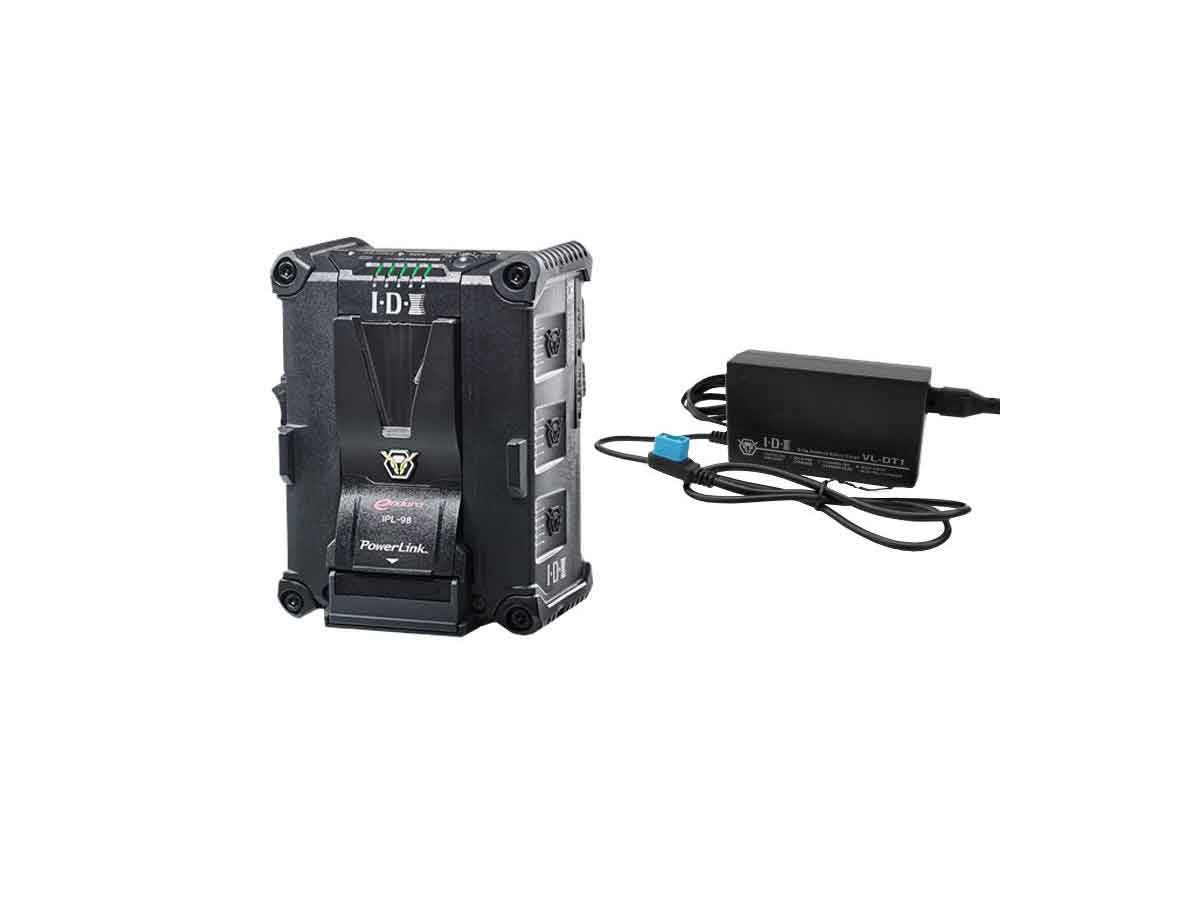

IDX IPL-98 Battery and VL-DT1 Advanced D-Tap Charger Kit
IDX IPL-98 Battery and VL-DT1 Advanced D-Tap Charger Kit
£526.50 GBP inc VAT
£526.50 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
IDX IPL-98 Battery
IPL-98 is the newest stackable battery solution for digital cinema cameras where infinite runtimes are required. With 96Wh capacity, the IPL-98 meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Monstro all day long if needed. The IPL-98 also includes two on-battery D-Taps and USB outputs to power accessories such as monitors, lights, wireless receivers, tablets, phones, etc.
IDX VL-DT1 Advanced D-Tap Charger
The VL-DT1 is a single channel, low cost, portable charger designed to charge batteries with a D-Tap Advanced port. The D-Tap Advanced’s three pin design monitors the cell status to ensure correct, controlled charging which prolongs battery life.
IDX IPL-98 Battery
- 96Wh capacity
- PowerLink capability (stackable up to four IPL-98/IPL-150 or IDX brand V-mount battery)
- Meets passenger aircraft travel regulations
- Capable of handling up to 10.5A loads (14A when linked)‡
- (1) 80W D-Tap Advanced Output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
- (1) 80W D-Tap Output (unregulated)
- (1) DC 5.0V /2.3A USB output (auto shut off after 30 minutes of inactivity)
- 5 Power Indicator LEDs (displaying 10% increments)
- Battery circuit protection ensures the IPL-98 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
- The highest grade Lithium Ion cells are used to ensure the IPL-98 is one of the most reliable batteries on the market
- 11V auto cut-off prevents over-discharging (while load is applied)
- Fully compatible with all ENDURA V-Mount Battery chargers and accessories. VL-2000S charger is needed for stack charging.
- Environmentally friendly and recyclable
IDX VL-DT1 Advanced D-Tap Charger
- Single channel D-Tap Advanced battery charger
- Three pin safe charge design
- Compact, lightweight design – similar to the size of an AC-Adapter
- LED Display is positioned on the top of the charger for quick visual confirmation of charging mode
- Universal AC input voltage for worldwide operation.
- VL-DT1 compatible batteries: DUO-C95, DUO-C190, DUO-C98, DUO-C98RED, DUO-C198, SB-U50, SB-U98
IDX IPL-98 Battery
| Battery Capacity | 96Wh (14.4V/ 6.6Ah) |
| Max.Output Voltage | 16.8V DC |
| Nominal Voltage | 14.4V DC |
| Maximum Discharge Current | 10.5A (14A when linked)‡ |
| D-Tap | 80W each |
| USB | DC 5.0V / 2.3A |
| End Voltage | 11V |
| Battery Protection | Over charge, Over discharge, Over current, Thermal protection |
| Ambient Temperature | To charge: 0°C ~ 40°C (10°C ~ 30°C recommended) To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended) To store: -20°C ~ 50°C (less than 1 month) |
| Dimensions | 89(W) x 119(H) x 70(D)mm |
| Weight | 745 grams approx. |
IDX VL-DT1 Advanced D-Tap Charger
| Input Voltage | AC 100-240V 50/60Hz |
| Charge Current | 2A |
| Operating Temperature | 0°C ~ 40°C |
| Dimensions | 110(W) x 33.5(H) x 62(D) mm |
| Weight | 230 grams approx. |
- 1x IDX IPL-98 High Load V-Mount with Power Link
- 1x IDX VL-DT1 Advanced D-Tap Charger
