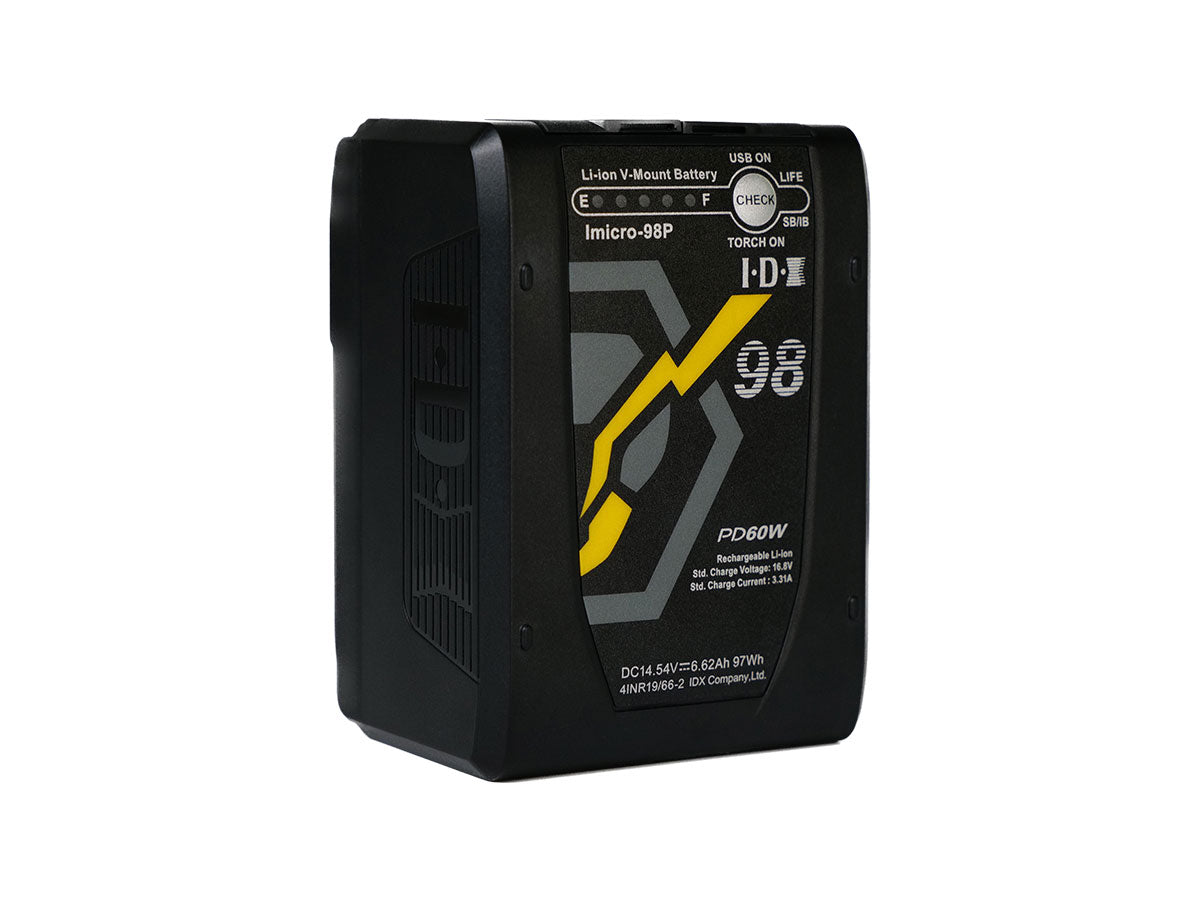

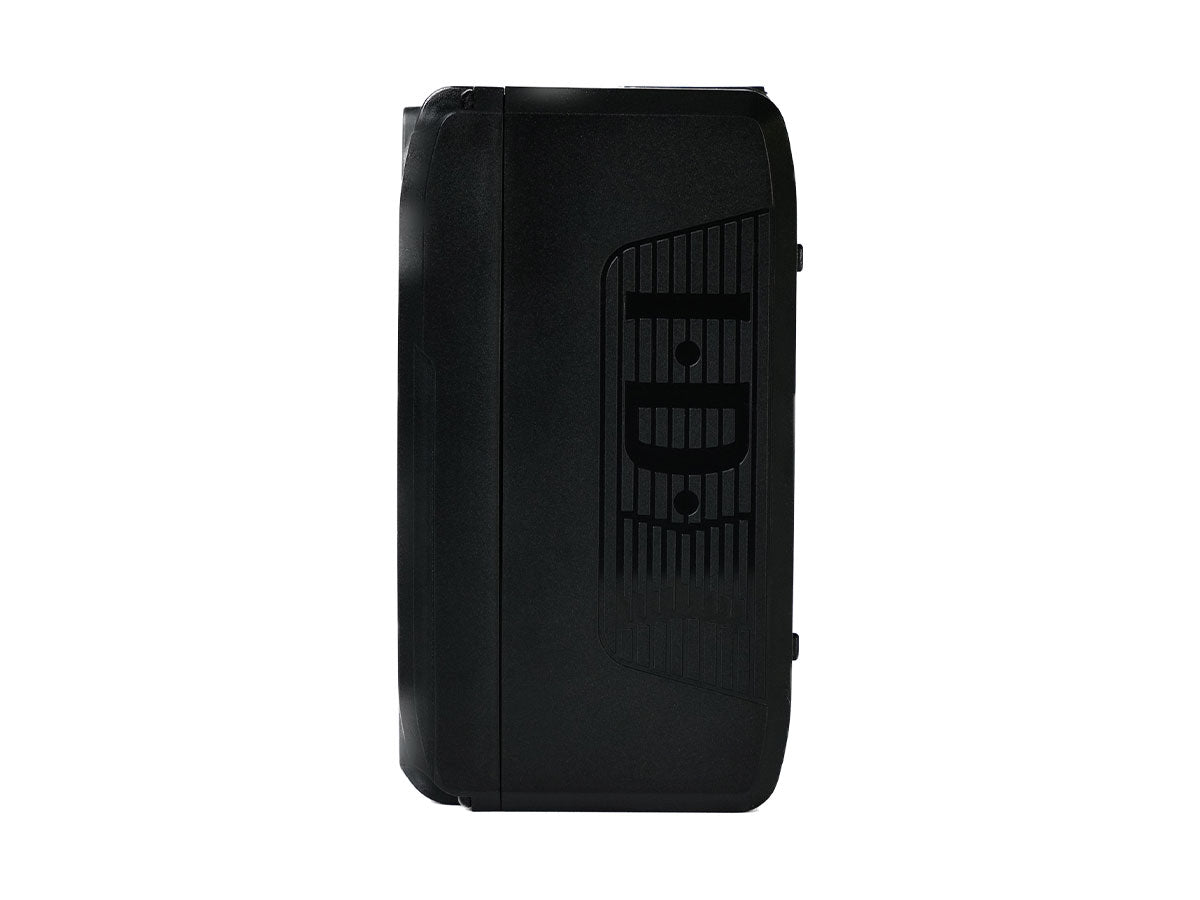

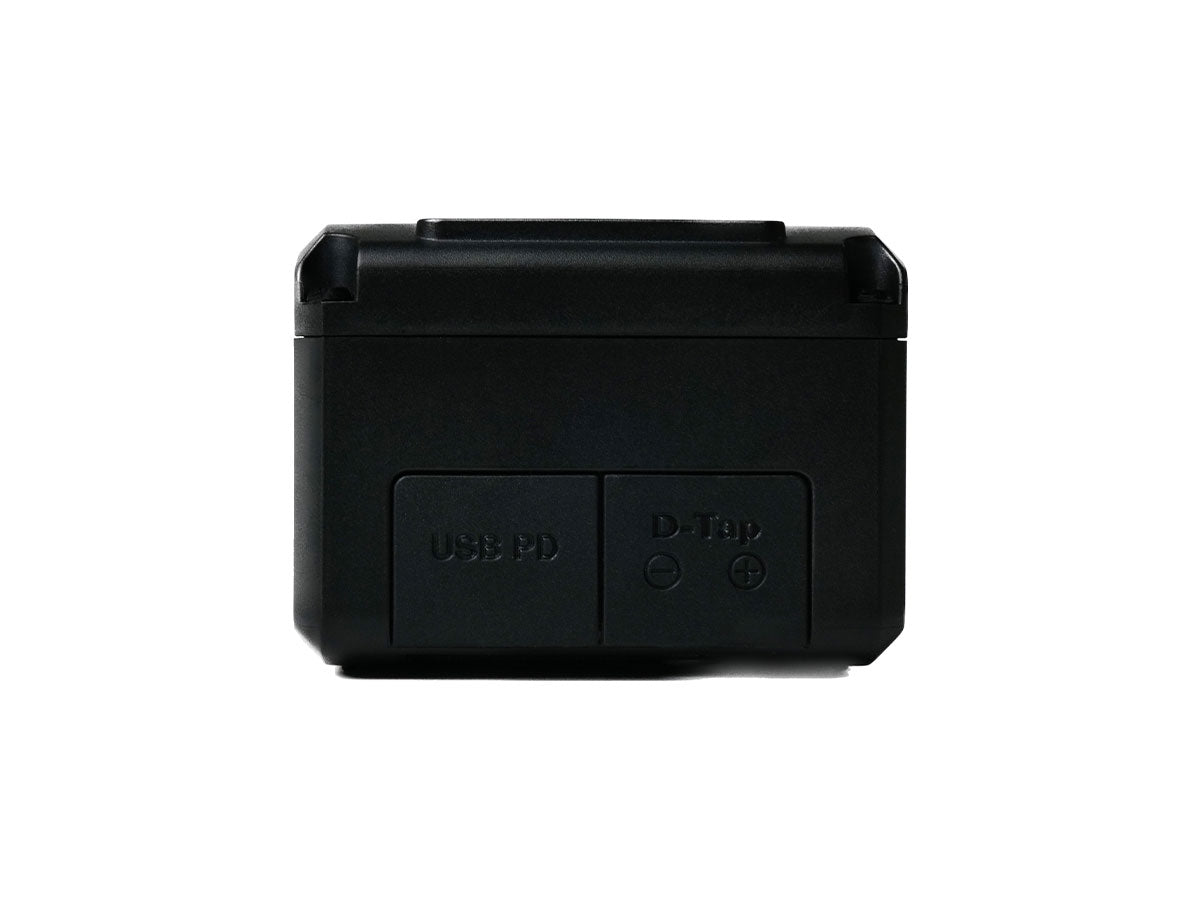

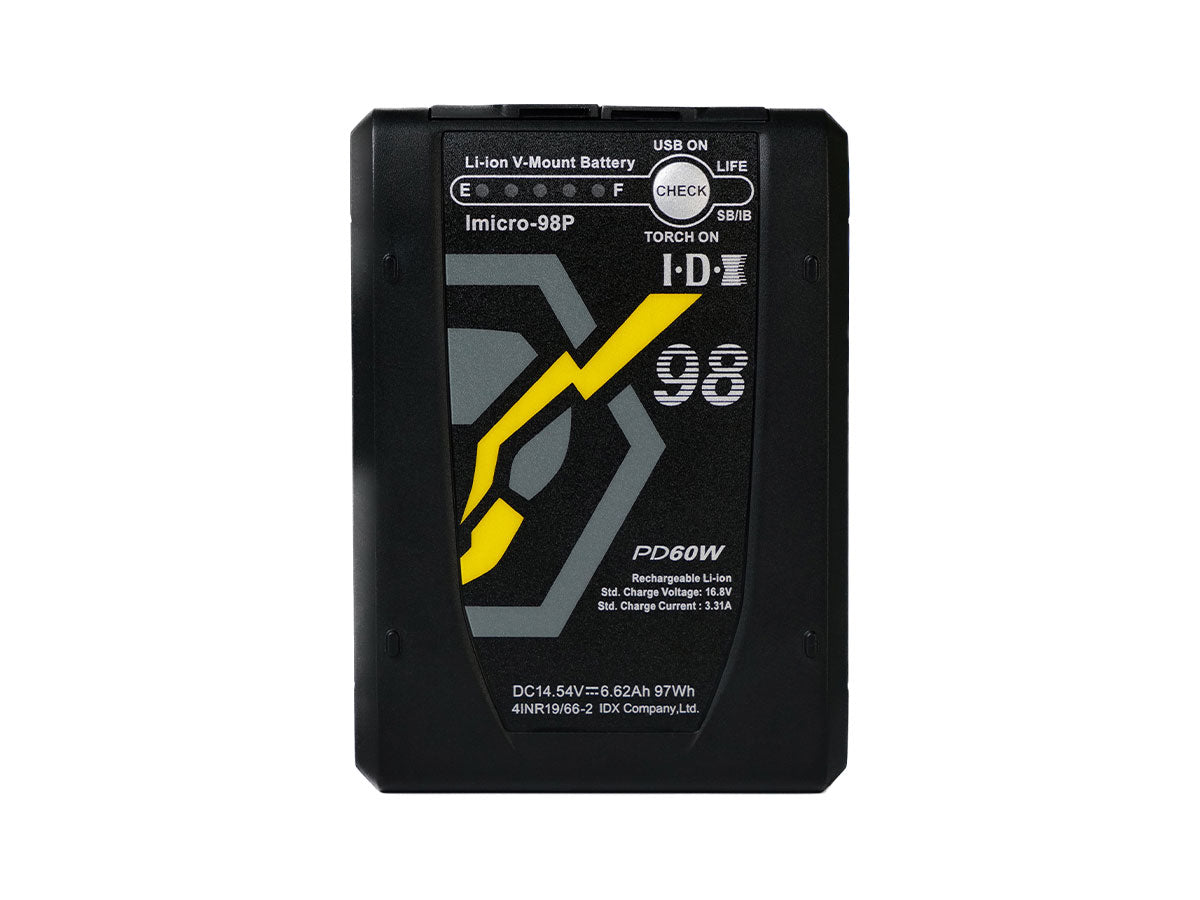

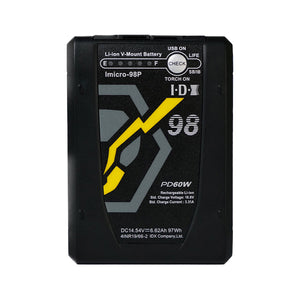

IDX IMICRO-98P Mini V-Mount Battery
IDX IMICRO-98P Mini V-Mount Battery
£300.00 GBP inc VAT
£300.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
The Imicro-98P is the smallest battery pack in the world at this capacity. Rated at 97Wh, the Imicro-98P meets the passenger aircraft carry-on limit while remaining useful in many diverse applications. The Imicro’s size is beneficial for users with small equipment and gimbal set ups. It also includes 1x D-Tap output, 1x USB-C PD In/Out socket, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.

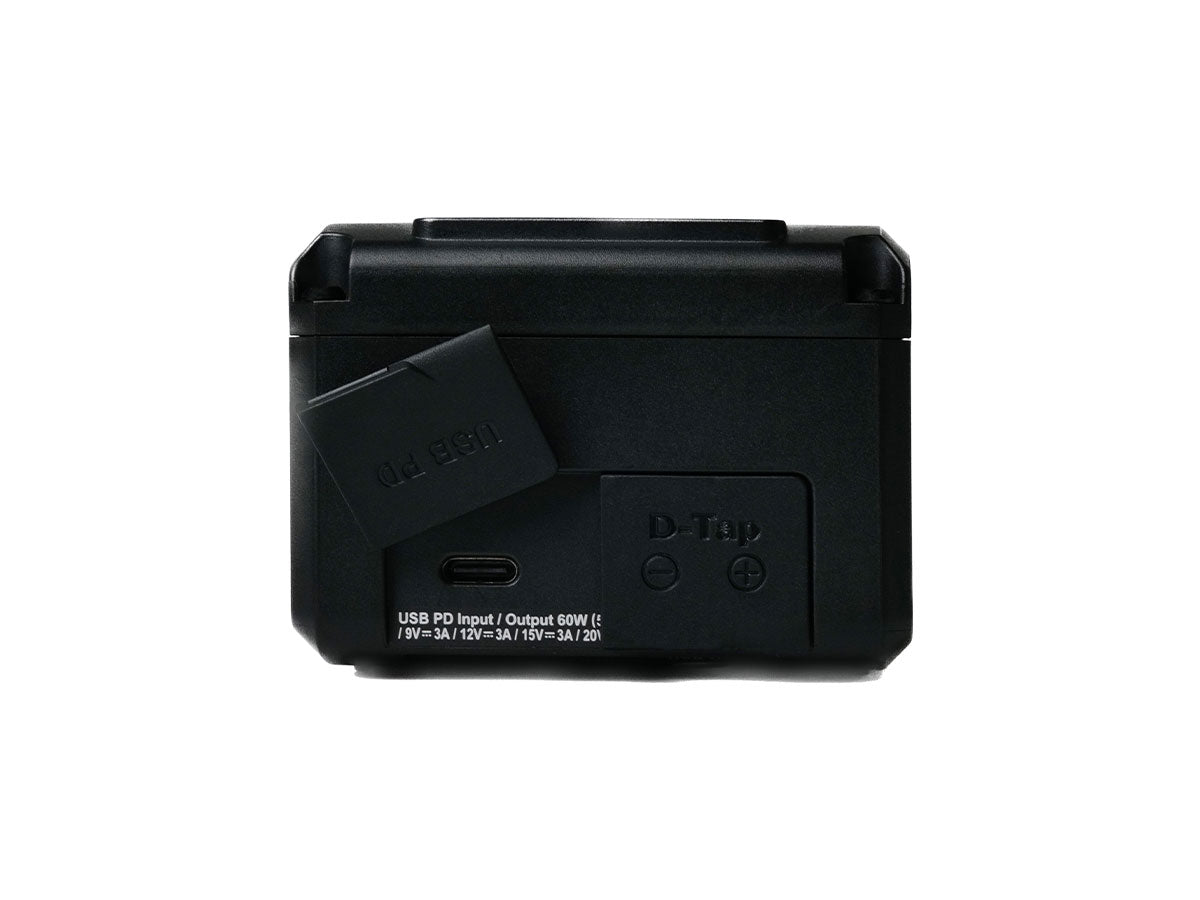

The USB-C PD In/Out socket has a power output of 60W which allows users to power a myriad of accessories, including a MacBook Pro. This socket also gives you the ability to charge the battery via an IDX USB-C Charger such as a UC-PD1 or UC-PD2. Charging via USB-C is approximately 30% faster than charging with a traditional IDX V-Lock charger.
- Ultra-compact form factor and light weight
- Utilise latest Lithium-ion cell for high performance and reliability
- 5 LED status indicator display the remaining battery capacity and Battery Life display with 3 LED steps
- Built-in USB-C PD (Power Delivery) – New protocol that provides more flexible power supplying and charging
- Built-in D-TAP - Supply 14V DC to accessories such as Monitor, Video recorder, or Light
- Built-in V-Torch - Useful when attaching the battery to a camera under dark working environments
- Digital communications - Display the accrued remaining time or capacity displayed in the viewfinder
| Battery Capacity: | 97Wh (14.5V / 6.6Ah) |
| Max. Voltage Output: | 16.8V DC |
| Nominal Voltage: | 14.5V DC |
| Maximum Discharge Current: | 13.1A* |
| D-Tap: | 100W each |
| USB-C Power Output: | 60W |
| USB-C Voltage Output: | 5V, 9V, 12V, 15V, 20V Outputs |
| End Voltage: | 11V |
| Battery Protection: | Over charge, Over discharge, Over current, Thermal protection |
| Ambient Temperature: | To charge: 0°C ~ 40°C (10°C ~ 30°C recommended) To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended) To store: -20°C ~ 50°C (less than one month) |
| Dimensions: | 72.8 x 100 x 55mm |
| Weight: | 580g |
