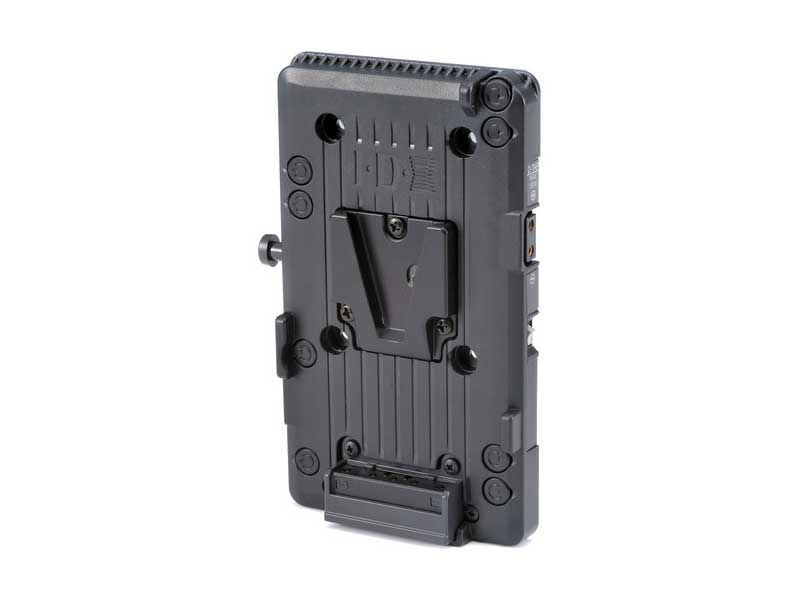

IDX ENDURA V-Mount Plate with Dual 2-Pin D-Tap DC Outs and Digi-View

IDX ENDURA V-Mount Plate with Dual 2-Pin D-Tap DC Outs and Digi-View

SKU: IDX-P-V284
£166.56 GBP ex VAT
£199.87 GBP inc VAT
ex VAT £166.56 GBP ex VAT
£199.87 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

For operators of Sony’s HVR series camcorders, the P-V284 V-Plate features dual 2-Pin D-Taps – one 2-Pin D-Tap serves as the 8.4V (regulated) connection; and a second 2-Pin D-Tap is included for optional accessory power – its unregulated battery throughput voltage output can be as high as 16.8V with IDX Li-Ion batteries.

  • V-Mount connection for precise DC power connectivity and much longer running times for small profile cameras using IDX ENDURA series batteries (E-7, E-7S, E-HL9, E-10 Series & ELITE).
  • Remaining battery capacity can be displayed in the camera’s viewfinder for confidence monitoring (feature available on camera systems capable of displaying DigiView).
  • P-V212, P-V257 & P-V284 can be mounted onto the A-MWR wireless audio adaptor; all three V-Plates are also compatible with IDX’s shoulder mount system A-CA74E.
  • Optional DC-powered camera input cables mate with a specific V-Plate, providing appropriate voltage for these pro cameras, P-V257 combines with cable:
    C-EOSC – use with Canon EOS Series 7D/5D Mark II
    C-JVCC – use with JVC GY-HM Series
    C-PANAVC – use with Panasonic HMC Series & AG-AF100
    C-PANCP2 – use with Panasonic HPX, HVX Series
    C-CANC – use with Canon XL, XH Series
    P-V212 combines with cable:
    C-PIN – use with Sony PMW-EX1/EX3 Series
    P-V284 combines with cable:
    C-SONC – use with Sony HVR Series

D-Tap Power Out (Primary):
P-V212: 12V Regulated
P-V257: 5V/7.3V Regulated
P-V284: 8.4V Regulated
D-Tap Power Out (Secondary):
50W Maximum (on-board lights, etc.)
(Unregulated)
Dimensions: 82.5 (W) x 142(H) x 12(D) mm
Weight: 180g approx. (plate series)

  • 1x V-Mount Plate
