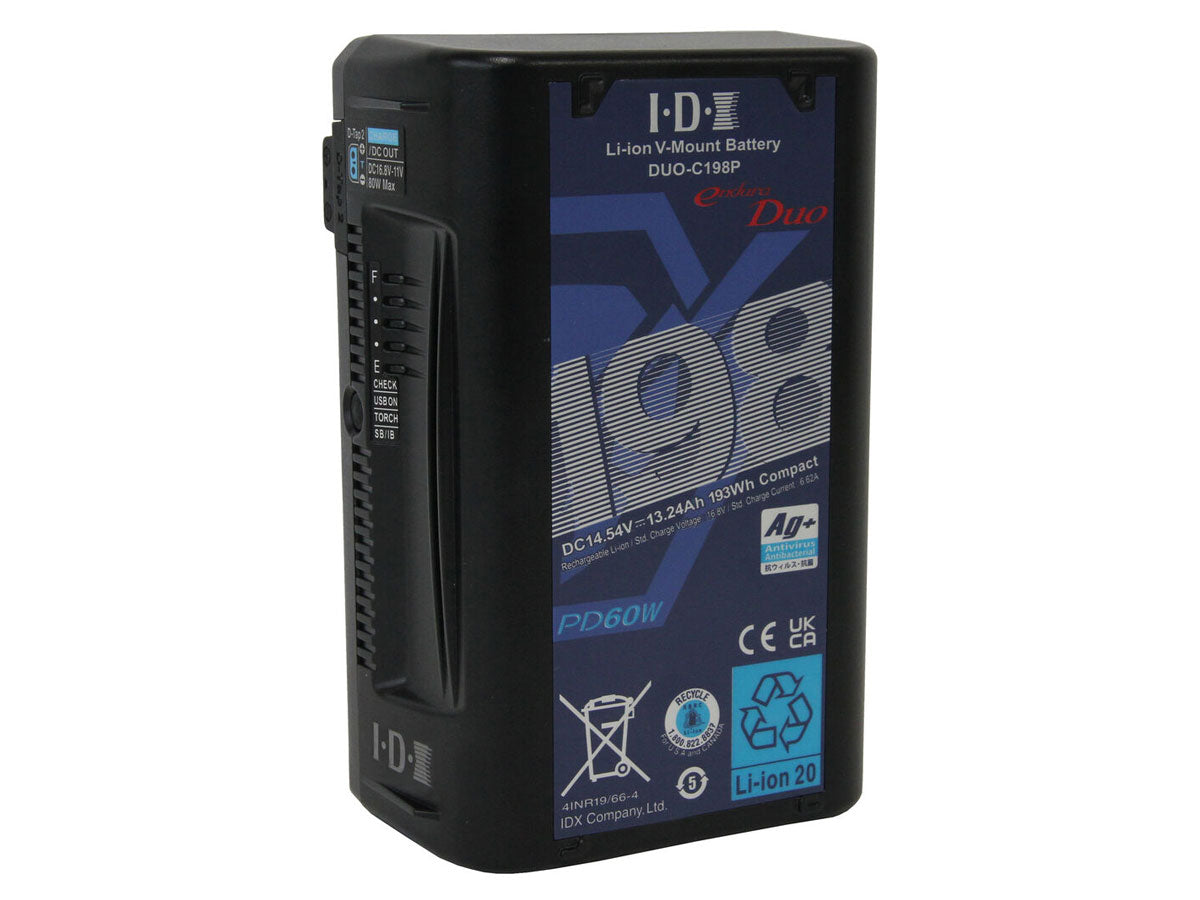

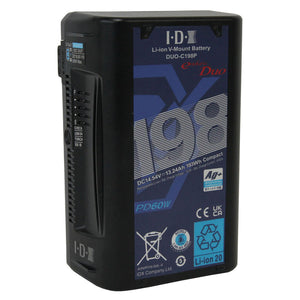

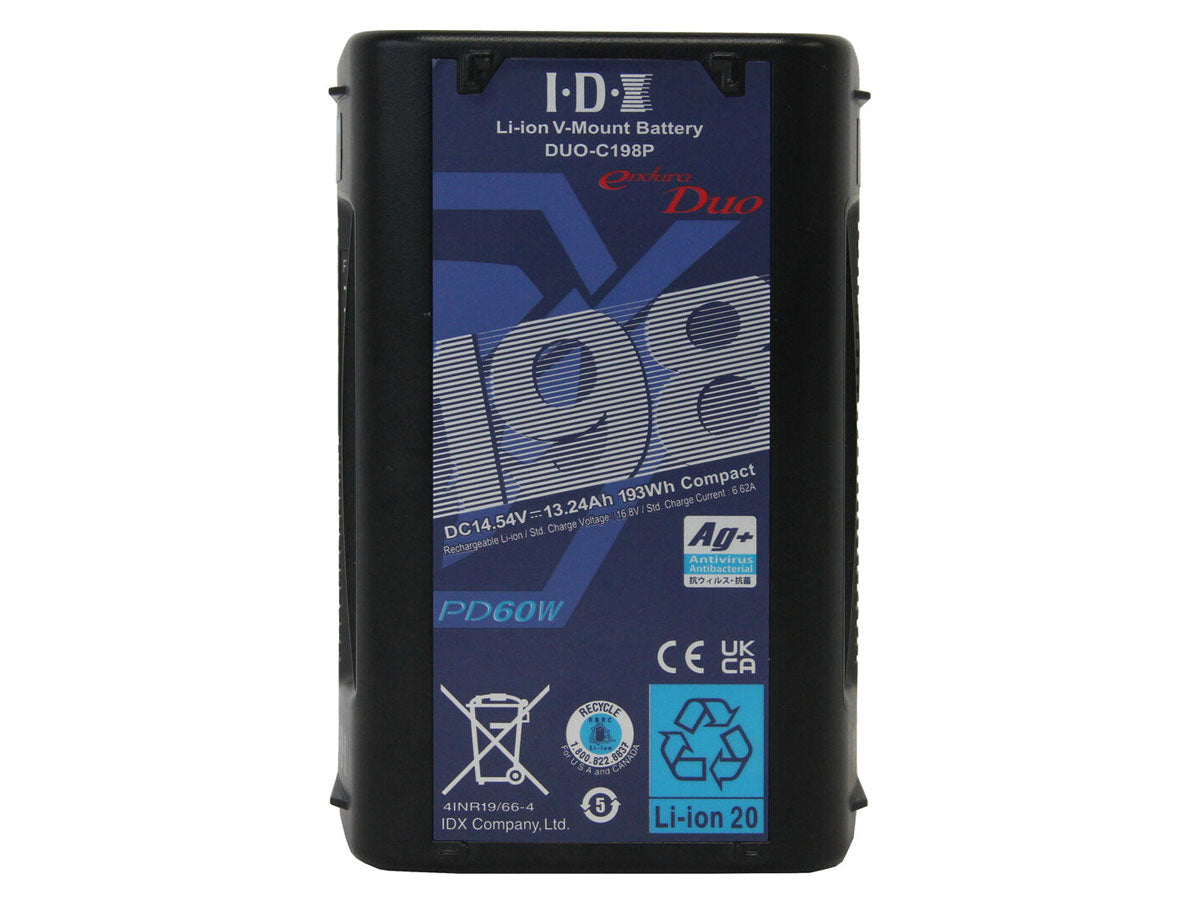

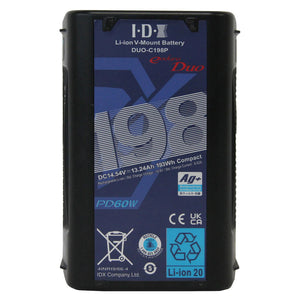

IDX DUO-C198P 193Wh High-Load Li-Ion V-Mount Battery w 2x D-Tap and USB-PD

IDX DUO-C198P 193Wh High-Load Li-Ion V-Mount Battery w 2x D-Tap and USB-PD

SKU: IDX-DUO-C198P
£337.19 GBP ex VAT
£404.63 GBP inc VAT
ex VAT £337.19 GBP ex VAT
£404.63 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

The DUO-C198P is the successor of the popular DUO-C198 battery. Ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With its ultra-robust 193Wh capacity and compact 2.4lb design, the DUO-C198P can provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C198P also includes two built-in D-Taps and now features a USB-C port to power accessories as well as charge the battery. Also, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.

  • 96Wh capacity
  • 1.5 inches in depth
  • Compact high capacity IATA friendly(<100Wh) Lithium Ion battery (1.37lbs)
  • Capable of handling up to 10A loads ‡
  • (1) 80W D-Tap Advanced output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
  • (1) 80W D-Tap output (unregulated)
  • (1) 5.0V USB output (auto shut off after 30 minutes of inactivity)
  • 5 Power Indicator LEDs (displaying 10% increments)
  • Battery circuit protection ensures the DUO-C98 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
  • The highest grade Lithium Ion cells are used to ensure the DUO-C98 is one of the most reliable batteries on the market
  • 11V auto cut-off prevents over-discharging (while a load is applied)
  • Unrestricted amount of spare DUO-C98 batteries allowed for carry-on airline baggage under IATA regulations
  • Fully compatible with all ENDURA V-Mount chargers and accessories
  • Environmentally friendly and recyclable

IDX System Technology Endura DUO-CP Specs

Mount / Series Type V-Mount
Chemistry Lithium-Ion
Battery Capacity 9900 mAh / 193 Wh
Output Voltage 14.5 VDC
Maximum Load 154 W, 14 A (Peak)
Accessory Port 1 x D-Tap Input/Output 80 W Regulated
1 x D-Tap Output 80 W Regulated
1 x USB Type-C Input/Output 60 W Regulated
Maximum Load (Accessory Port) 80 W (D-Tap)
60 W (USB Type-C)
USB Output 5 V, 3 A
Storage Temperature -4 to 122°F / -20 to 50°C
Charging Temperature 32 to 104°F / 0 to 40°C
Discharging Temperature -4 to 113°F / -20 to 45°C
Dimensions (W x H x D) 3.74 x 5.75 x 2.32" / 9.5 x 14.61 x 5.89 cm
Weight 2.42 lb / 1.1 kg

Packaging Info
Package Weight 2.68 lb
Box Dimensions (LxWxH) 7.4 x 4.5 x 3.1"
