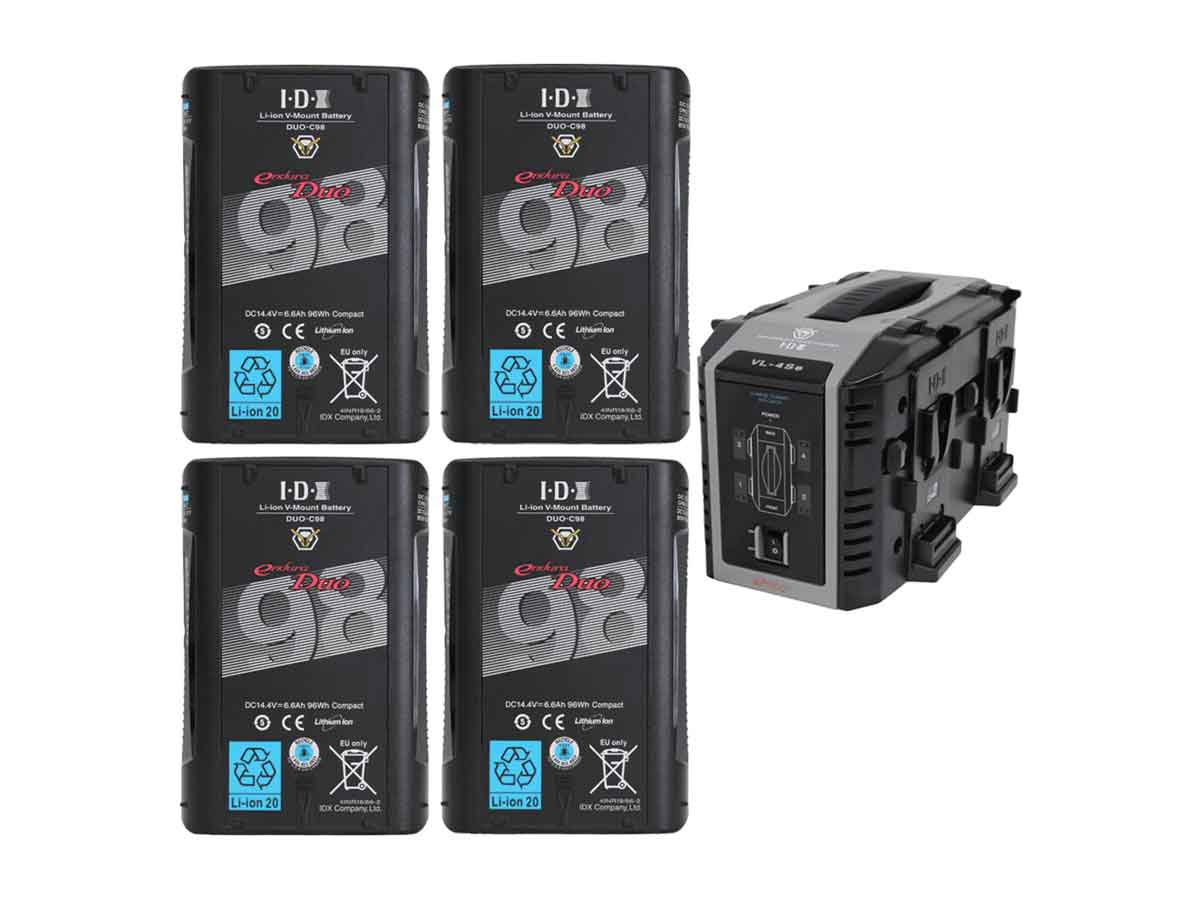

IDX 4x DUO-CP98 Batteries and IDX VL-4X Charger Kit
IDX 4x DUO-CP98 Batteries and IDX VL-4X Charger Kit
£1,404.00 GBP inc VAT
£1,404.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
IDX DUO-C98 96Wh High-Load Battery
The IDX DUO-C98 96Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port features a V-mount and is only 2.3" thick, but packs 96Wh of capacity to power your professional devices. It is well suited for handheld gimbal and aerial applications, as well as run-and-gun productions where size and weight can become an issue. Battery data information displays in most camera's viewfinders.
The DUO-C98 can handle a combined load of up to 10A among its V-mount, D-Tap outputs, and USB port. One of the D-Taps can also be used to charge the battery, although that requires an optional charger that is not included. Designed with battery circuit protection against overcharge, over-discharge, over-current, and exposure to high temperatures, providing protection to your battery from the rigors of production. A 5-LED battery life indicator on the side of the battery provides a quick visual indication of charge state of your battery.
- Suitable for handheld gimbal, aerial, run-and-gun, and other productions that need a high-power-draw battery in a small package
- The battery data displays in the viewfinder system of most cameras, and the addition of an SMBUS enables RED cameras to display this information as well
- Handles up to 10A loads
- Two unregulated D-tap accessory outputs at 50W each
- USB port
- Battery circuit protection
- 5-LED battery life indicator
- Fully compatible with all IDX Endura V-mount chargers
IDX VL-4X Charger
The VL-4X is a slim, lightweight, affordable 4-channel charger. Dual Simultaneous/Sequential feature charges up to 4 batteries total with any 2 simultaneously. The included AC adapter doubles as a 90W DC power supply.
IDX DUO-C98 96Wh High-Load Battery
- 14.4V 96Wh V-Mount Battery
- Data Information Displays in Viewfinder
- Handles Up to 10A Loads
- Two Unregulated D-Tap Accessory Outputs
- USB Port
- Battery Circuit Protection
- 5-LED Battery Life Indicator
- Compatible with Endura V-Mount Chargers
IDX VL-4X Charger
- 4 channel Dual Simultaneous/Sequential Charger. (The batteries are charged simultaneously when installed on opposite sides. Also, the batteries are charged sequentially when installed on the same side.)
- Included AC adapter can also be used as a 90W (15V, 6A) DC power supply.
- Compact, lightweight, and travel friendly (under 2.5lbs)
- Advanced fanless design
- Integrated locking support stand
- Internal safety features protect both the battery and charger from serious damage should faulty or misused batteries be placed on charge. The VL-4X will automatically stop charging should any battery reach an over voltage condition.
- Power Base mode not supported
IDX DUO-C98 96Wh High-Load Battery
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Capacity (Wh) | 96 Wh |
| Amp-Hours | 6.6 Ah |
| Output Voltage | 14.4 VDC |
| Maximum Load | 10 A |
| Accessory Port | 2 x D-Tap 1 x USB |
| Maximum Load (Accessory Port) | 50 W, 5.4 A ( D-Tap ) |
| USB Output | 5 V, 2.3 A |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Charging Temperature | 32 to 104°F / 0 to 40°C |
| Discharging Temperature | -4 to 122°F / -20 to 50°C |
| IP Rating | None |
| Dimensions (W x H x D) | 3.8 x 5.7 x 1.5" / 9.7 x 14.5 x 3.8 cm |
| Weight | 1.37 lb / 0.62 kg |
IDX VL-4X Charger
| Input Voltage | AC 100-240V 50/60Hz |
| Power Consumption | 220VA max. |
| Quick Charge Current | 2.7A max. |
| DC Output | 90W (via included AC adapter) |
| Operating Temperature | -5°C ~ 40°C |
| Dimensions | 90.5(W) x 177(H) x 250(D) mm |
| Weight (charger body) | 1100 grams approx. |
| Weight (AC adapter) | 450 grams approx. |
- 4x IDX DUO-C98 V-Mount Battery High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port
- 1x IDX VL-4X Charger
- AC Power Cord
