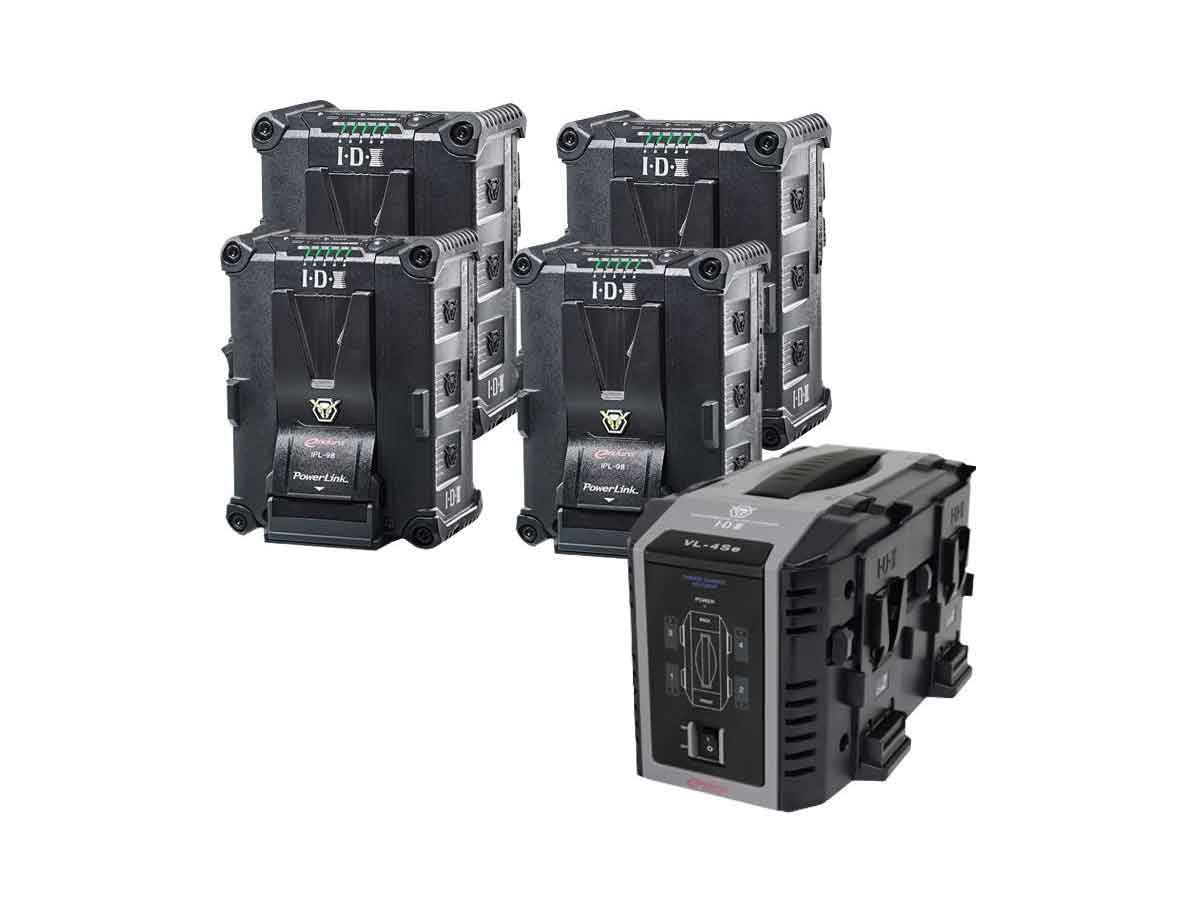

IDX 4 x IPL-98 Battery and VL-4SE Simultaneous Charger Kit
IDX 4 x IPL-98 Battery and VL-4SE Simultaneous Charger Kit
£2,574.00 GBP inc VAT
£2,574.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
IDX IPL-98 Battery
IPL-98 is the newest stackable battery solution for digital cinema cameras where infinite runtimes are required. With 96Wh capacity, the IPL-98 meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Monstro all day long if needed. The IPL-98 also includes two on-battery D-Taps and USB outputs to power accessories such as monitors, lights, wireless receivers, tablets, phones, etc.
IDX VL-4SE Simultaneous Charger
The VL-4Se is a fully simultaneous 4-channel charger, housed in a high-impact, polycarbonate enclosure with a recessed power switch and carrying handle. Quick and powerful charging make the VL-4Se the perfect choice for broadcast and production facilities with a high battery usage. Each channel is operated independently so batteries can be placed on charge in any order and at any time.
IDX IPL-98 Battery
- 96Wh capacity
- PowerLink capability (stackable up to four IPL-98/IPL-150 or IDX brand V-mount battery)
- Meets passenger aircraft travel regulations
- Capable of handling up to 10.5A loads (14A when linked)‡
- (1) 80W D-Tap Advanced Output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
- (1) 80W D-Tap Output (unregulated)
- (1) DC 5.0V /2.3A USB output (auto shut off after 30 minutes of inactivity)
- 5 Power Indicator LEDs (displaying 10% increments)
- Battery circuit protection ensures the IPL-98 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
- The highest grade Lithium Ion cells are used to ensure the IPL-98 is one of the most reliable batteries on the market
- 11V auto cut-off prevents over-discharging (while load is applied)
- Fully compatible with all ENDURA V-Mount Battery chargers and accessories. VL-2000S charger is needed for stack charging.
- Environmentally friendly and recyclable
IDX VL-4SE Simultaneous Charger
- Simultaneous 4-channel lithium-ion battery charger
- Lightweight, high-impact polycarbonate enclosure is rugged, weighs under 7 lbs. and features a recessed power switch with an integrated carry handle
- VL-4Se compatible batteries: All ENDURA V-Mount Li-ion batteries
- Internal safety features protect both the battery and charger from serious damage should faulty or misused batteries be placed on charge. The VL-4Se will automatically stop charging should any battery reach an over voltage condition
- Universal AC input voltage for worldwide operation
IDX IPL-98 Battery
| Battery Capacity | 96Wh (14.4V/ 6.6Ah) |
| Max.Output Voltage | 16.8V DC |
| Nominal Voltage | 14.4V DC |
| Maximum Discharge Current | 10.5A (14A when linked)‡ |
| D-Tap | 80W each |
| USB | DC 5.0V / 2.3A |
| End Voltage | 11V |
| Battery Protection | Over charge, Over discharge, Over current, Thermal protection |
| Ambient Temperature | To charge: 0°C ~ 40°C (10°C ~ 30°C recommended) To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended) To store: -20°C ~ 50°C (less than 1 month) |
| Dimensions | 89(W) x 119(H) x 70(D)mm |
| Weight | 745 grams approx. |
IDX VL-4SE Simultaneous Charger
| Input Voltage | AC 100-240V 50/60Hz |
| Power Consumption | 220VA Max. |
| Quick Charge Current | Li-ion 2.7 A (4 Channels) 3A (1-3 Channels) |
| Quick Charge System | Li-ion: Constant Current / Constant Voltage |
| Pre-Charge Current | 140-300mA |
| Operating Temperature | 0°C ~ 40°C |
| Dimensions | 156(W) x 153(H) x 288(D) mm |
| Weight | 2.7Kg approx. |
- 4x IDX IPL-98 High Load V-Mount with Power Link
- 1x IDX VL-4SE Simultaneous Charger
