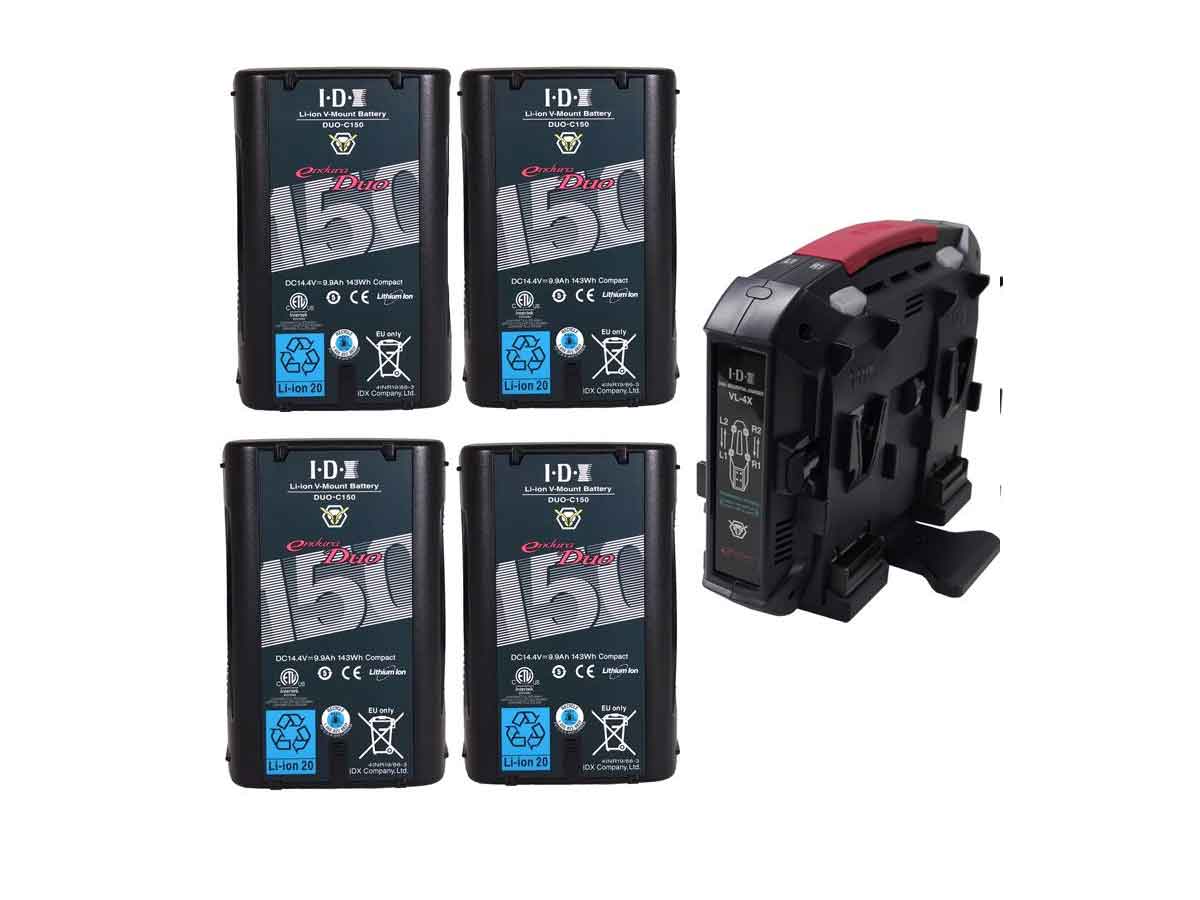

IDX 4 x DUO-C150P Li-ion V-Mount Battery and VL-4X Charger Kit
IDX 4 x DUO-C150P Li-ion V-Mount Battery and VL-4X Charger Kit
£1,755.00 GBP inc VAT
£1,755.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
IDX DUO-C150 Li-ion V-Mount Battery
The DUO-C150 is the ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With 143Wh capacity, the DUO-C150 meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C150 also includes two on-battery D-Taps and USB outputs to power accessories such as monitors, lights, wireless receivers, tablets, phones and more!
IDX VL-4X Charger
The VL-4X is a slim, lightweight, affordable 4-channel charger. Dual Simultaneous/Sequential feature charges up to 4 batteries total with any 2 simultaneously. The included AC adapter doubles as a 90W DC power supply.
IDX DUO-C150 Li-ion V-Mount Battery
- 143Wh capacity
- Meets passenger aircraft travel regulations
- Capable of handling up to 14A loads ‡
- (1) 80W D-Tap Advanced Output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
- (1) 80W D-Tap Output (unregulated)
- (1) 5.0V USB output (auto shut off after 30 minutes of inactivity)
- 5 Power Indicator LEDs (displaying 10% increments)
- Battery circuit protection ensures the DUO-C150 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
- The highest grade Lithium Ion cells are used to ensure the DUO-C150 is one of the most reliable batteries on the market
- 11V auto cut-off prevents over-discharging (while load is applied)
- Fully compatible with all ENDURA V-Mount Battery chargers and accessories
- Environmentally friendly and recyclable
IDX VL-4X Charger
- 4 channel Dual Simultaneous/Sequential Charger. (The batteries are charged simultaneously when installed on opposite sides. Also, the batteries are charged sequentially when installed on the same side.)
- Included AC adapter can also be used as a 90W (15V, 6A) DC power supply.
- Compact, lightweight, and travel friendly (under 2.5lbs)
- Advanced fanless design
- Integrated locking support stand
- Internal safety features protect both the battery and charger from serious damage should faulty or misused batteries be placed on charge. The VL-4X will automatically stop charging should any battery reach an over voltage condition.
- Power Base mode not supported
IDX DUO-C150 Li-ion V-Mount Battery
| Battery Capacity | 143Wh (14.4V/ 9.9Ah) |
| Max.Output Voltage | 16.8V DC |
| Nominal Voltage | 14.4V DC |
| Maximum Discharge Current | 14A ‡ |
| D-Tap | 80W each |
| USB | DC 5.0V / 2.3A |
| End Voltage | 11V |
| Battery Protection | Reverse charge, Over charge, Over discharge, Over current, Temperature protection |
| Ambient Temperature | To charge: 0°C ~ 40°C (10°C ~ 30°C recommended) To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended) To store: -20°C ~ 50°C (one month) |
| Dimensions | 97(W)x146(H)x59(D)mm |
| Weight | 910 grams approx. |
IDX VL-4X Charger
| Input Voltage | AC 100-240V 50/60Hz |
| Power Consumption | 220VA max. |
| Quick Charge Current | 2.7A max. |
| DC Output | 90W (via included AC adapter) |
| Operating Temperature | -5°C ~ 40°C |
| Dimensions | 90.5(W) x 177(H) x 250(D) mm |
| Weight (charger body) | 1100 grams approx. |
| Weight (AC adapter) | 450 grams approx. |
- 4x IDX DUO-C150 Li-ion V-Mount Battery
- 1x IDX VL-4X Charger
