IDX 2x NP-9X Battery Kit
IDX 2x NP-9X Battery Kit
£741.00 GBP inc VAT
£741.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Package Containing: 2 x NP-9X Batteries, 1 x JL-2Plus Charger with AC Adaptor

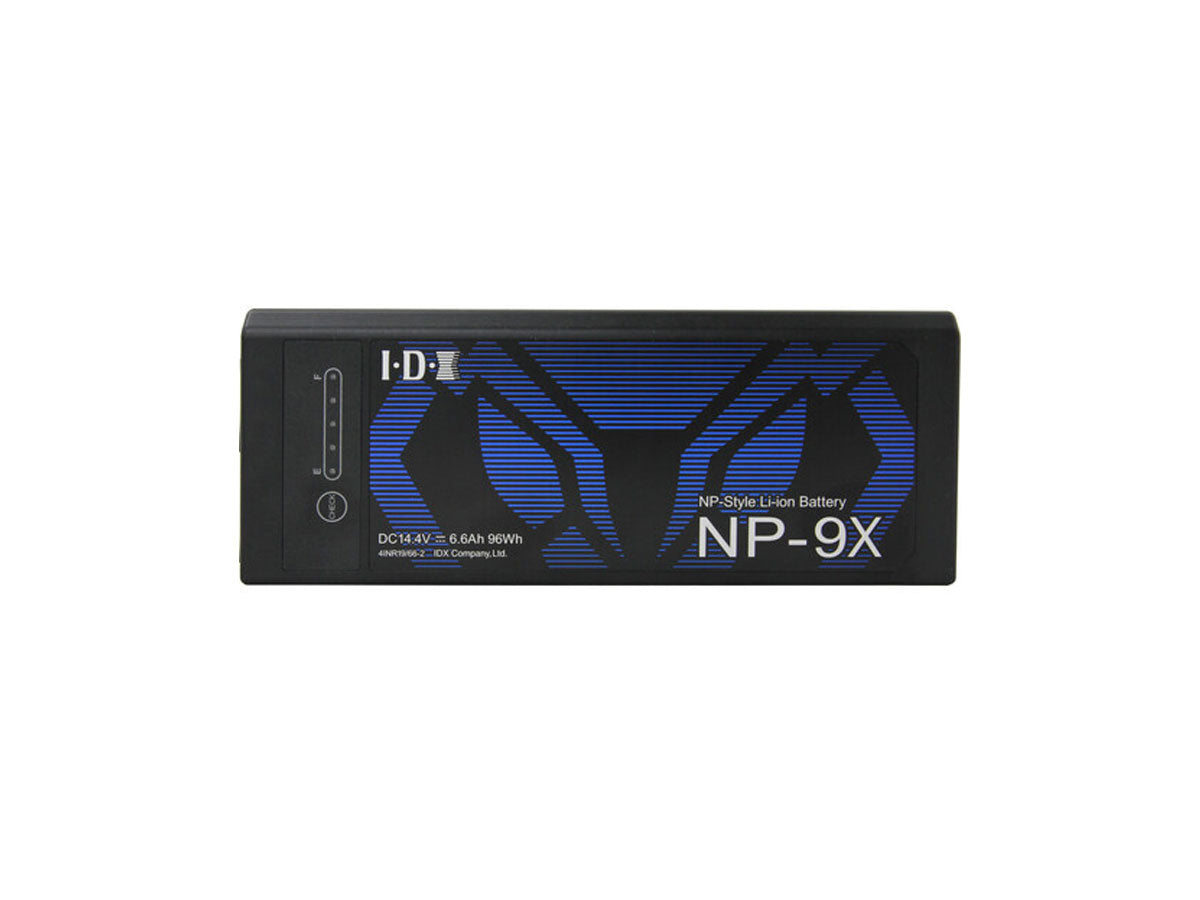

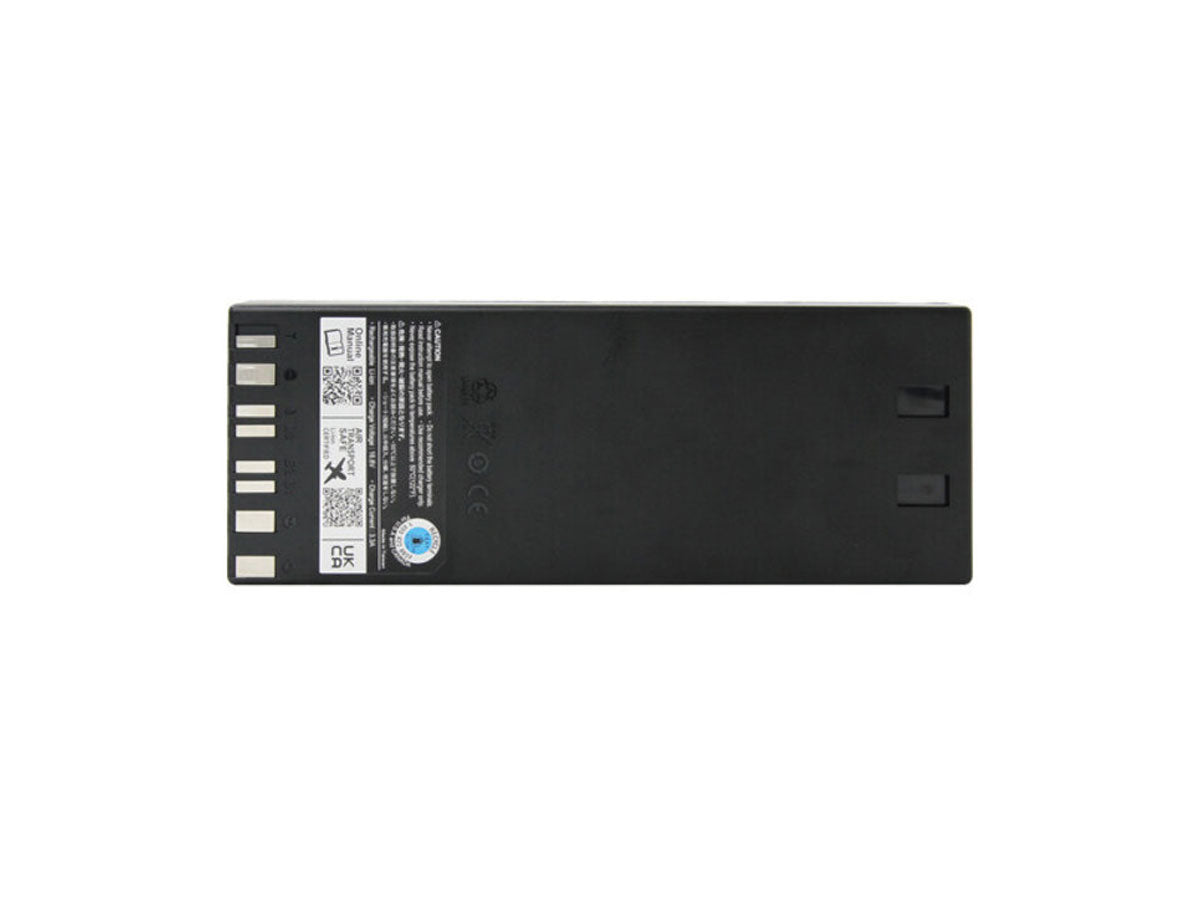

2x NP-9X (96Wh Li-Ion NP-Style Battery w 2x D-Tap)
NP-9X is the successor of the NP-L7S, the industry standard NP-style battery for powering audio equipment. It now features more capacity at 96Wh, two D-Tap outputs for powering additional accessories, and also a 5 LED power indicator to display remaining capacity in 10% increments. One of the D-Tap port is a D-Tap Advanced, which can also be used to charge the battery with the IDX VL-DT1 D-Tap charger. NP-9X is still compatible with all current accessories and chargers like the JL-2PLUS.

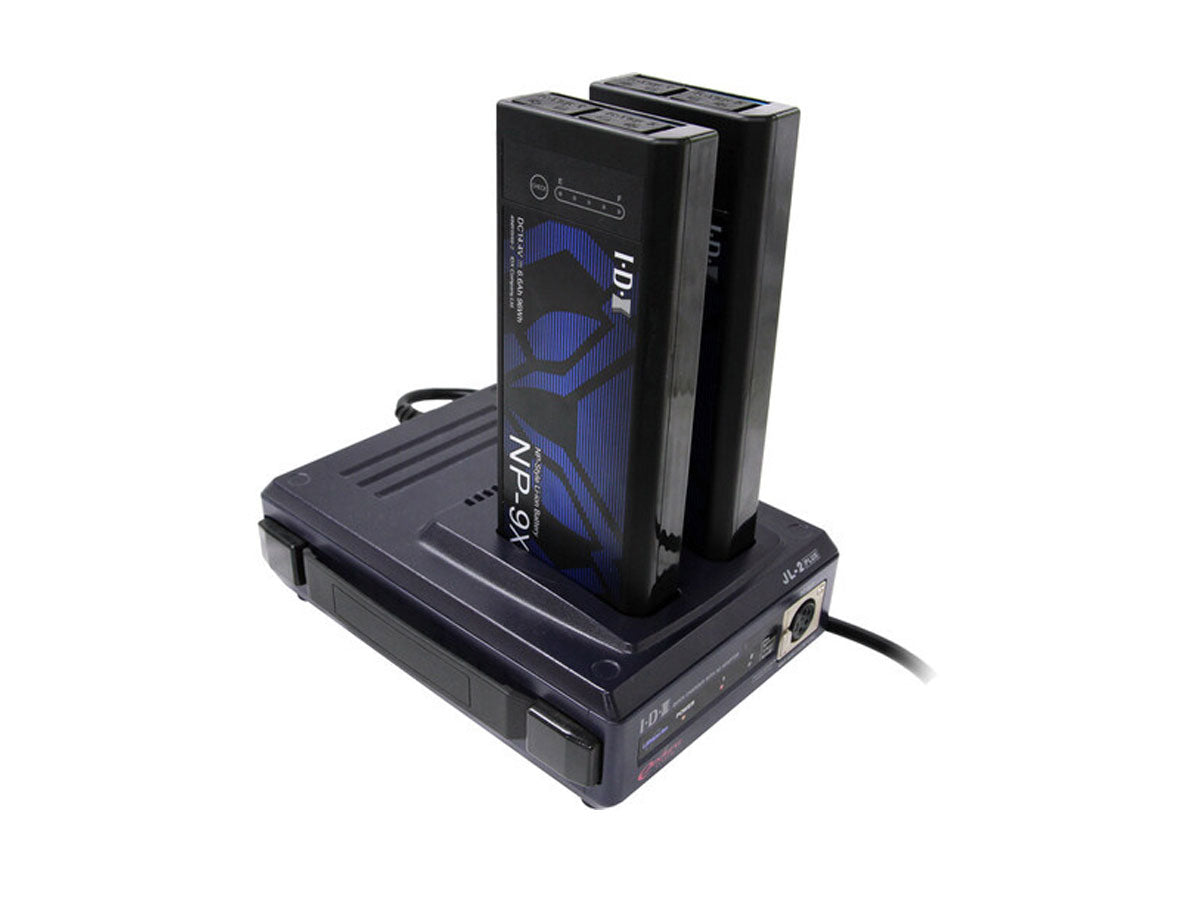

1x JL-2PLUS (2ch Sequential Li-ion NP-Style Battery Charger)
The JL-2PLUS will sequentially charge Li-ion, and Ni-Cd NP-style batteries. It will charge the first battery connected to either channel, automatically charging the second battery after the first is fully charged. With the advantage of an integrated 4-pin XLR DC (60W@ 13.8V) power supply, additional equipment such as lighting and other ancillary equipment can also be safely powered when the charge function is not in use.
NP-9X Features
- 96Wh capacity
- 2x D-Tap Outputs
- Charging via D-Tap (only with our VL-DT1 charger)
- 5 Power Indicator LEDs (displays remaining in 10% increments)
- Battery circuit protection ensures the NP-9X is protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
- The highest grade Lithium Ion cells are used to ensure the NP-9X is one of the most reliable NP-style batteries on the market, as well as being the safest and most environmentally friendly in its battery classification
- Weighing just over 1 lbs., the NP-9X is compact and durable, ideal for regular use and transportation to and from location
JL-2PLUS Features:
- Sequential 2-channel charging. The JL-2PLUS will charge the first battery connected to either channel, automatically charging the second battery after the first is fully charged.
- Integrated 60W DC power supply provides 60W XLR output for the camera, lighting and ancillary broadcast devices.
- JL-2PLUS compatible batteries: All NP Li-ion/Ni-CD batteries and all ENDURA V-Mount Li-ion batteries can be charged with a C-NP2E cable adaptor, available separately from IDX.
- Internal safety features protect both the battery and charger from serious damage should faulty or misused batteries be placed on charge. The JL-2PLUS will automatically stop charging should any battery reach an over voltage condition.
- Lightweight, high impact polycarbonate enclosure weighs just 1.7 lbs., and features a recessed power switch and integrated carry handle.
- Universal AC input voltage for worldwide operation.
NP-9X (96Wh Li-Ion NP-Style Battery w 2x D-Tap)
| Capacity | 96Wh (14.4V/ 6.6Ah) |
| Max Output Voltage | 16.8V DC |
| Nominal Voltage | 14.4V DC |
| Max Discharge Current | 4.6A‡ ( total of main connector and d-taps ) |
| End Voltage | 11V |
| D-Tap | 50W each |
| D-Tap Advanced | Compatible only with IDX VL-DT1 charger |
| Battery Protection | Over charge, Over discharge, Over current, Thermal protection |
| Ambient Temperature | To charge: 0°C ~ 40°C (32°F ~ 104°F) (50°F ~ 86°F recommended) |
| To discharge | -20°C ~ 45°C (-4°F ~ 113°F) (50°F ~ 104°F recommended) |
| To store | -20°C ~ 65°C (-4°F ~ 104°F) |
| Dimensions | 7.26(W) x 2.80(H) x 0.97(D) inches |
| Weight | 520g (1.15 lbs) approx. |
| Included Accessories | Terminal cover |
| ‡ may vary depending on the operating temperature |
JL-2PLUS (2ch Sequential Li-ion NP-Style Battery Charger)
| Input Voltage | AC 100-240V 50/60Hz |
| Power Consumption | 140VA max |
| Quick Charge Current | Li-ion: 2.3A |
| Ni-Cd | 1.9A |
| DC Output | 60W max |
| Operating Temperature | 32°F ~ 104°F |
| Dimensions | 185(W) x 71(H) x 25(D) mm ( 7.26(W) x 2.80(H) x 0.97(D) inches ) |
| Weight | 1.15 lbs approx. |
- 2x NP-9X (96Wh Li-Ion NP-Style Battery w 2x D-Tap)
- 1x JL-2PLUS (2ch Sequential Li-ion NP-Style Battery Charger)
