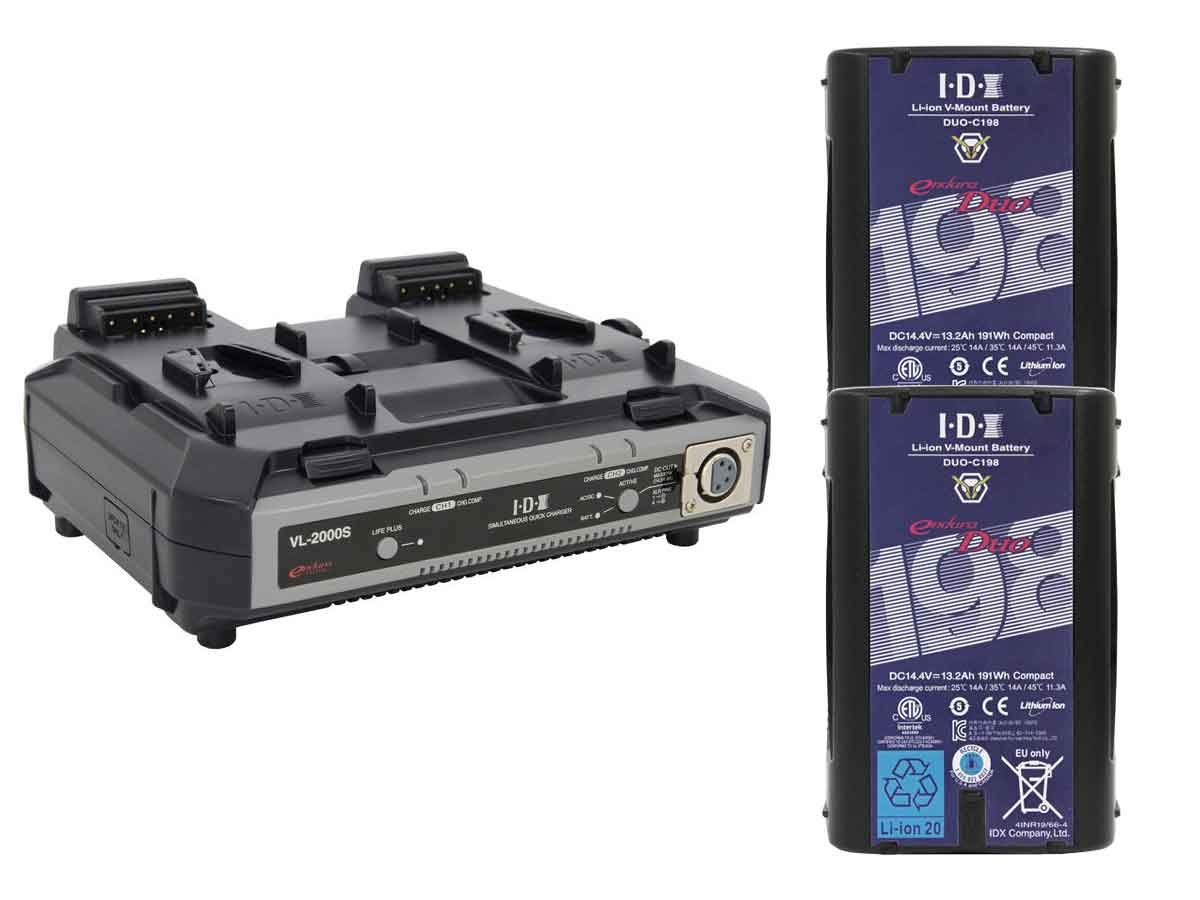

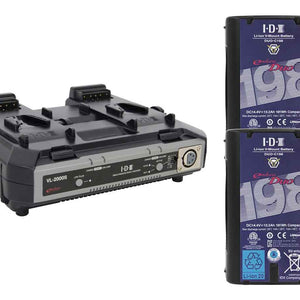

IDX 2 x DUO-C198P Batteries, 1 x VL-2000S Simultaneous Charger
IDX 2 x DUO-C198P Batteries, 1 x VL-2000S Simultaneous Charger
£1,365.00 GBP inc VAT
£1,365.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

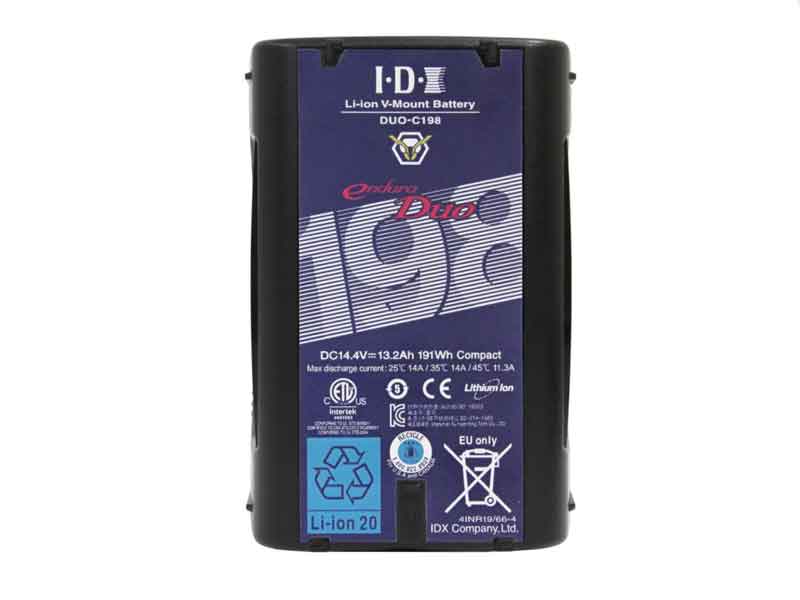

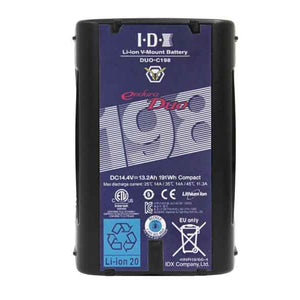

IDX DUO-C198 191Wh High-Load Battery
The IDX DUO-C198 191Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port features a V-mount and is only 1.5" thick, but packs 191Wh of capacity to power your professional devices. It is well suited for digital cinema cameras and camera stabilizer systems where long runtimes are required. Battery data information displays in most camera's viewfinders.
The DUO-C198 can handle a combined load of up to 14A among its V-mount, D-Tap outputs, and USB port. One of the D-Taps can also be used to charge the battery, although that requires an optional charger that is not included. Designed with battery circuit protection against overcharge, over-discharge, over-current, and exposure to high temperatures, providing protection to your battery from the rigors of production. A 5-LED battery life indicator on the side of the battery provides a quick visual indication of charge state of your battery.
- Suitable for handheld gimbal, aerial, run-and-gun, and other productions that need a high-power-draw battery in a small package
- The battery data displays in the viewfinder system of most cameras, and the addition of an SMBUS enables RED cameras to display this information as well
- Handles up to 14A loads
- Two unregulated D-tap accessory outputs at 50W each
- USB port
- Battery circuit protection
- 5-LED battery life indicator
- Fully compatible with all IDX Endura V-mount chargers

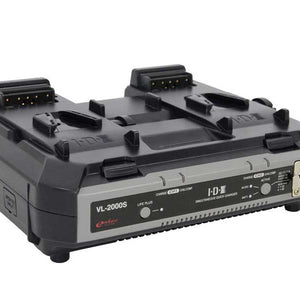

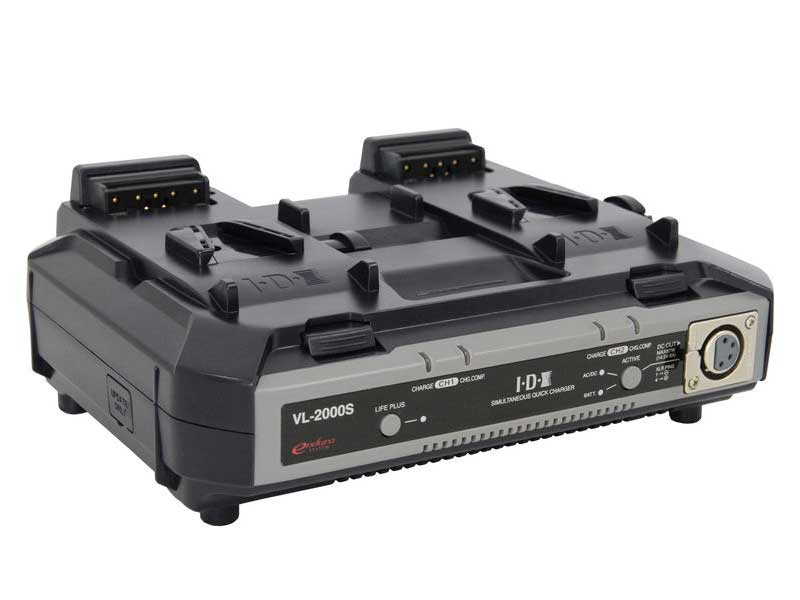

IDX VL-2000S Quick Charger
The VL-2000S Quick Charger from IDX is a simultaneous 2-channel Li-ion V-Mount battery charger with a 100W DC output (4-pin XLR). Supporting LIFE PLUS mode, the VL-2000S can extend battery life up to 20%. It features Power Base mode. This mode gives you the ability to utilize the mounted batteries for powering equipment via the 4-pin XLR output. Low voltage batteries are safely charged with the Recovery Charge mode. The charger also houses energy efficient circuitry that will automatically power down the charger when inactive.
IDX DUO-C198 191Wh High-Load Battery
- 14.4V 191Wh V-Mount Battery
- Data Information Displays in Viewfinder
- Handles Up to 14A Loads
- Two Unregulated D-Tap Accessory Outputs
- USB Port
- Battery Circuit Protection
- 5-LED Battery Life Indicator
- Compatible with Endura V-Mount Chargers
IDX DUO-C198 191Wh High-Load Battery
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Capacity (Wh) | 191 Wh |
| Amp-Hours | 12.8 Ah |
| Output Voltage | 14.4 VDC |
| Maximum Load | 14 A |
| Accessory Port | 2 x D-Tap 1 x USB |
| Maximum Load (Accessory Port) | 50 W, 5.4 A ( D-Tap ) |
| USB Output | 5 V, 2.3 A |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Charging Temperature | 32 to 104°F / 0 to 40°C |
| Discharging Temperature | -4 to 122°F / -20 to 50°C |
| IP Rating | None |
| Dimensions (W x H x D) | 3.8 x 5.7 x 2.3" / 9.7 x 14.5 x 5.8 cm |
| Weight | 2.42 lb / 1.10 kg |
IDX VL-2000S Simultaneous Charger
| Channels | 2 |
| Interface | V-Mount |
| Chemistry | Li-ion |
| AC Input Voltage | 100 to 240 VAC; 50/60 Hz |
| DC Output | Via 4-pin XLR: 100 W @ 15 VDC/6.7 A |
| Quick Charge Current | 1 Battery: 4 A 2 Batteries: 3 A |
| Dimensions | 7.16 x 3.24 x 9.05" (18.19 x 8.23 x 22.98 cm) |
| Weight | 2.64 lb (1.19 kg) |
- 2x IDX DUO-C198 191Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port
- 1x IDX VL-2000S Simultaneous Charger
