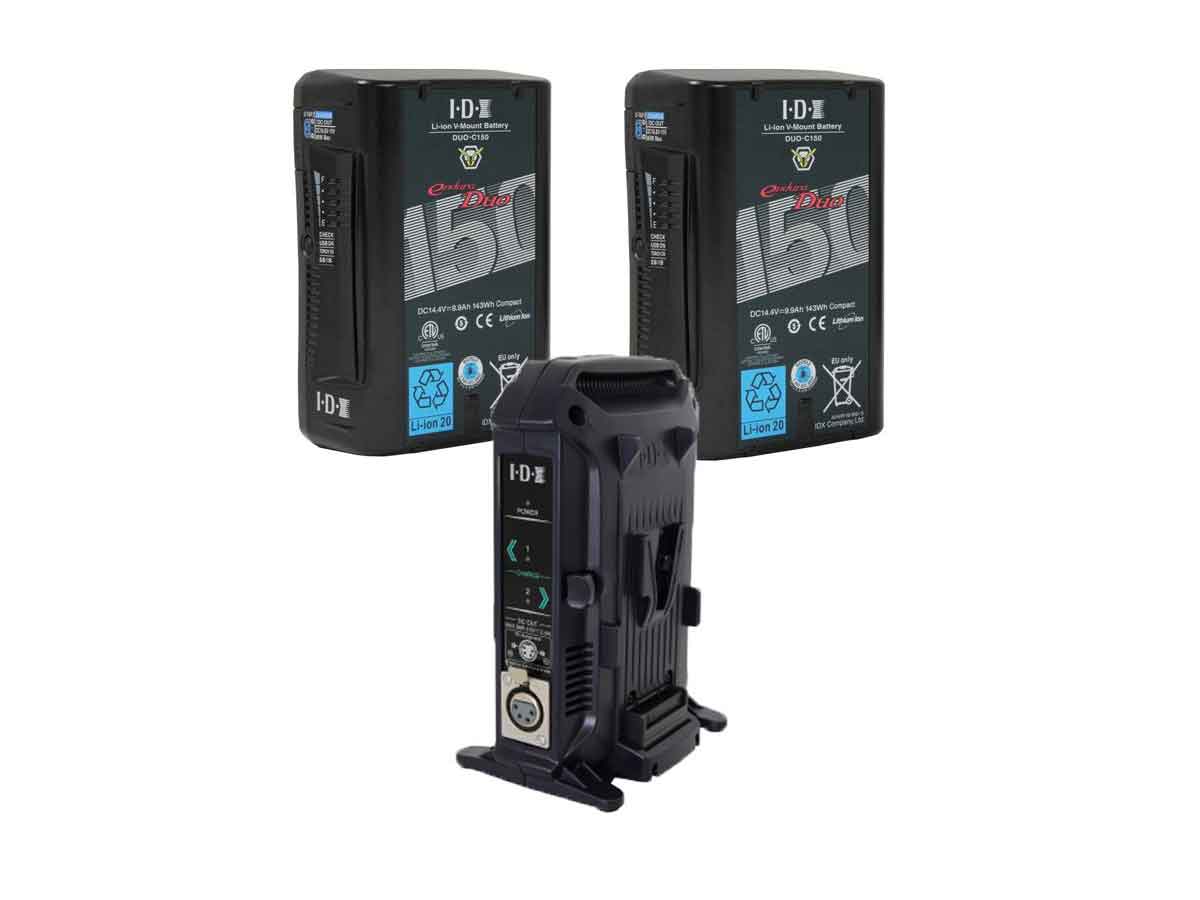

IDX 2 x DUO-C150P Li-ion V-Mount Battery and VL-2X Charger Kit
IDX 2 x DUO-C150P Li-ion V-Mount Battery and VL-2X Charger Kit
£911.63 GBP inc VAT
£911.63 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
IDX DUO-C150 Li-ion V-Mount Battery
The DUO-C150 is the ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With 143Wh capacity, the DUO-C150 meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C150 also includes two on-battery D-Taps and USB outputs to power accessories such as monitors, lights, wireless receivers, tablets, phones and more!
IDX VL-2X Charger
The VL-2X is a slim, lightweight 2-channel charger with the added advantage of an integrated 36W power supply. With a fanless design, the VL-2X also delivers high power charging without the noise of a typical quick charger. The VL-2X is a multi-chemistry charger for both Li-ion and Ni-Cad battery types.
IDX DUO-C150 Li-ion V-Mount Battery
- 143Wh capacity
- Meets passenger aircraft travel regulations
- Capable of handling up to 14A loads ‡
- (1) 80W D-Tap Advanced Output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
- (1) 80W D-Tap Output (unregulated)
- (1) 5.0V USB output (auto shut off after 30 minutes of inactivity)
- 5 Power Indicator LEDs (displaying 10% increments)
- Battery circuit protection ensures the DUO-C150 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
- The highest grade Lithium Ion cells are used to ensure the DUO-C150 is one of the most reliable batteries on the market
- 11V auto cut-off prevents over-discharging (while load is applied)
- Fully compatible with all ENDURA V-Mount Battery chargers and accessories
- Environmentally friendly and recyclable
IDX VL-2X Charger
- Sequential 2-channel charging in either position. The VL-2X will charge the first battery connected to either VMount channel, automatically switching to charge the second battery after the first is fully charged.
- Integrated DC power supply provides 4 pin XLR output (Max 36W) for the camera, lighting or ancillary broadcast devices. *DC output disabled when battery is charging*
- Compact, lightweight charger body (3.4inches in width / 0.97lbs in weight)
- Advanced fanless design
- Integrated locking support stand
- Internal safety features protect both the battery and charger from serious damage should faulty or misused batteries be placed on charge. The VL-2X will automatically stop charging should any battery reach an over voltage condition.
- Power Base mode not supported
- Black version has replaced the original purple version (No other specifications were changed).
IDX DUO-C150 Li-ion V-Mount Battery
| Battery Capacity | 143Wh (14.4V/ 9.9Ah) |
| Max.Output Voltage | 16.8V DC |
| Nominal Voltage | 14.4V DC |
| Maximum Discharge Current | 14A ‡ |
| D-Tap | 80W each |
| USB | DC 5.0V / 2.3A |
| End Voltage | 11V |
| Battery Protection | Reverse charge, Over charge, Over discharge, Over current, Temperature protection |
| Ambient Temperature | To charge: 0°C ~ 40°C (10°C ~ 30°C recommended) To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended) To store: -20°C ~ 50°C (one month) |
| Dimensions | 97(W)x146(H)x59(D)mm |
| Weight | 910 grams approx. |
IDX VL-2000S Simultaneous Charger
|
- 2x IDX DUO-C150 Li-ion V-Mount Battery
- 1x IDX VL-2X Charger
