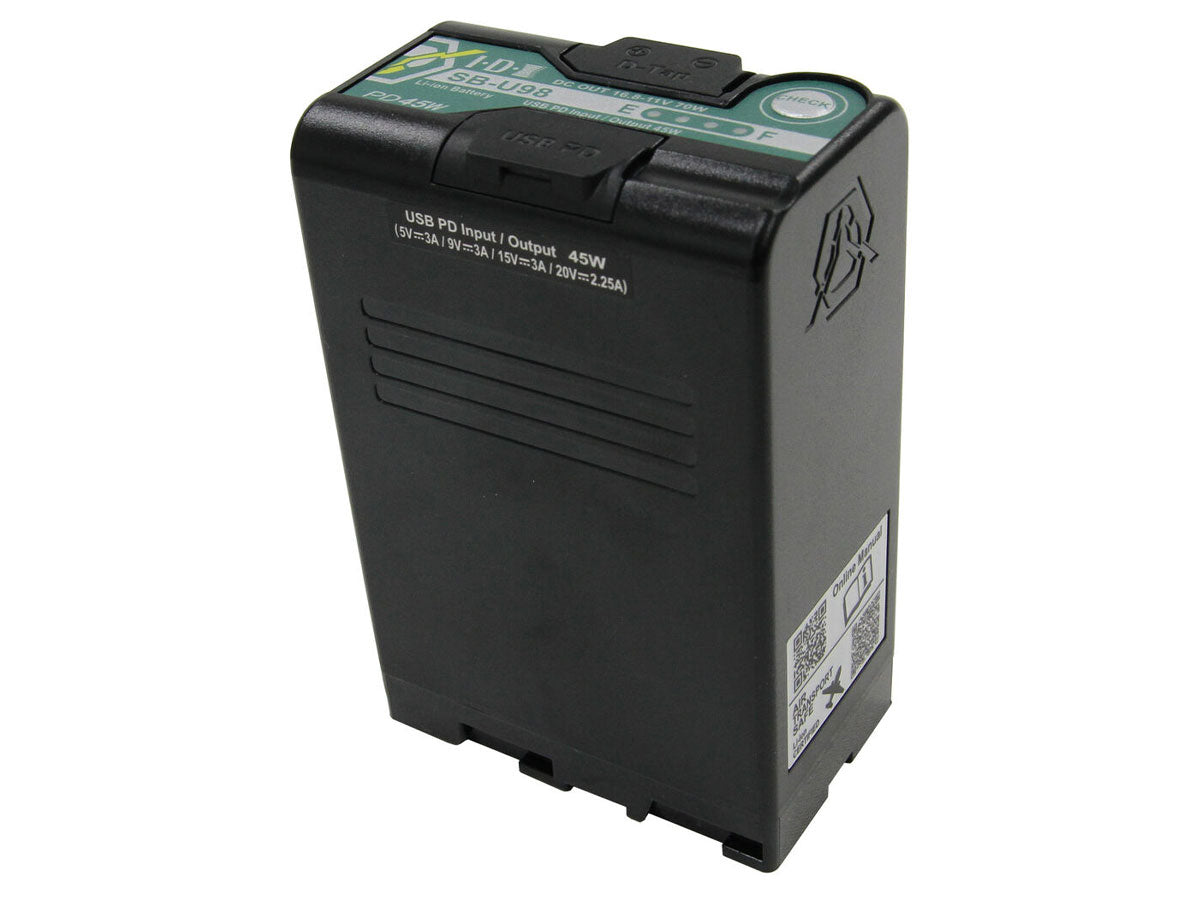

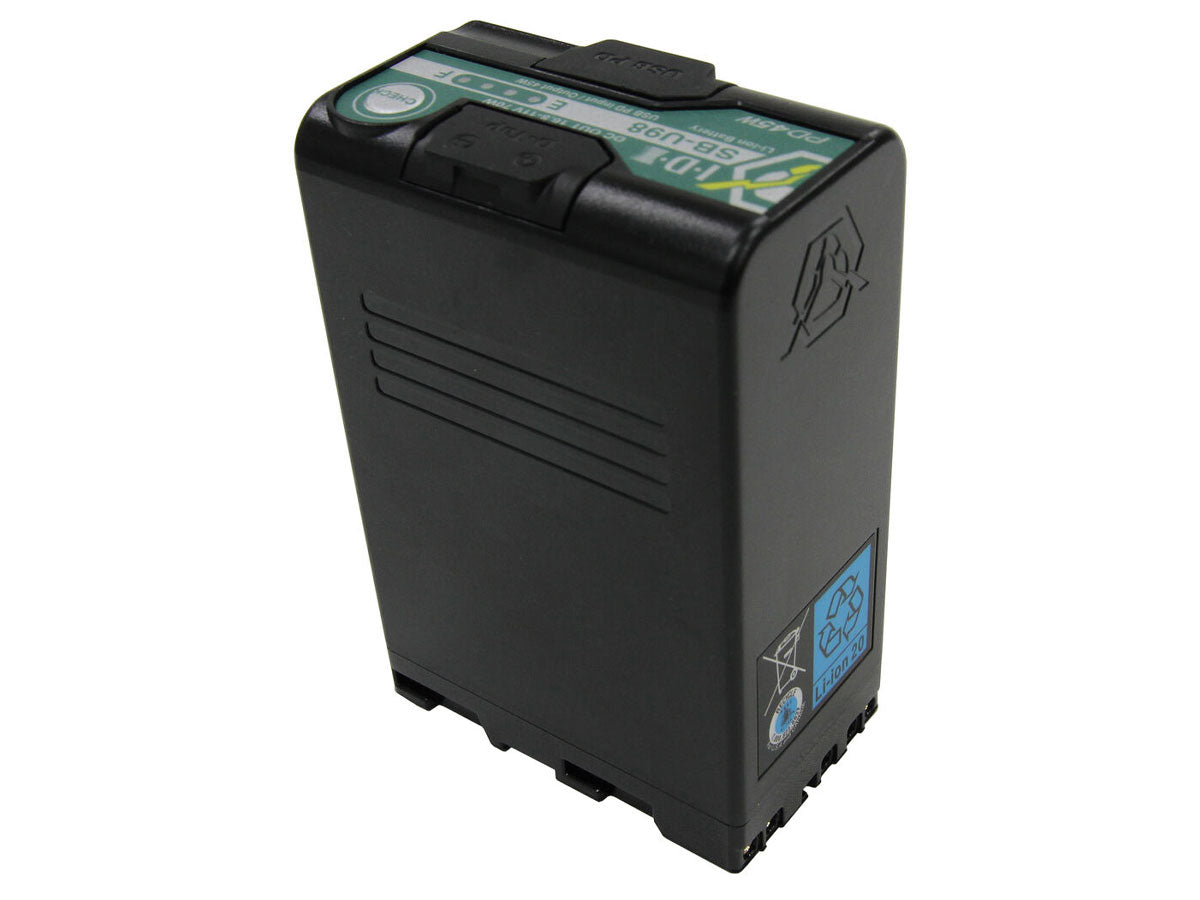

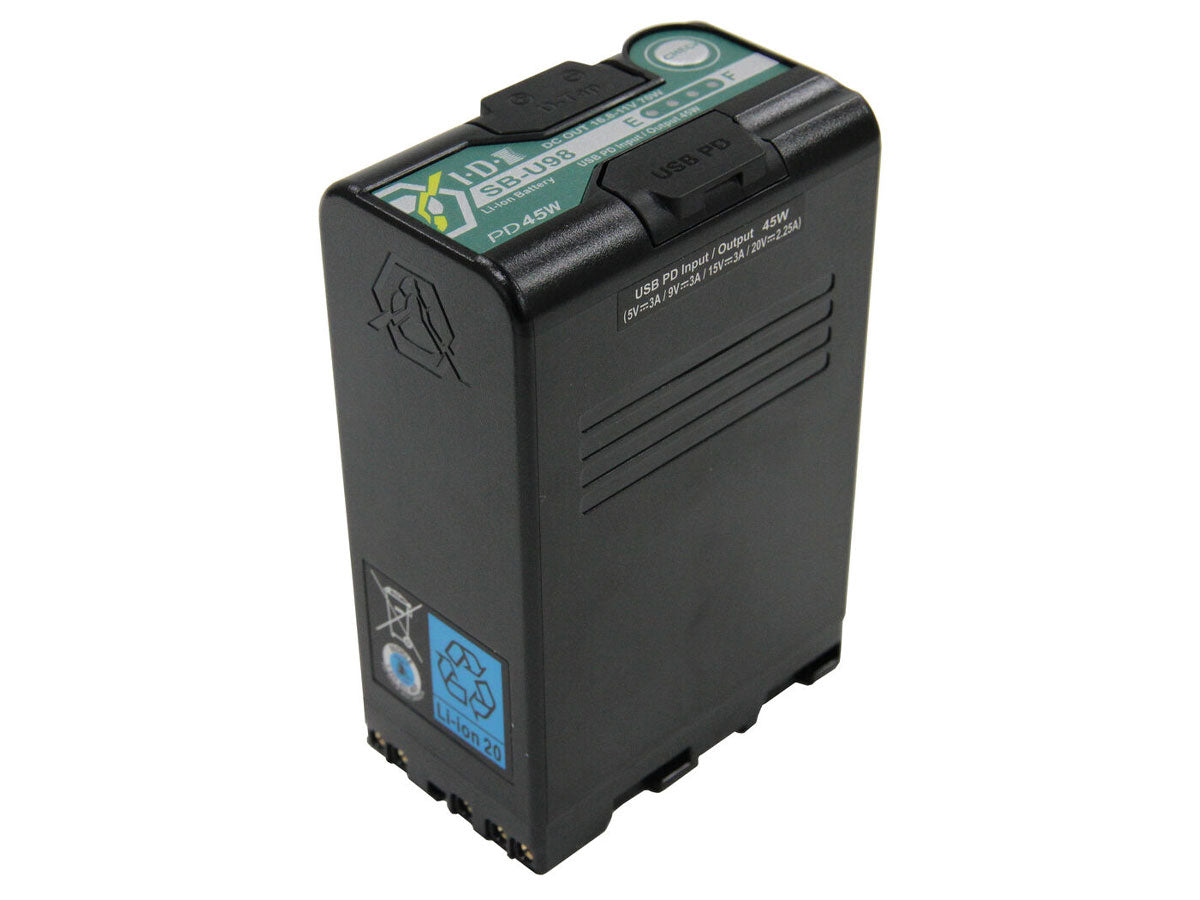

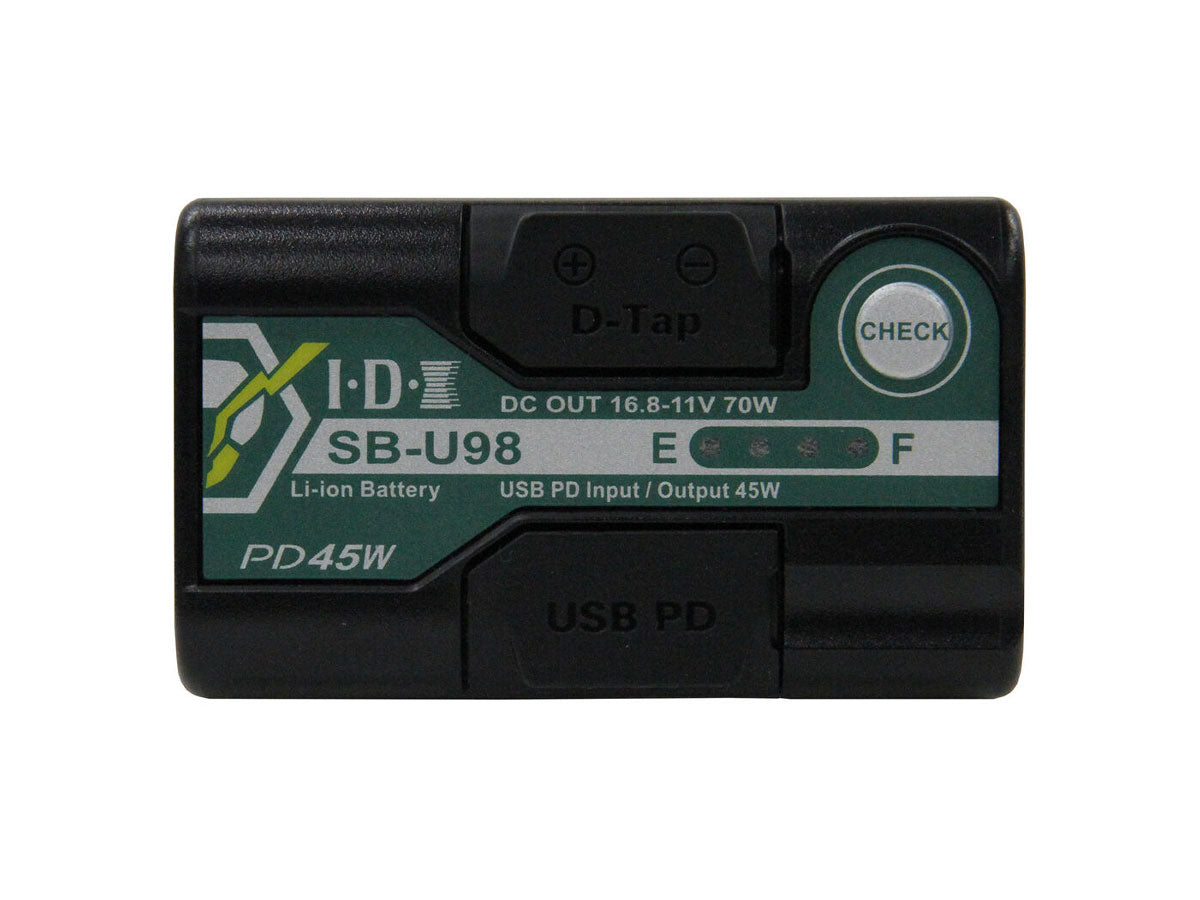

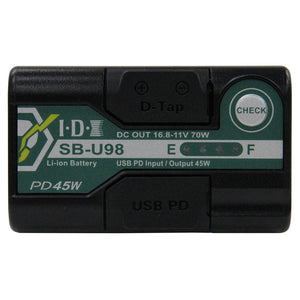

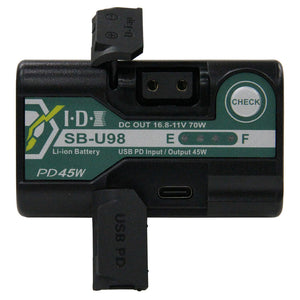

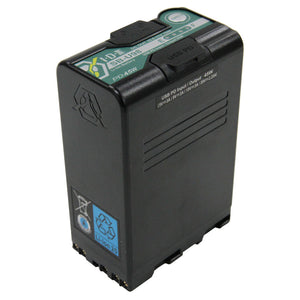

IDX 14.4V 96Wh BPU Type Battery with 1 x D Tap + USB PD

IDX 14.4V 96Wh BPU Type Battery with 1 x D Tap + USB PD

SKU: IDX-SB-U98/PD
£225.00 GBP ex VAT
£270.00 GBP inc VAT
ex VAT £225.00 GBP ex VAT
£270.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

The new SB-U-PD series battery is the next generation in the popular SB-U series. It is a lithium-ion battery that is compatible with Sony BP-U Mount Cameras, such as PXW-FX9/6, FS7/FS5, and PXW/PMW-series cameras. The new SB-U-PD series improved the accuracy of battery remaining indication on the viewfinder of SONY cameras. The battery features a 14.4V D-Tap output and also USB Type-C PD input/output that can charge the battery using an optional charger. A four-LED gauge indicates the charge state of your battery. The battery's internal circuitry provides over-charge, over-discharge, and high load overcurrent protection.

  • 6.6Ah/98Wh Capacity
  • Compatible with Sony PXW-FX9/6, FS7/FS5, PXW/PMW-series cameras
  • Accuracy of battery remaining capacity/time indication on the viewfinder of SONY cameras and LEDs on battery

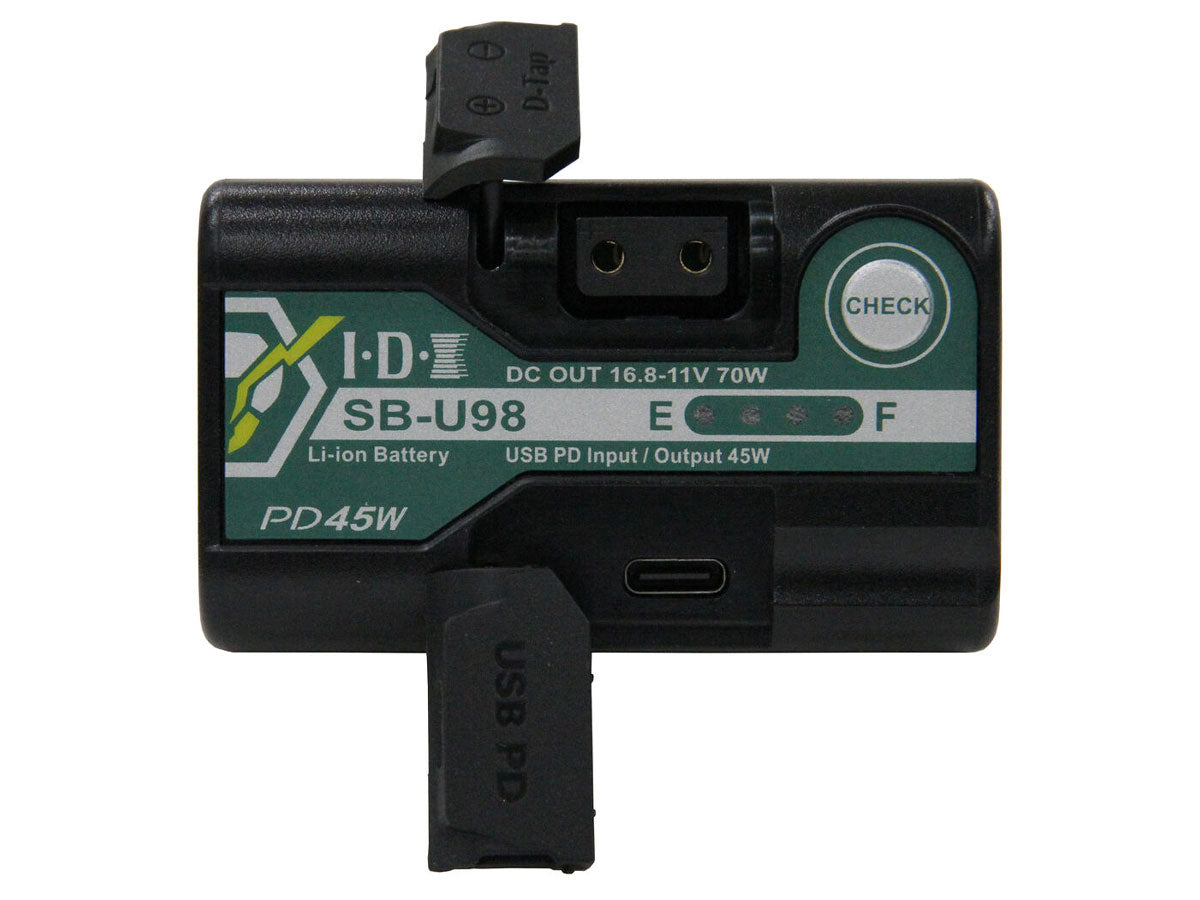

  • Built-In D-Tap Output and USB-C PD (Power Delivery)

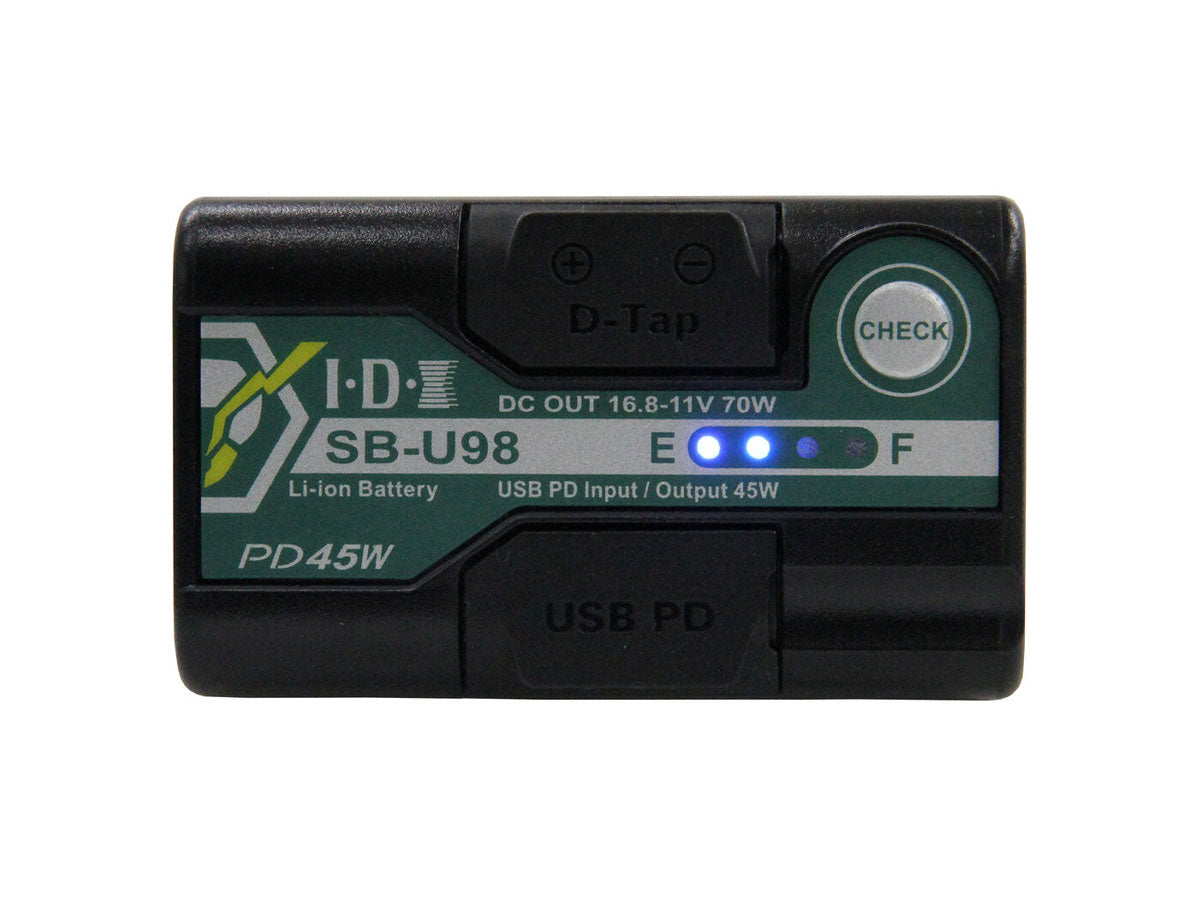

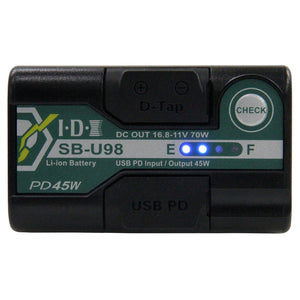

  • 4-LED Power Gauge
  • Charges in IDX Chargers: MC-2U, UC-PD1, UC-PD2
  • Over-Charge, Over-Discharge Protection and Overcurrent Protection at High Loads
Capacity: 96Wh (14.4V / 6.6Ah)
Max Output Voltage: 16.8V DC
Nominal Voltage: 14.4V DC
Max Discharge Current: 6.4A‡
D-Tap: T70W/4.2A(16.8V)～6.4A(11V)
USB: DC 5.0V / 2.3A
End Voltage: 11V
Battery Protection: Over charge, Over discharge, Over current
Ambient Temperature: To charge: 0°C - 40°C / 32°F - 104°F (10°C - 40°C / 50°F - 86°F recommended)
To discharge: -20°C - 45°C / -4°F ~ 113°F (10°C - 40°C / 50°F - 104°F recommended)
To store: -20°C - 50°C / -4°F ~ 122°F (one month)
Dimensions (WxHxD): 4.14 x 10.46 x 6.95cm / 1.63 x 4.12 x 2.74"
Weight: 450g / 1lbs approx.
