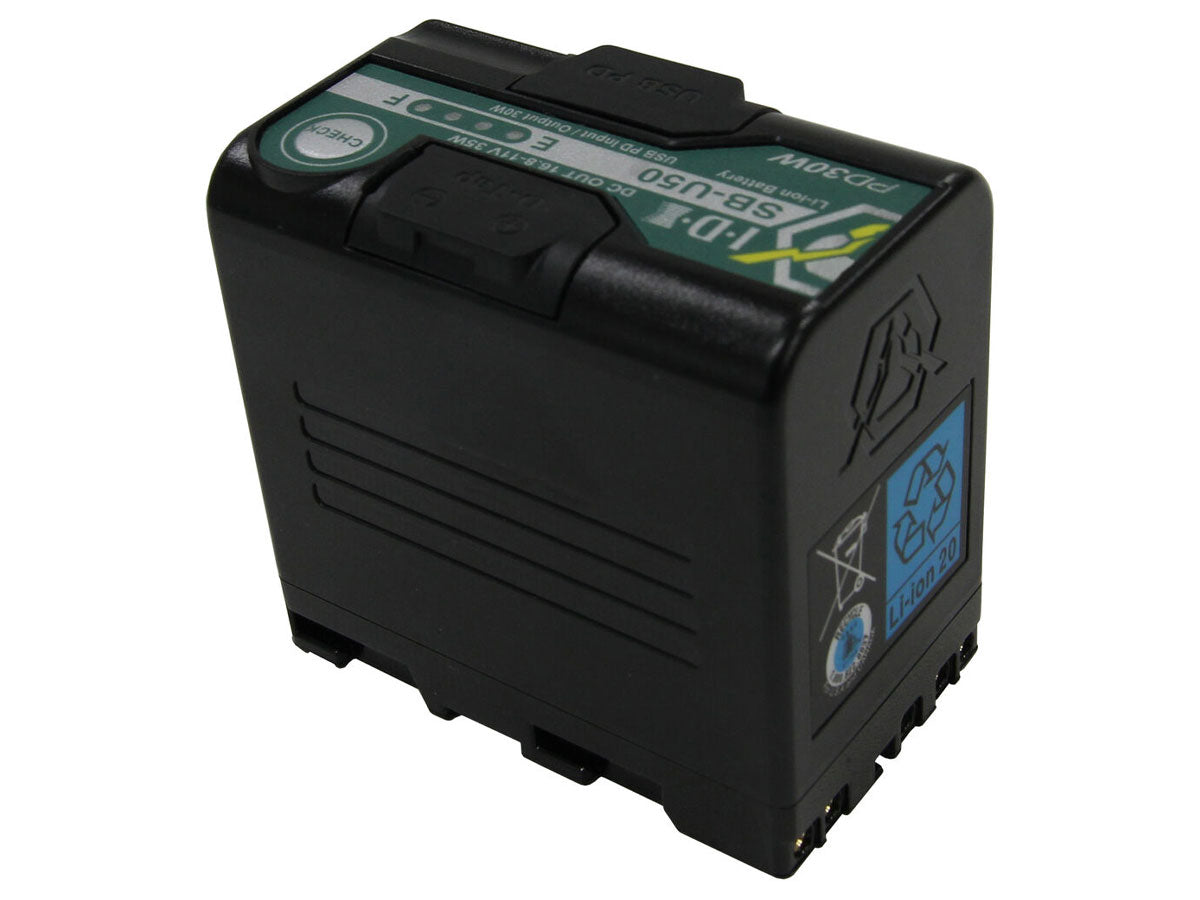

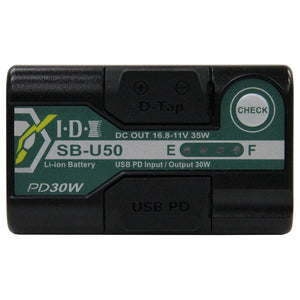

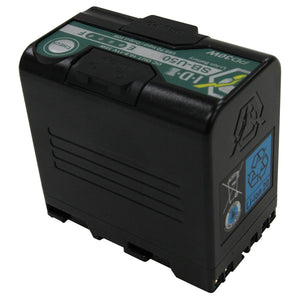

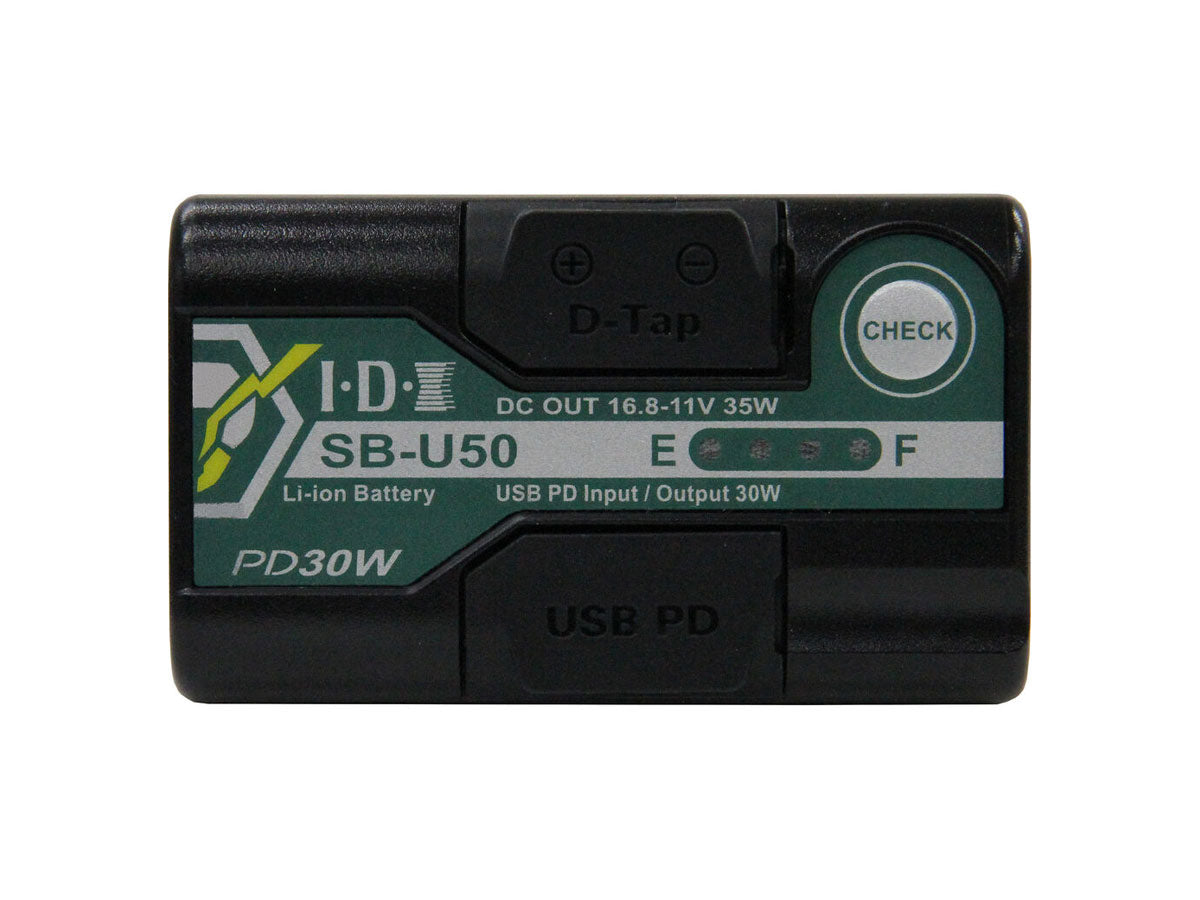

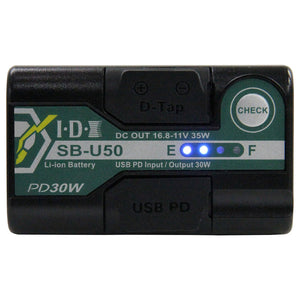

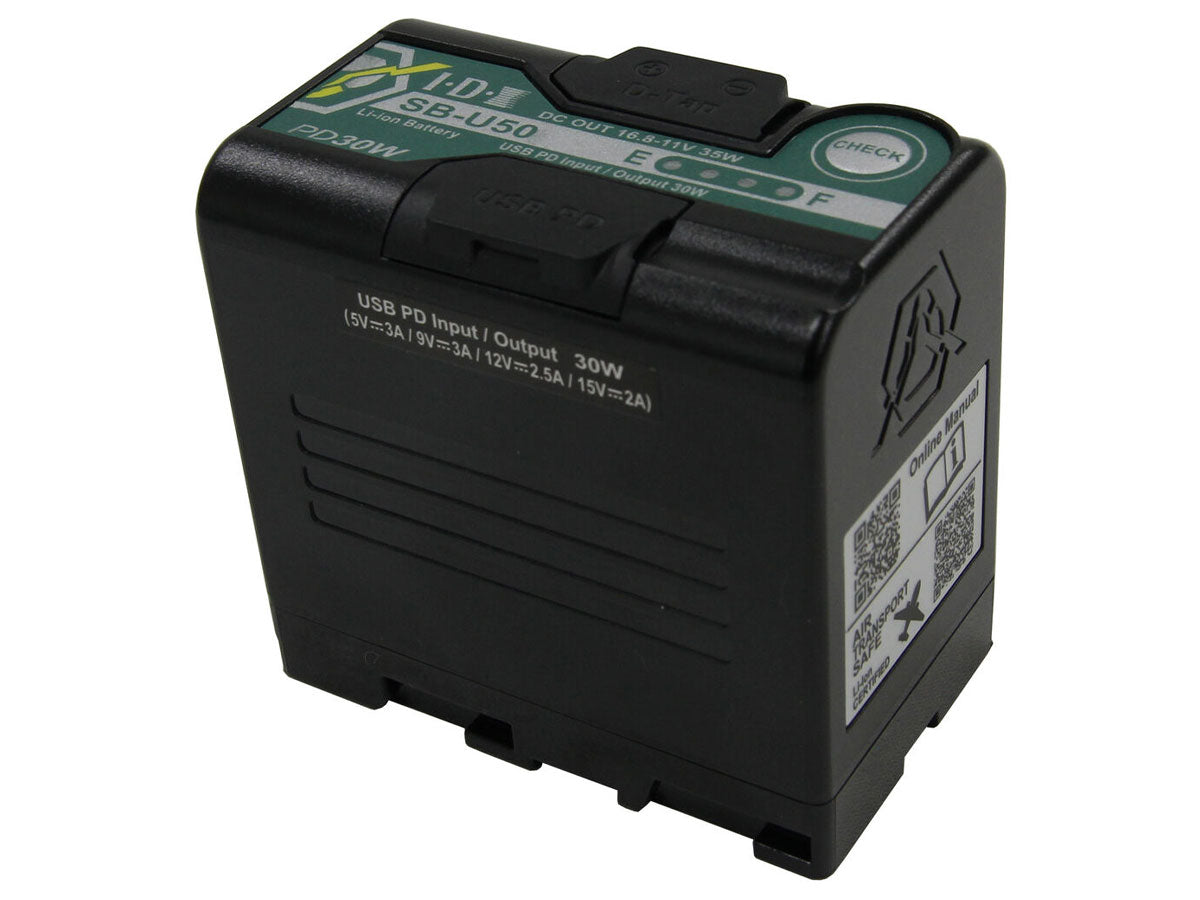

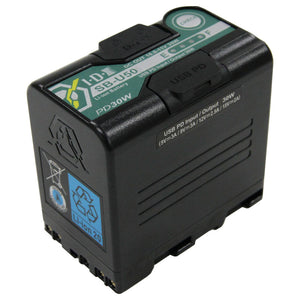

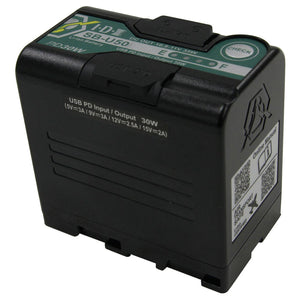

IDX 14.4V 48Wh BPU Type Battery with 1 x D Tap + USB PD
IDX 14.4V 48Wh BPU Type Battery with 1 x D Tap + USB PD
SKU:
IDX-SB-U50/PD
Regular price
£155.00 GBP ex VAT
£186.00 GBP inc VAT
£186.00 GBP inc VAT
Regular price
ex VAT
Sale price
£155.00 GBP ex VAT
£186.00 GBP inc VAT
Unit price
per
£186.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
The new SB-U-PD series battery is the next generation in the popular SB-U series. It is a lithium-ion battery that is compatible with Sony BP-U Mount Cameras, such as PXW-FX9/6, FS7/FS5, and PXW/PMW-series cameras. The new SB-U-PD series improved the accuracy of battery remaining indication on the viewfinder of SONY cameras. The battery features a 14.4V D-Tap output and also USB Type-C PD input/output that can charge the battery using an optional charger. A four- LED gauge indicates the charge state of your battery. The battery's internal circuitry provides over-charge, over-discharge, and high load overcurrent protection.
- 3.3Ah/48Wh Capacity
- Compatible with Sony PXW-FX9/6, FS7/FS5, PXW/PMW-series cameras
- Accuracy of battery remaining capacity/time indication on the viewfinder of SONY cameras and LEDs on battery

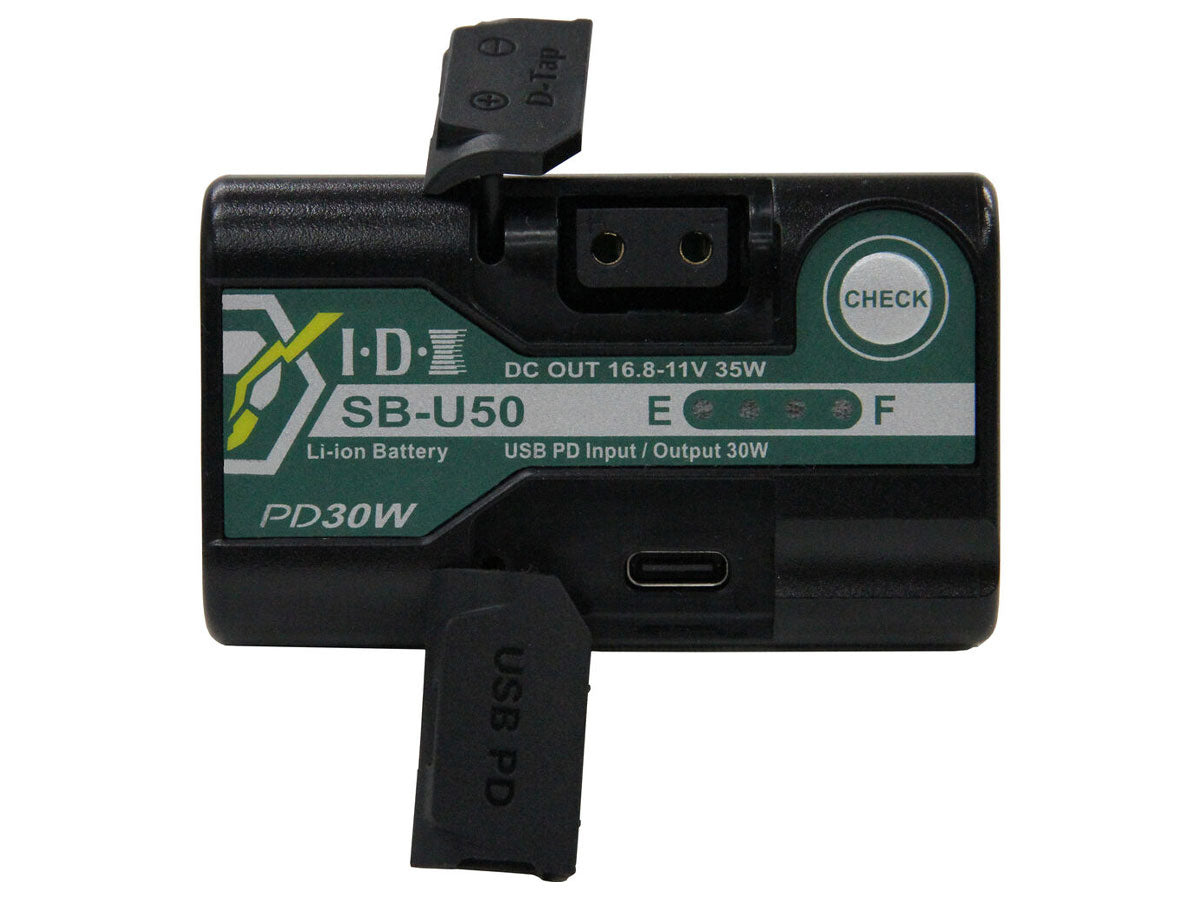

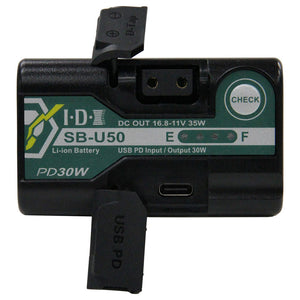

- Built-In D-Tap Output and USB-C PD (Power Delivery)

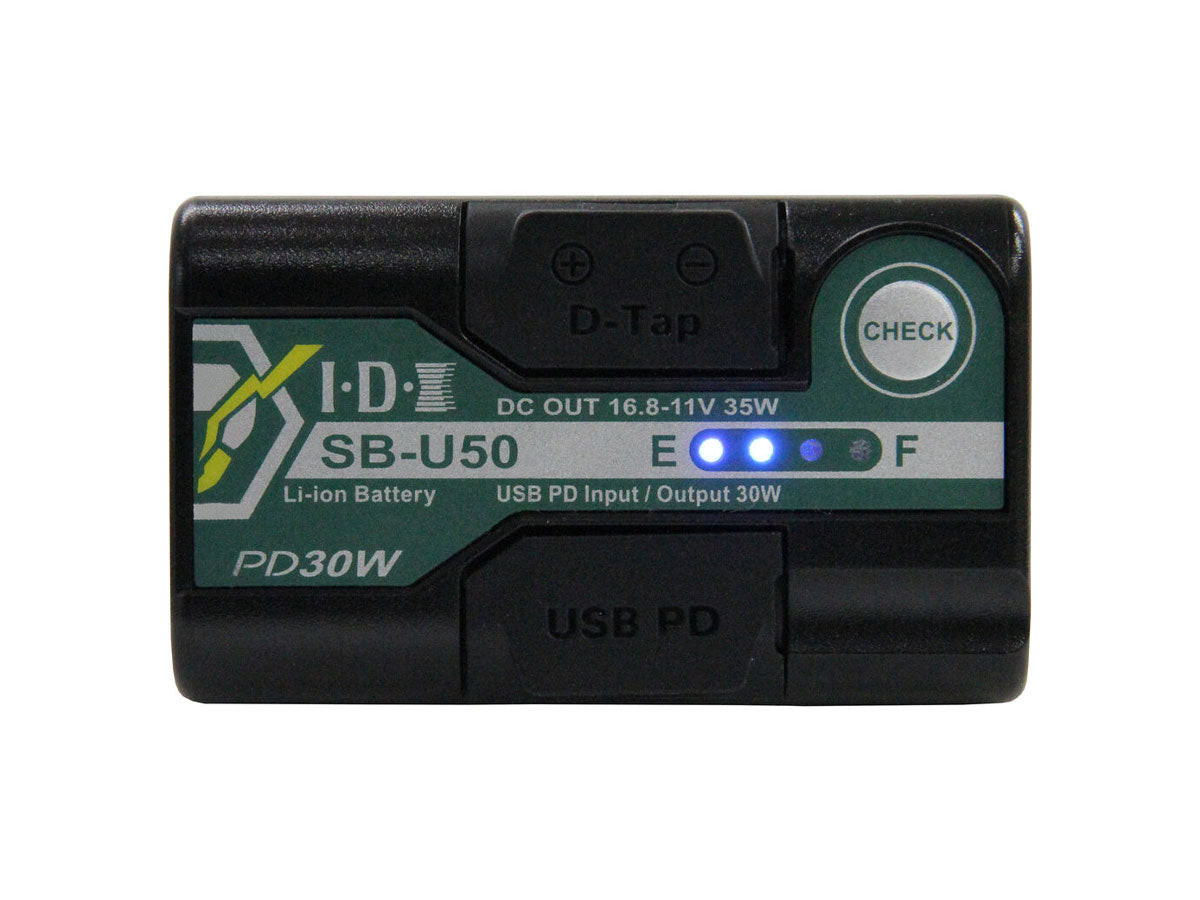

- 4-LED Power Gauge
- Charges in IDX Chargers: MC-2U, UC-PD1, UC-PD2
- Over-Charge, Over-Discharge Protection and Overcurrent Protection at High Loads
| Capacity: | 48Wh (14.4V / 3.3Ah) |
| Max Output Voltage: | 16.8V DC |
| Nominal Voltage: | 14.4V DC |
| Max Discharge Current: | 3.2A‡ |
| D-Tap: | 35W/2.0A(16.8V)～3.1A(11V) |

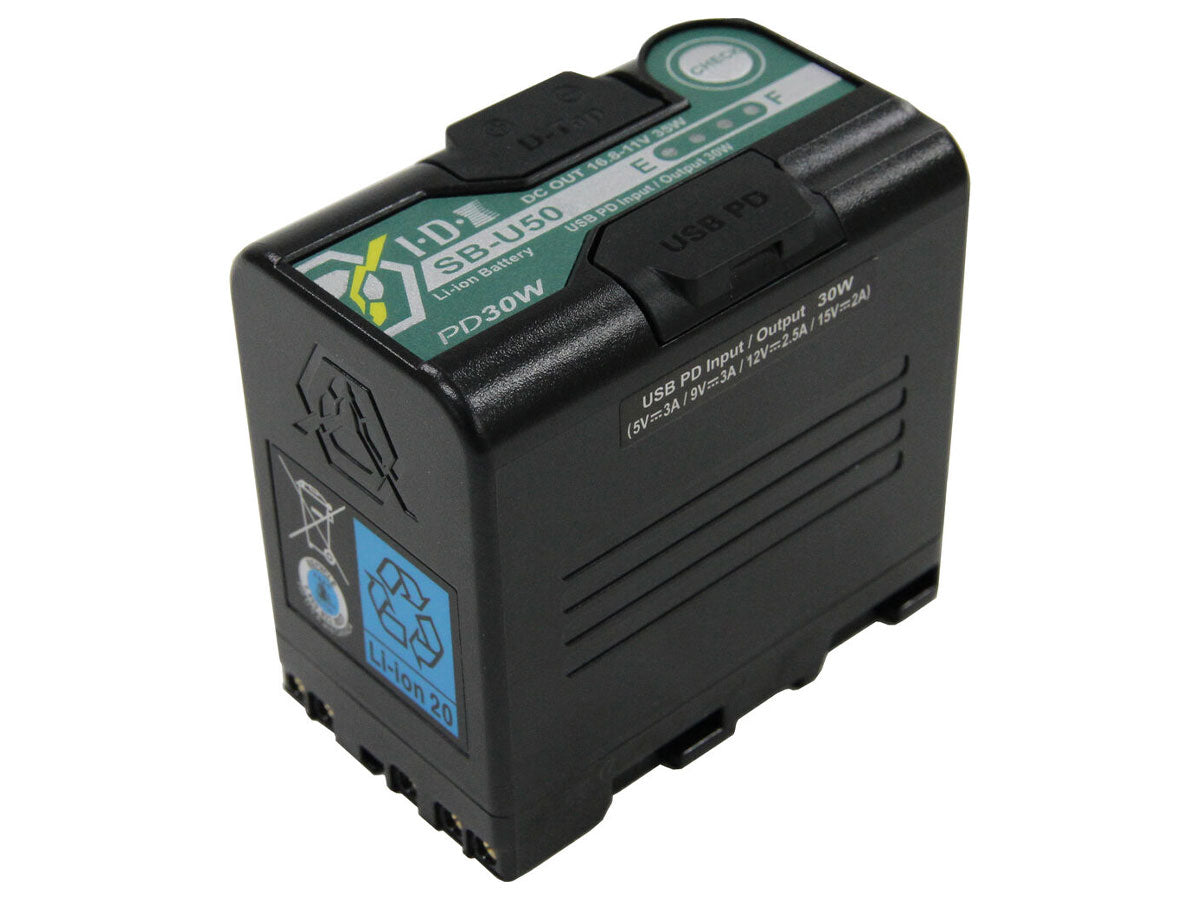

| USB Type-C: | 30W max. (5V/3A, 9V/3A, 12v/2.5A, 15V/2A) |
| End Voltage: | 11V |
| Battery Protection: | Over charge, Over discharge, Over current |
| Ambient Temperature: | To charge: 0°C - 40°C / 32°F - 104°F (10°C - 40°C / 50°F - 86°F recommended) To discharge: -20°C - 45°C / -4°F ~ 113°F (10°C - 40°C / 50°F - 104°F recommended) To store: -20°C - 50°C / -4°F ~ 122°F (one month) |
| Dimensions (WxHxD): | 4.14 x 6.6 x 6.96 cm / 1.63 x 2.6 x 2.74" |
| Weight: | 270g / 0.6 lbs approx. |
