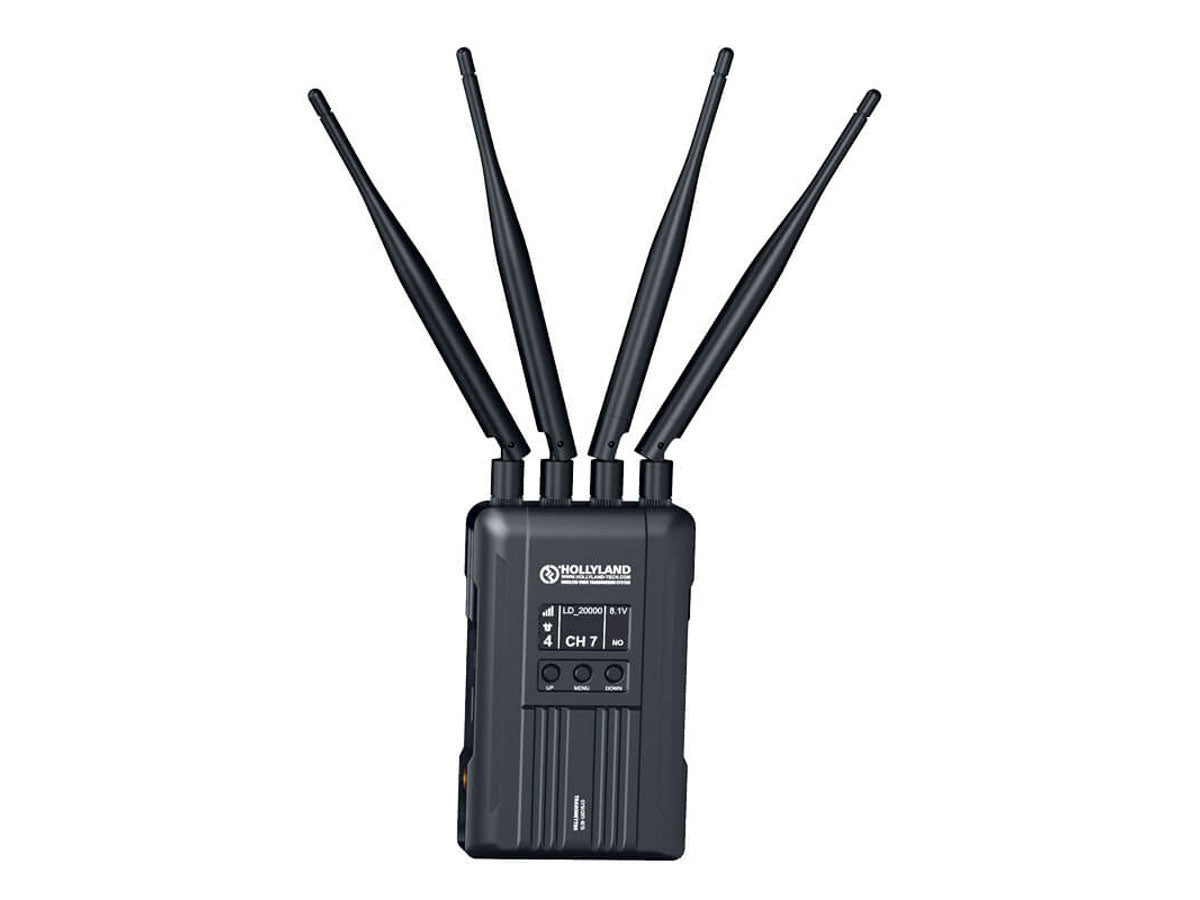

Hollyland Syscom 421 Wireless Transmitter

Hollyland Syscom 421 Wireless Transmitter

SKU: HL-SYSCOM_421-1TX
£925.00 GBP ex VAT
£1,110.00 GBP inc VAT
ex VAT £925.00 GBP ex VAT
£1,110.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Syscom 421 is a wireless HD Video transmission system which can run up to 4 transmitters on the same RF Channel with strong anti-interference capability. The lowest latency is 0.07s. It has a transmission range of about 1800ft with a clean line of sight (LOS).

Syscom 421 supports up to 1080P 60Hz image resolution. The transmitters are equipped with L-series battery plate and the receiver is equipped with V-mount large capacity battery. Both transmitters and receiver also can be powered by DC adapter.

  • 1800ft Wireless HD Video transmission system
  • 1800ft Transmission Range
  • The lowest achievable latency is 0.07s
  • 5.1-5.9 GHz Frequency Band Width, Supports Frequency Configuration for Different Territories
  • Supports 4 SDI Input and HDMI Input, 4 SDI Output and HDMI Output
  • 4 Transmitters Use the Same Wireless Channel with Strong Anti-Interference Ability
  • Supports TALLY and RS485/RS422 Control
  • Support USB Firmware Upgrade Interface
  • Stable & Reliable Industrial Metal Case
  • With RJ45 Interface, Supports Network Pass Through between Transmitter and Receiver and Achieves RTSP Pull and Push Streaming
TRANSMITTER
Interface:
SDI Input (BNC Female)
HDMI Input (Type A Female)
3.5mm Tally Output
4 Antenna (RP-SMA Male)
DC Power Input
USB (Type-C)
LAN - RS486/RS422
Supply Power Range:
7-36V DC
Power Consumption:
<12W
Weight:
431.5g (external antenna excluded)
Dimension (LxWxH):
88 x 30 x 144m (external antenna and battery plate excluded)
Input/Output Video Format:
 HDMI:
480p60
576p50
720p50/60
1080p24/25/30/50/60
SDI: 720p50/60
1080i50/60
1080p24/25/30/50/60
Frequency:
5.1GHz - 5.9GHz
Transmission Power:
MAX 22dBm
Receiver Sensitivity:
-90dBm
Lowest Transmission Latency:
0.07s
Bandwidth:
40MHz
  • 1x Transmitter
  • 5x 5GHz Antenna
  • 1x User Manual
  • 1x 7-Inch Magic Arm
  • 1x OTG Cable
  • 1x DC Conversion Cable
  • 1x RS485/RS422 Interface Cable
