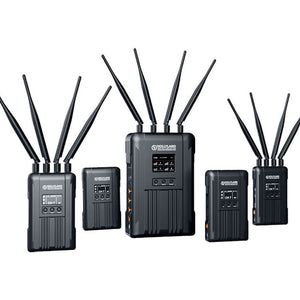

Hollyland Syscom 421 Wireless HD Video Transmission System (4TX, 1RX)
Hollyland Syscom 421 Wireless HD Video Transmission System (4TX, 1RX)
SKU:
HL-SYSCOM_421
Regular price
£5,322.00 GBP ex VAT
£6,386.40 GBP inc VAT
£6,386.40 GBP inc VAT
Regular price
ex VAT
Sale price
£5,322.00 GBP ex VAT
£6,386.40 GBP inc VAT
Unit price
per
£6,386.40 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

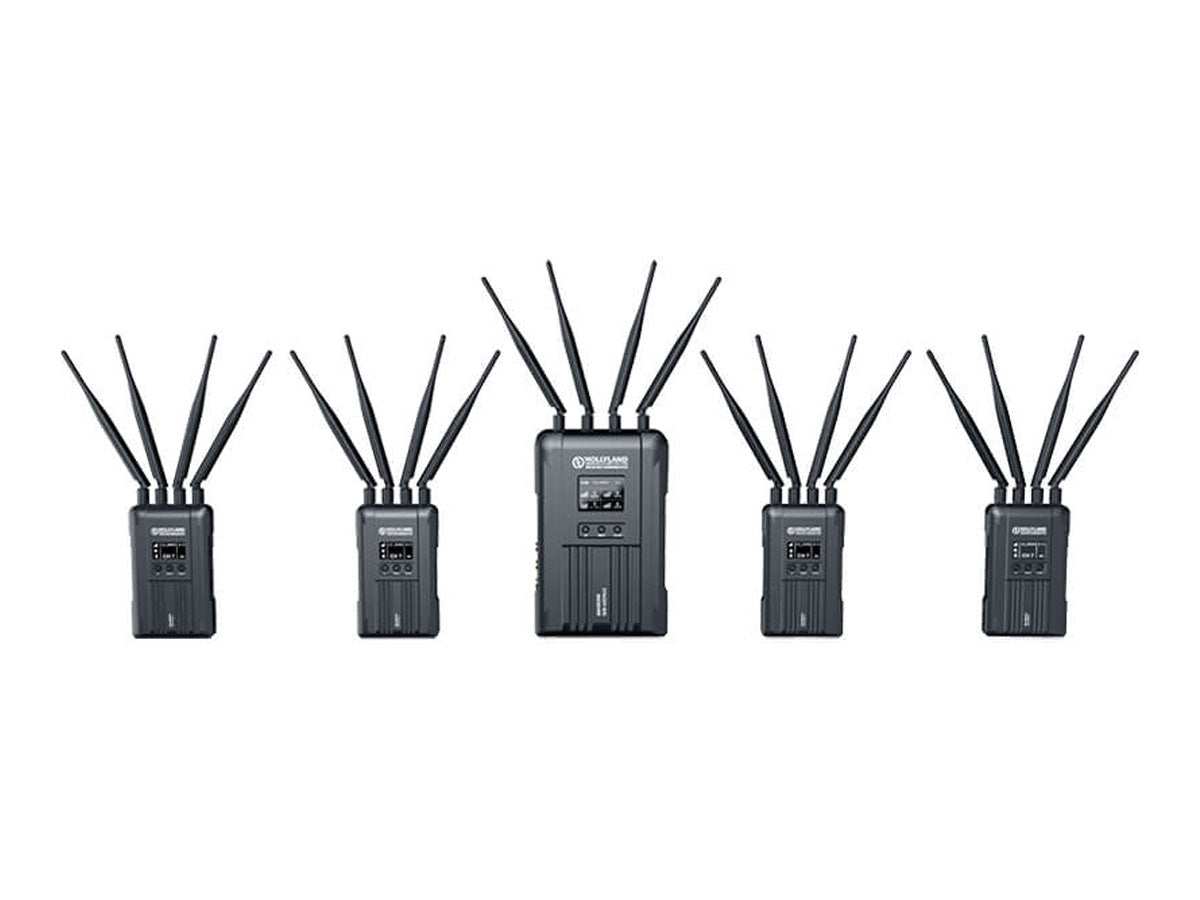

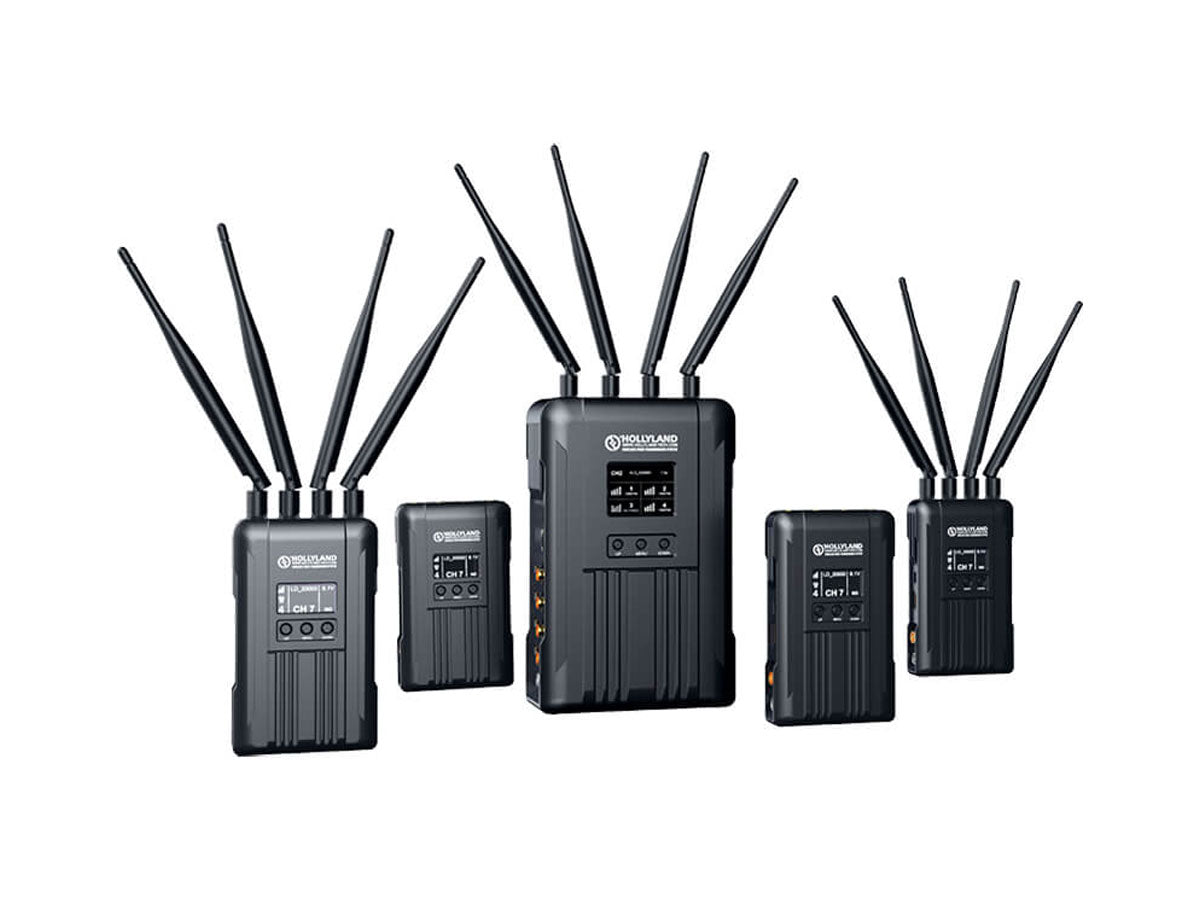

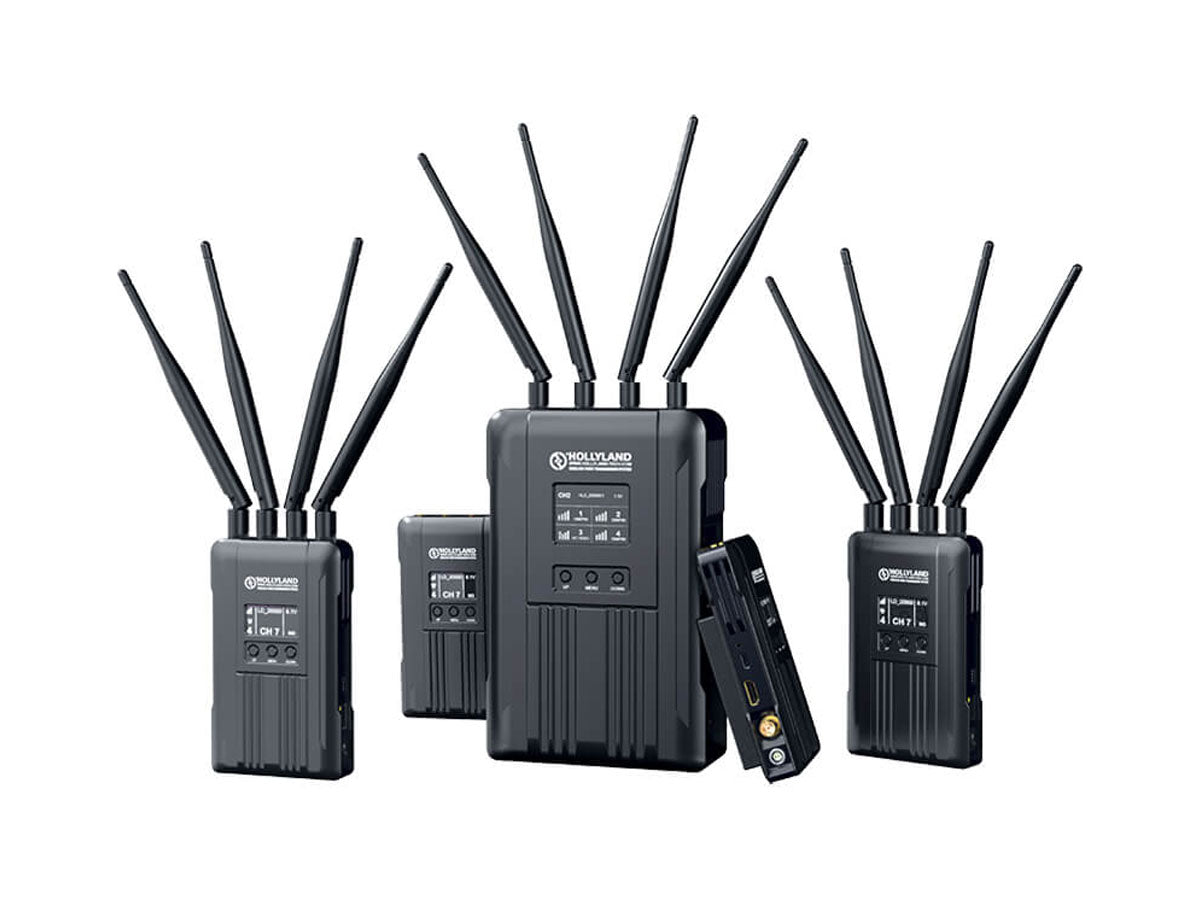

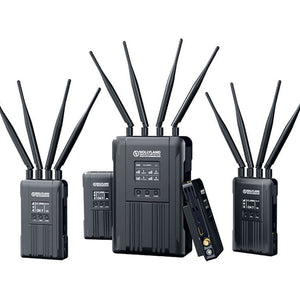

Syscom 421 is a wireless HD Video transmission system which can run up to 4 transmitters on the same RF Channel with strong anti-interference capability. The lowest latency is 0.07s. It has a transmission range of about 1800ft with a clean line of sight (LOS).

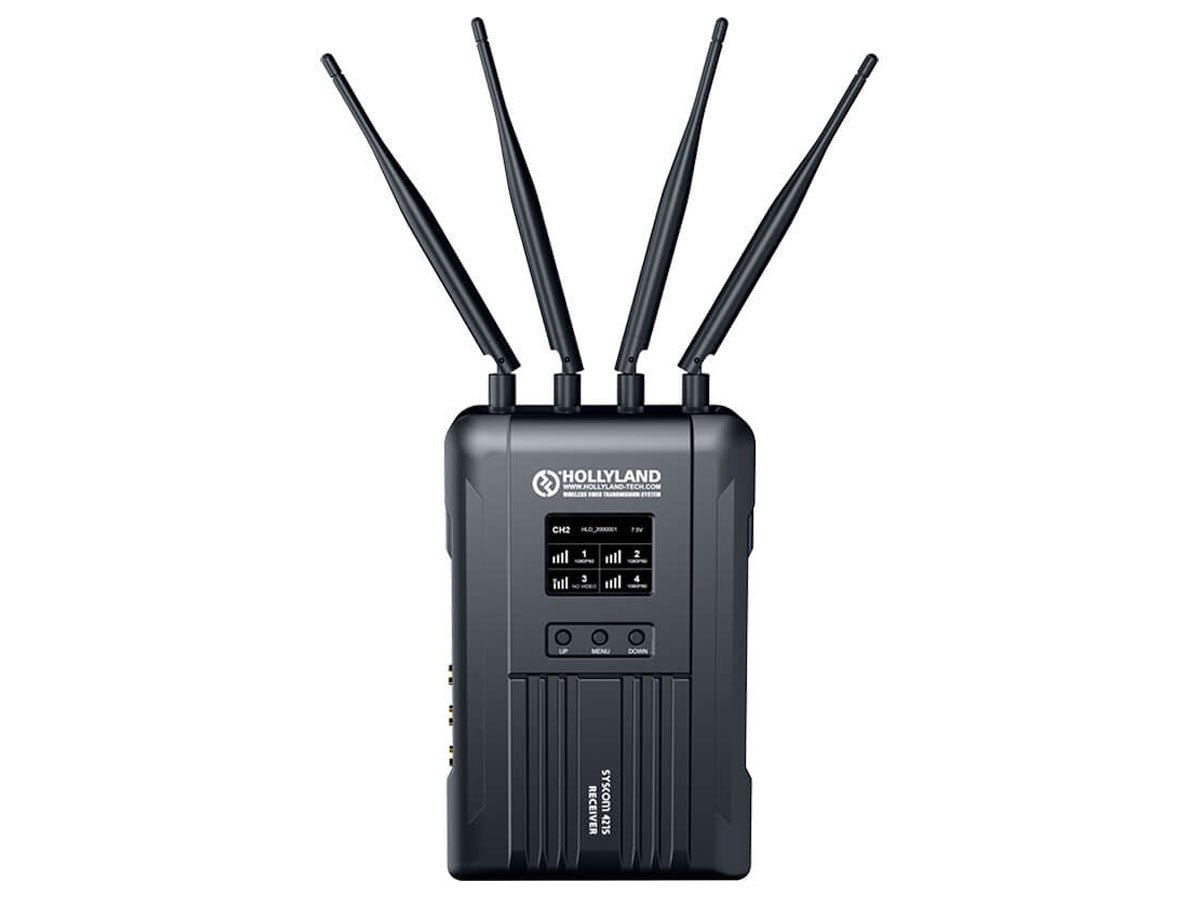

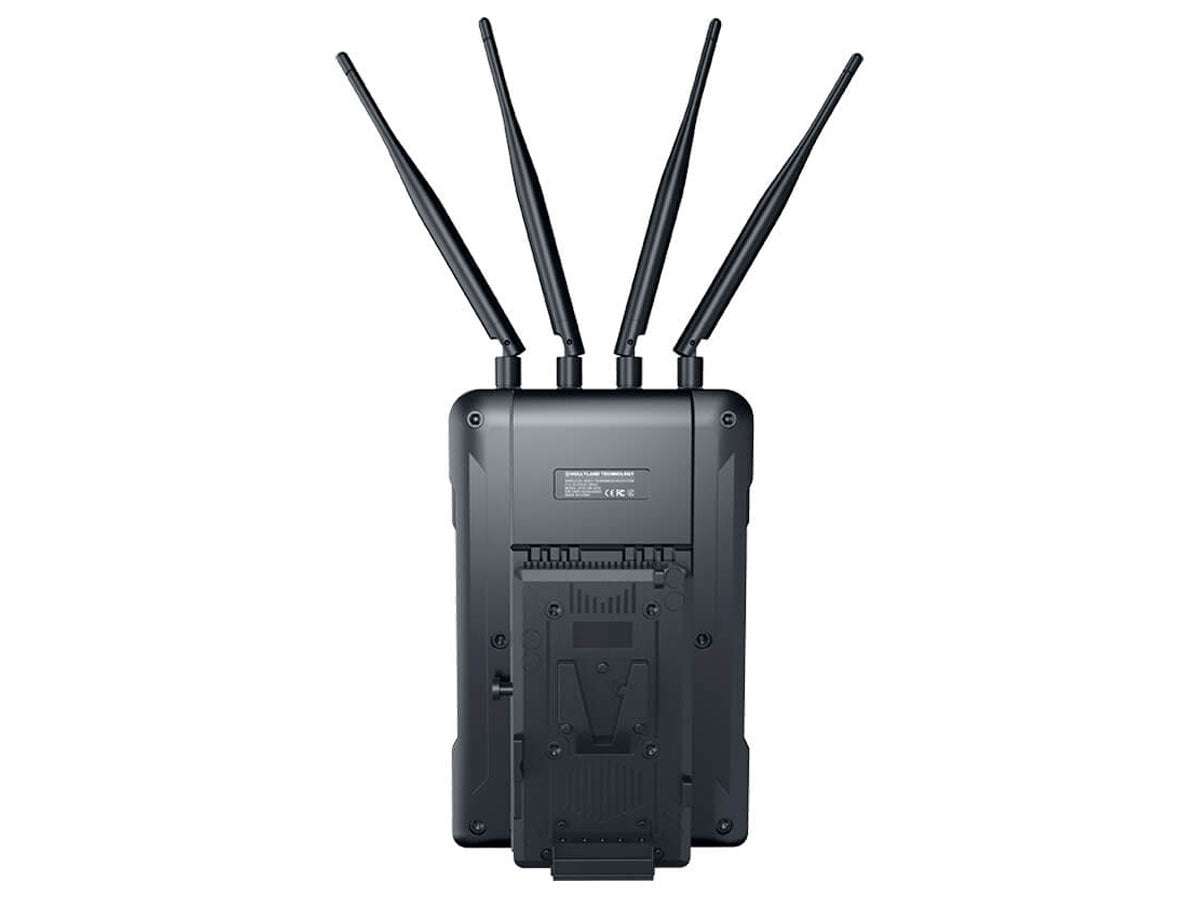

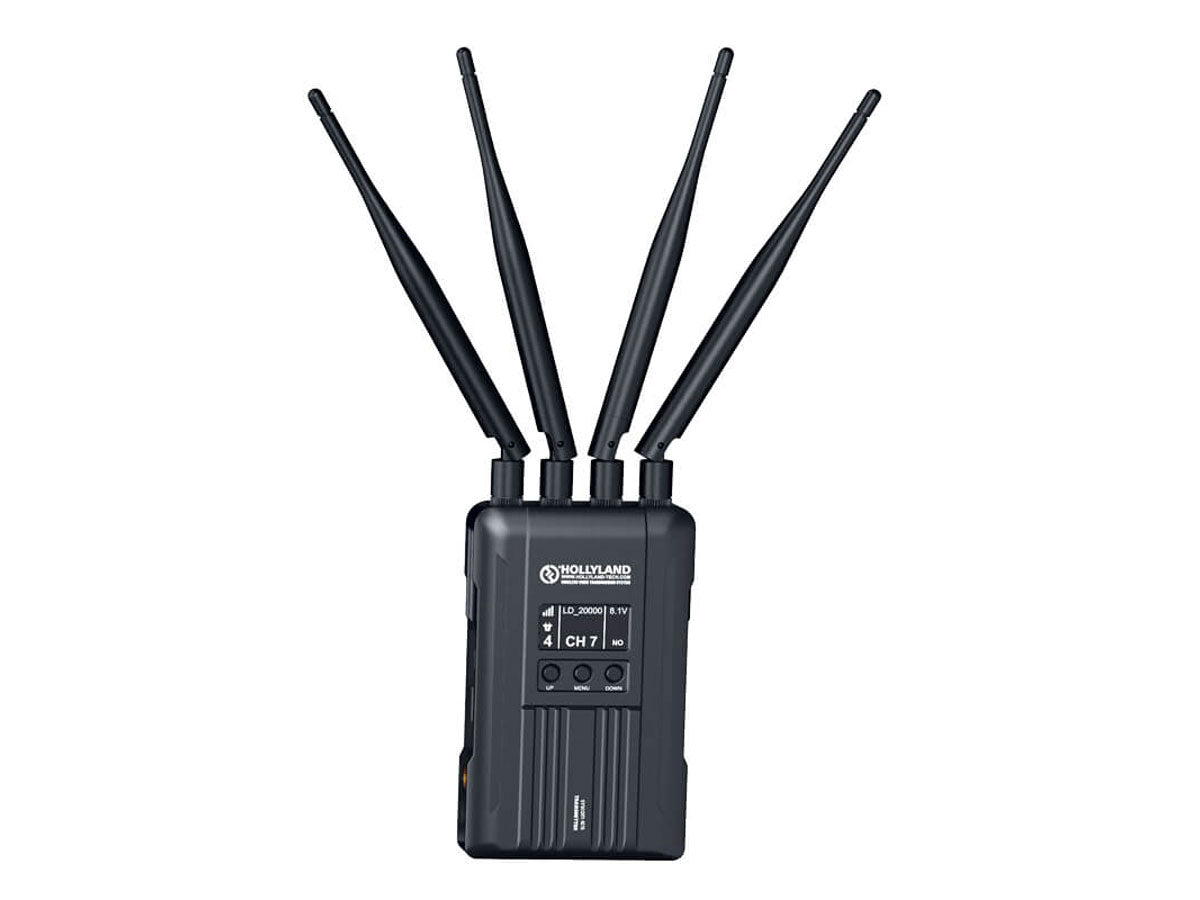

Syscom 421 supports up to 1080P 60Hz image resolution. The transmitters are equipped with L-series battery plate and the receiver is equipped with V-mount large capacity battery. Both transmitters and receiver also can be powered by DC adapter.
- 1800ft Wireless HD Video transmission system
- 1800ft Transmission Range
- The lowest achievable latency is 0.07s
- 5.1-5.9 GHz Frequency Band Width, Supports Frequency Configuration for Different Territories
- Supports 4 SDI Input and HDMI Input, 4 SDI Output and HDMI Output
- 4 Transmitters Use the Same Wireless Channel with Strong Anti-Interference Ability
- Supports TALLY and RS485/RS422 Control
- Support USB Firmware Upgrade Interface
- Stable & Reliable Industrial Metal Case
- With RJ45 Interface, Supports Network Pass Through between Transmitter and Receiver and Achieves RTSP Pull and Push Streaming
| | TRANSMITTER | RECEIVER |

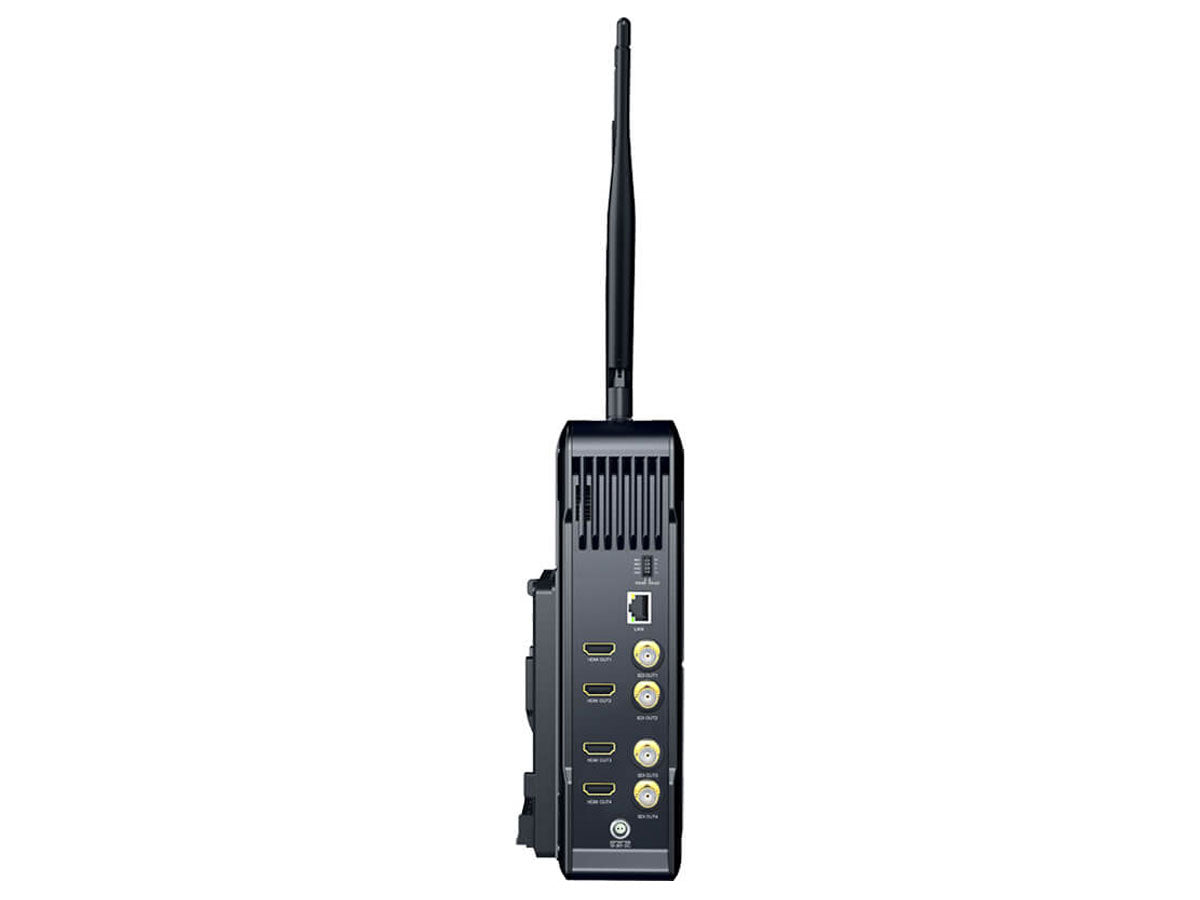

| Interface: | SDI Input (BNC Female) HDMI Input (Type A Female) 3.5mm Tally Output 4 Antenna (RP-SMA Male) DC Power Input USB (Type-C) LAN - RS486/RS422 | SDI x 4 Output (BNC Female) HDMI x 4 Output (Type-A Female) 4 Antenna (RP-SMA Male) DC Power Input USB (Type-C) LAN - RS485/RS422 |
| Supply Power Range: | 7-36V DC | 18-36V DC |
| Power Consumption: | <12W | <32W |
| Weight: | 431.5g (external antenna excluded) | 1621g (external antenna excluded) |
| Dimension (LxWxH): | 88 x 30 x 144m (external antenna and battery plate excluded) | 88 x 30 x 144mm (external antenna and battery plate excluded) |
| Input/Output Video Format: | HDMI 480p60 576p50 720p50/60 1080p24/25/30/50/60 SDI 720p50/60 1080i50/60 1080p24/25/30/50/60 | HDMI 480p60 576p50 720p50/60 1080p24/25/30/50/60 SDI 720p50/60 1080i50/60 1080p24/25/30/50/60 |
| Frequency: | 5.1GHz - 5.9GHz | 5.1GHz - 5.9GHz |
| Transmission Power: | MAX 22dBm | MAX 22dBm |
| Receiver Sensitivity: | -90dBm | -90dBm |
| Lowest Transmission Latency: | 0.07s | 0.07s |
| Bandwidth: | 40MHz | 40MHz |
- 4x Transmitter
- 1x Receiver
- 25x 5GHZ Antenna
- 1x User Guide
- 4x 7-Inch Magic Arm
- 1x OTG Cable
- 4x DC Conversion Cable
- 5x RS485/RS422 Interface Cable
- 1x Power Adapter
