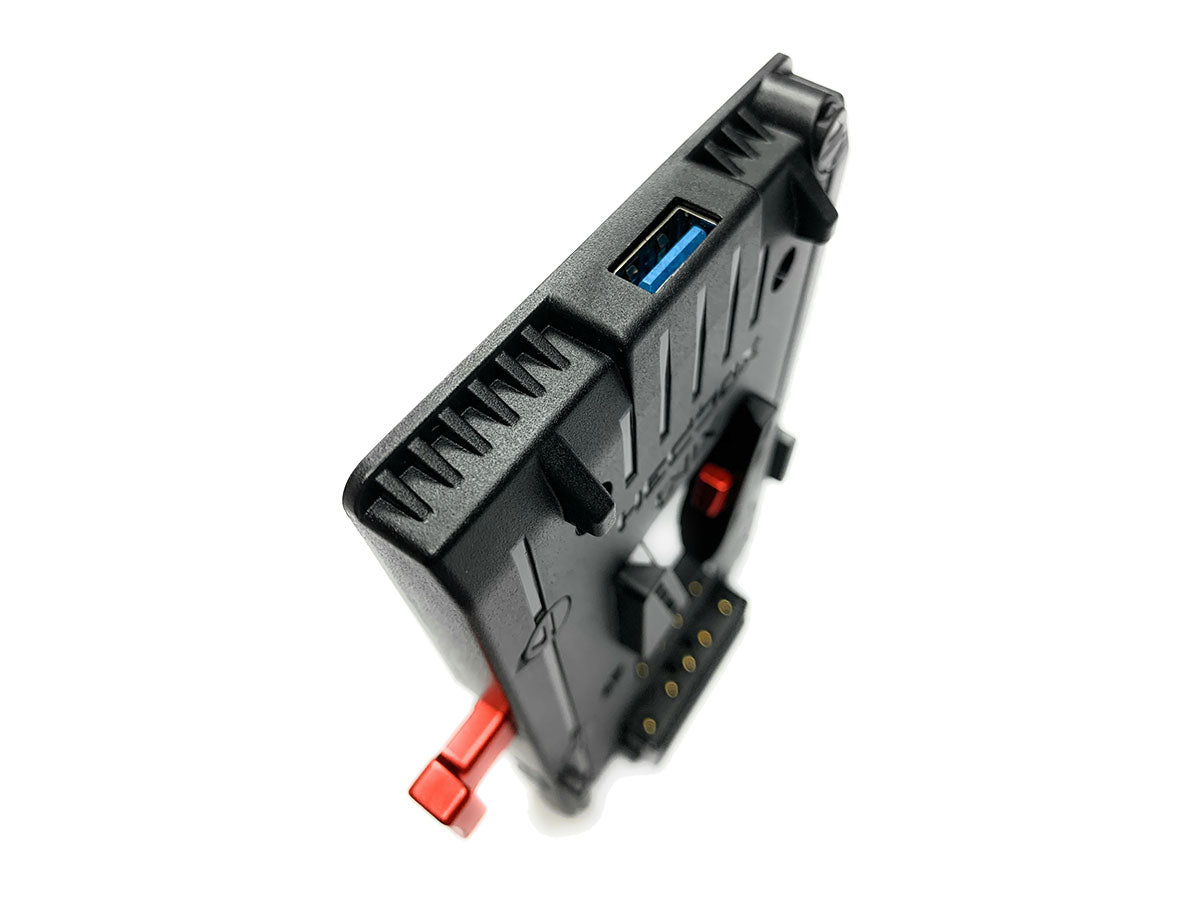

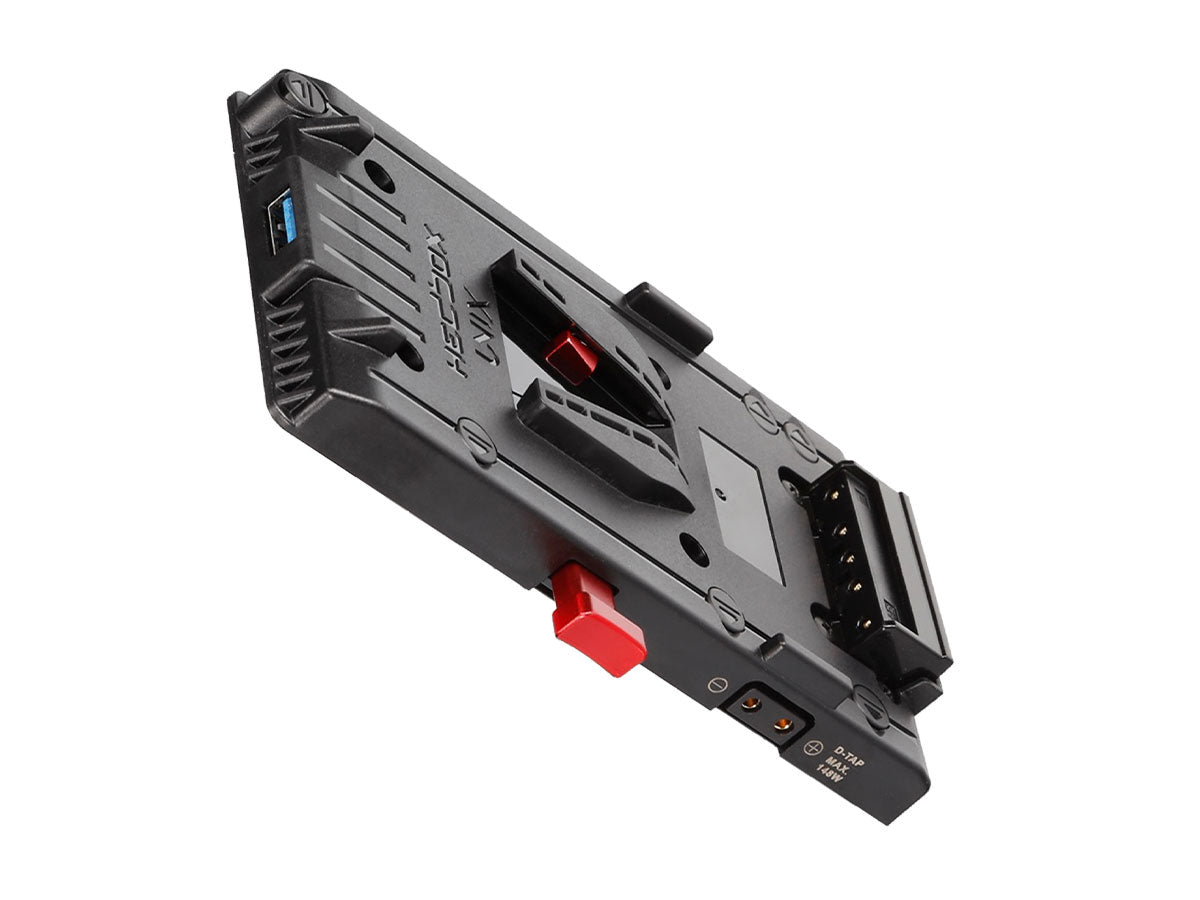

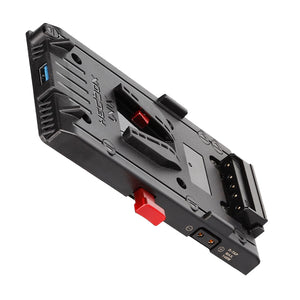

Hedbox UNIX-XLR V-Mount Power Plate (50cm Breakaway XLR)
Hedbox UNIX-XLR V-Mount Power Plate (50cm Breakaway XLR)
£78.00 GBP inc VAT
£78.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
UNIX Professional Cine Battery V-Mount Plate enables the use of V-Lock battery packs on cameras and/or numerous professional peripherals simultaneously. Featuring a high-quality aluminium v-lock release. Hedbox UNIX plates are designed and tested for up to 10,000 battery cycles.
Three (3) D-Tap DC Power Outputs provide 14.8V / 10A for extra devices and peripherals such as on-board recorders, LED lights, monitors, remote follow focus, wireless transmitters etc.
A built-in USB 5V / 2.1A Power Output is located on the top of the UNIX plate.
Designed with versatility in mind UNIX plates have multiple mounting holes to provide universal camera connection or peripheral mounting – 4x M3x12 screws are included with UNIX to mount the plate as required.

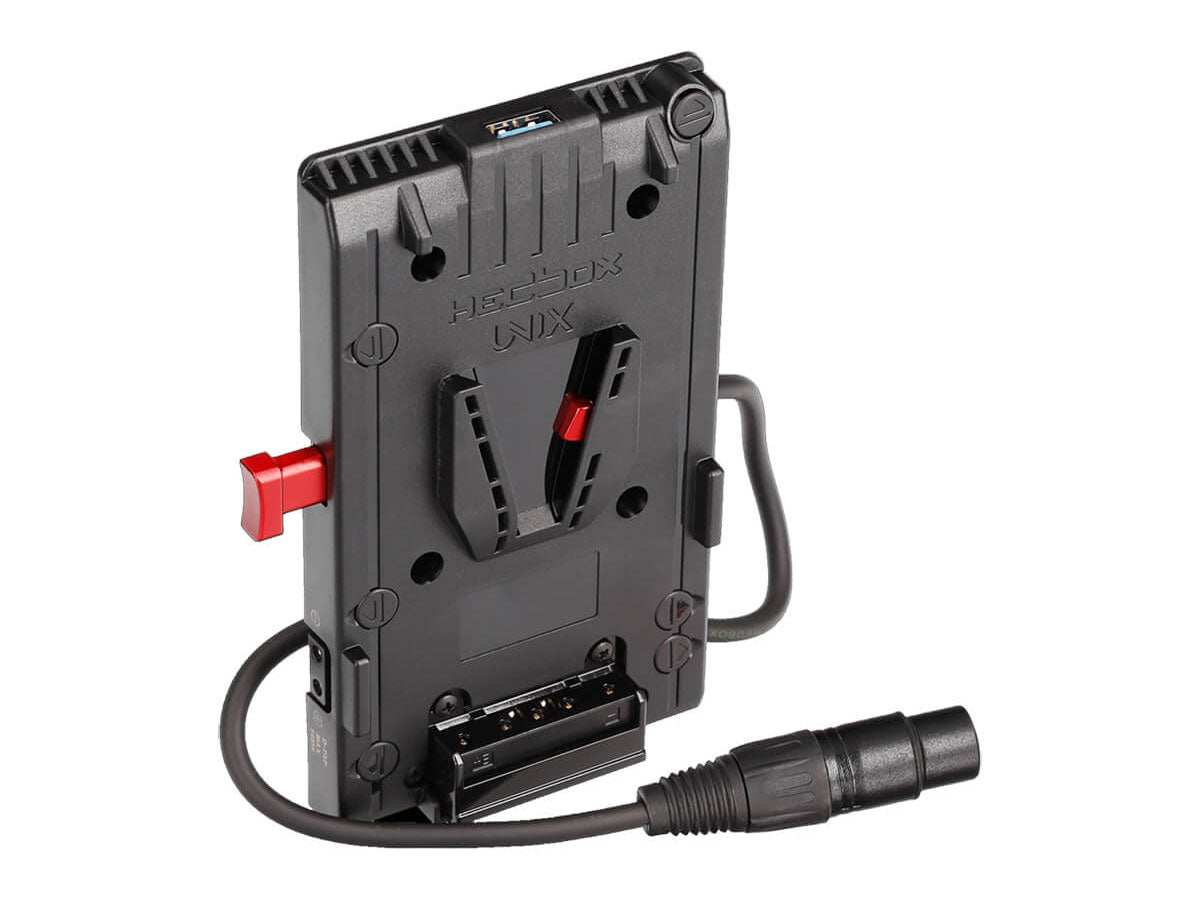

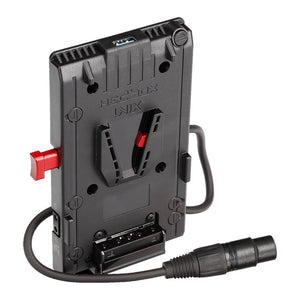

The UNIX-4X includes a hard-wired 50cm power cable with a 4-Pin XLR (Female) Connector that can be used to power various cameras and other professional photo/video devices that accept 4-pin.
- Supplied Breakaway 50cm DC Cable with 4-Pin XLR Female Connector - With an installed breakaway DC 14.8V / 10A / 148W power cable, UNIX-4X can be used to power various cameras and devices in the video and photo market. The breakaway cable is a 50cm long, standard 4-pin XLR Female connector included.
- High Quality Aluminium V-lock Release - Adopting technology that allowed us to use a high-quality aluminum alloy V-lock release, the lock and unlock provides up to 10,000 cycles for a V-mount battery on the Unix plate.
- 3 x D-Tap DC Power Output - Unix provides three D-Tap 14.8V / 10A DC power outputs. Three D-taps allow for extra powering for cameras, onboard recorders, LED lights, monitors, remote follow focus, wireless transition systems, etc.
- Multiple Mounting Holes for Universal Camera Connection - With multiple mounting holes, (4 x M3x12 screws provided) Unix is able to mount onto any device or camera connection.
- Built-in USB 5V / 2.1A Power Out Socket - The USB 5V / 2.1A output can be used to power any external USB electronic devices. This function allows you to use the Unix V-lock plate like a power station to charge your cell phone, tablet, or any other electronic devices that can be powered with USB 5V power.
| Model: | UNIX-4X V-Mount Adapter Power Plate |
| Battery Mount: | V-Lock Mount |
| D-Tap Power Out 1: | DC 12V ~ 16.8V / 10A / 148W (Max) unregulated |
| D-Tap Power Out 2: | DC 12V ~ 16.8V / 10A / 148W (Max) unregulated |
| D-Tap Power Out 3: | DC 12V ~ 16.8V / 10A / 148W (Max) unregulated |
| USB Output: | DC 5V / 2.1A / 10W (Max) |
| Breakaway DC Cable: | DC 12V ~ 16.8V / 10A / 148W (Max) 50cm (length)/ Unregulated 4-Pin XLR Female Connector |
| V-Lock Release: | High Quality Aluminium Alloy |
| Operating Temperature: | –20°C to +45°C (–4°F to +113°F) |
| Mounting: | Multiple mounting holes for universal camera connection |
| Dimensions: | 146 x 102 x 26 mm |
| Weight: | 185 g |
- 1x UNIX-4X V-MOUNT PLATE WITH BREAKAWAY 50CM CABLE 4-PIN XLR FEMALE CONNECTOR
- 1x SET SCREW M3X12 (4PCS)
- 1x USER MANUAL
- 1x 2 YEAR LIMITED MANUFACTURER'S WARRANTY
