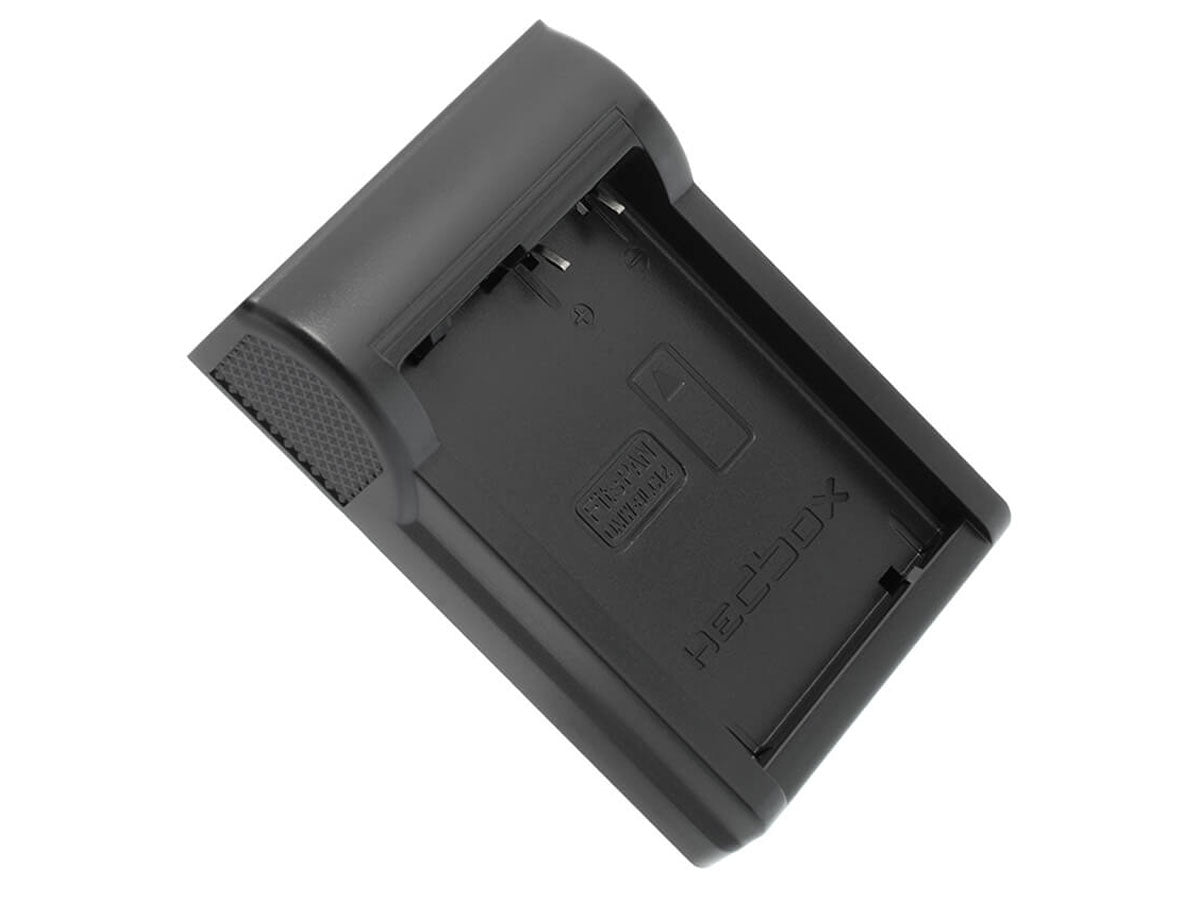

Hedbox Plate for Panasonic DMW-BLC12

Hedbox Plate for Panasonic DMW-BLC12

SKU: HED-RPDBLC12
£3.00 GBP ex VAT
£3.60 GBP inc VAT
ex VAT £3.00 GBP ex VAT
£3.60 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

This DV Charger Plate is designed for use only with the HEDBOX RP-DC50, HED-DC55, RP-DC40 and RP-DC30 DV Battery Charger.

It is designed to be used with standard PANASONIC | DMW-BLC12, LEICA | BP-DC12, SIGMA | BP-51 battery mount type.

  • Charging Technologies - Intelligent charging systems integrate the control systems within the charger and the electronics within the battery to allow precision control over the charging process. As a safety precaution with high-capacity batteries, a pre-charging stage is used. The charging cycle is initiated with a low current. If there is no corresponding rise in the battery voltage, it indicates that there is possibly a short circuit in the battery (zero volt activation). Constant current/constant voltage (CC/CV) charging mode is an effective way to charge lithium batteries. When a lithium battery is nearly empty, we take constant current to charge it. The charger CPU automatically adjusts the charging current to be lower than the max charging current that the battery can accept. With constant charging, the voltage of the battery rises slowly until it reaches a maximum voltage at which point the charger switches the charging method to “constant voltage” and reduces the charging current. When the battery is fully charged, this state is stopped.
  • Interchangeable Battery Plates - Intelligent Charger can be used for all World Brand Battery Models. This Economic Option allows you to Charge many different Batteries, all with one Charger according to the plate model. The charger automatically sets the Charging Voltage and the Charging Current for the designed Battery Pack. That leaves no space for charging errors!
Model: RP-DBLC12 DV Battery Charger Plate
Max Power: 1500 mAh (Max)
Charging Voltage: 8.4V
Operating Temperature: –20°C to +45°C (–4°F to +113°F)
Compatibility: Use only with RP-DC50, HED-DC55,  RP-DC40 and RP-DC30 DV Battery Chargers
Dimensions: 5.1 x 6.3 x 1.1cm / 2 x 2.5 x 0.4″
Weight: ~25g / 0.88 oz
  • 1x CHARGER PLATE
