Hedbox HOLD II Cheese Plate System (15mm Rod)

Hedbox HOLD II Cheese Plate System (15mm Rod)

SKU: HED-HOLDIISYSTEM
£48.00 GBP ex VAT
£57.60 GBP inc VAT
ex VAT £48.00 GBP ex VAT
£57.60 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

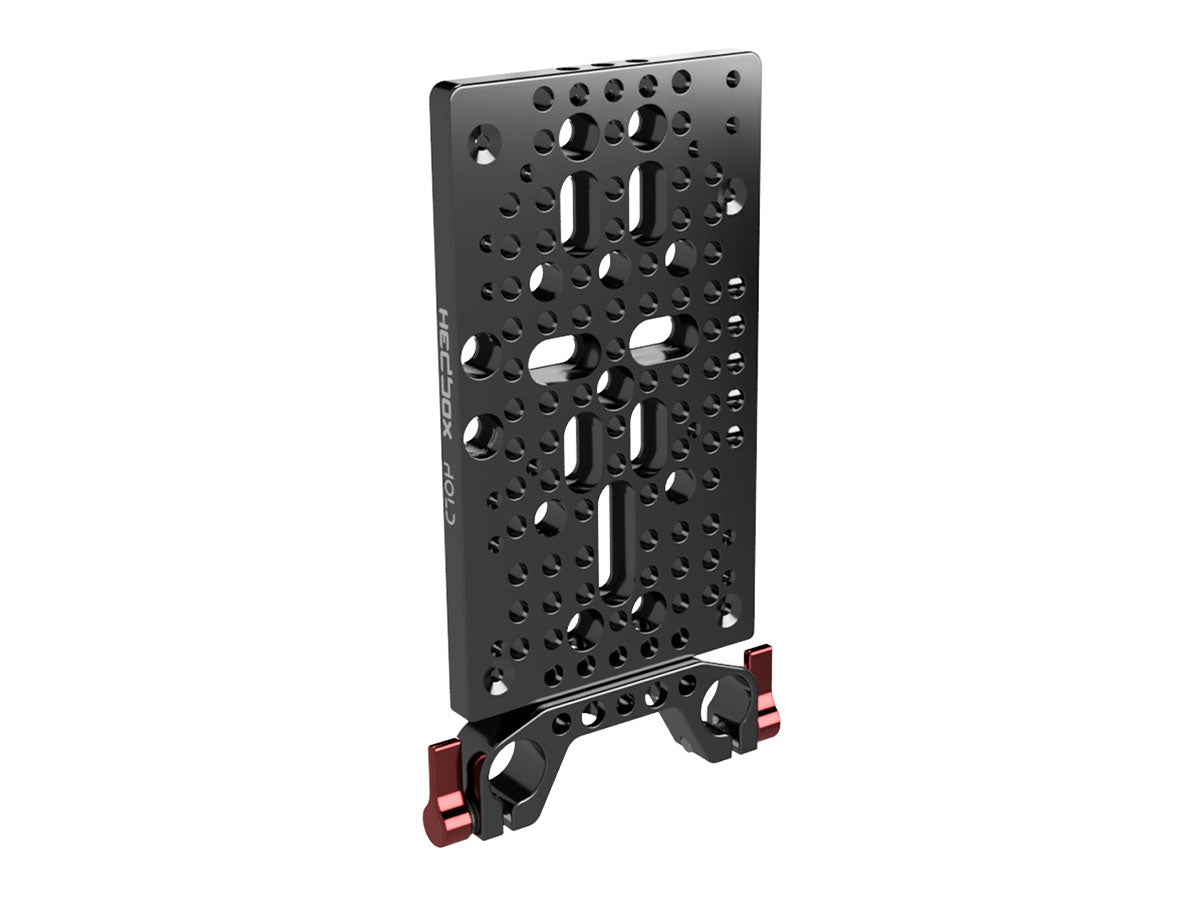

The HOLD System 15mm Rod Cheese Plate is a multi-purpose anodized precision-machined aluminium camera accessory mounting plate. Constructed from dur-aluminium alloy, HOLD enables you to mount a separately available battery plate on the back of your camera.

HOLD is specially designed for UNIX family battery plates. The plate is 8mm (5/16″) thick and features 120 threaded holes for accessories to be screwed into.

Thanks to various threaded hole positions, this frame-style cheese plate is compatible with – Anton Bauer, IDX, Ikan, Shape, FXLion, Cinegears, Generay, Swit, Blueshape, Bebop, Dynacord, Hakwoods, Switronix and many others.

  • Constructed from dur-aluminium alloy
  • 120 various threaded holes - Mounting Threads

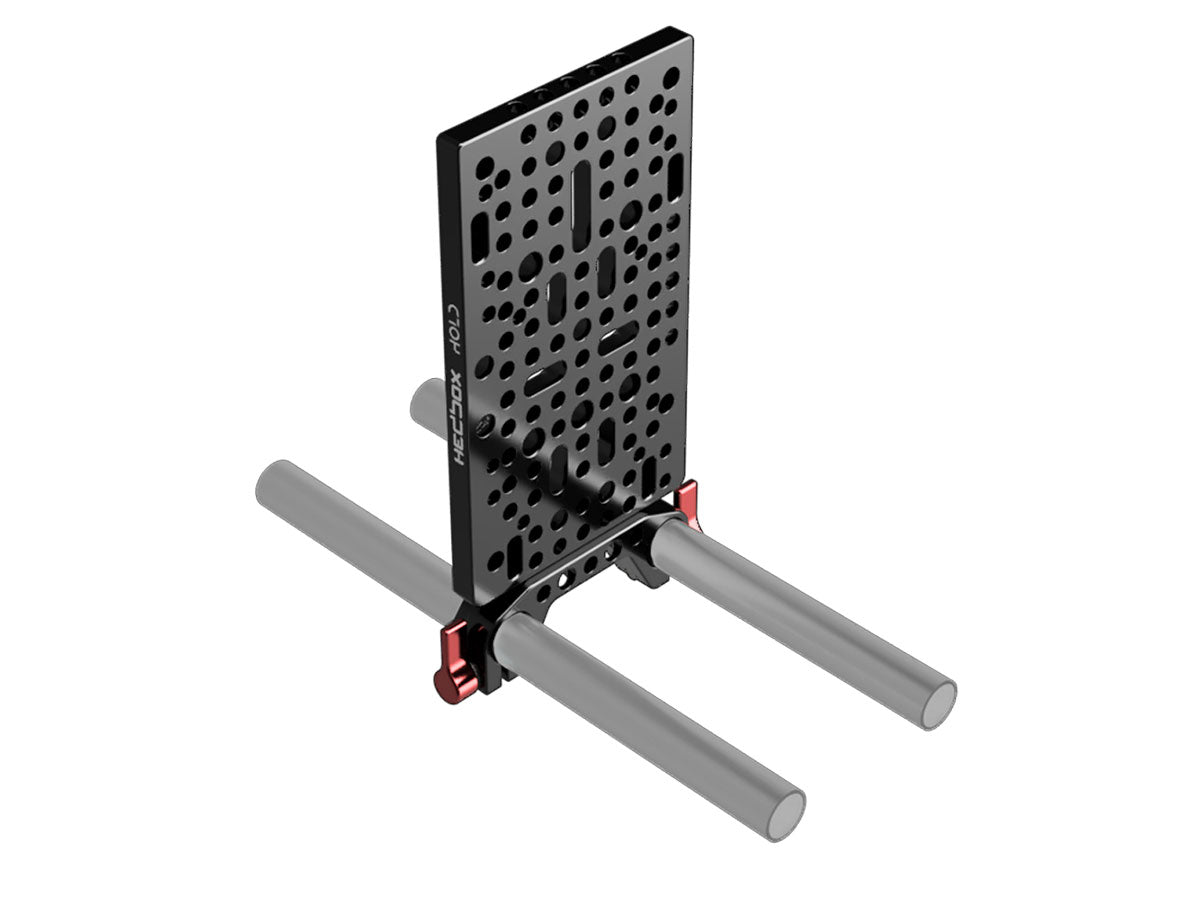

    HEDBOX HOLD II provides an option for mounting various support products onto your camera rig’s 15mm LWS rod system
    • 95x – 1/4″-20 threaded holes
    • 5x – 3/8″-16 threaded holes
    • 7x – Fly Holes
    • 13x – 1/4″-20 Side Mounting threaded holes
  • Incorporating multiple hole threads, the HOLD II is the perfect solution for your camera rig
  • Multiple 1/4″- 20 Side Mounting Threads - HEDBOX HOLD provides an option for mounting various Camera accessories on the side of the plate, thanks to multiple 1/4″- 20 Mounting Threads incorporated on the side of the plate
  • Bottom & Top 1/4″- 20 Mounting Threads - With 5 of 1/4″- 20 Mounting Threads on the bottom and 3 on the top HEDBOX HOLD provides an option for mounting a 15mm rod clamp that can be used onto your camera rig’s 15mm LWS rod system
Model: HOLD II Multipurpose Dur-Aluminium Alloy Cheese Plate
Battery Plate Mount: 4x M3 threaded holes / V-Mount ; Gold -Mount ; B-Mount
Support Mount A: 95x – 1/4″-20 threaded holes
Support Mount B: 5x – 3/8″-16 threaded holes
Support Mount C: 7x – Fly Holes
Side Mounting: 13x – 1/4″-20 threaded holes
Material: High-Quality Dur-Aluminium Alloy
Anodizing Colour: Black
Surface Treatment: Sand Blasting – Deep Anodizing
Mounting: Multiple mounting holes for universal Battery Plate connection
Dimensions: 5.6 x 0.32 x 3.2″ / 142 x 8 x 82 mm
Weight: 5.3 oz / 150 g
  • 1x HOLD II Aluminium Cheese Plate

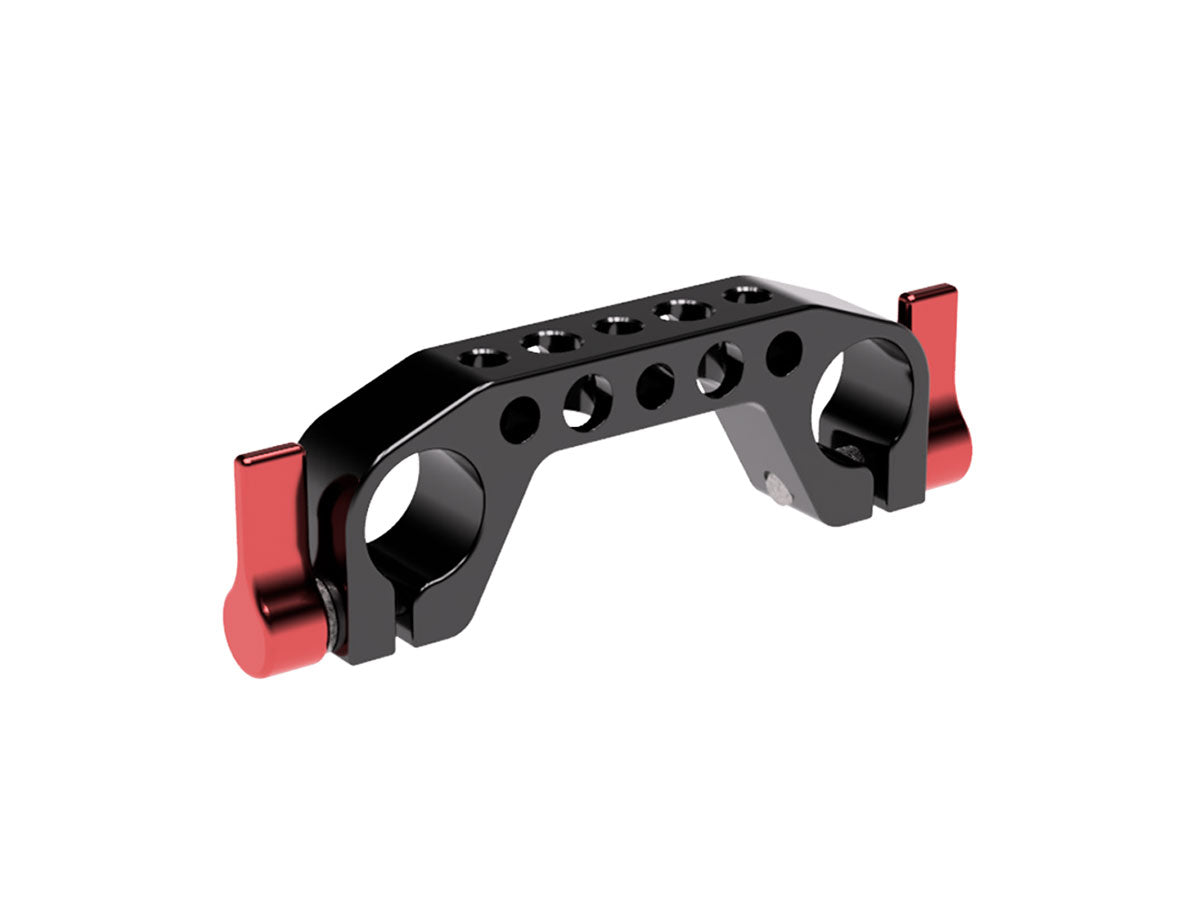

  • 1x ROD Clamp
  • 2x Red Color Rod Clamp Knobs
  • 1x 3/16" HEX Key
  • 2x 1/4" -20 Screw length 1/4"
  • 2x 1/4" -20 Screw length 3/4"
  • 1x M3x12 Set Screw (4pcs)
