Hedbox Dual LCD Battery Charger - V-Mount

Hedbox Dual LCD Battery Charger - V-Mount

SKU: HED-RPDC150V
£222.00 GBP ex VAT
£266.40 GBP inc VAT
ex VAT £222.00 GBP ex VAT
£266.40 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Hedbox HED-DC150V is an Intelligent Digital Dual LCD Battery Charger for V-Mount (V-Lock) Batteries featuring simultaneous charging and UPS/Power Bank capabilities. LCD status indicators with backlight provides clear, accurate and precise reporting while integrated support stands ensure stable operation when only one battery is mounted. The included 4-pin XLR female to male DC Power Cable (RPC-DC4X4) enables the HED-DC150V to be used as a Power Bank, providing power to the DC output from the AC-input or fitted V-Lok batteries. DC output power of up to 14.5V 4.5A 75W is available.

When running as a Power Bank should the AC-input fail then power to the DC is seamlessly switched to a fitted battery, and then to the second battery upon depletion of the first battery.

  • 2-CH Simultaneous Charger - The HED-DC150V digital dual LCD battery charger conveniently charges two professional batteries simultaneously. Using the latest battery charging technologies, with zero-volt charging activation, allows you to charge two batteries at the same time saving you both time and money.
  • Charging Technology - Intelligent charging systems integrate the control systems within the charger and the electronics within the battery to allow precision control over the charging process. As a safety precaution with high-capacity batteries, a pre-charging stage (trickle charge) is used. Constant current/constant voltage (CC/CV) charging mode is an effective way to charge lithium batteries. It is used to charge the battery from 0% to 80%. When the batter is charged to 80%, impulse voltage charging takes over until the battery reaches 100%. Charger CPU automatically adjusts charging current to be lower than the max charging current that the battery can accept. When the battery is fully charged, this state is stopped.

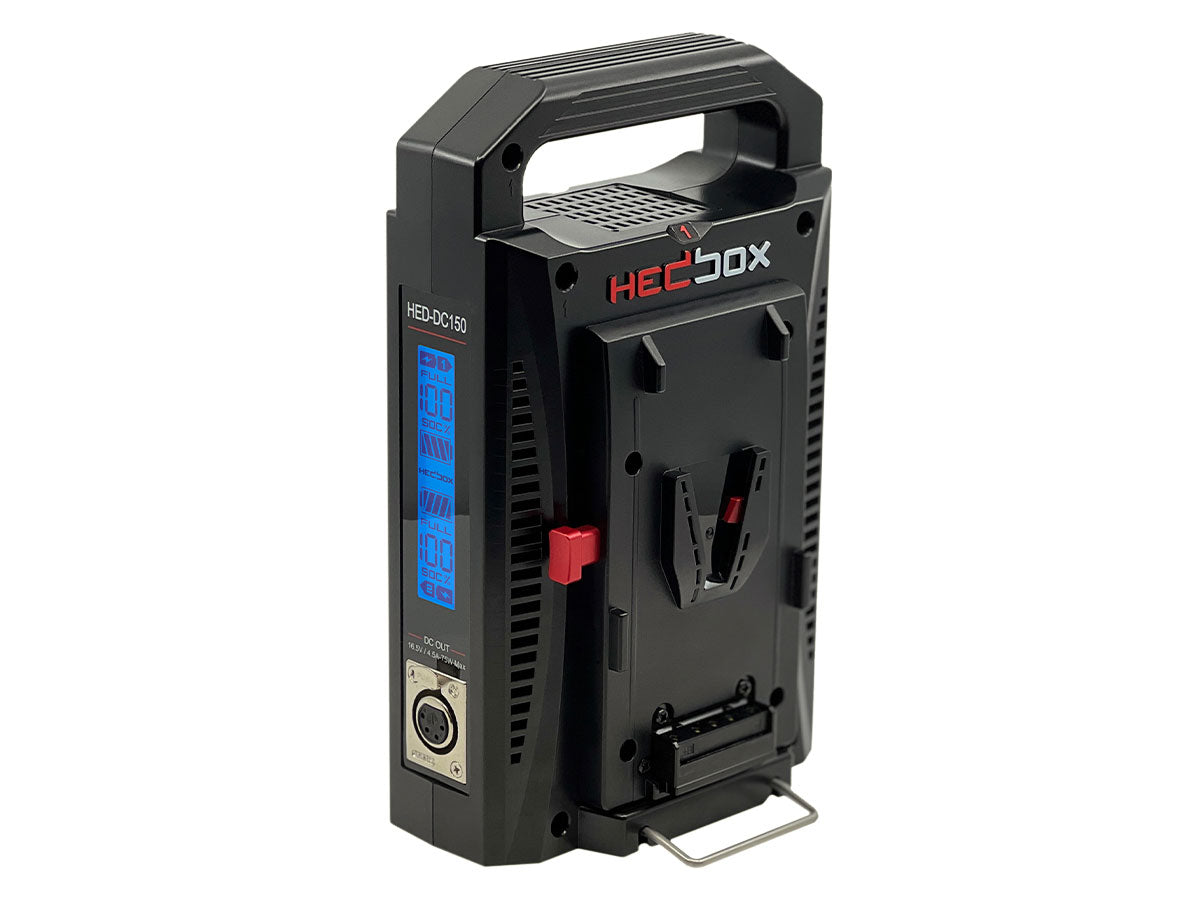

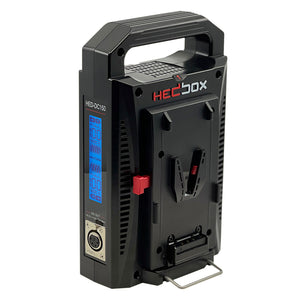

  • LCD Backlight Display Screen - LCD display provides clear, accurate, and precise display of power status, charging status, battery channel status, and power bank mode. Displayed charging mode provides a clear insight into the way in which the charging mode is used to charge your professional battery. With a bright and intense blue backlight, the readout function is enabled in the dark.
  • Integrated Locking Support Stand - The HED-DC150V is equipped with extra support stands making it easy to operate. The support stands provide extra stability while charging only one battery.
  • Power Bank Mode - The HED-DC150V can easily become a very powerful power bank if used with a specially designed Hedbox professional high flexibility power cable RPC-DC4X4-4-pin XLR female to male (included in the box). The power output is DC14.5V/4.5A, 75W and the capacity depends on the batteries used.For this application use the cable: RPC-DC4X4 / 4-Pin XLR Male to Female Plug.
  • DC Out 16.5V, 4.5A / 75W - With a 4-pin XLR female connector on the front panel, the HED-DC150V provides extra DC output for supplying constant power to external units like professional camcorders, video monitors, LED lights and other professional broadcast products. Connected with specially designed Hedbox professional high flexibility power cable RPC-DC4X4-4pin XLR female to male (included in the box), the charger can be used as an AC-DC adaptor of DC 14.5V/4.5A, 75W output.
Model: HED-DC150V Intelligent Dual Digital Professional Battery Charger
AC Power In: AC 110 – 240V, 50/60Hz
Battery Mount: V-Lock and V Mount Battery Plate
Power Consumption: Max 85W
Power Output 1: DC 16.8V / 3A Single Channel / 2.4A Dual Channel Charge
Power Output 2: DC 16.8V / 3A Single Channel / 2.4A Dual Channel Charge
DC Power Out: DC 16.5V, 4.5A / 75W (max)
Power Bank Out: DC 16.5V, 4.5A / 75W (Capacity depends on the total capacity of the installed Battery Packs)
Charging Type: Ni-CD, Ni-MH, Li-Ion
Operating Temperature: –20°C to +45°C (–4°F to +113°F)
Charging Method: RP-DC150V uses an advanced mix of Constant Current and Impulse Voltage charging Methods
Dimensions: 124 x 114 x 445 mm
Weight: 1.2 Kg
  • 1x HED-DC150V INTELLIGENT DIGITAL DUAL LCD BATTERY CHARGER
  • 1x RPC-DC4X4 DC 4-PIN XLR POWER CABLE
  • 1x 110V ~ 240V POWER SUPPLY CABLE
  • 1x USER MANUAL (ENGLISH)
  • 1x 2 YEAR LIMITED MANUFACTURER'S WARRANTY
