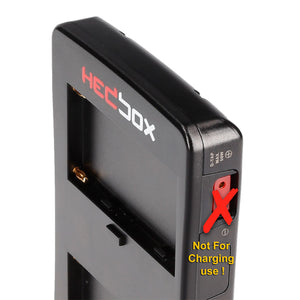

Hedbox Adaptor Plate (2X Sony NP-F)

Hedbox Adaptor Plate (2X Sony NP-F)

SKU: HED-HBPNPF
£31.00 GBP ex VAT
£37.20 GBP inc VAT
ex VAT £31.00 GBP ex VAT
£37.20 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

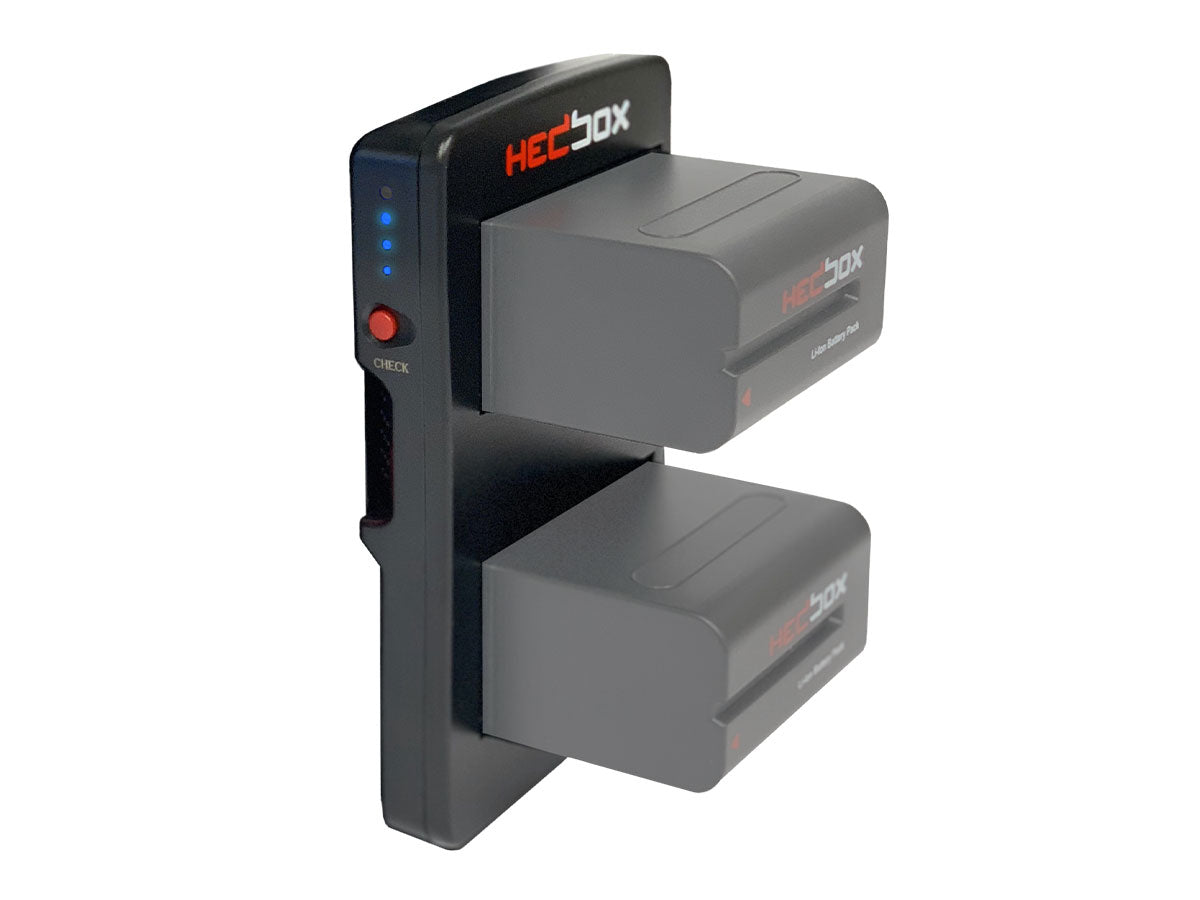

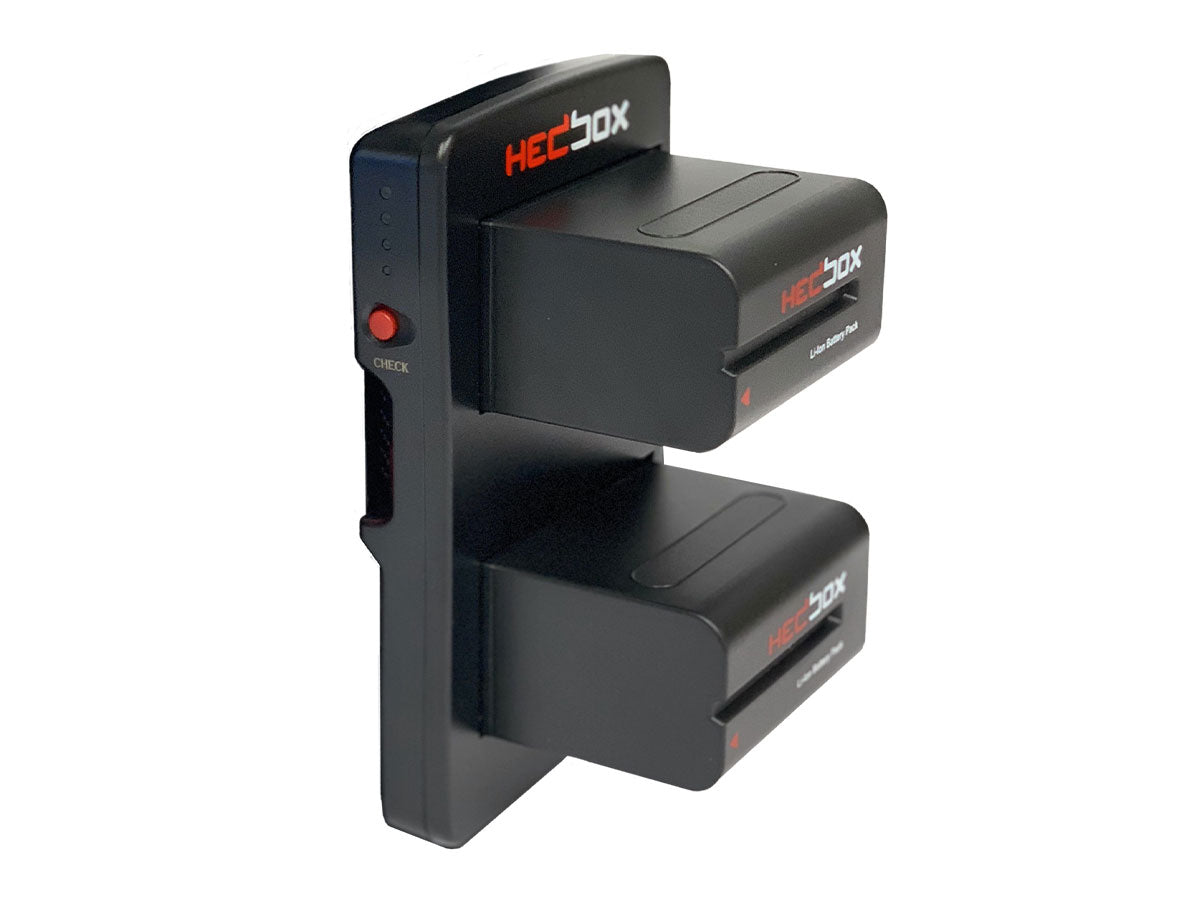

The HBP-NPF V-lock DV NP-F battery converter power adapter plate is the right choice for the video and photo professional. The HBP-NPF converts two DV F series 7.2V batteries into a 14.4V V-Mount battery. With an extra D-tap 14.8V/50W DC power output, it can deliver 14.4V 72W/8A to all professional external devices. Upon the press of a button, the built in 4-LED power indicator displays the remaining battery percentage at 100%, 75%, 50%, or 25%.

  • Use Standard Two 7.2V NP-F Style Battery Pack to Make V-Lock - Cost Effective solution for Professional Broadcast Camcorders, HBP-NPF allows you to power any V-Mount Professional Broadcast Camcorder with two standard high-capacity L-series or NP-F Batteries. With this solution, you will be able to replace usually high cost Processional V-lock batteries, 14.8V, which are the standard to power all Professional Broadcast Camcorders worldwide. The combined voltage of the two L-series or NP-F Batteries make 14.4V ~ 14.8V, which is the standard output power of a V-Mount battery pack that is used by all professional broadcast camcorders worldwide

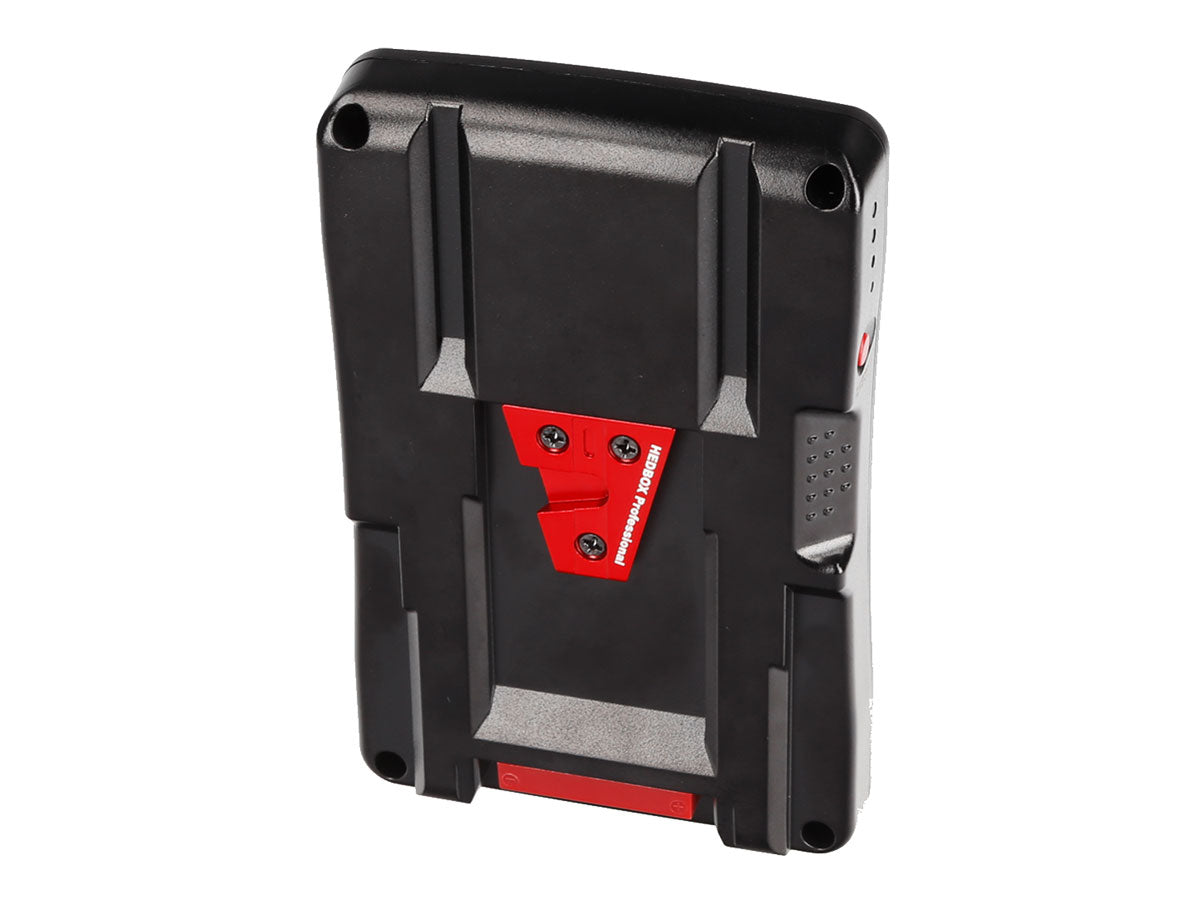

  • V-Mount Connection Holder - HBP-NPF has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure for safe and reliable mounting

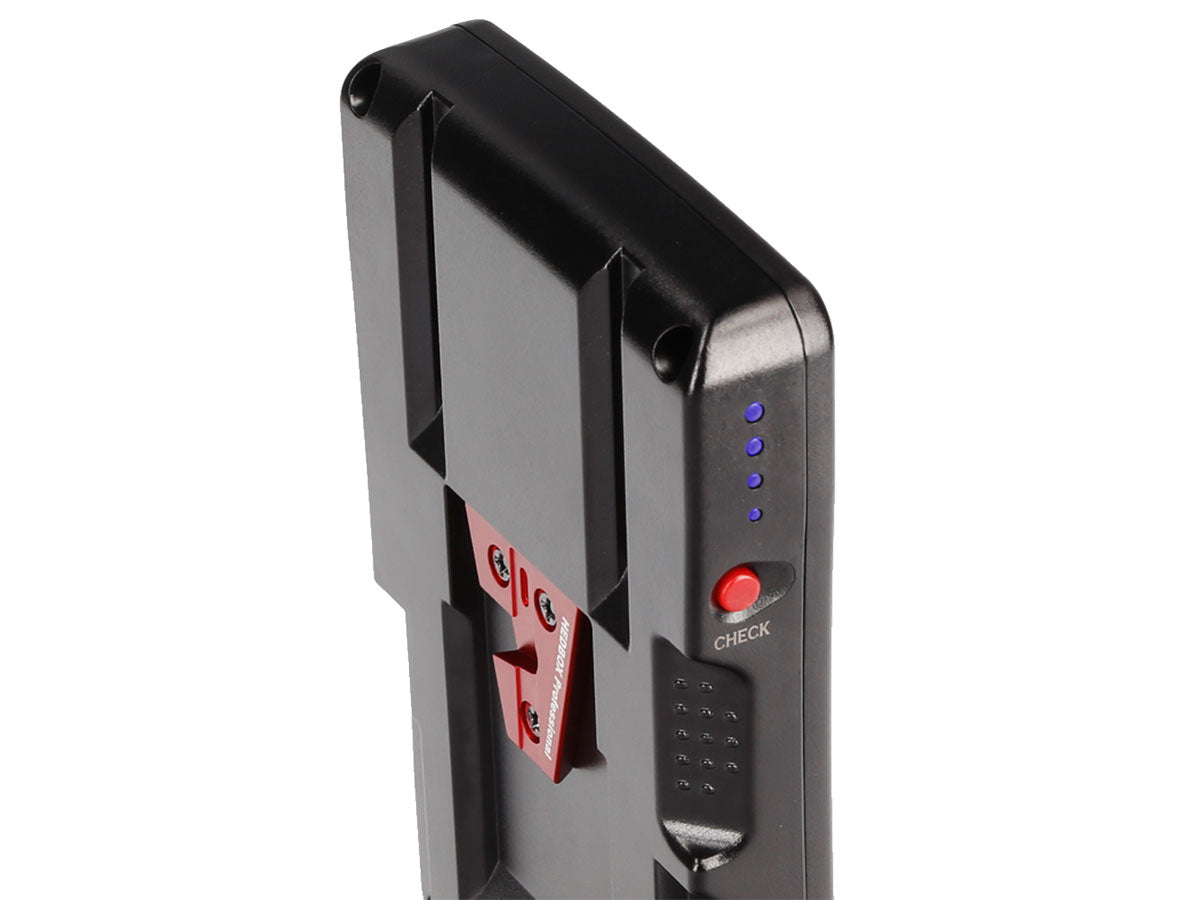

  • 4-LED Power Monitor Indicator - HBP-NPF V-Lock battery converter contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.

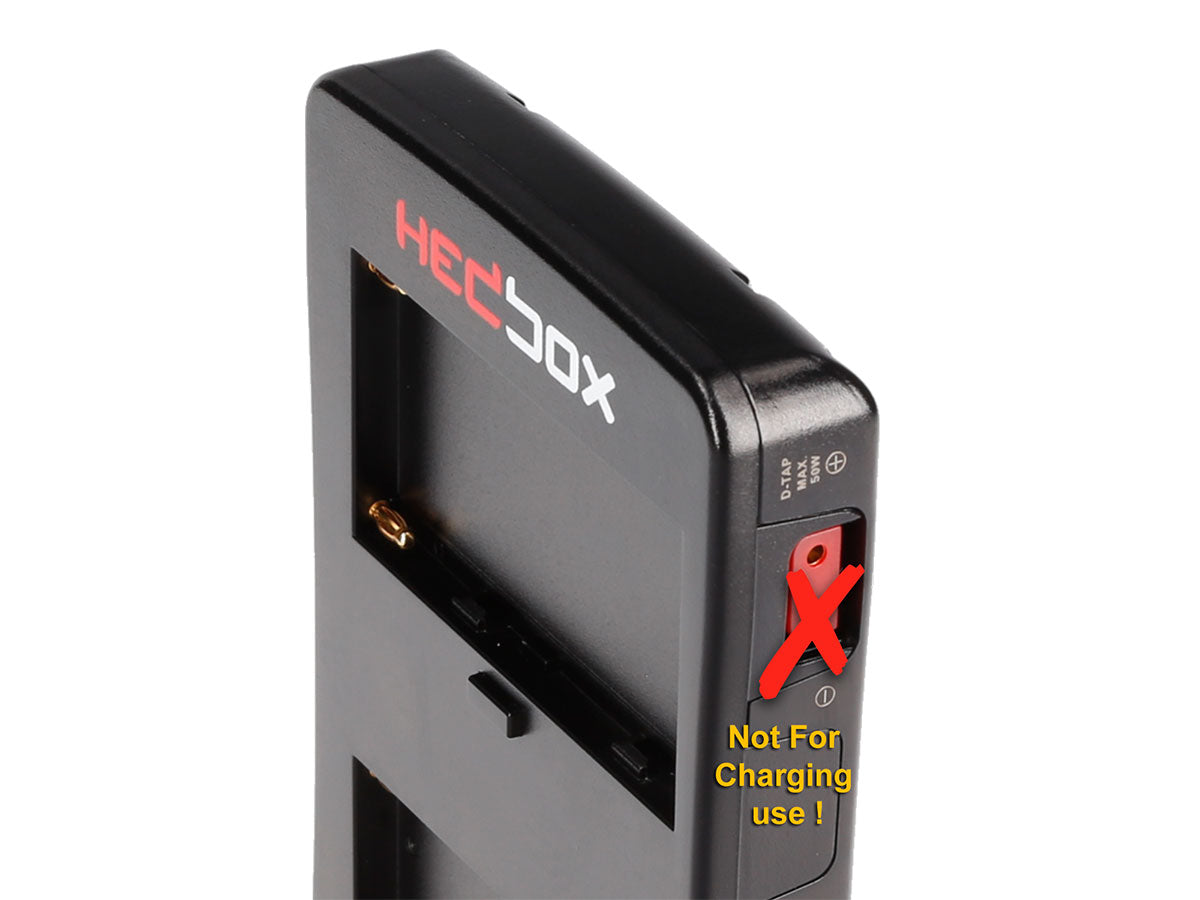

  • Built-in D-tap Output 14.8V 72W, 6A - A D-tap DC output socket is equipped on the side of the HBP-NPF battery pack. With this external power supply facility, you can connect an on-camera LED light, video monitor, wireless transmitter or digital recorder, and get simultaneous power with the battery attached to the camera, or separately as an independent power station. The max power from the D-tap is 72W, 6A
Model: HBP-NPF V-lock DV NP-F Battery Converter Power Adapter Plate
Mount Type: V-Lock (High Quality Aluminium Alloy wedge plate)

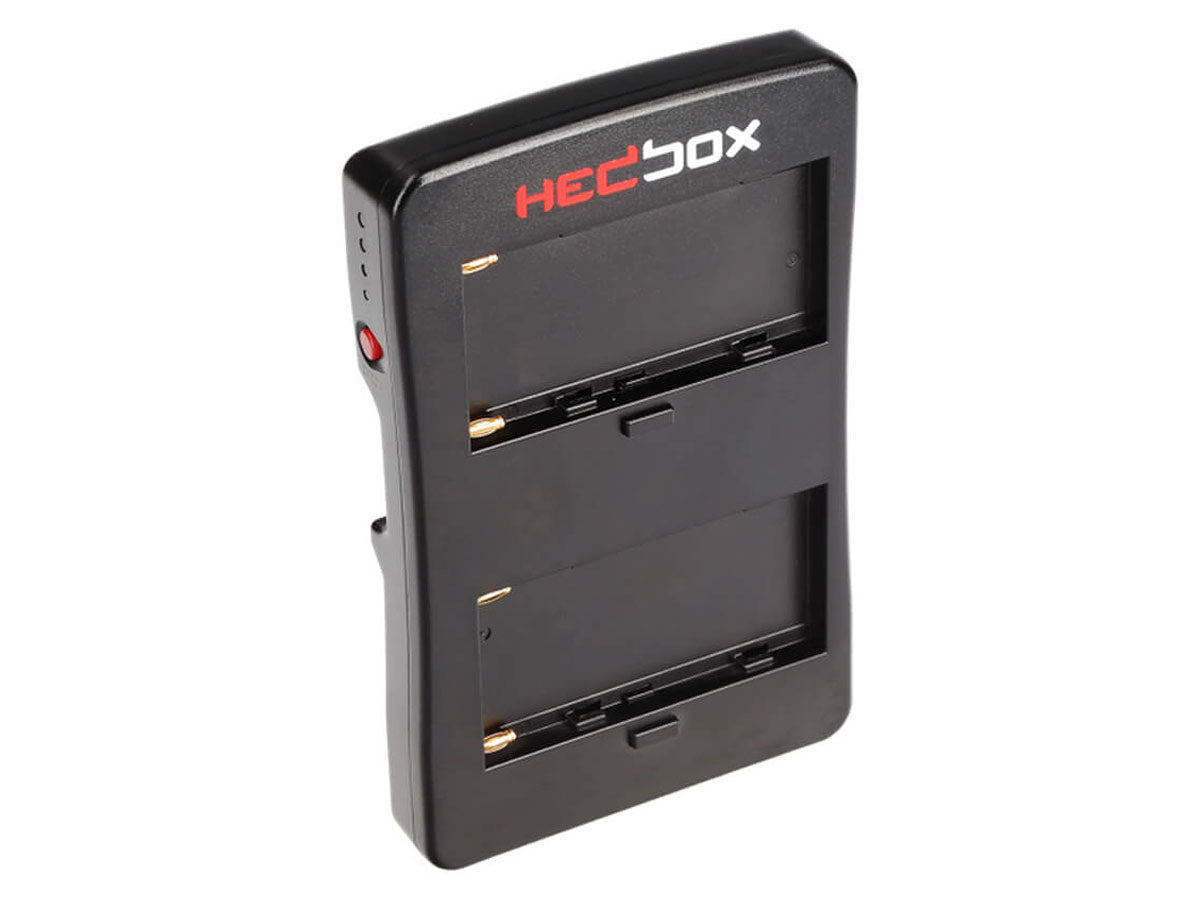

DV Battery Slots: 2 x Sony NP-F Style Battery
Output Voltage: DC 13 – 14.8V , 5A / 72W (max)
Supported Voltage: DC 7.2 – 7.6V
Supported Capacity: From 1400mAh to 20000mAh
D-Tap DC Output: 14.8V / 3.5A / 50W (max)
Power Meter: Blue Color 4-LED Power Monitor (Display 100%, 75%, 50%, or 25% bat. capacity)
Operating Temperature: –20°C to +45°C (–4°F to +113°F)
Operational Method: Mount 2 x DV Sony NPF Style battery to generate 14.8V / 5A V-lock mount DC Power
Dimensions: 96 x 22 x 151 mm
Weight: 140g
  • 1x HBP-NPF BATTERY ADAPER PLATE
  • 1x USER MANUAL (ENGLISH)
  • 1x 2 YEAR LIMITED MANUFACTURER'S WARRANTY
