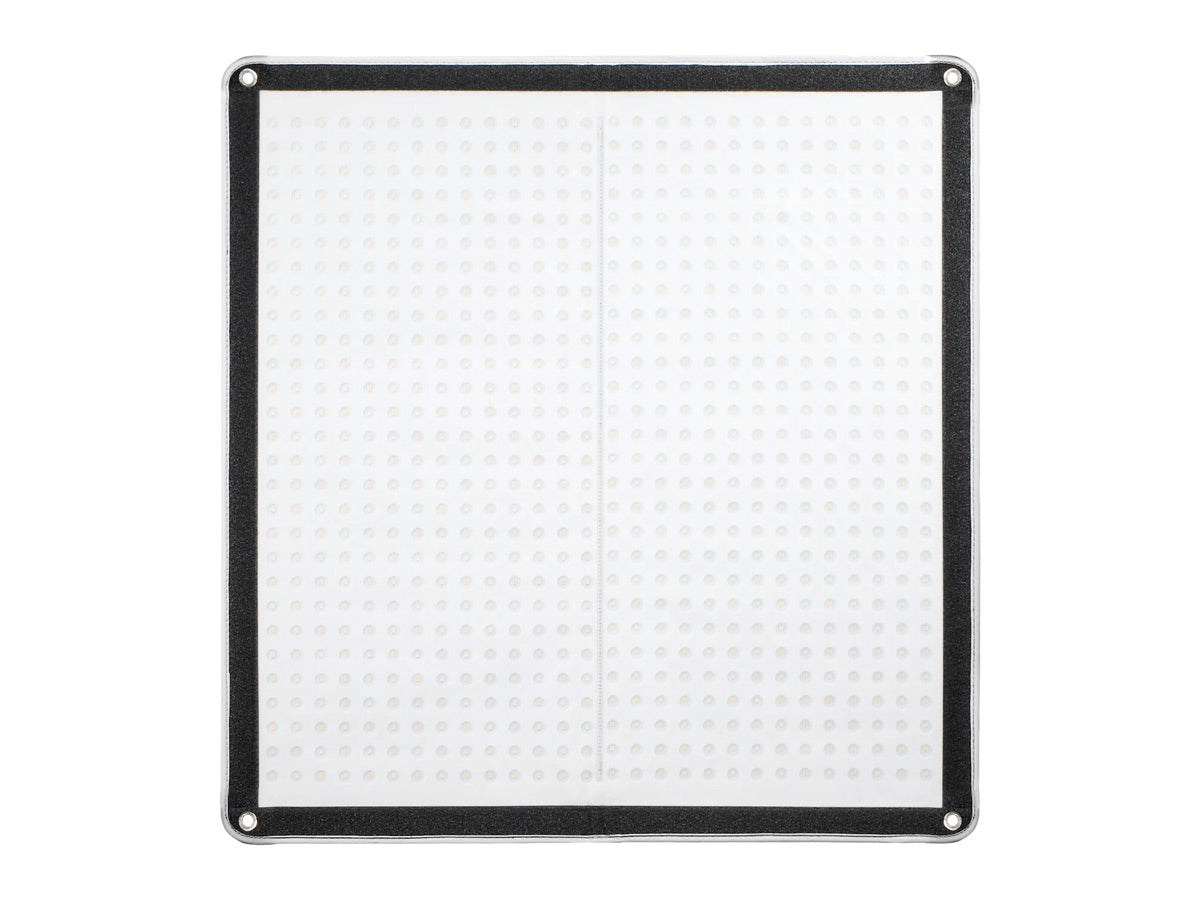

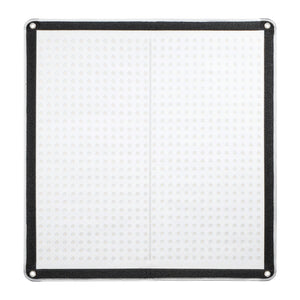

Godox F200BI Knowled Flexible LED Light - 60x60cm

Godox F200BI Knowled Flexible LED Light - 60x60cm

SKU: GOD-GD-F200BI
Regular price £500.00 GBP ex VAT
£600.00 GBP inc VAT
Regular price ex VAT Sale price £500.00 GBP ex VAT
£600.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

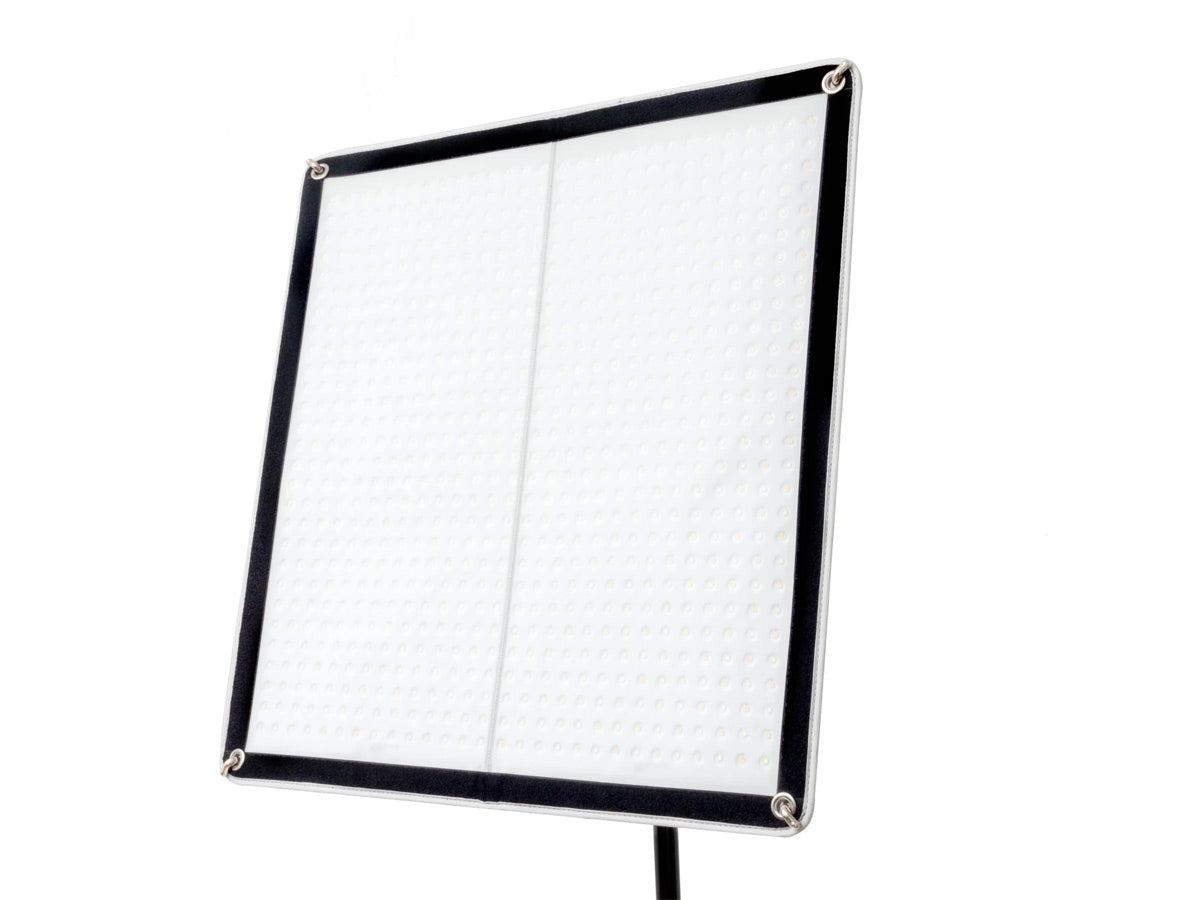

The Godox F200Bi is a high-powered bi-colour foldable LED light mat panel that has been specially designed to fit the needs of the film and television industry. This 200W LED features an ultra-slim profile, and flexible design, allowing it to be placed in positions that are either very difficult or impossible for regular video light fixtures. It has a CRI and TLCI of ≥96 for impeccable colour rendition. It supports Industry-Standard DMX512 control protocol, as well as Godox’s own RC-R9 2.4GHz Wireless Remote and Bluetooth enabling it to be used with the Godox Light App. ideal for large productions. The Godox F200Bi waterproof LED mat light is perfect for large-scale Film and TV productions, and Broadcasting and Commercial Video productions.
Complete Flexibility with Your Lighting

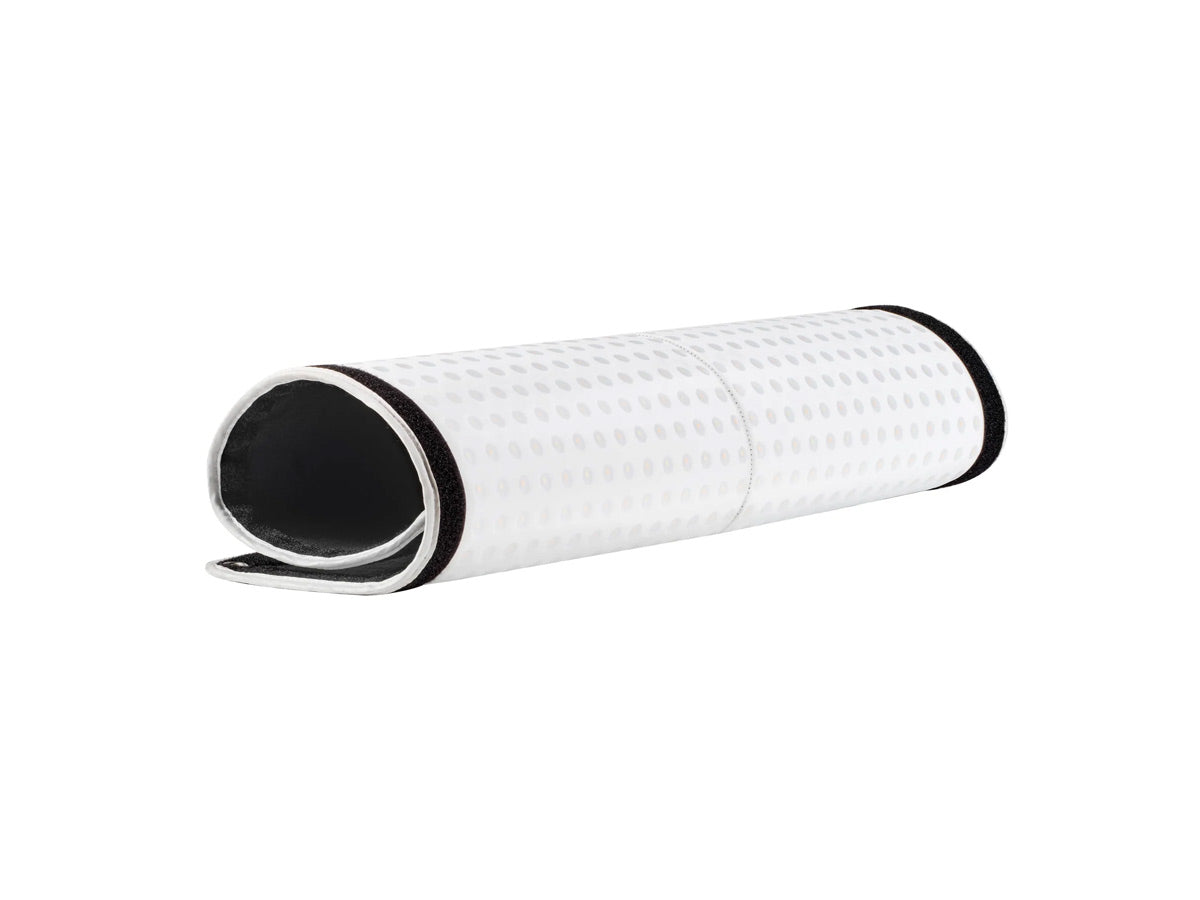

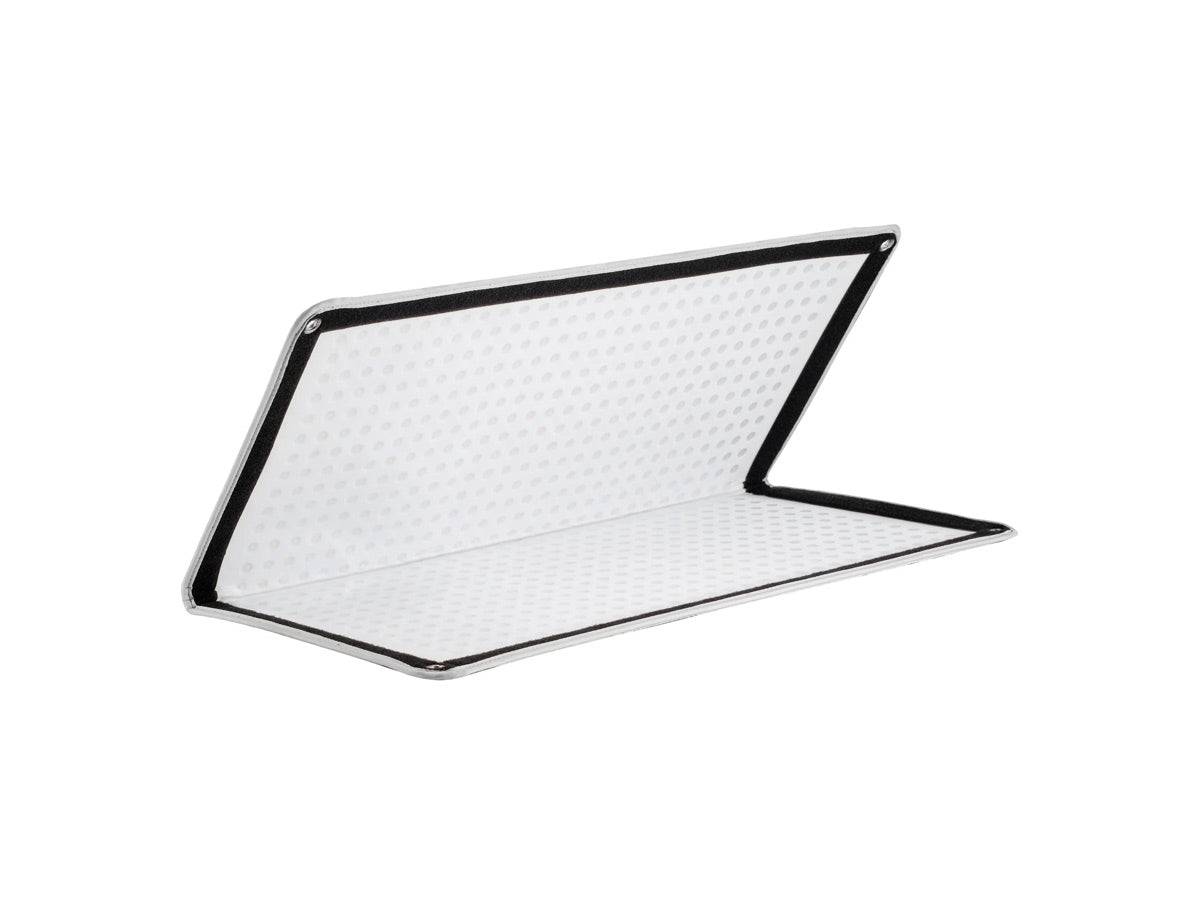

One of the key features of the Godox F200Bi flexible LED mat light is its foldable design. When opened, it becomes a large 60x60cm light source, producing soft even lighting, even without a softbox (sold separately). When not in use it can be folded down to a fraction of its full size, for portability. It can also be placed in positions that would be very difficult or impossible for other light fixtures, giving you added flexibility.
IP65 Water-Resistance
The KNOWLED F200Bi foldable LED light mat panel is IP65 certified. This means that it is weather resistant, enabling it to be comfortably used in weather conditions such as rain or fog, etc. (PLEASE NOTE: The Controller Box is NOT IP65 Water-resistant).
Perfect Practical Lighting
Due to their ultra-thin profile, the Knowled F200Bi foldable LED light panel is perfect for illuminating your subject(s) with soft lighting, in spaces that are either impractical or impossible with traditional Video light fixtures. They can be used in places such as the ceiling of car interiors, in cramped spaces places where there isn’t a lot of room for light stands such as the interior of a train, or as lightweight overhead lighting when shooting either indoors or outdoors.
Unrivalled Colour Accuracy
The Godox F200Bi foldable LED light mat has a CRI (Colour Rendition Index) of ≥96 and a TLCI (Television Lighting Consistency Index) of ≥96. This means that the Godox F200Bi will render colours accurately making it ideal for broadcast usage. Perfect for illuminating, tv studios, and movie sets.
Scientific Dimming Curves.
The KNOWLED F200Bi LED mat light gives you the option of four dimming curves, enabling the way that you adjust your lighting just the way you like. You can select between a Linear, S-Curve, an Exponential Curve, or a Logarithmic Curve, rendering the best lighting effects, in the shortest amount of time.
Slow-Motion? No Problem.
The Godox F200Bi LED mat panel light provides industry-leading reliability with flicker-free performance at any frame rate or shutter angle, and at any intensity level, making it ideal for filming slow-motion shots.
Industry Standard Control Protocols
The F200Bi flexible LED mat light supports a wide range of international Industry-standard control methods, making it easy to integrate into your current work pipeline. It supports DMX512 (via a 5-pin XLR connection) control protocol, which enables you to control a single unit or multiple units from a DMX control console.
LumenRadio CRMX Control system is also available when used with the TimoLink Receiver (Sold Separately). This makes the Godox F200Bi flexible LED mat light perfect for large film and television productions that are filming in large studio spaces. CRMX compatibility also means these lights will be compatible with the LumiAir App, Blackout Lighting Software, and the MadMapper App.
Other Control Options
As well as the industry standard control protocols, the Godox F200Bi also features a built-in 2.4GHz wireless control receiver, enabling it to be used with the Godox RC-R9 Remote (sold separately). It also features Bluetooth support enabling it to be used with the Godox Light App.
High-Quality X-Frame

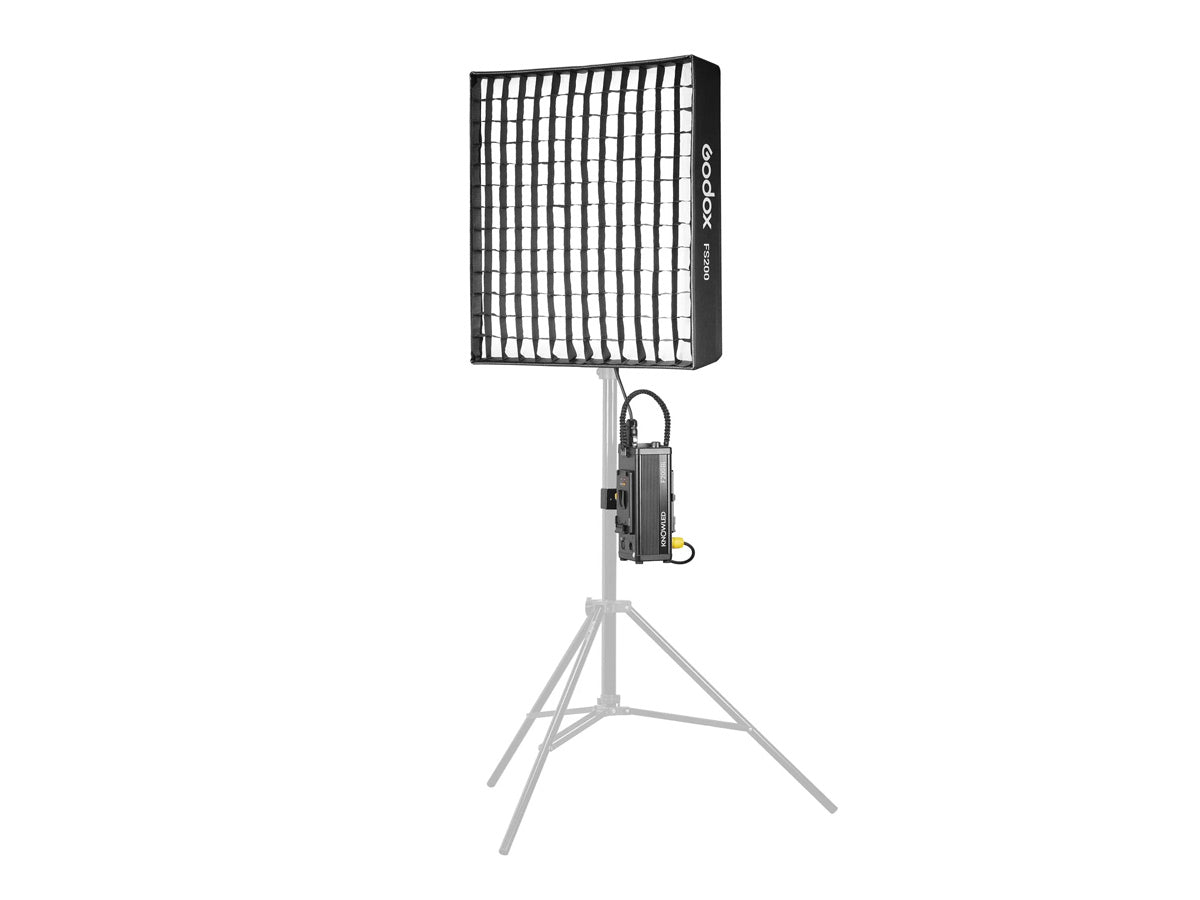

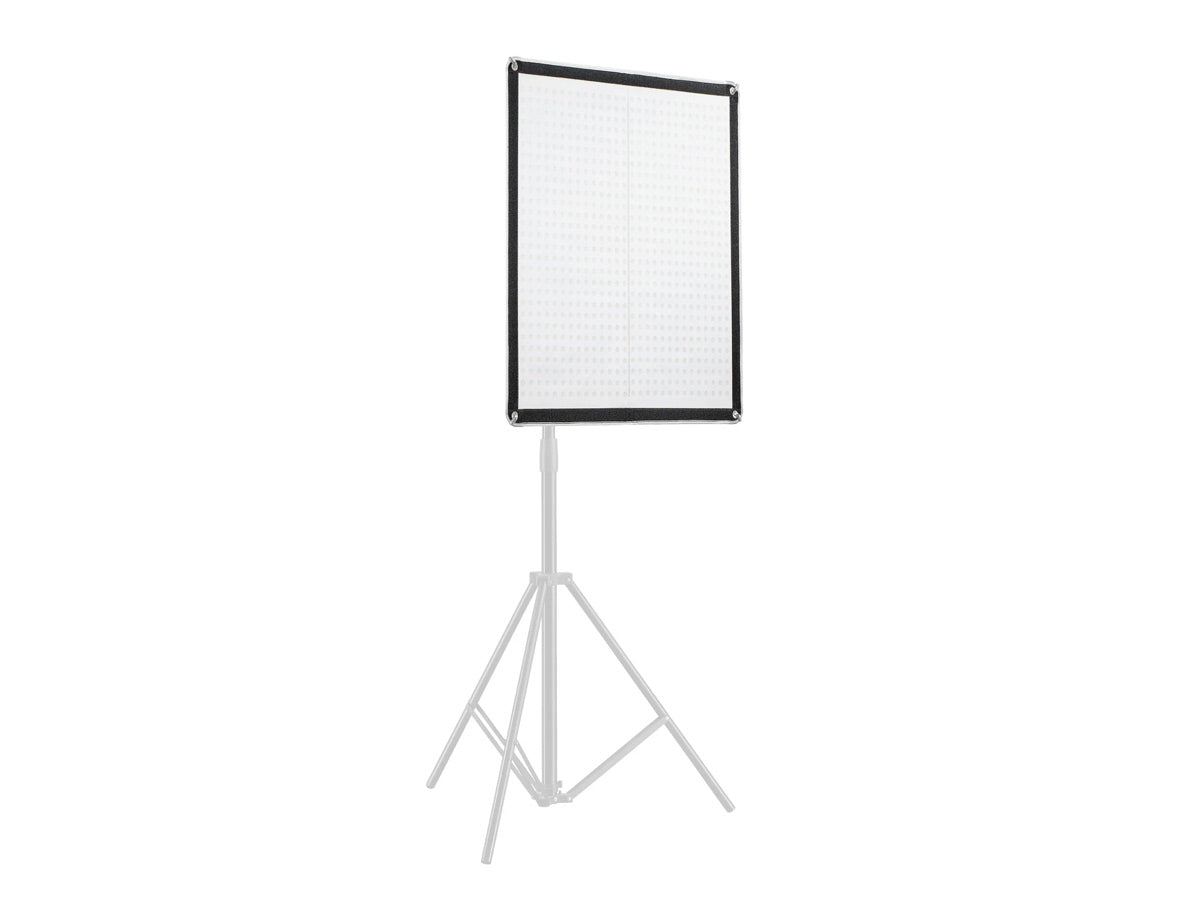

The Godox F200Bi LED mat light comes with a high-quality aluminium-alloy X-Frame, which enables you to mount the light to a regular light stand.
More sizes and options are available
GODOX Knowled LED mat light series comes in various sizes and powers, perfect for different scenes and sets.
The Godox F200BI foldable LED panel mat light is the perfect Broadcasting, Corporate video, YouTube, Cinematography, Chroma Key green screen as well as for photography. Whether you’re a seasoned professional or an enthusiast, you can’t really go wrong with the F200Bi bi-colour LED mat.
  • IP65 Water Resistance
  • Full 200W Power across the colour temperature Range
  • Flicker-Free
  • CRI 96+, TLCI96+
  • DMX Support, 2.4GHz Remote Control, and On-Board Control
  • CRMX Support with Optional TimoLink Receiver (Sold Separately)
  • Linear/S-Curve/Logarithmic/Exponential Dimming Curve.
  • Record up to 20 pre-sets
  • Foldable Design
Max. Power Output: 200W
Colour Temperature Range: 2700-8500K
Brightness (Lux): 1130 @3m (5600K)
CRI: ≥96
TLCI: ≥96
Beam Angle: 120°
DMX 512 Support: Yes (Via a 5-Pin XMR connector
CRMX Support: Yes (with TimoLink RX)
Stand Mount: 5/8" (16mm) Spigot/Stud (Can be used with 1-1/8" (28mm) Junior Pin if the Wingnut is removed)
Light Body Dimensions: 650mm x 631mm x 29mm
Controller Dimensions: 124mm x 132mm x 270mm
Light Body Net. Weight: 1.83kg (Including X-Bracket)
Controller Box Net. Weight: 2.77kg
Box Weight: 10.45kg
Box Dimensions: ≈75cm x ≈39cm x ≈20cm

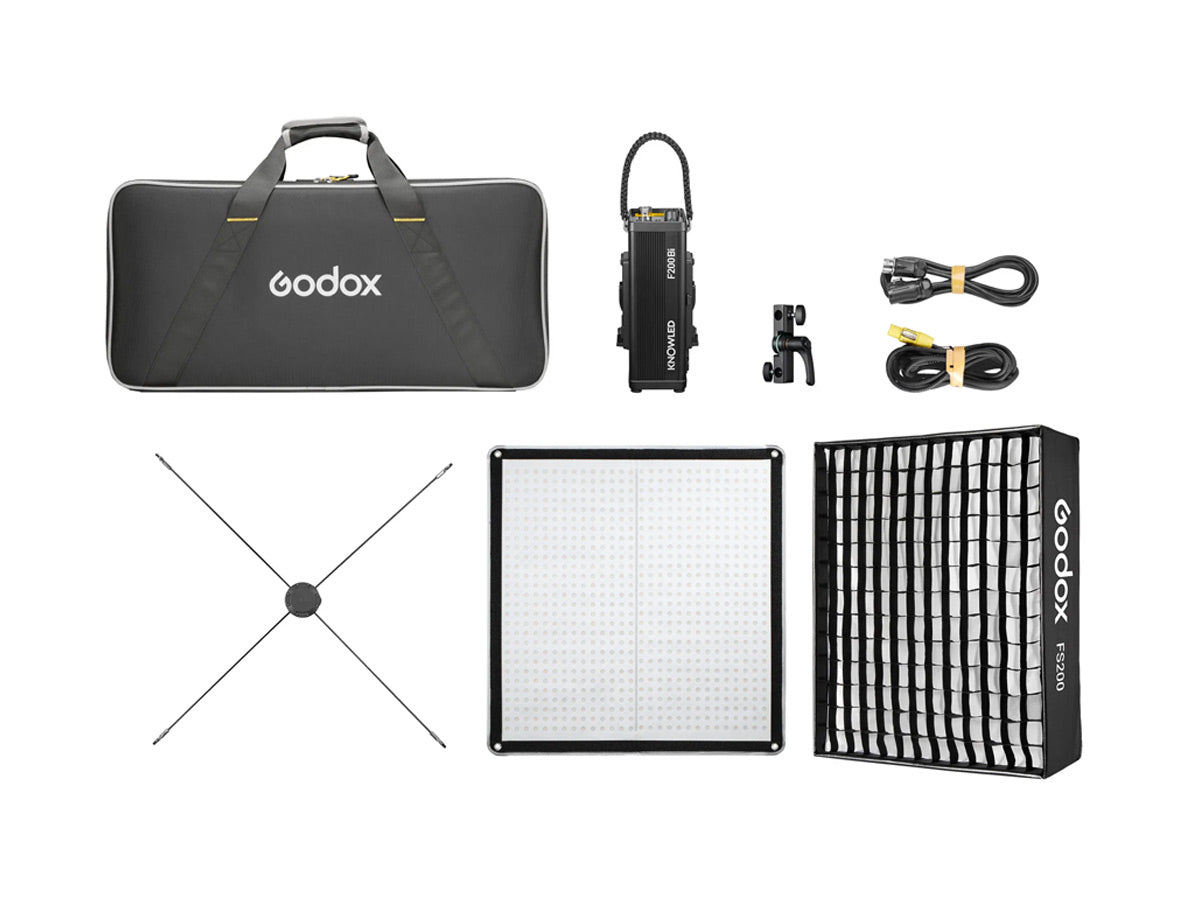

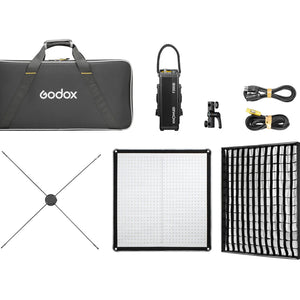

  • 1x KNOWLED F200Bi Panel

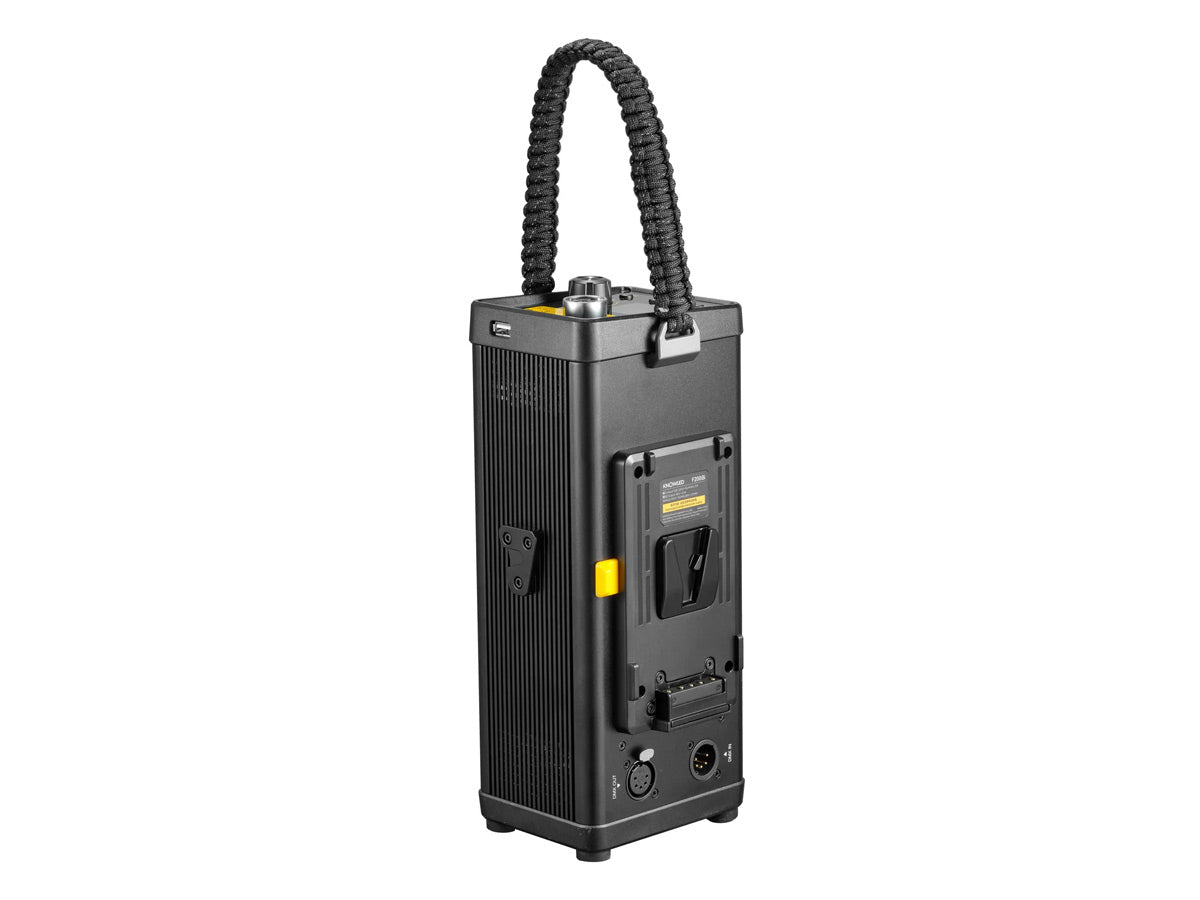

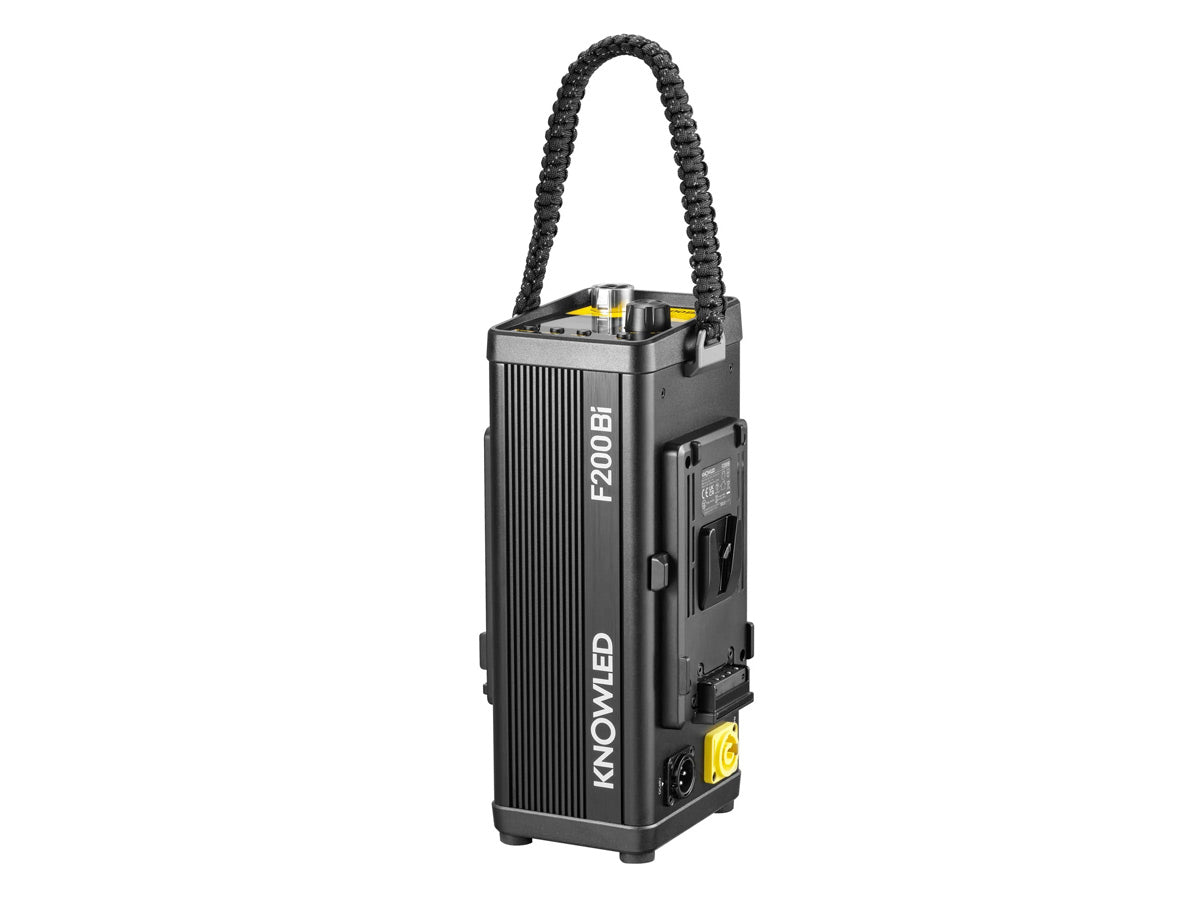

  • 1x Controller Box
  • 1x X-Bracket
  • 1x 3m Connection Cable
  • 1x 5m Power Cable

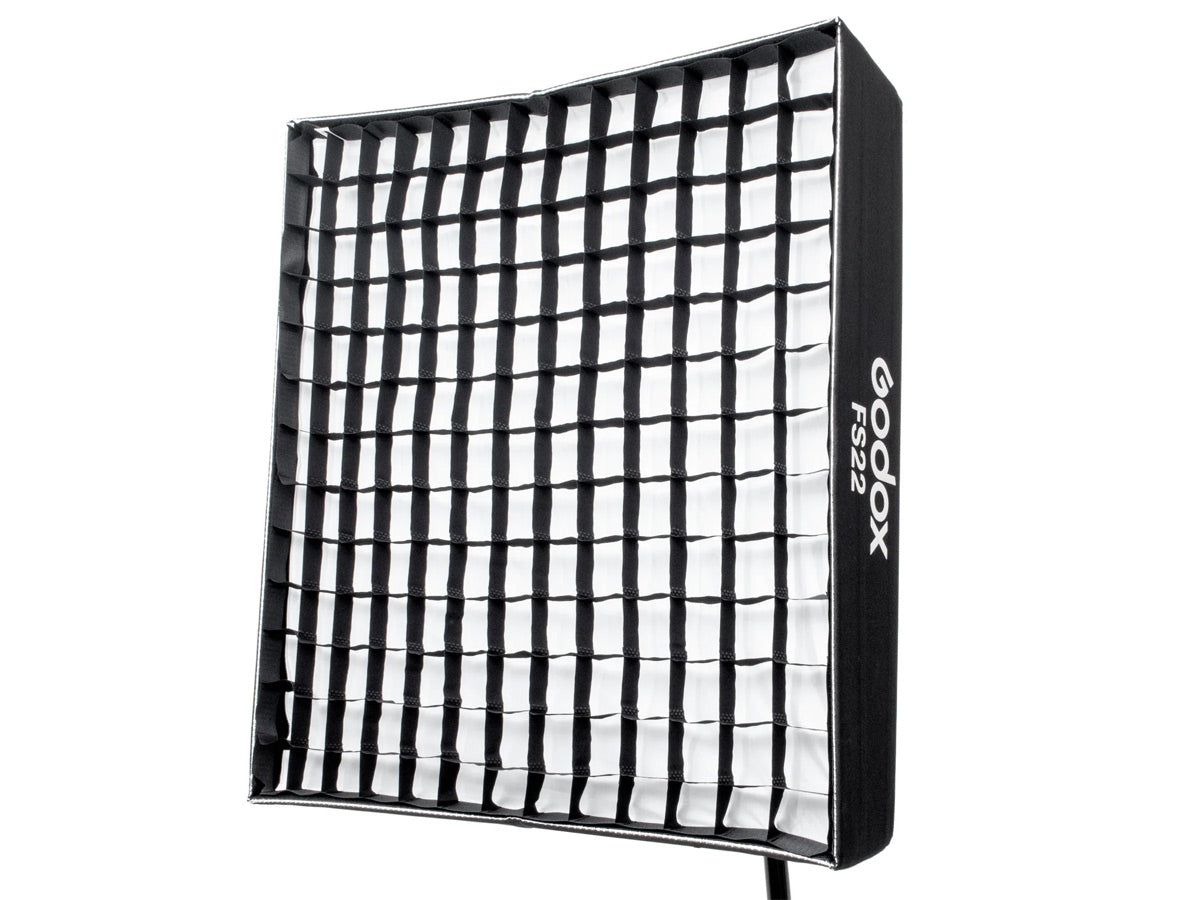

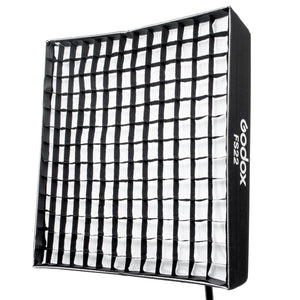

  • 1x FS200Bi Softbox With Grid
  • 1x Adapter Holder
  • 1x CB87 Carry Bag
