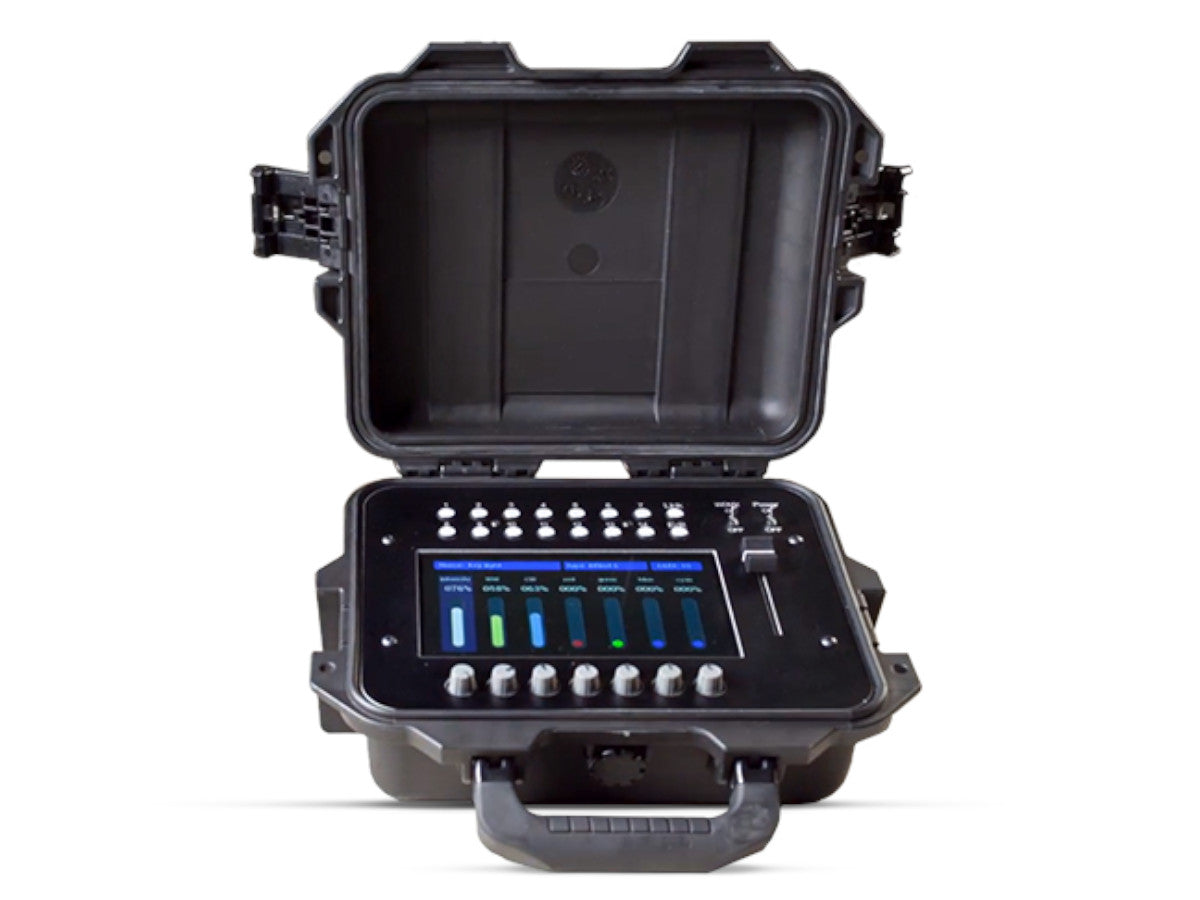

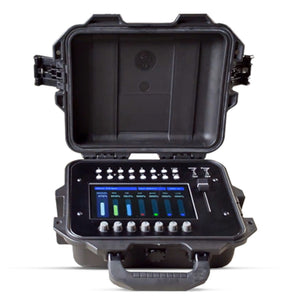

Gaffers Control 28-V2

Gaffers Control is an all in one DMX console in StormCase™ casing with a 7” capacitive touch screen of 800 x 480 pixels. Gaffers Control has an integrated CRMX LumenRadio™ transmitter, Lithium-ion 70 W/h battery which can last up to 10 hours during operation. Also included is a DMX library with the ability to programme up to 14 addressable banks/512 DMX addresses

Master setting is made via linear potentiometer with a parameter setting via touch screen or buttons

DMX outputs on XLR 5Pin

NEW FEATURES

• 28 Fixture banks with each 4 fader pages (max 512ch) instead of 14 Fixture banks with 2 fader pages
• 6 recordable scenes
• scenes can be easily controlled and adjusted in the cue page with individual fade times
• Scenes can be played in a loop
• Max 256 steps in a look up instead of 200 stepsIntensity channels also get 256 steps instead of 101 (0-100%) firmware and library updates with USB stick
• Possibility to save shows on a USB stick

FUNCTIONS

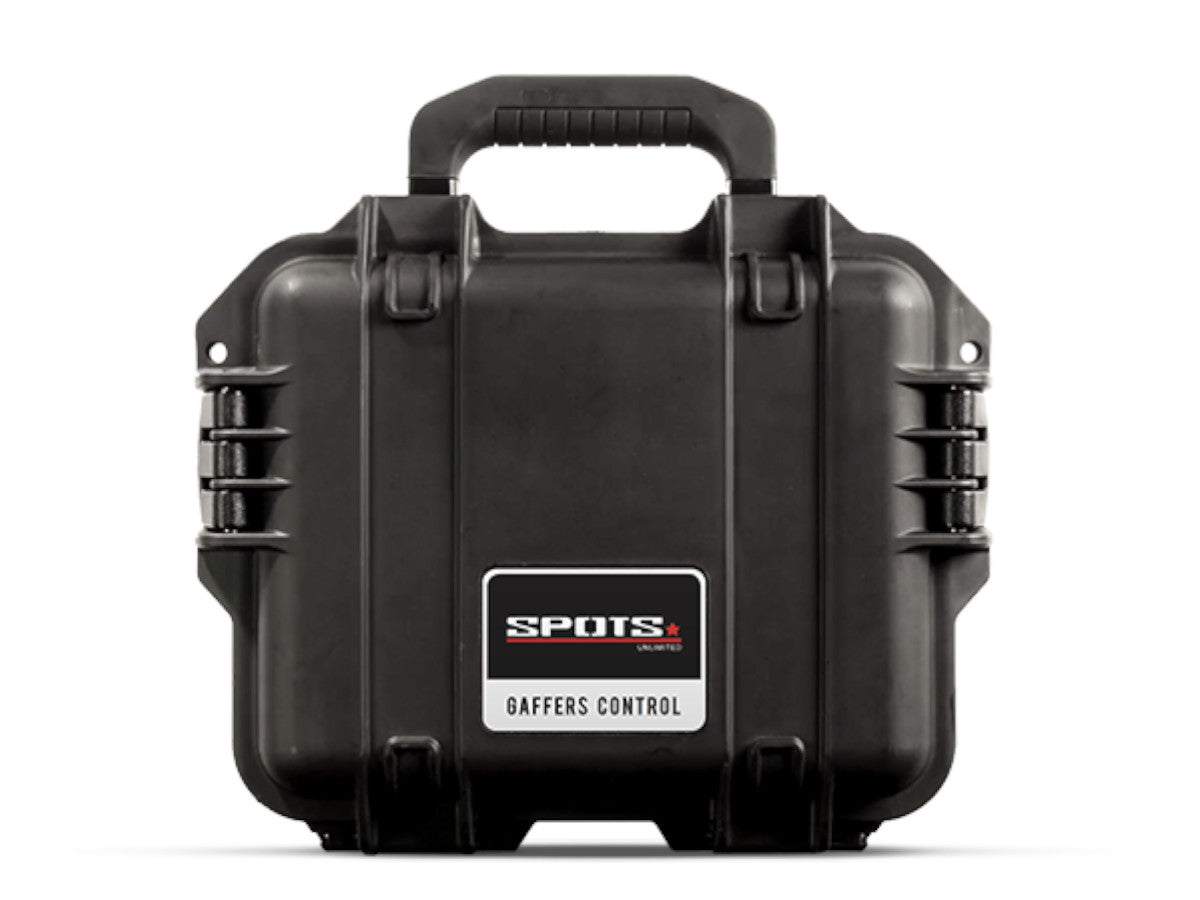

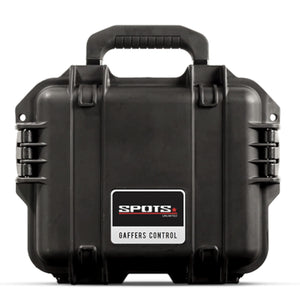

• “All-in-one” DMX console in StormCase™ casing
• 7” capacitive touch screen 800×480 pixels
• Integrated CRMX LumenRadio™ transmitter
• Integrated Lithium-ion 70 W/h battery
• 14 addressable banks/512 DMX addresses
• Integrated DMX library
  • Including:
    Arri, BB&S, Creamsource, Cineo, DMG, Astera, Quasar science, Carpetlight, Litegear, Kino Flo, Litepanels, Dedolight, Alladin, Rotolight, clay paky, luxli and more….
• Update of DMX library via USB
• Master setting via linear potentiometer
• Parameter setting via touch screen or buttons
• DMX outputs on XLR 5Pin
• Duration of operation on battery: up to 10 hours.
