Fomex FC-600 - Flexible Colour LED Light Kit

Fomex FC-600 - Flexible Colour LED Light Kit

SKU: FOM-FC-600-KIT-V
£1,540.83 GBP ex VAT
£1,849.00 GBP inc VAT
ex VAT £1,540.83 GBP ex VAT
£1,849.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications
  • What's Included

Flexcolor, with an advanced approach to color mixing, targets white lighting points and combines carefully selected LED light sources with multiple channels to create a complete spectrum of precisely controllable light, including millions of saturated colors, pastels, and high-quality white light.

Key data

  • Full RGB
  • White light dimmable from warm to cold
  • 60W
  • up to 1.910Lux
  • withstands rain
  • Controllable via supplied controller and DMX

Colour modes

  • RGB (red, green, blue each from 0 - 255)
  • HSI (colour 360°, saturation & intensity each in 1% steps)
  • CCT (colour temperature in 50 Kelvin steps, additional regulation in the green & magenta range possible)
  • xy-coordinates (orientation to the CIE chromaticity diagram)
  • large selection of presets
  • brightness of all colours can be dimmed in 1% steps

Technical details

  • Power: 60W
  • Full RGB
  • Colour temperature: 2,000K - 10,000K
  • Water protection class: IP64 (dustproof and protected against water jets)
  • Number of LEDs: 576
  • Beam angle: 120
  • Colour purity: CRI average over 95 / TLCI average over 98
  • Gooseneck wire reinforcement in the frame (if the mat is bent, it holds its shape stably)
  • Velcro strip sewn to the back (holds reliably to the fabric of the vehicle ceiling)

Brightness:

  • 755Lux (at 1m and 2,000K)
  • 1.820Lux (at 1m and 2.700K)
  • 1,880Lux (at 1m and 6,500K)
  • 1.910Lux (at 1m and 10.000K)

Dimensions and weight (of the mat)

  • 300mm x 300mm x 5mm
  • 415g

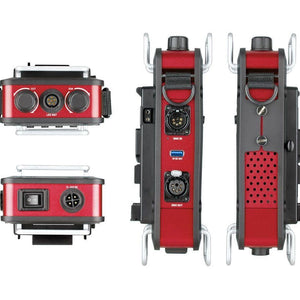

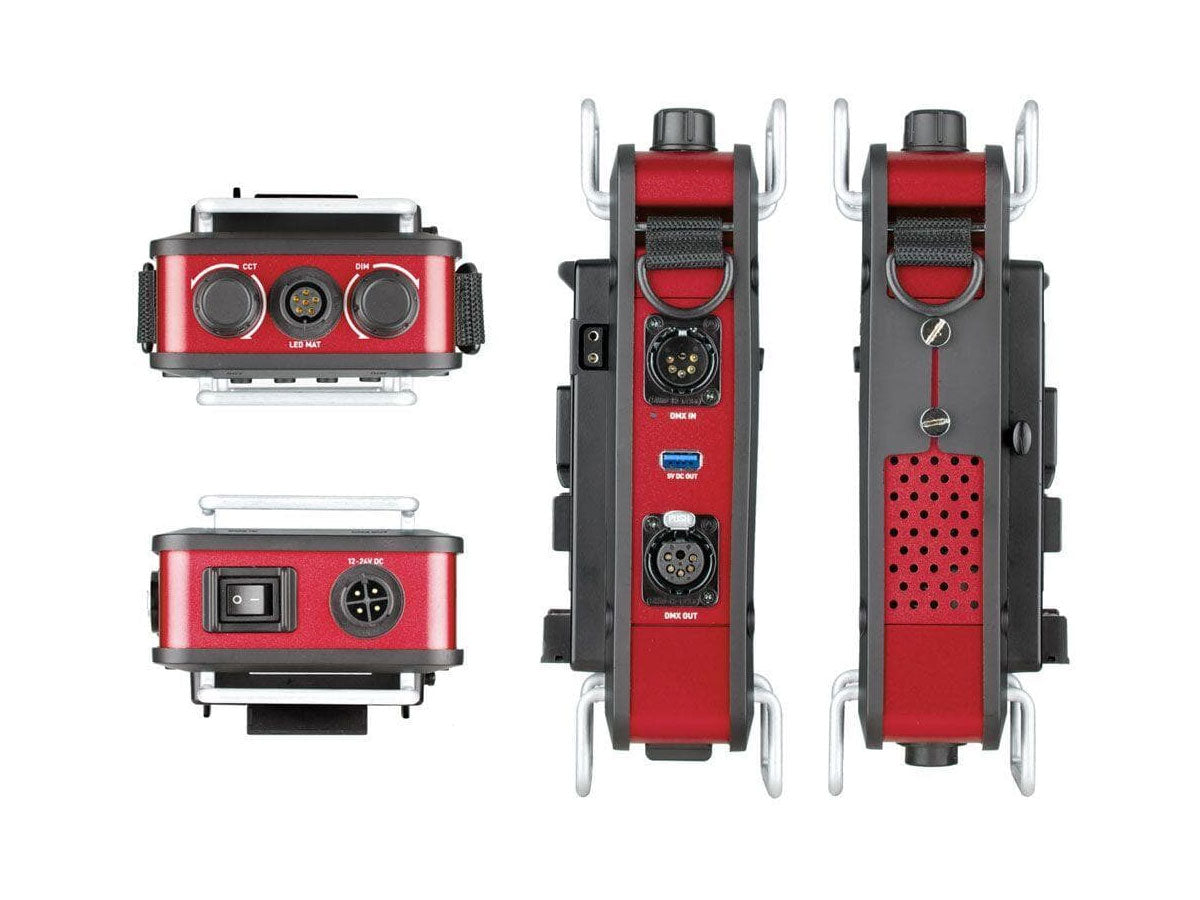

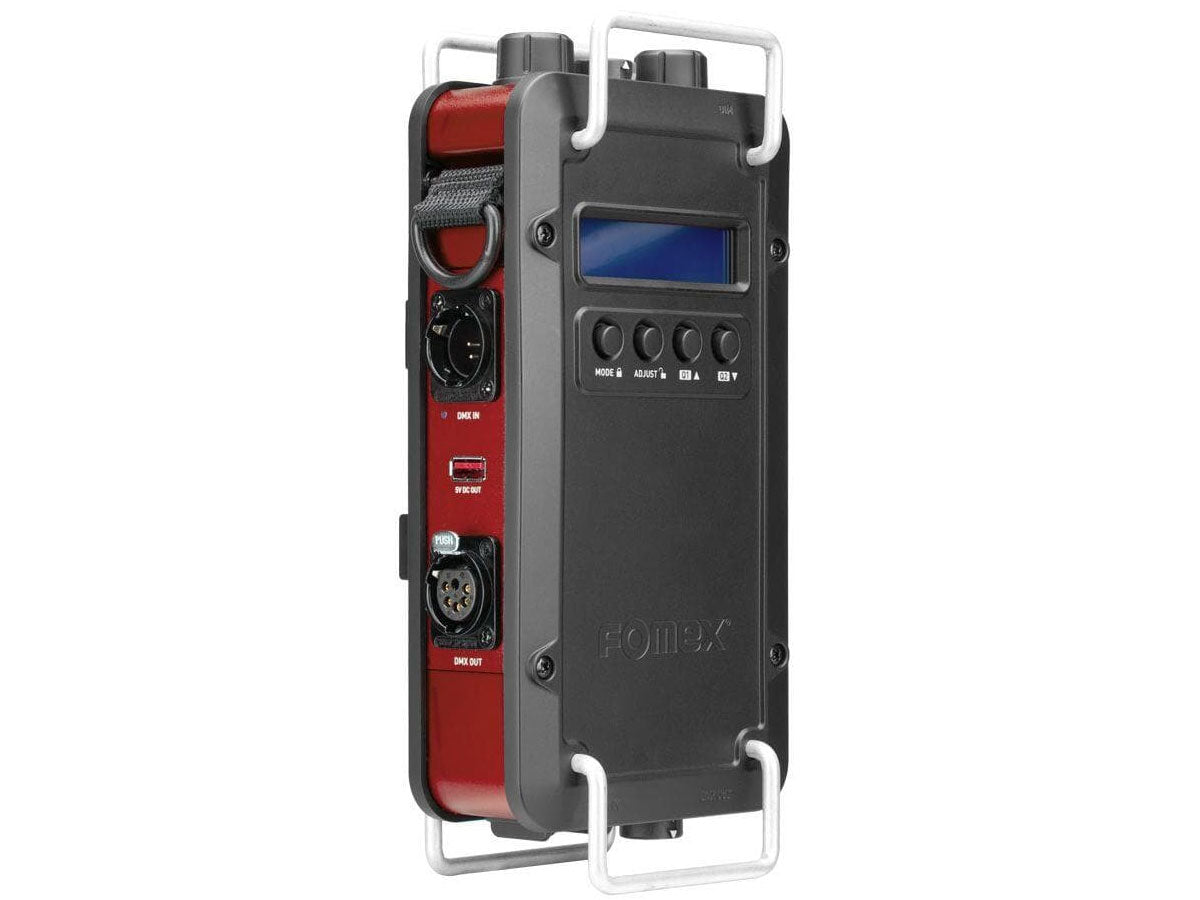

Controller

  • LCD display
  • Intuitive menu navigation
  • Control via knobs and buttons
  • Up to 5 individual settings can be stored (quickly selected via Quick Menu on controller)
  • DMX 512 (5pin XLR In / Out)
  • V-mount battery mount (alternatively available with gold mount)
  • Input for power supply: 12-24V DC

Dimensions and weight (of the controller)

  • 204 x 100 x 55mm
  • 830g

Power supply unit

  • Input: AC100 ~ 240V 50/60Hz
  • Output: DC 19V, 7.9A, 150W

Scope of delivery

  • LED mat
  • Controller
  • X-Mount Bracket for LED Mat (for mounting on a tripod)
  • Power supply + 5m power cable
  • 2m extension cable, connects controller to LED mat (the cable on the mat itself is 1m long. The total range is therefore 3m).
  • Mounting kit to attach controller to tripod
  • Strap to hang the controller over the shoulder
  • Diffuser mat
  • High quality bag

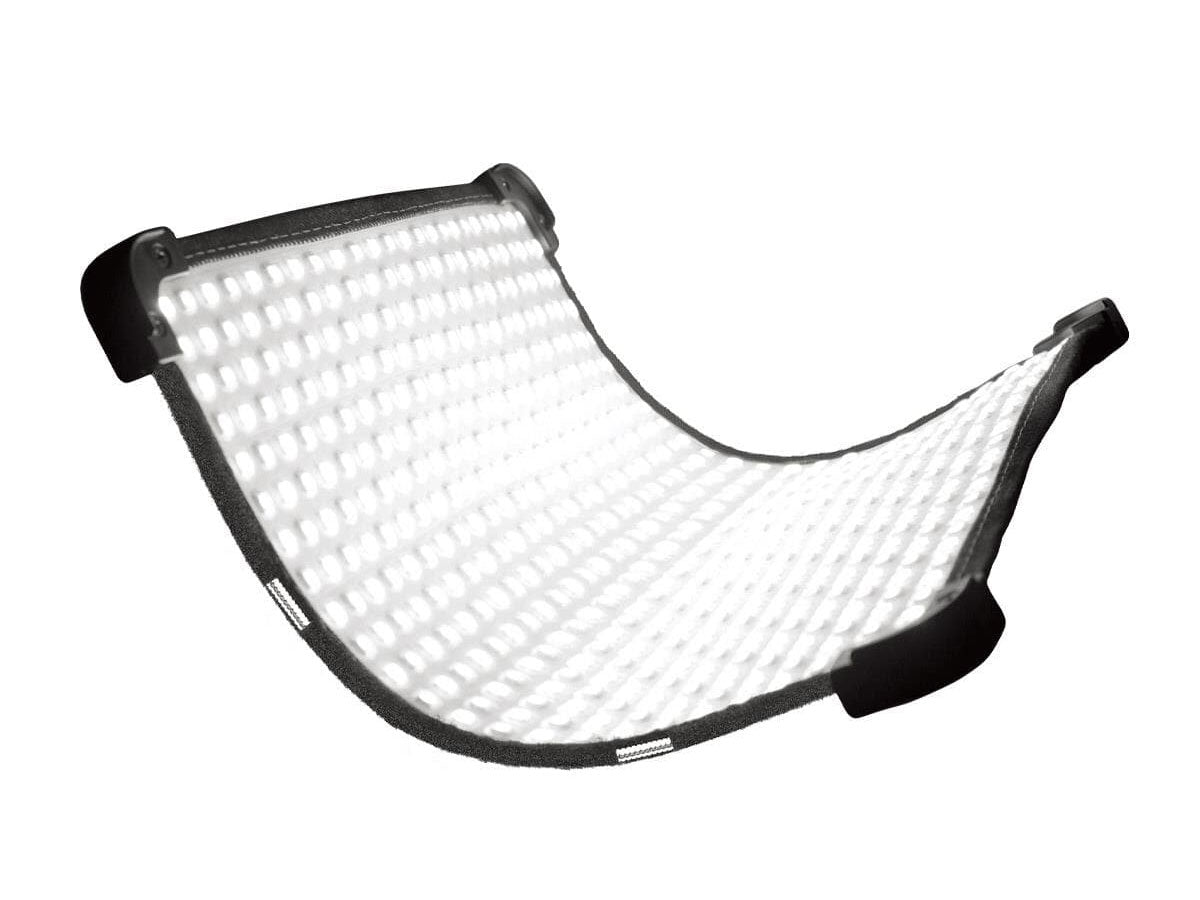

FC600 MAT
Light Output: 1820Lux, 169FC (@1m, 2700K) / 1910Lux, 178FC (@1m, 6500K)
Power Consumption: 60W
CRI/TLCI: CRI Average > 95 / TLCI Average > 98
Colour Temperature 2,000K° - 10,000K°
Coloured Light Full RGB + WW Colour
Input Connector (Waterproof): 8Pin x 1
IP Rating (Mat Only): IP64
Beam Angle: 120°
LEDs: 576
Dimensions (cm): 30 x 30
Weight (g): 440
Controller
Light Output: 19V DC
Power Consumption: 5V DC (USB for WDMX)
CRI/TLCI: 8Pin x 1
Colour Temperature: Continually adjustable
Coloured Light: Supported
Input Connector (Waterproof): Mono OLED
IP Rating (Mat Only): 2,000K° - 10,000K°
Beam Angle: 0-100°
LEDs: V-Mount / Gold Mount
Dimensions: 23.5 x 11 x 8
Weight: 935
Certification: CE, KC
Power Supply
Input: AC100-240V 50/60Hz
Output: 19V 11.58A, 220W
  • 1x FC-600 LED Mat - Black
  • 1x Lighting Controller (DMX) with V-Mount Battery Plate
  • 1x Diffuser sheet
  • 1x X-Mount with 16mm Female Spigot Mount
  • 1x 5m Controller Extension Cable
  • 1x SuperClamp Adaptor Shoe for Lighting Controller
  • 1x AC Power Supply
  • 1x UK IEC Cable
  • 1x Bespoke Carry Bag for Kit
