Fomex FC-1200 - Flexible Colour LED Light Kit
Fomex FC-1200 - Flexible Colour LED Light Kit
SKU:
FOM-FC-1200-KIT-V
Regular price
£1,762.50 GBP ex VAT
£2,115.00 GBP inc VAT
£2,115.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,762.50 GBP ex VAT
£2,115.00 GBP inc VAT
Unit price
per
£2,115.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included
Flexcolor, with an advanced approach to color mixing, targets white lighting points and combines carefully selected LED light sources with multiple channels to create a complete spectrum of precisely controllable light, including millions of saturated colors, pastels, and high-quality white light.
Fomex's Advanced Technical Ability Leads Film & Video Light Source Technology
From the highest quality of pure white light to the most delicare colour expressions, Fomex achieves perfection in the world of media lighting
Light Distribution Curve
Instead of using the existing PWM method, we applied the design of the Constant Current Control method to provide the best light quality without flicker or colour change. Fomex's skilled craftsmanship results in the development and manifacture of high-quality design products, without compromising through cost reduction.
Lighting Mode
Available control mode - CCT/RGB/HUE/GEL/X-Y Coordinate
Only the Fomex FC RGBWW Mat can perfectly fulfill the conditions require dofr variouslighting directions through excellent light quality and colour reproduction. The FC RGBWW LED lighting mat surpasses the limits of traditional lgihting sources and provides CCT Functionality that enables the tuning of broadband light sources randing from 2000k to 10000k. Also, the industry-standard colour gel rpeset mode and HUE, RGB, and X/Y coordinate mdoes and provided to maximze convenience sensitively respond to various user needs.
Wireless Control
CRMX (DMX & RDM)
Lumen Radio CRMX Wireless Control System
The Lumen Radio CRMX, which has established itself as the industry standard for wireless lighting control systems, automatically detects signal transmissions and is capable of wirelessly controlling DMX Channels with high relaiability in any situation. In addition, a newly added Bluetooth module called Timo Two enables high level control. Timo Two Bluetooth module is considered the most relaible module in the wireless DMX market, due to its easy and quick implementation of lighting system set ups and the capability to control through multiple portable devices using shared Bluetooth control technology.

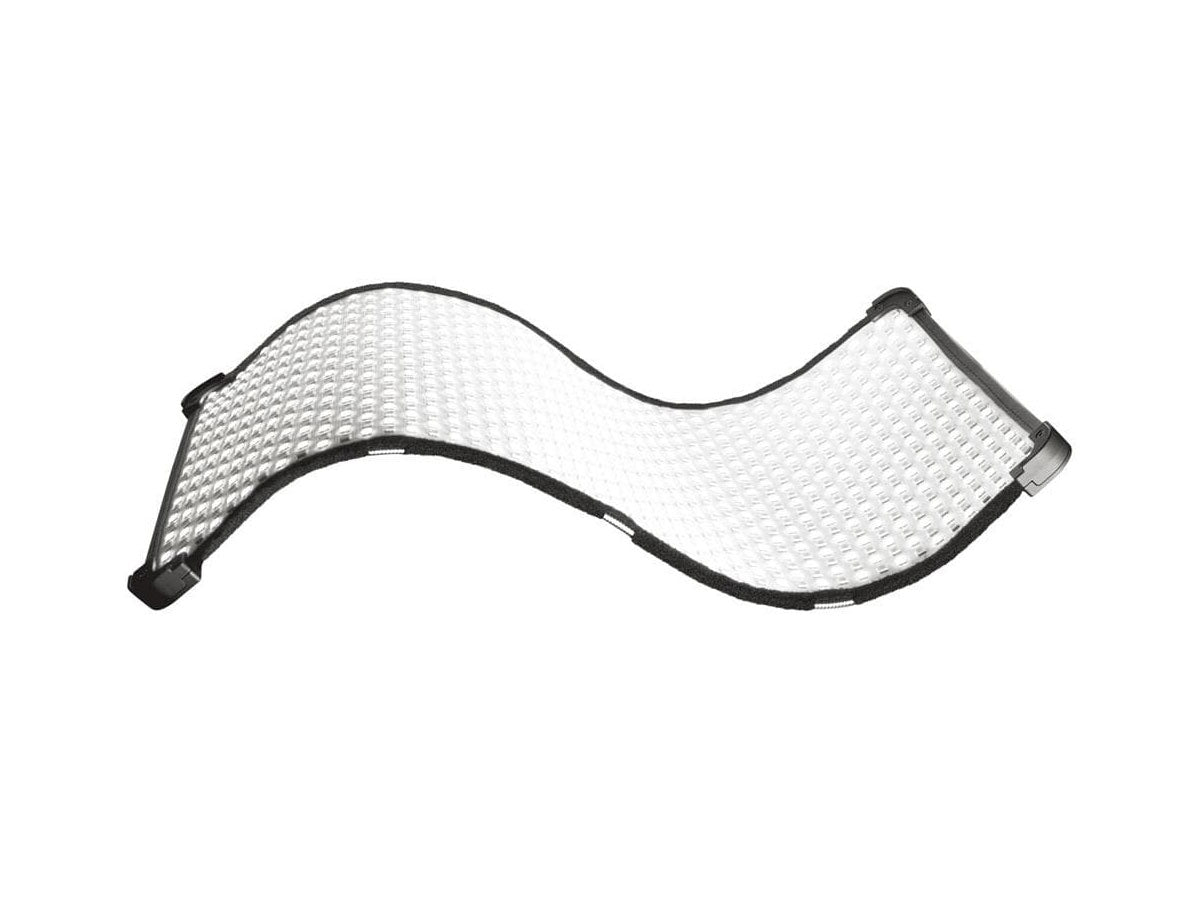

| FC1200 MAT | |
| Light Output: | 3690Lux, 342FC (@1m, 2700K) / 3840Lux, 357FC (@1m, 6500K) |
| Power Consumption: | 120W |
| CRI / TLCI: | CRI Average > 95 / TLCI Average > 98 |
| Colour Temperature: | 2000K ~ 10000K |
| Coloured Light: | Full RGB + WW Colour |
| Input Connector (Waterproof): | 8 Pin x 1 |
| IP Rating (Mat Only): | IP64 |
| Beam Angle: | 120 Degrees |
| LEDs: | 1152 |
| Dimensions: | 20 x 58cm |
| Weight: | 760g |

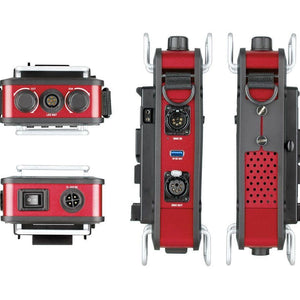

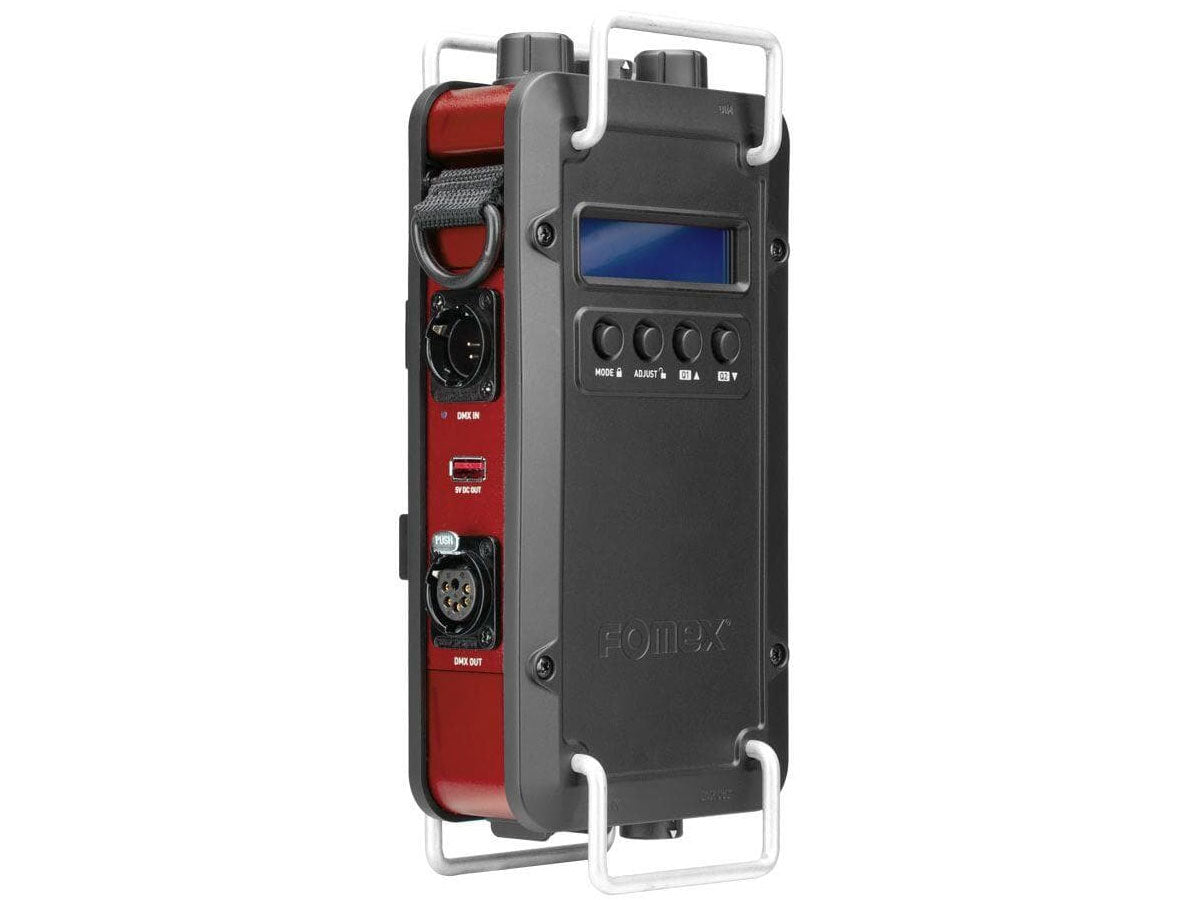

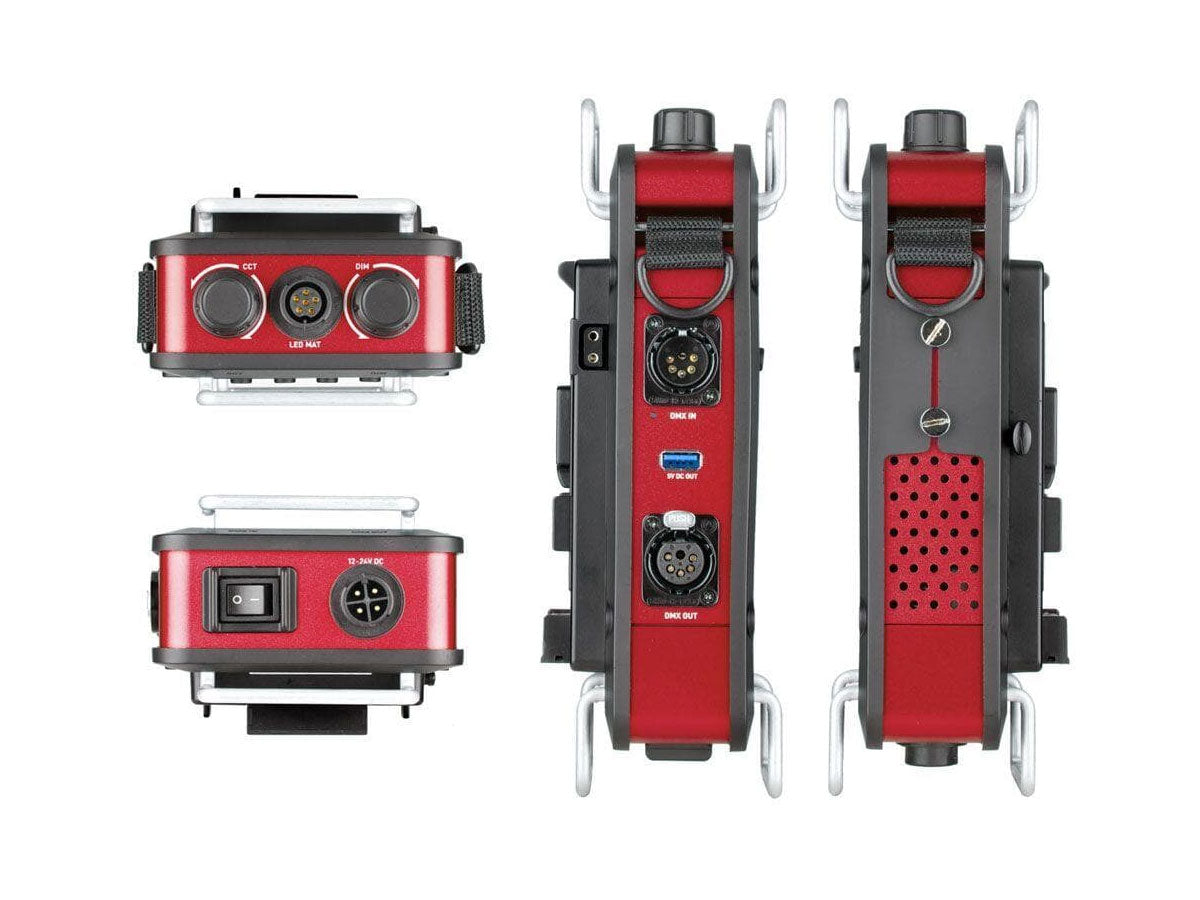

| CONTROLLER | |
| Display: | OLED |
| Power Consumption: | 150W Maximum (White) 50W (RGB) |
| Channel: | Different channel depending on white light and RGB |
| Coloured Light: | Full RGB + WW colour gamut with hue and saturation control |
| Colour Rendition: | CRI average > 95 TLCI average > 95 |
| Green - Magenta Adjustment: | Continuously adjustable |
| Dimming: | 0 ~ 100% |
| White Light Temperature: | 2,000K ~ 10,000K, continuously variable correlated colour temperature |
| HSI: | Hue, Saturation, Intensity control |
| RGB: | Full-colour RGB control |
| GEL: | Lee Filter, Rosco Filter |
| Light Effect: | Can control the value of Effect Mode |
| Colour Coordinates: | Can control colour coordinates by X~Y axes |
| Control: | Onboard controller, 5-pin DMX In and Through, USB-A, wireless DMX, RDM |
| Battery Connector: | Connection with V mount plate |
| Voltage Input: | 12V ~ 24V DC |
| Battery Voltage Range: | 12V ~ 24V DC |
| Battery Mode Light Output: | 100% of total output |
| Remote Device Management (RDM): | Lumenradio module embedded (Timo Two FX) Standard RDM commands, DMX setup and control |
| Software Interface: | USB-A; Firmware Upgrade |
| Cooling Fan: | Speed control by sensing or setting temperature and output |
| POWER SUPPLY | |
| Input: | 100 ~ 240V, 50/60 Hz |
| Output: | 19.5V DC |
- 1x FC-1200 LED Mat - Black
- 1x Lighting Controller (DMX) with V-Mount Battery Plate
- 1x Diffuser sheet
- 1x X-Mount with 16mm Female Spigot Mount
- 1x 5m Controller Extension Cable
- 1x SuperClamp Adaptor Shoe for Lighting Controller
- 1x AC Power Supply
- 1x UK IEC Cable
- 1x Bespoke Carry Bag for Kit
