Fiilex Q8 Color - 320W 8" Fresnel LED

Fiilex Q8 Color - 320W 8" Fresnel LED

SKU: FII-FLXQ8CLRLR
£4,860.00 GBP ex VAT
£5,832.00 GBP inc VAT
ex VAT £4,860.00 GBP ex VAT
£5,832.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

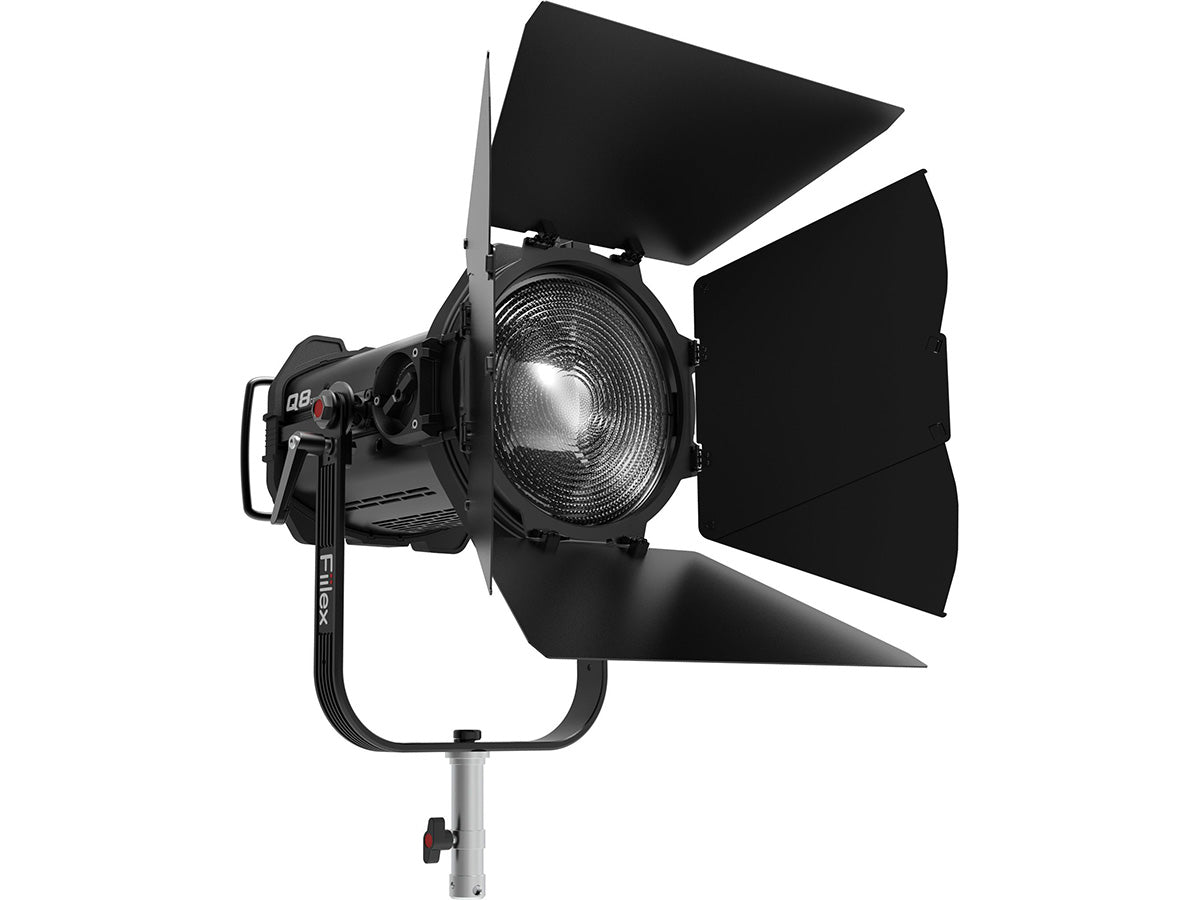

The Q8 Colour is a 320W 8” LED Fresnel that generates high-quality full-colour light output. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color fidelity and optical versatility that are superior to previous generations of LED fresnels. With an extremely wide spot/flood range, smooth dimming to 0%, no flicker, and high CRI, the Q8 Color combines the extensive feature set of top-tier RGBW LEDs with the performance of a tungsten fresnel.

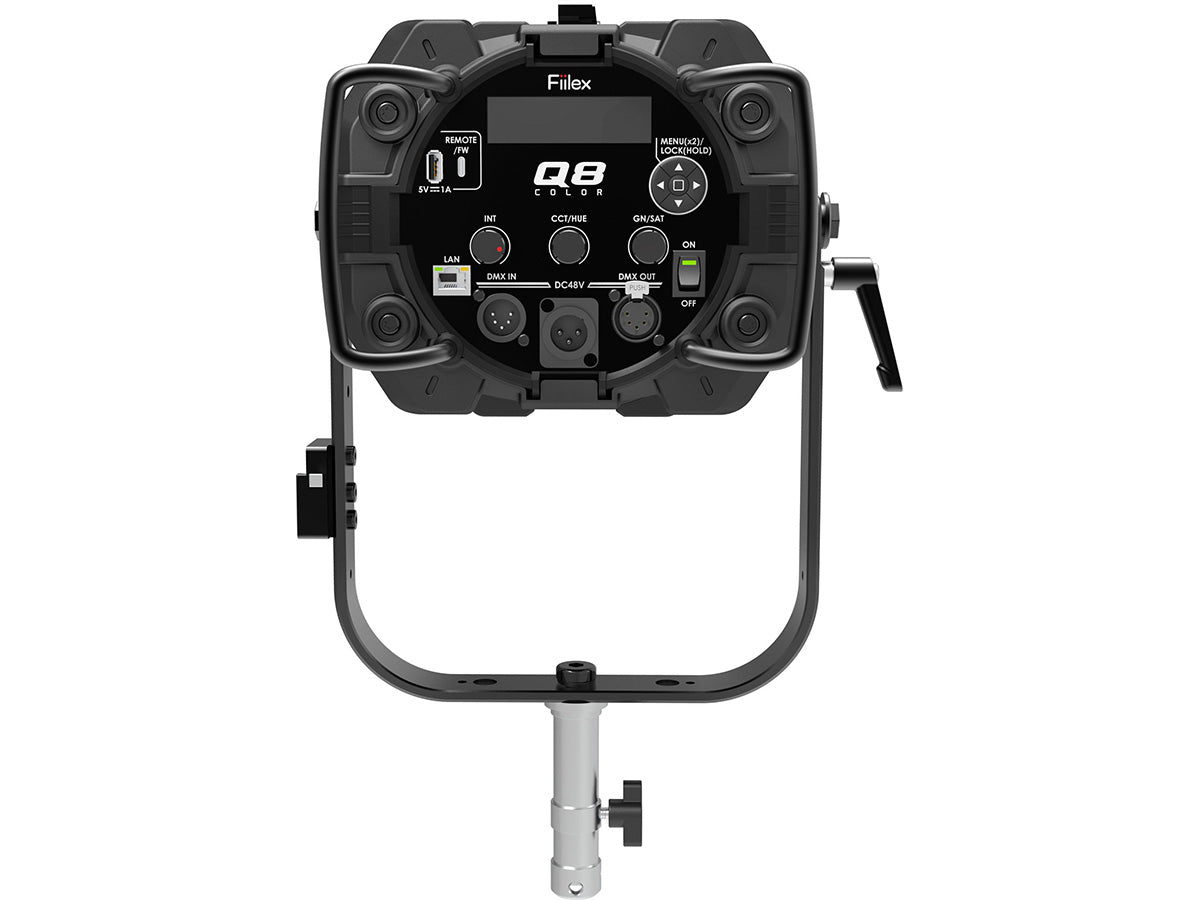

Various colour control modes, including CCT, HSI, Gels, and Effects, are accessible via the fixture’s control pad. All modes support 8 and 16 bit DMX.

  • High-CRI white light output (2000-10000K)
  • Additional 8 and 16 bit color modes: HSI, Effects, RGBW, Gels, CCTHSI, CIExy, etc.
  • 12-62° spot / flood range with no optical aberrations
  • 8-leaf barndoor cuts clean with no colour splitting
  • Dims to 0% without flicker or colour shift
  • Smooth and Sharp dimming modes
  • Four fan speed modes: Full, Variable, Silent, Off
  • IP-25 Rating (water-resistant)
  • Compatible with industry standard softboxes via speed ring accessory
Fresnel Diameter 8"
Beam Angle 12°-62°
CCT Range 2000-10000K continuous tuning + magenta/green shift
CRI 94 typical
Control Modes CCT, HSI, RGBW, Gels, Effects, CCTRGBW, CCTHSI, CIExy, ICTHS
Dimming 100 - 0% flicker free
Dimming Modes Smooth, Sharp
Light Engine 1x 300W DiCon Dense Matrix LED
Power Consumption 320W AC / 300W DC
DC Input 48V DC
AC Input 100-240V AC, 50 - 60Hz
Power Port XLR-3
DMX Port XLR-5
Weight Fixture: 17lbs / 7.7kg / Power Supply: 4.8lbs / 2.2kg
Dimensions 13.8" x 12.7" x 19.8"/ 353mm x 323mm x 503mm
Mount Type Combo (baby stud female / junior stud male)
IP Rating IP-25 (water-resistant)
Thermal Design Aluminium extrusion cooling system w/ fan
Operating Temperature 0-40º C / 32-104ºF
