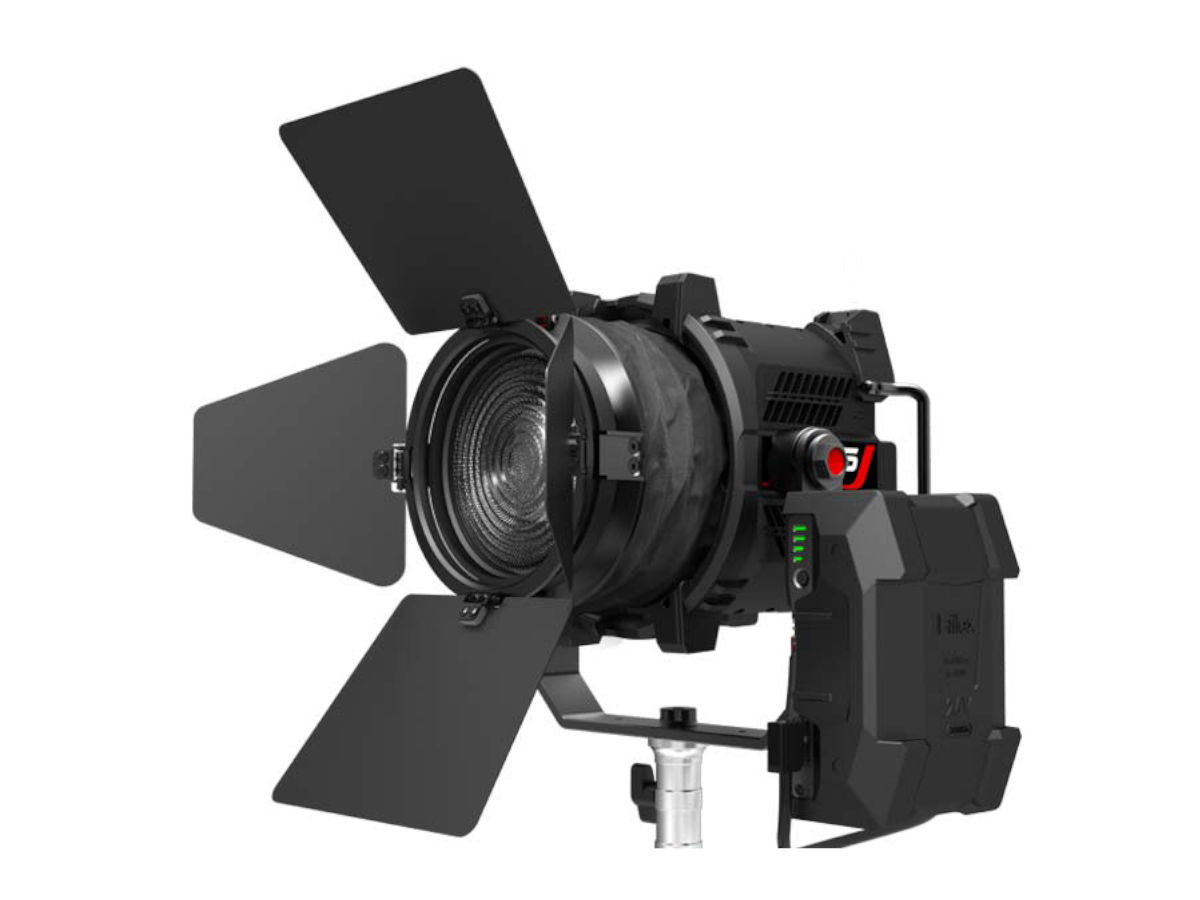

Fiilex Q5 Colour - 185W Cinematic 5inch Fresnel LED Light
Fiilex Q5 Colour - 185W Cinematic 5inch Fresnel LED Light
£2,566.08 GBP inc VAT
£2,566.08 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
The Q5 Colour is a 185W 5” LED Fresnel that generates high-quality white and RGB light output. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver colour quality and optical versatility that are superior to previous generations of LED fresnels. With its wide spot/flood range, smooth dimming to 0%, no flicker, and high CRI, the Q5 Colour combines the extensive feature set of top-tier RGBW LEDs with the performance of a tungsten fresnel.
The Q5 light head weighs only 7 lbs, and its innovative V-mount power system means that the fixture’s power supply can be easily swapped out with compatible V-mount batteries. Light settings can be adjusted on the Q5’s back panel via the directional pad or the intuitive control knobs. The directional pad can also access the Q5’s different fan and dimming modes, as well as the various control modes, which include CCT, HSI, Gels, and Effects in both 8-bit and 16-bit versions.
- High quality multi-phosphor white light output (2000-10000K)
- Additional 8 and 16 bit colour modes: RGBW, Effects, HSI, Gel Presets, CCT+RGBW, CCT+HSI, etc.
- 12°-55° spot/flood range with no optical aberrations
- Barndoor cuts clean with no colour splitting
- Dims down to 0% without flicker or colour shift
- V-mount power supply swaps easily with 26V batteries
- Extremely lightweight (≈3 kg)
- Removable Fresnel for wider throw / softbox compatibility
- Smooth and Sharp dimming modes
- Three fan speed modes: Full, Variable, Silent
- IP-25 Rating (water-resistant)
| Fresnel Diameter | 5” |
| Beam Angle | 12°-55° (80° without fresnel) |
| CCT Range | 2000-10000K continuous tuning + magenta/green shift |
| CRI | 95 Typical. |
| Control Modes | RGBW, CCT, HSI, Gel Presets, Effects, CCT + RGBW, CCT + HSI, CIE xy |
| Dimming | 100% - 0% |
| Dimming Modes | Smooth, Sharp |
| Light Engine | 1x 165W DiCon Dense Matrix LED |
| Power Consumption | 185W AC / 165W DC |
| DC Input | 24V-48V DC |
| AC Input | 100-240V, 50~60Hz |
| Power Port | XLR-3 |
| DMX Port | XLR-5 |
| Weight | Fixture: 7.3lbs / 3.3kg |
| Power Supply: 2.6lbs / 1.2kg | |
| Size (L x W x H) | 11.1" x 7.2" x 13.2" / 28.3cm x 18.2cm x 33.6cm |
| Mount Type | Combo (baby stud female / junior stud male) |
| IP Rating | IP-25 (Water-Resistant) |
| Thermal Design | Aluminium extrusion cooling system w/ fan |
| Operating Temperature | 0-40º C / 32-104º F |
