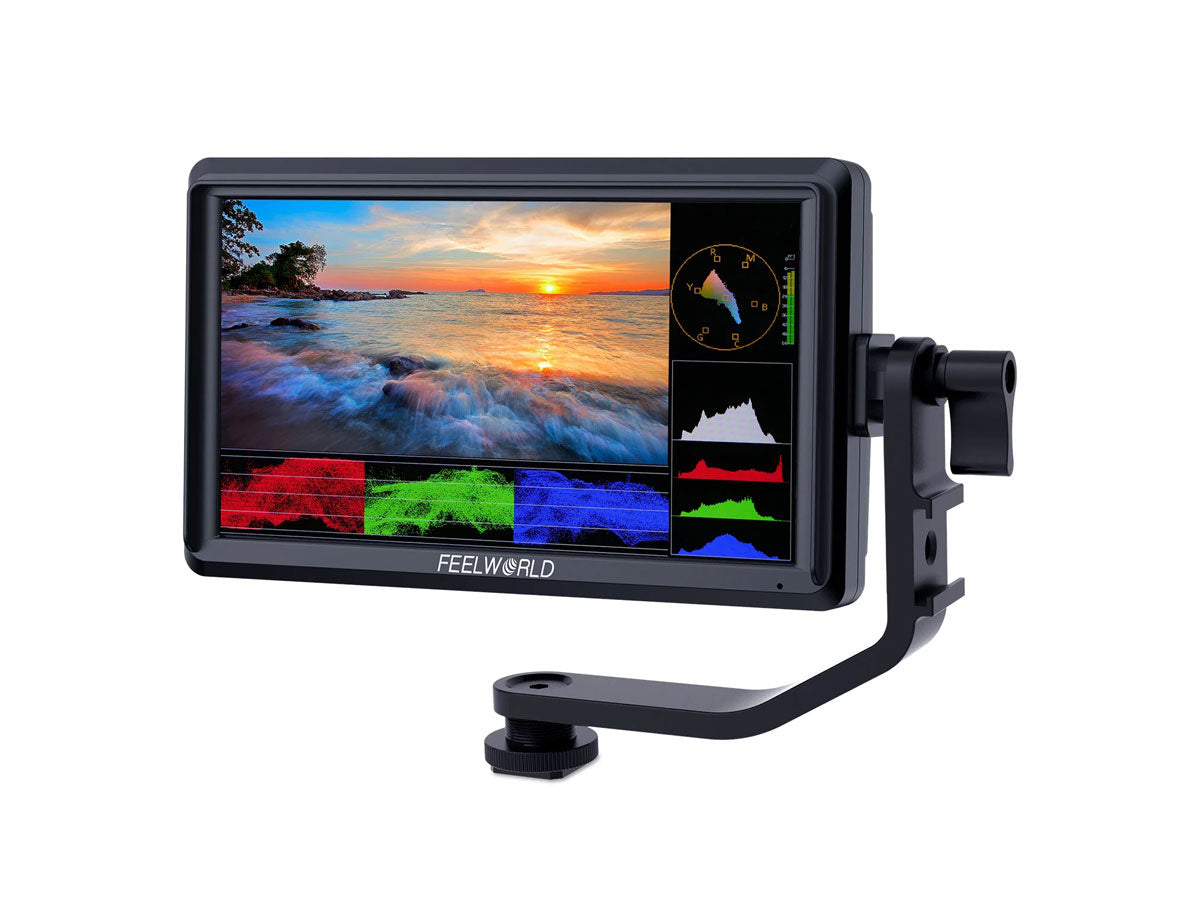

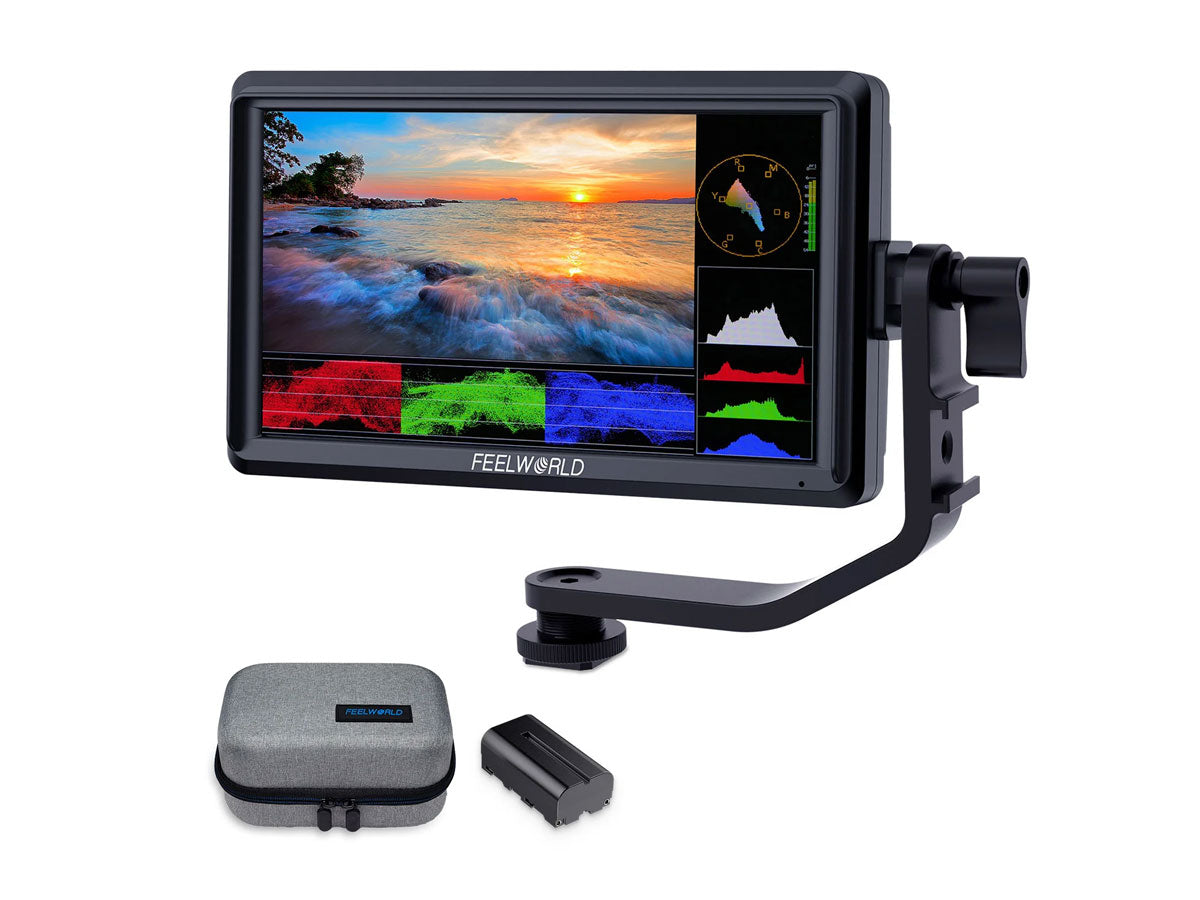

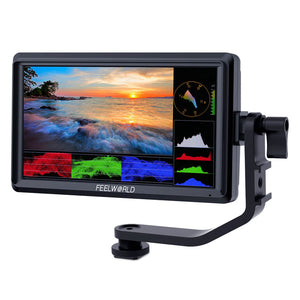

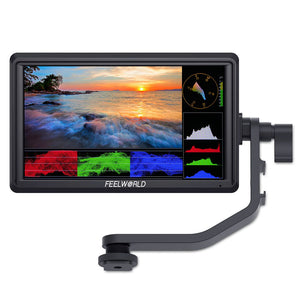

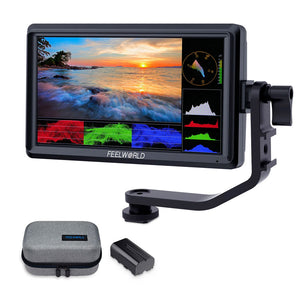

Feelworld FW568S 6" 1920x1080 On-Camera Field Monitor
Feelworld FW568S 6" 1920x1080 On-Camera Field Monitor
SKU:
FEE-FW568S
Regular price
£199.99 GBP ex VAT
£239.99 GBP inc VAT
£239.99 GBP inc VAT
Regular price
ex VAT
Sale price
£199.99 GBP ex VAT
£239.99 GBP inc VAT
Unit price
per
£239.99 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
FEELWORLD FW568S is a 6-inch full HD field monitor, equipped with 3G-SDI, 4K HDMI input and output interfaces, and provides a series monitoring and framing tools with new menu layout, various numerical parameters are clear at a glance, easy to setting. There is a F970 external install and power kit on the rear of FW568S, which can install such as wireless transmission, LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables. And the FW568S compact and lightweight especially suitable for use with gimbal, to meet the photographers and 1st AC to move on set.
- 6-inch 1920x1080full HD IPS screen
- New UI interface, easier to setup
- Scroll Wheel button operation, a button can complete all the operations
- Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 32)
- With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, help you accurately exposure and focus every shot.
- Multiple power supply modes: DC IN 12V, Type-C 5V and NP-F battery slot, meet the different selection.
- Stereo Earphone output
- Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment
- DC 8V power out to power your DSLR camera or mirrorless camera
| Model: | FW568S |
| Screen Size: | 6" IPS |
| Display Colours: | |
| Resolution: | 1920x1080 pixels |
| Pixel Pitch: | 0.069 (H) × 0.069 (V) (mm) |
| Aspect Ratio: | 16:9 |
| Brightness: | 450cd/m² |
| Contrast Ratio: | 1000:1 |
| Backlight: | LED |
| Viewing Angle: | 80°/80°(L/R) 80°/80°(U/D) |
| Input: | 1 X HDMI 1 X SDI 1 X Type-C |
| Output: | 1 X HDMI 1 X SDI 1 X DC |
| Audio: | 3.5mm Stereo Headphone |
| SDI Support Format: | 720p(60/59.94/50/30/29/25/24/23.98) 1080i(60/59.94/50) 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
| HDMI Support Format: | 480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/23.98) 3840x2160p(30/29.97/25/24/23.98 Hz) 4096×2160p(24Hz) |
| Power Consumption: | ≤9W |
| Input Voltage: | DC7～24V |
| Operating Temperature: | -20°C~50°C |
| Storage Temperature: | -30°C~60°C |
| Installation: | 1/4"-20 Thread Socket ( Right, Top, Bottom) |
| Dimensions: | 151Lx92Hx31.4D(mm) |
| Weight: | 203g |
